Volantex RC Glider ASW28-PNP 759-1
(Radio, Receiver, Battery and Charger not included in the PNP version)
Overview
The Volantex RC 4 Channel RC Glider ASW28 V2-PNP 759-1 is a highly popular, sport-scale electric radio-controlled glider. It features a large 2.54-metre (2600mm) wingspan and a hybrid design using a blow-moulded plastic unibody fuselage paired with durable EPO foam wings.
This specific variant is a PNP (Plug-and-Play) model Radio Transmitter not included. It arrives with the core propulsion and control electronics pre-installed, requiring you to supply your own transmitter, receiver, and flight battery.
Ideal for FPV flying for experienced flyers!
Description
This V2 ASW-28 is a hybrid foam and plastic model with a few nice upgrades over the V1. The wings and tail are EPO foam while the fuselage is blow molded plastic which give provides an exceptional blend of durability and performance.
Features
- Quick, easy assembly, no glow required
- Beautiful and superb scale design

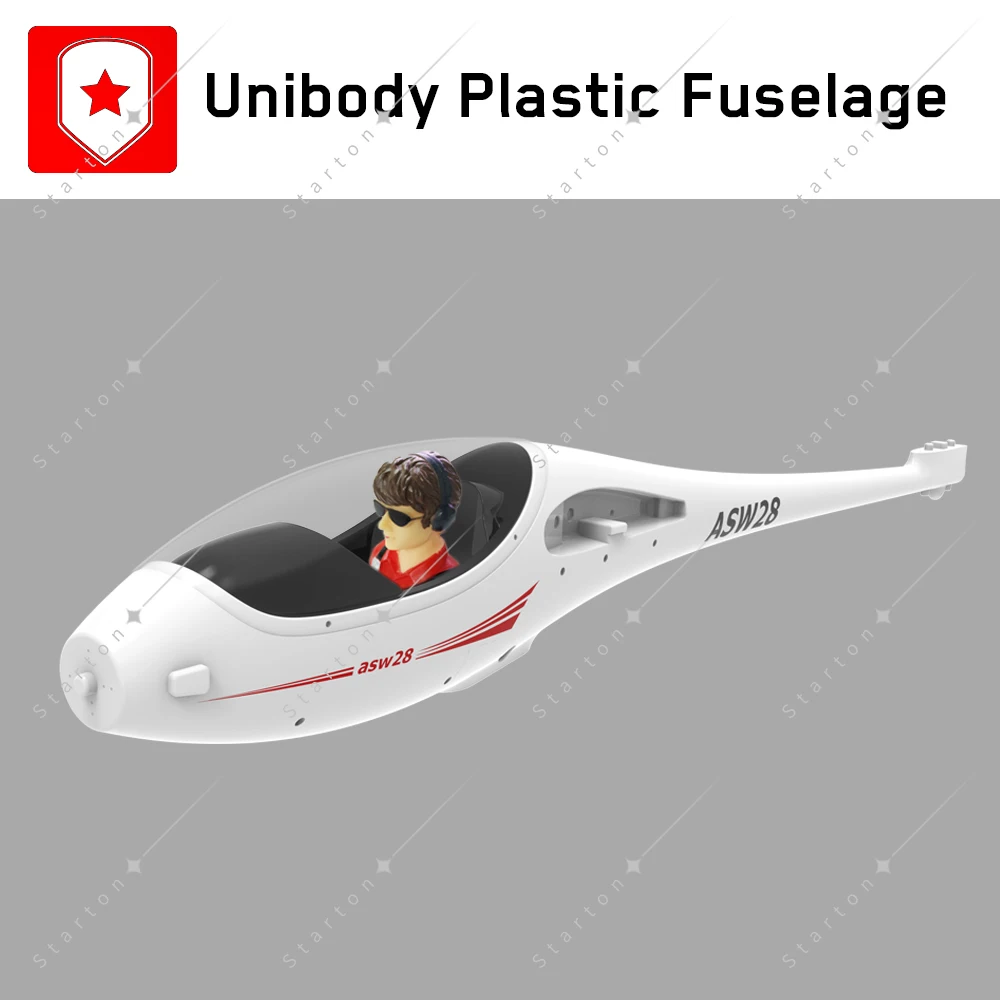

- Plastic Unibody design makes it much more durable
- Light weight and durable EPO construction
- Big space fuselage make FPV become easier

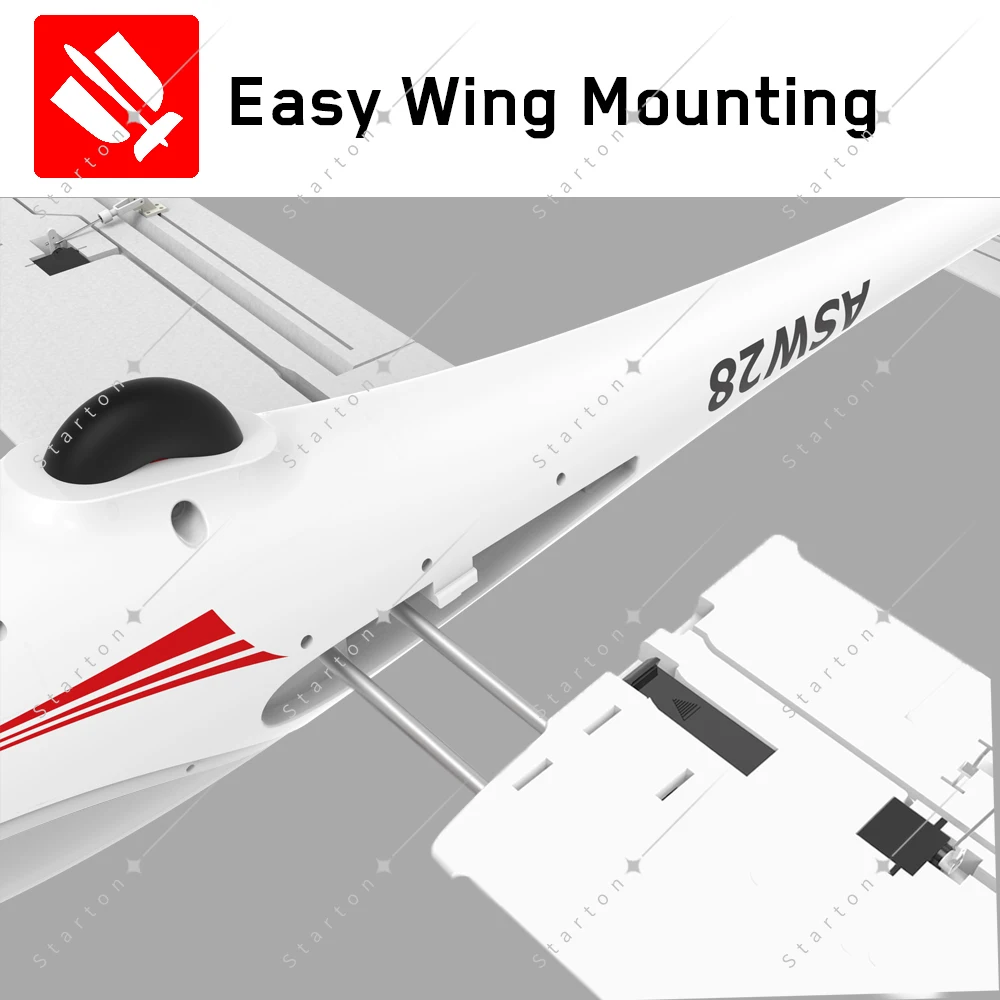

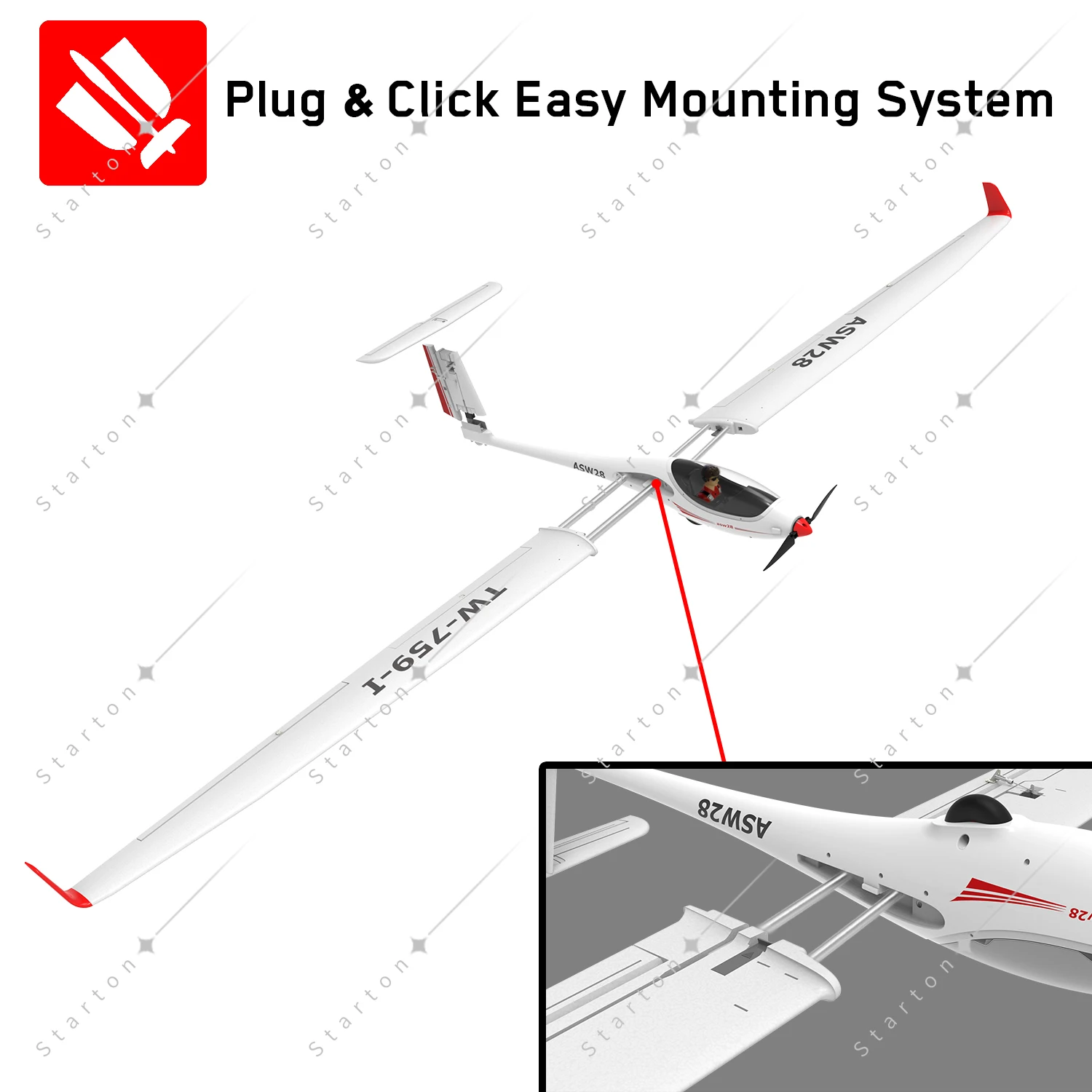

- New simpler connections wings
- Additional strengthening wings

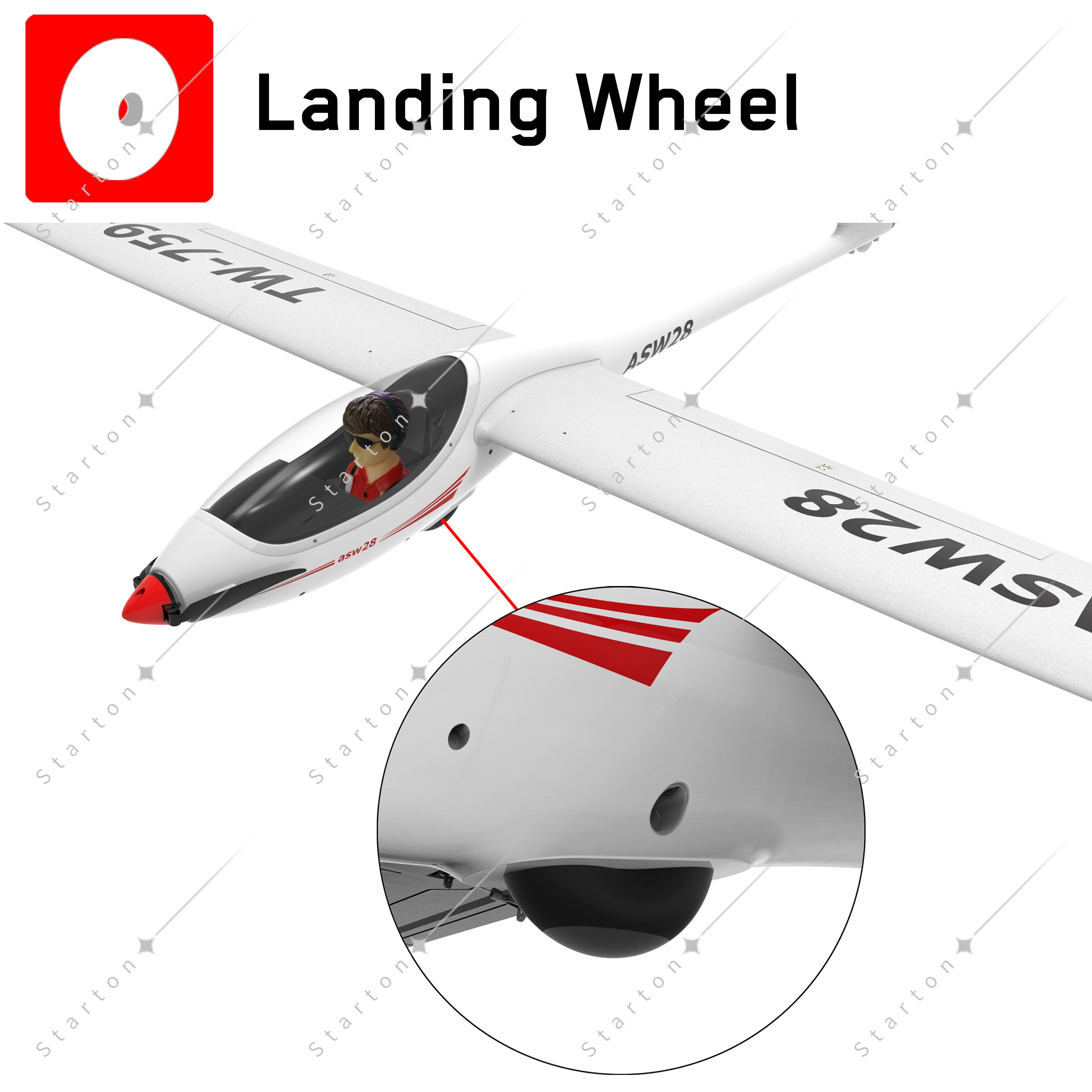

- Wheel on landing gear for easy landing
- Powerful over-grade motor system and 4 channel allow easy controlling to do aerobatic flying
- STABLE PERFORMANCE WITH Multiple locations to install your own camera
- Special airfoil design for carrying big weight

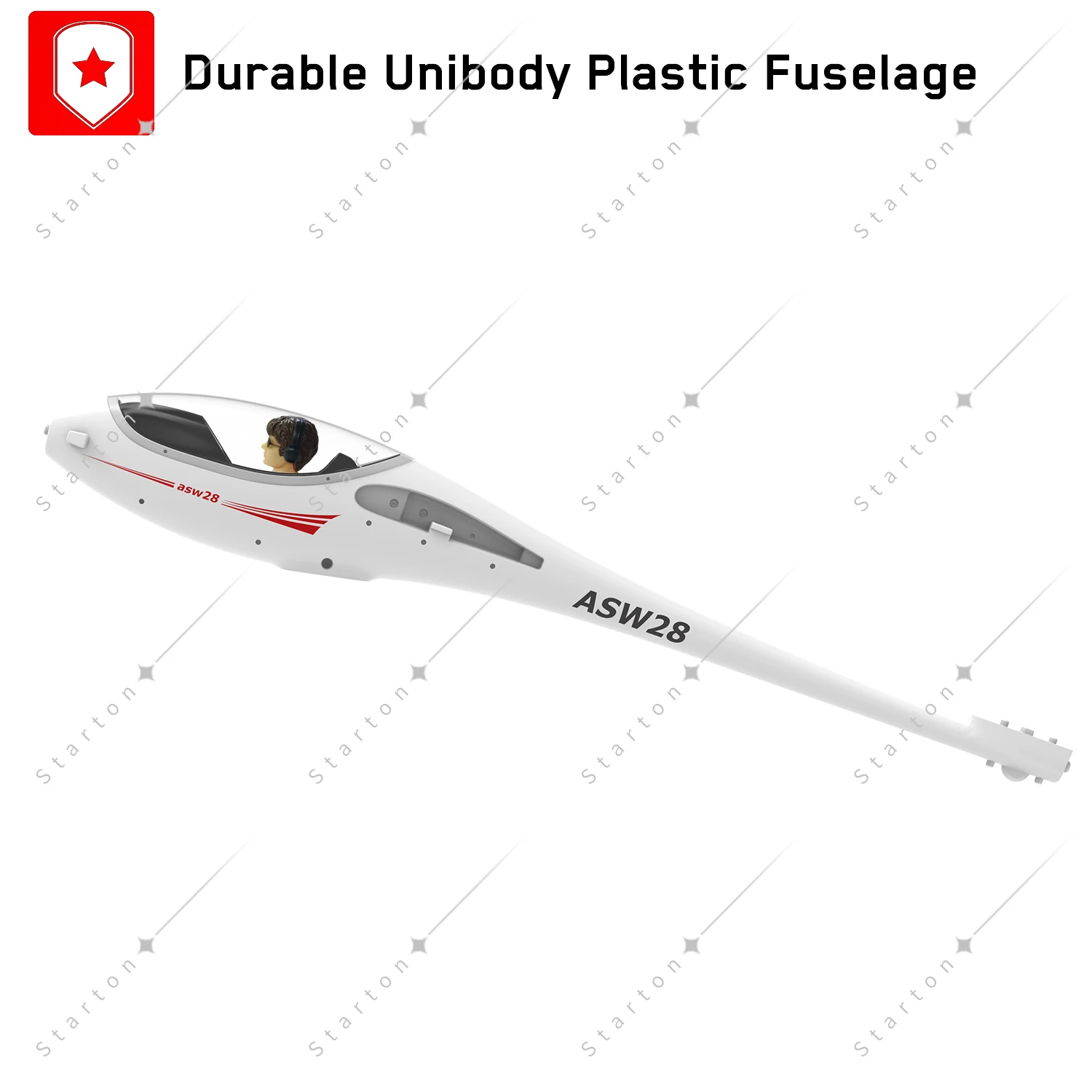

- Strong Plastic Fuselage provides flexibility and durability to keep the plane from crashing damages.
Specifications
|
Products Weight(without battery):
|
1050g
|
|
Products Dimension:
|

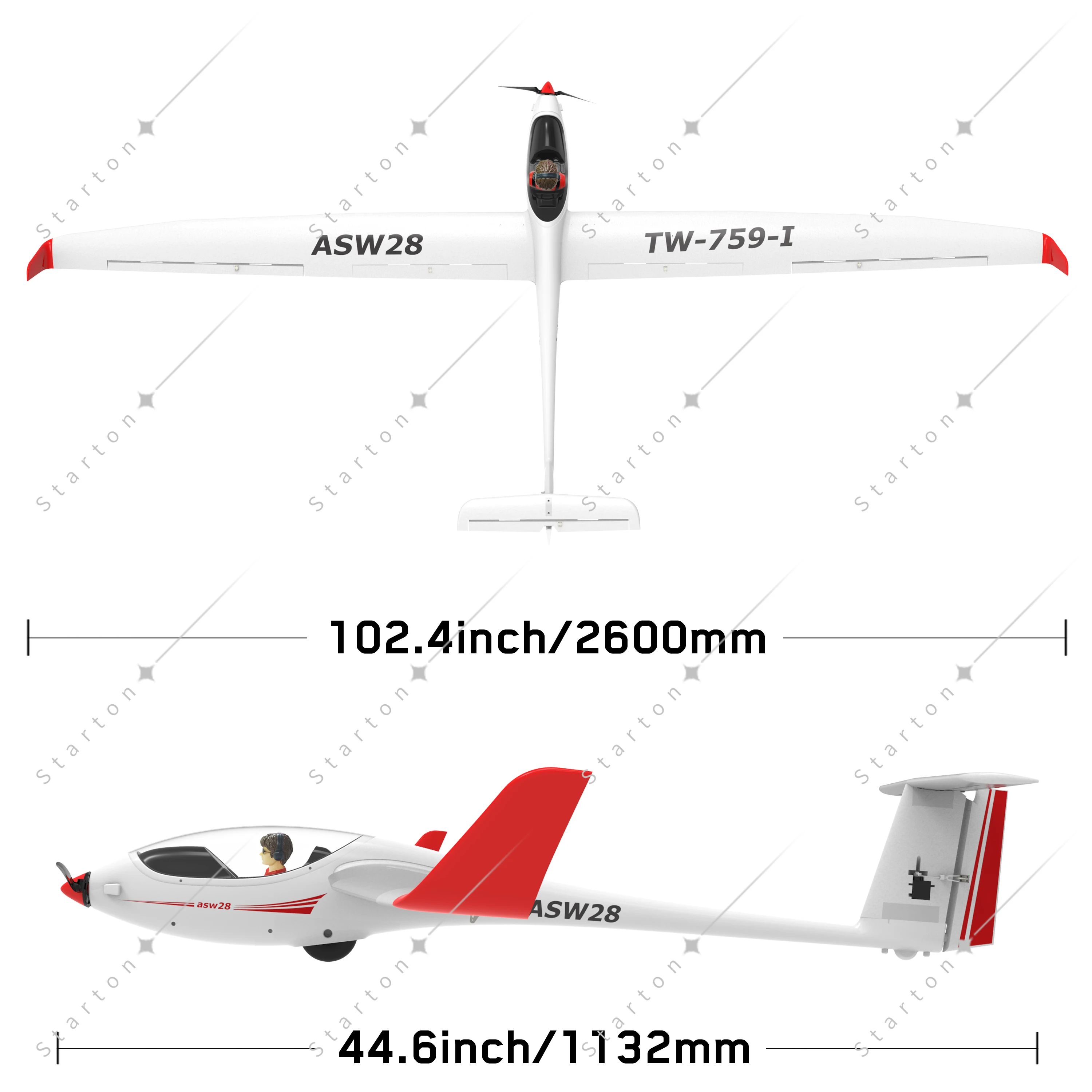

1132mm x 2600mm
|
|
Recommended Battery:
|
11.1V 2200mAh 20C Li-po (For RTF version Only)
|
|
Motor Size:
|
850KV powerful out runner brushless motor (For PNP/RTF version)
|
|
Servo:
|
9g plastic gear x 6pcs (For PNP/RTF version)
|
|
ESC:
|
Easy-Plug 30A Switch-mode BEC brushless ESC (For PNP/RTF version)
|
|
Radio:
|
2.4Ghz 6-Channels (For RTF version Only)
|
|
Charger:
|
LiPo Charger (For RTF version Only)
|
|
Xpilot(Stabilizer):
|
Yes (For RTF version Only)
|
|
Box size:
|
125 x 17 x 26cm
|
|
PCS/CTN:
|
4
|
|
Carton size:
|
129 x 30 x 68cm
|
|
Minimum Age Recommendation:
|
14 years
|
|
Experience Level:
|
Beginners ~ Expert
|
|
Recommended Environment:
|
Outdoor
|
|
Assembly Time:
|
Less than half hour
|
|
Is Assembly Required:
|
Yes
|
The kit includes
- Volantex ASW28 - PNP Factory-assembled plastic unibody fuselage
- Pre-installed brushless outrunner motor
- Pre-installed Brushless ESC (Electronic Speed Controller)
- Pre-installed 9g servos for control surfaces
- Folding propeller assembly
- Two-piece EPO foam wings with an internal strengthening spar
Required to Complete (Not Included)
- Radio System: Minimum 5-6 channel transmitter and
- Matching Receiver
- Battery: 3S (11.1V) LiPo battery (typically 1500mAh
