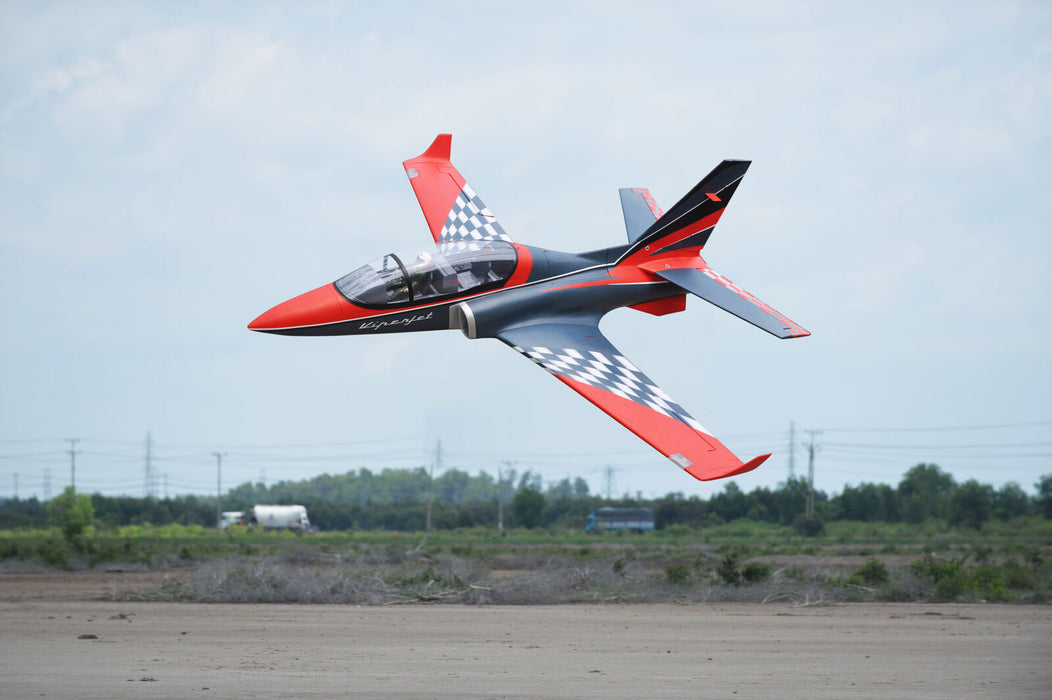

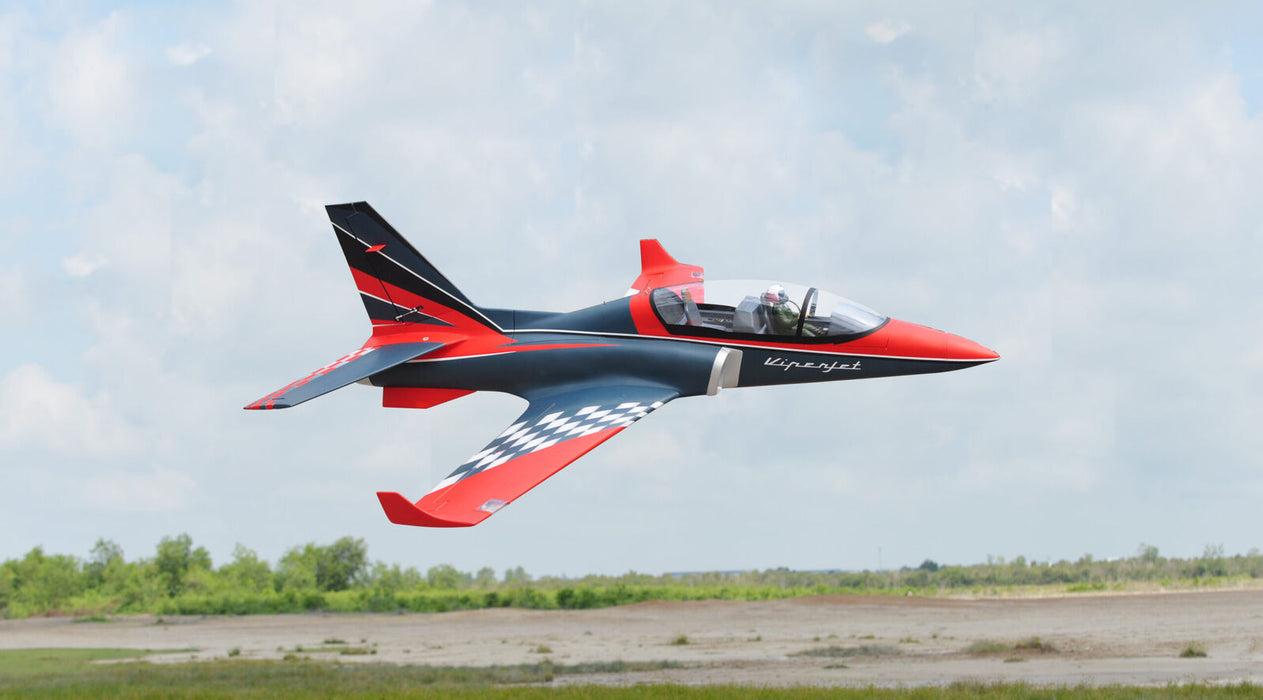

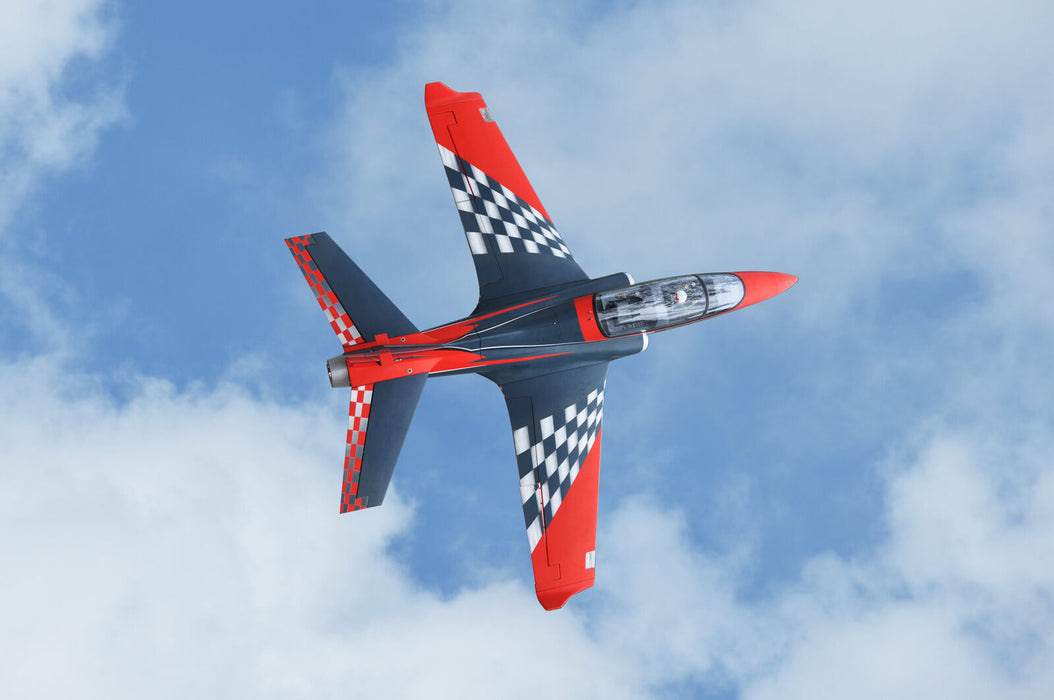

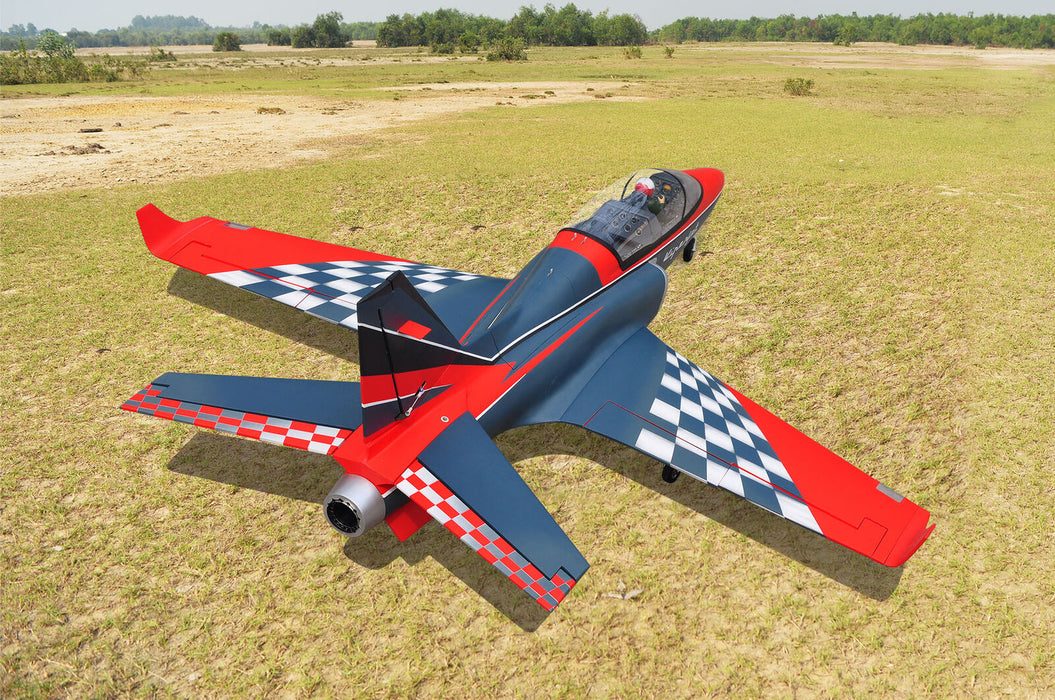

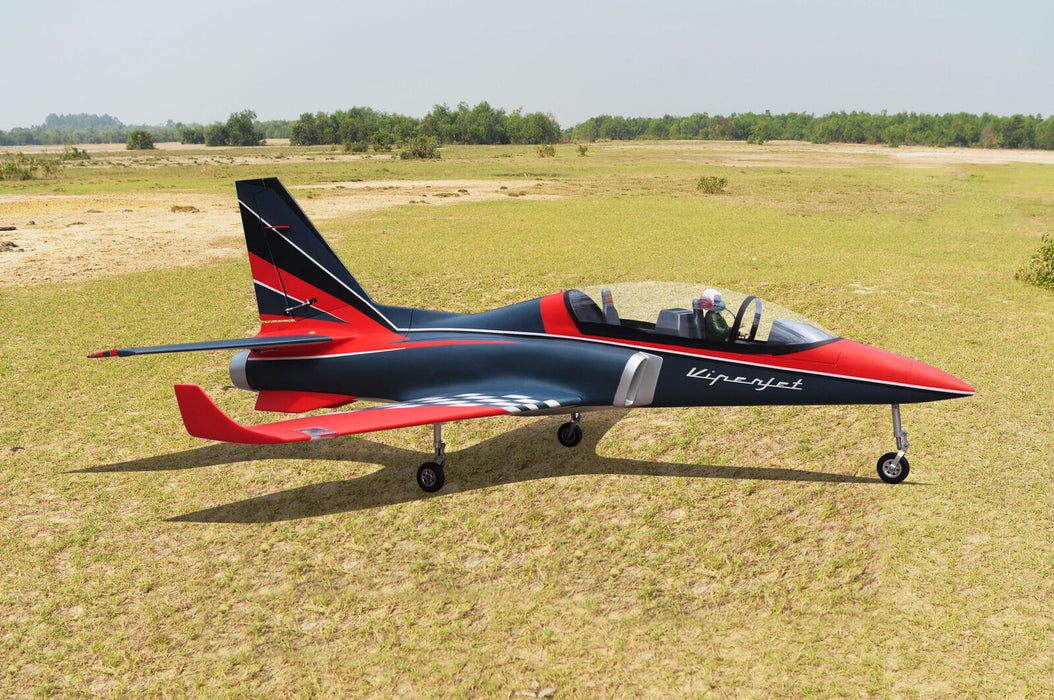

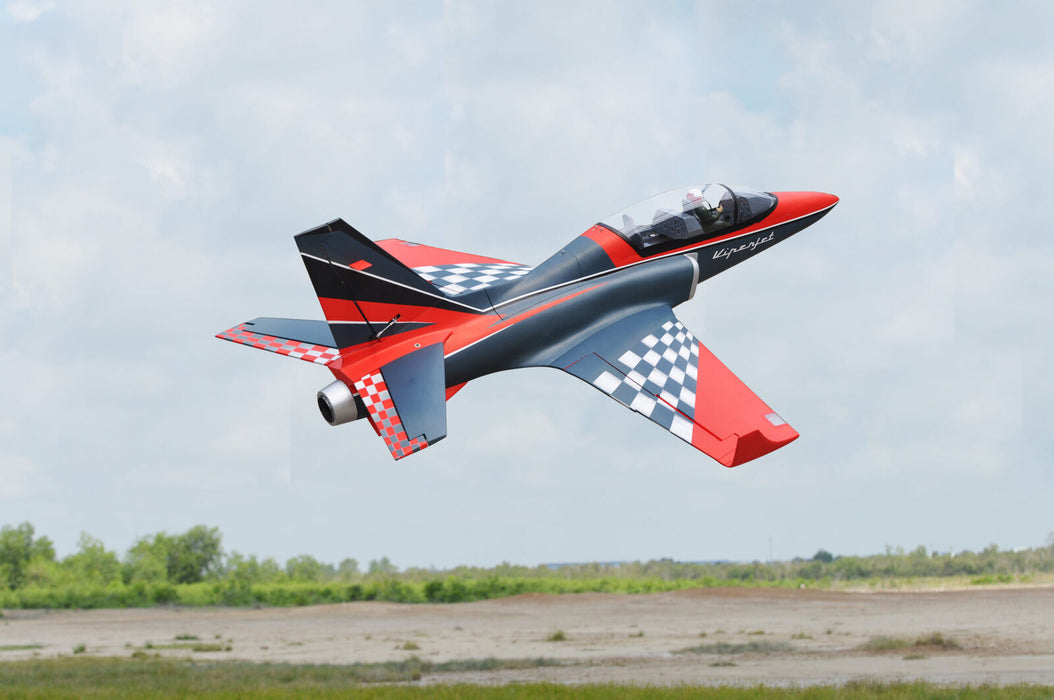

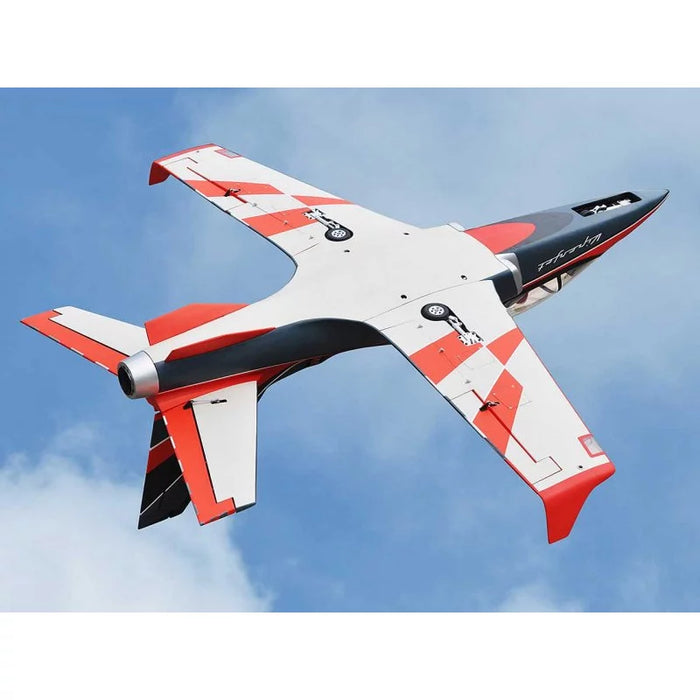

VIPER JET TURBINE 2000MM (78.7”) Electric Retract

Viper Jet Turbine as the same BH181 but using quick lock

VIPER JET TURBINE 2000MM (78.7”)  Electric Retract
Item code: BH206-G

Description

The Viper Jet is a low-wing sports aircraft designed and manufactured by the Viper Aircraft Corporation. The Black Horse Viper Jet model is designed for kerosene turbines with a thrust of 8 kg or electric motor. The engine (not included) is housed in the fuselage and its landing gear is retractable.

Features

• Electric Retract with CNC Full Metal Suspension Fork Gear are included
• Electric Controller Box Retract Gear are included
• Separate fuselage and wing structure allows compact transportation
• All balsa carbon material for super strong and light weight
• Covered with film polyester, providing durability, lightness, and ease of repair
• Full-depth cockpit and instrument panel and pilot included
• New Smart lock quick assembly system for wings, stabiliser without any tools
• Removable canopy for easy change LiPo battery and set up radio
• Dual-wall stainless steel tail pipe included with the kit
• Superb flying characteristics, plus an accurate scale outline
• High-quality hardware package included
• Recommanded Radio: 8 channels
• Ailerons: Yes
• Elevator: Yes
• Rudder: Yes
• Flaps: Yes
• LED system lights

Includes

• 1x Black Horse Viper Jet Turbine 2m ARF version
• 1x Full set Electric retractable Landing Gear with struts
• 1x Controller box for electric landing gear
• 1x Exhaust tube
• 1x Fuel tank
• Instructions illustrated Manual

ENGINE AND SERVO RECOMMENDED (NOT INCUDED WITH THE KIT)

• Turbine Jet Engine with thrust 8kg (x1)
• Servo for Aileron 8-16kg (x2) – Standard size 15 x 36mm
• Servo for Flap 8-16kg (x2) – Standard size 15 x 36mm
• Servo for Elevator 8-16kg (x2) – Standard size 15 x 36mm
• Servo for Rudder 8-16kg (x1) – Standard size 15 x 36mm
• Servo for Nose steering 8-16kg (1)- Medium size 15 x 36mm

Specifications

• Wingspan: 2000mm (78.7 in)
• Length: 1820mm (71.65 in)
• Flying weight: 9.8 -10.5 Kg
• Wing area: 62.2 dm2
• Wing loading: 157.5g/dm²
• Wing type: Naca Airfoil
• Retract gear type: Electric retract main gear, nose gear  with oleo struts and controller box (included)
• SHIPPING SIZE: 14KG
• 169 x 49 x 44cm
• 95% Almost Ready to Fly (ARF) finished model in modern ply wooden construction (laser cut)
• Fully covered in a heat-shrink film with printed
• Naca airfoild wing type
• Sensationally developed cockpit with pilot
• Functional landing flaps
• Electric retractable landing gear and scale landing gear struts
• Extensive accessories
• Richly illustrated instructions

Parts listing required (not included)

• Radio: 8 channels minimum
• Servo: 8 (HV high torque servos) - size: (36 x 15)mm
• Battery:  Battery receiver: 2S – 7.4V 2,200mAh – 3,200mAh.
• 1x Turbine Jet Engine: 8kg thrust
• 1x Electronic Control Unit for turbine
• 1x Fuel pump brushless motor
• 8x Servos: 35x15mm + extension leads
• 1x 600 Deg High Temperature Braided Soft Chemical Fiber Tubing diam.20 x 1600mm
• 8+ Channel Radio/Receiver
• 2x 2 Cell 7.4V 3200mAh Li-Po Battery
• 2x 2 Cell 7.4V 2200mAh Li-Po Battery
• 2 Cell Li-Po Battery Charger
