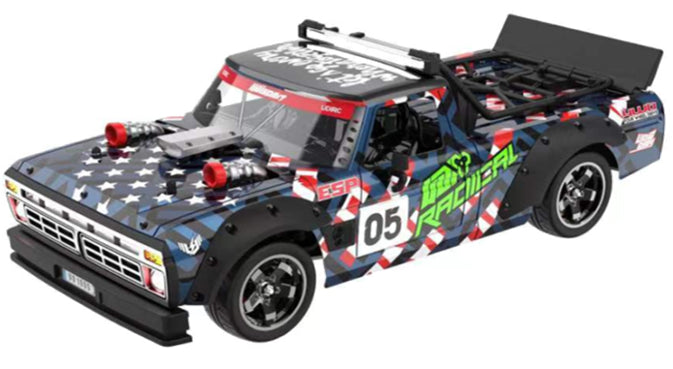

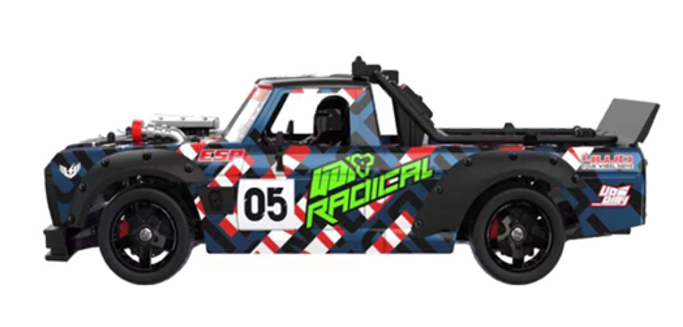

UDI Radical 1:10 Scale 2/4WD Muscle Car with 6 Channel Radio with Gyro
UDI Radical 1:10 Muscle car with Hobbywing Motor & ESC , 6 Channel Radio with Gyro - UDI 1005
Features
- High Bright LED Lights
- Controllable headlights (Roof lights)
- Linkage taillights
- Linkage turn signal
- PVC material bodyshell
- Front and rear bumpers
- The wheels are equipped with brake disc type hexagonal adapters
- Simulated brake calipers
- Simulated suction device (fan)
- 63mm highway tyres
- Equipped with high-speed sealed ball bearings throughout the vehicle
- Hardware with rust-resistant native oxid coating
- Provide proportional appearance and realistic drifting driving dynamics
- Front and rear independent suspension damping system
- Efficient metal drive shaft
- 6KG digital Steering Servo
- Dual bellcrank design with bearings and integrated servo saver
- Adjustable steering linkage
- Adjustable center gear shifting
- Steel driveshafts
- Oil-immersed front/rear differential
- Heavy splined front drive shaft
- Fixed length metal rear drive shaft

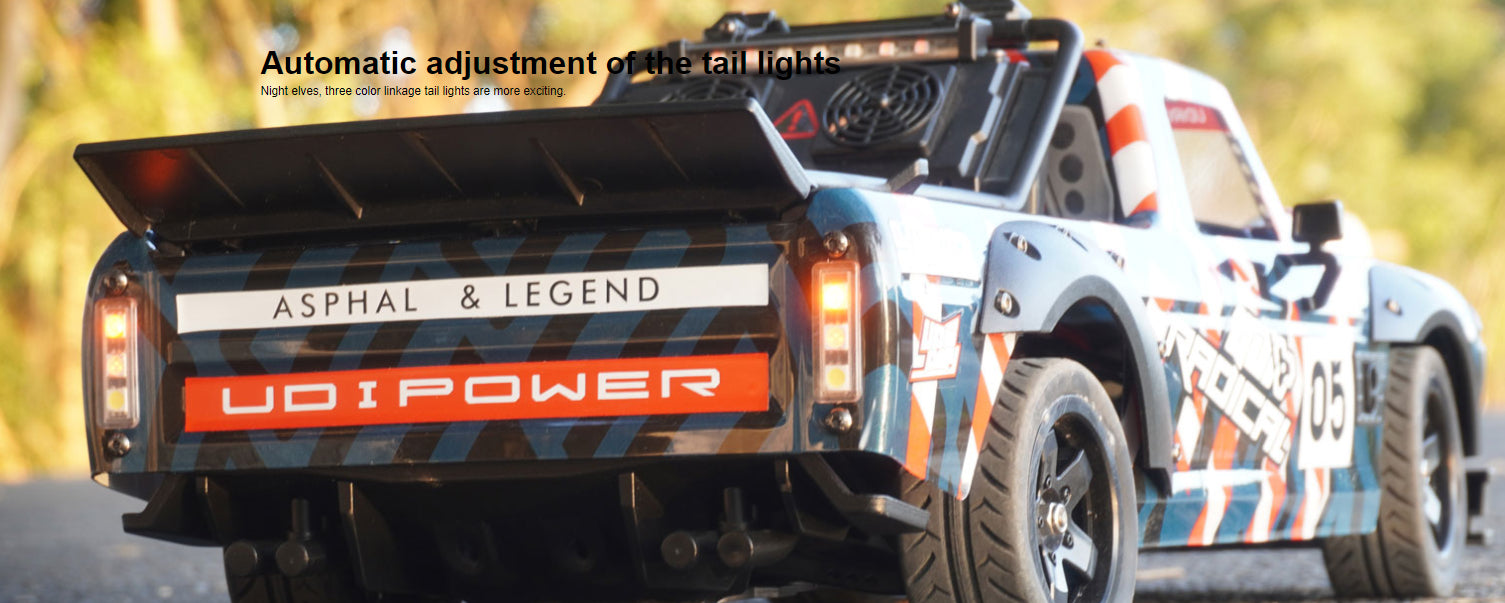

Three color linkage tail lights

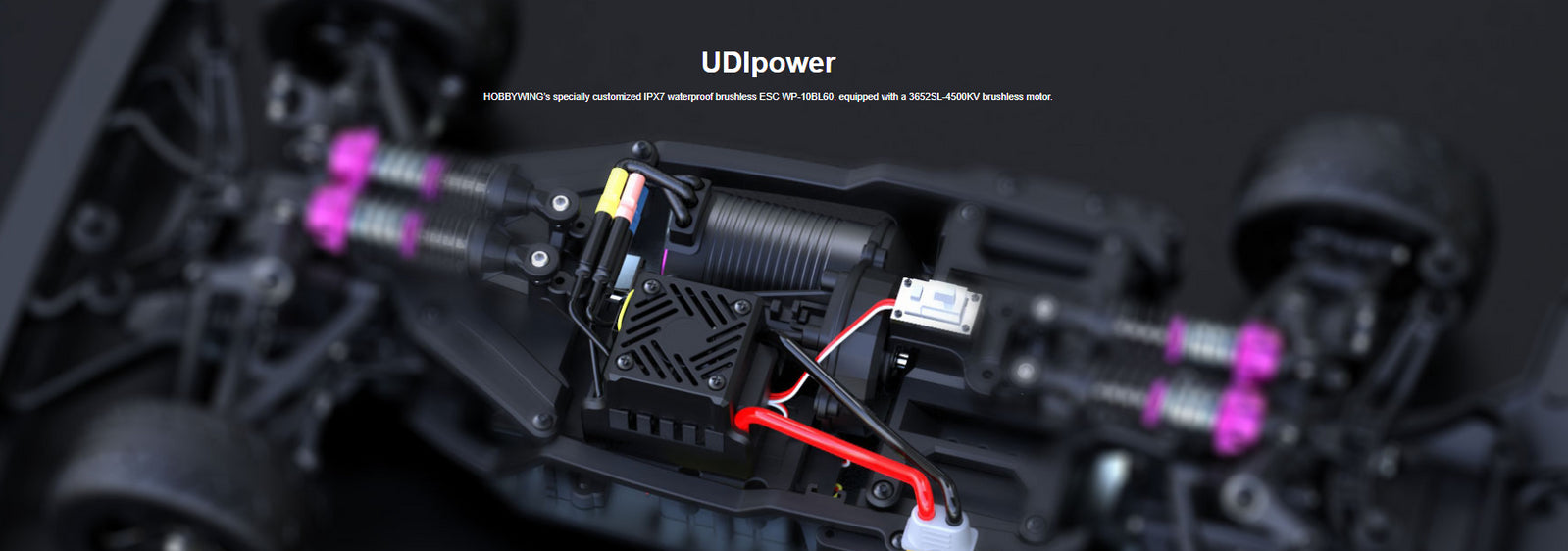

UDI Power
HOBBYWING's specially customized IPX7 waterproof brushless ESC WP-10BL60, equipped with a 3652SL-4500KV Brushless motor.

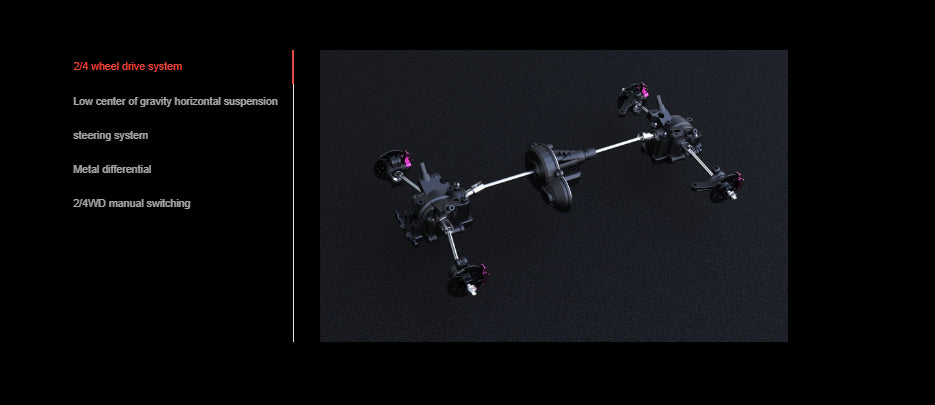

UDI 1005 More features
2/4 Wheel drive system | Low center of gravity suspension | Steering system |
Metal differential | 2/4WD manual switching |

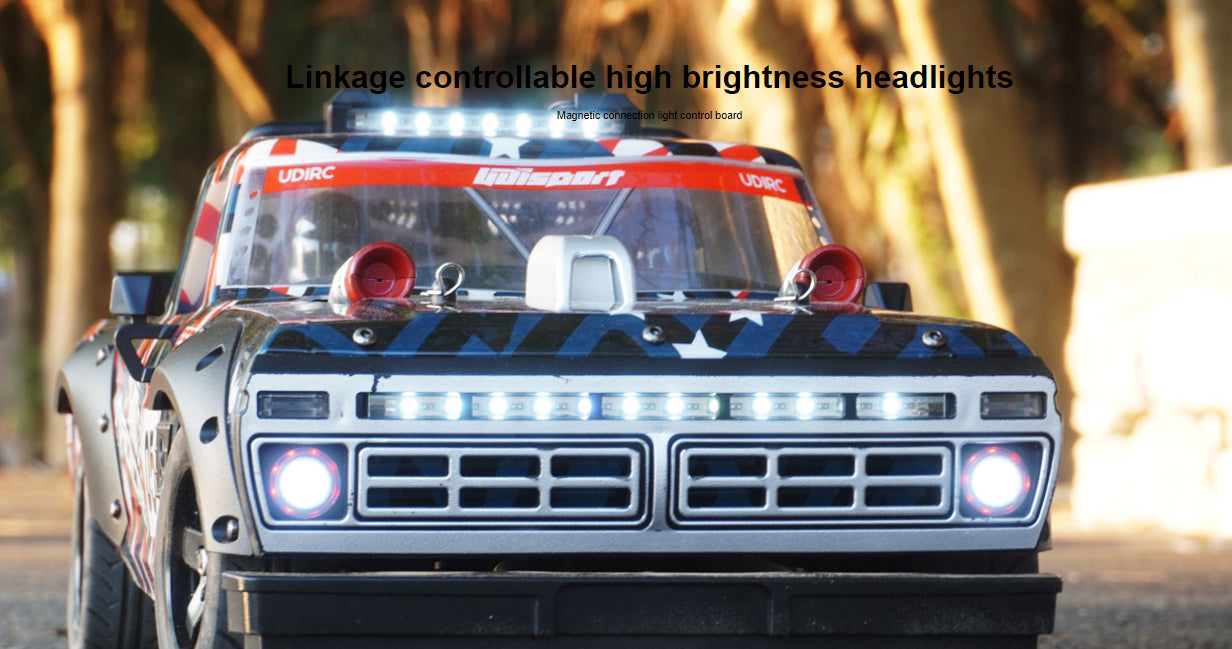

Linkage controllable high brightness headlights

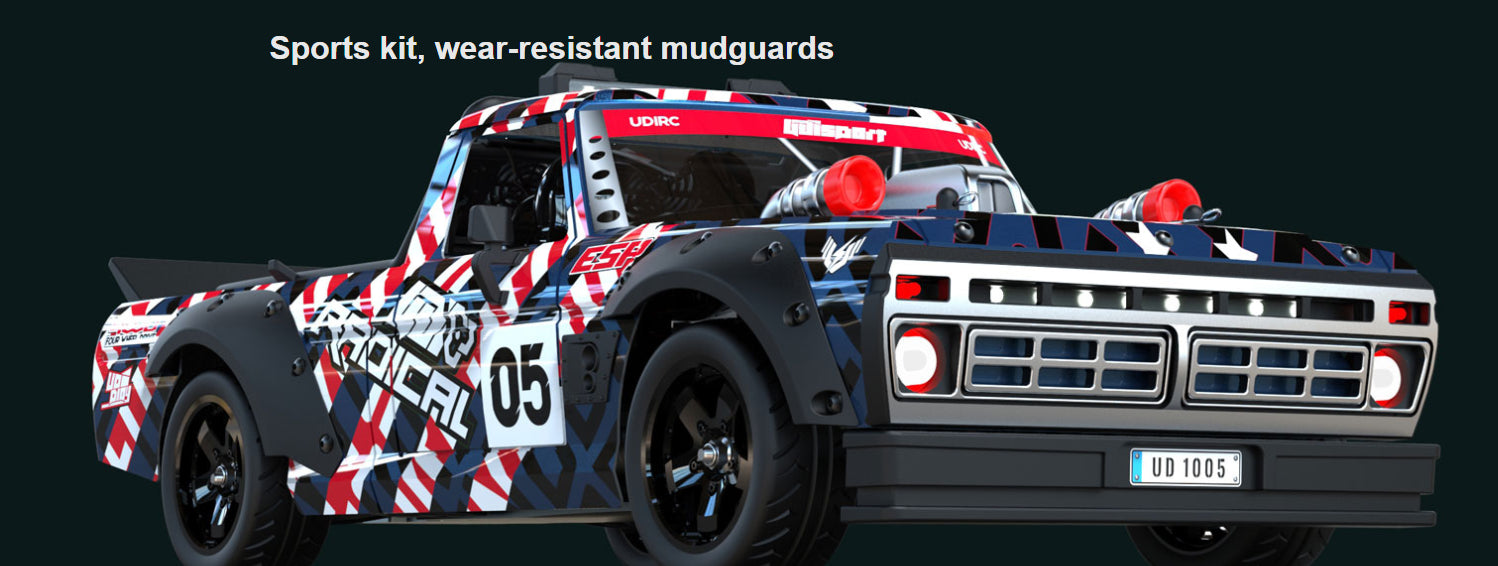

Sports kit, wear-resistant mudguards

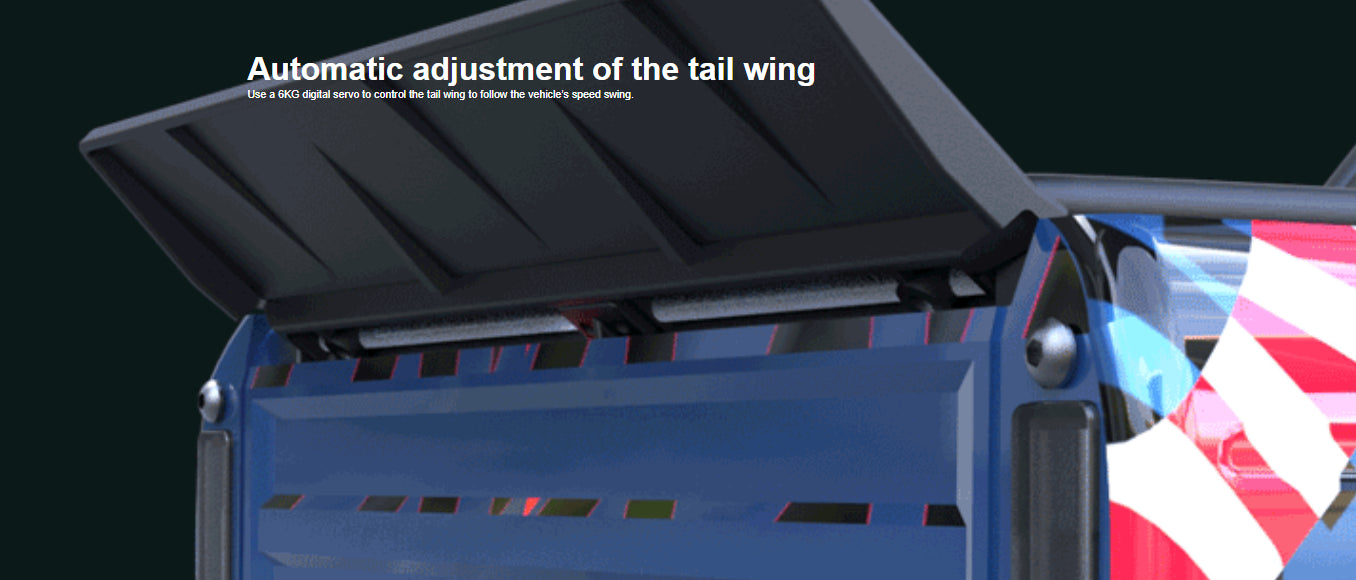

Automatic adjustment of the tail wing
Use a 6KG digital servo to control the tail wing to follow the vehicle's speed swing.

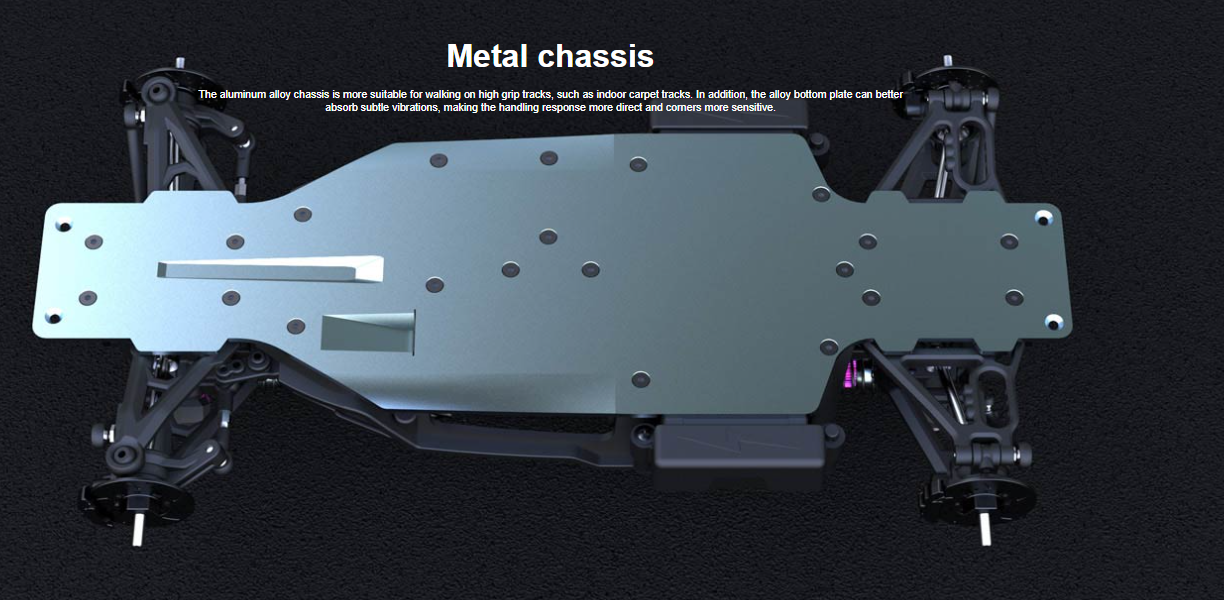

Metal chassis
The aluminum alloy chassis is more suitable for walking on high grip tracks, such as indoor carpet tracks. In addition, the alloy bottom plate can better absorb subtle vibrations, making the handling response more direct and corners more sensitive.
Specifications
Car Specs
- Model No: 1005
- Model Scale: 1/10
- Vehicle type: Road racing car
- Completion level: RS
- Length: 478mm
- Width: 209mm
- Height: 158mm
- Weight: 1.92KG
- Front wheel track: 168mm
- Rear wheel track: 168mm
- wheelbase: 275mm
- Ground clearance: 20mm
- Transmission distance: 50m
- Battery life: 10 minutes
- Power type: Electric
- Motor type: Brushless motor
- Ball bearings: All vehicles
- Differential: Two oil sealed gears
- Drive system: 2/4 wheel drive
- Drive Type: Forward/Brake/Reverse
- Battery: Not included (2-3S, XT60, LIPO battery recommended)
- Transmitter: DUMBO X5E remote control and receiver
Motor Specs
- Type: HOBBYWING brushless motor
- Weight: About 258.7g
- Length: 52mm
- Diameter: 36mm
- Output shaft: 3.175mm
- KV value: 4500
- Connector Type: 3.5mm bullet connectors
ESC Specs
- HOBBYWING 60A Brushless ESC WP-10BL60
- Input Voltage(cells): 6V-12.6V?2S-3S?
- Continuous current: 60A
- BEC Voltage: 6.0V
- BEC persistent current: 3A
- Waterproof grade: IPX7
- Weight: About 96.5g
DUMBO X5E Remote control and Receiver
● 2.4G spread spectrum technology, FHSS 67-channel pseudo-random frequency hopping super anti-interference, full digital system ensures without loss of control and anti-jamming.
● Independent setting of servo direction and travel for channels 1 to 2.
● Receiver intefrated gyroscope, ensure that the model goes straight, prevents drifting, and overturning.
● The unique throttle speed limit adjustment function allows beginners to practice quickly at a safe speed.
● After accidentally entering the setting mode, it will automatically exit in 5 seconds, and the memory will not lost, and the subsequent control can still be normal.
● Transmitter voltage range: 4.8-12V, with automatic voltage identification alarm in 3 segments low voltage alarm 4.4V/7.4V/10.8V.
● Receiver voltage range: 4.8V-10V, operating current 30mA, support working with high voltage servo.
● With brakes and fail-safe protection function.
● There will be flashing music when switching on and off, automatic power off and alarm after 12 minutes, switching off after 15 minutes with no current.
● Ergonomically design with 30-degree beveled steering wheel and optional installation of one-handed accessories.

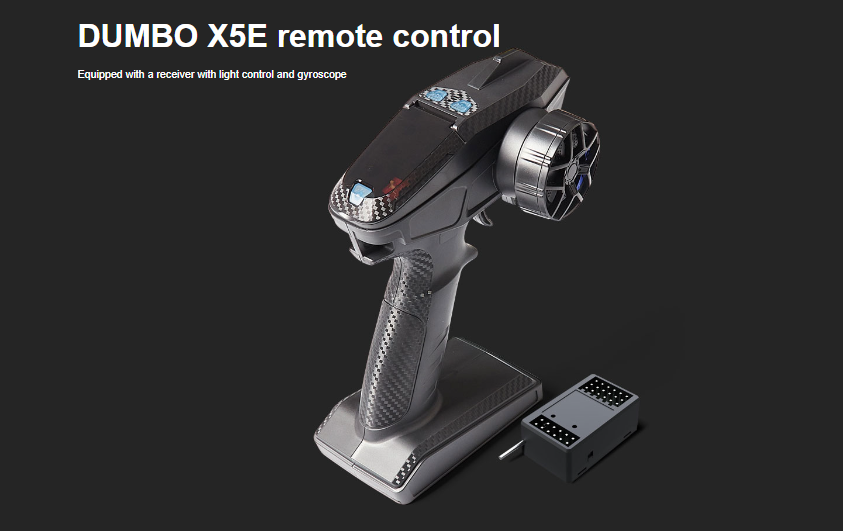

DUMBO X5E Remote control
Equipped with a receiver with light control and gyroscope
Engine hood simulation | Simulation components | PVC car shell color printing |
Metal components | Tyres |
Tail-wing Servos
Case Size: 00×00×00mm
Weight: 9G digital servo
Steering Servo
Not specified
Weight: 6KG digital servo
High Bright LED Lights
- Controllable headlights, Roof lights
- Linkage taillights
- Linkage turn signal
Decoration
- PVC material bodyshell
- Front and rear bumpers
- The wheels are equipped with brake disc type hexagonal adapters
- Simulated brake calipers
- Simulated suction device, fan
Wheels and Tyres
- 63mm highway (on-road) tyres
Equipped with high-speed sealed ball bearings throughout the vehicle
Hardware with rust-resistant native oxid coating
Suspension
- Provide proportional appearance and realistic drifting driving dynamics
- Front and rear independent suspension damping system
- Efficient metal drive shaft
Steering
- 6KG digital Steering Servo
- Dual bellcrank design with bearings and integrated servo saver
- Adjustable steering linkage
Drivetrain
- Adjustable center gear shifting
- Steel driveshafts
- Oil-immersed front/rear differential
- Heavy splined front drive shaft
- Fixed length metal rear drive shaft
What’s In The Box:
- The vehicle with ESC and motor
- 2.4GHz radio system
- Operation Guide
- body stickers
What You’ll Need:
- Battery for transmitter: 4 × 1.5V, AA lkaline battery
- Vehicle battery: 2-3S LiPo Battery XT60
- LiPo rechargeable battery
