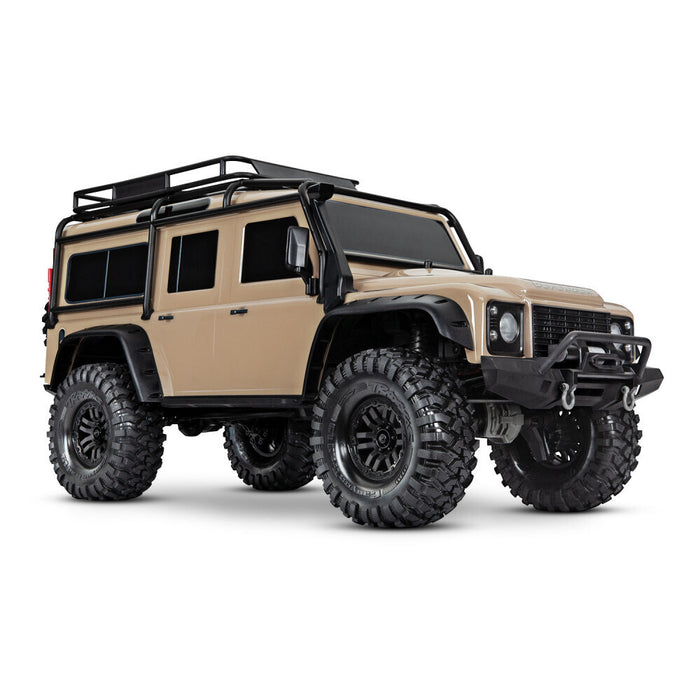

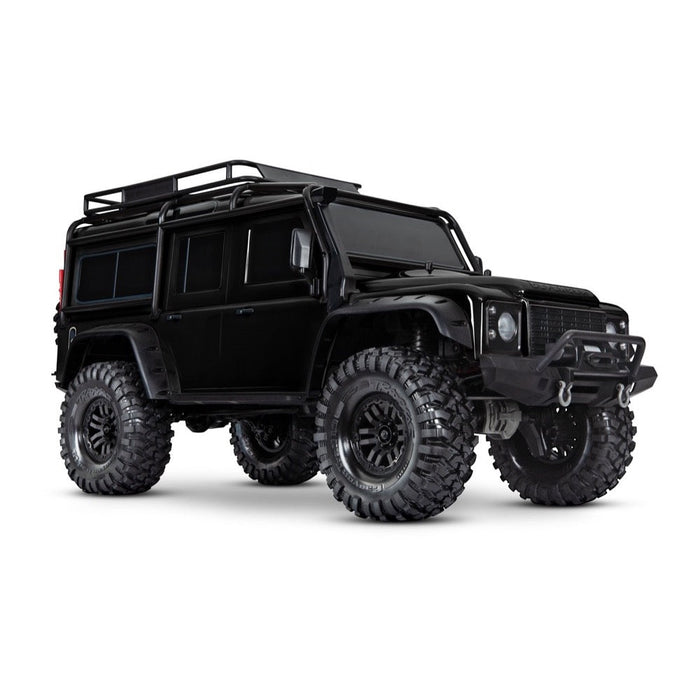

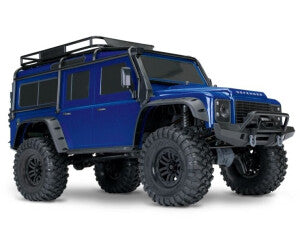

Traxxas 1/10 TRX-4 Land Rover Defender Electric Off-Road 4WD Rock Crawler - 82056
Traxxas 1/10 TRX-4 Land Rover Defender
Electric Off-Road 4WD Rock Crawler with Front & Rear Differential lock and Cruise Control.
Drive the real thing in a smaller scale!

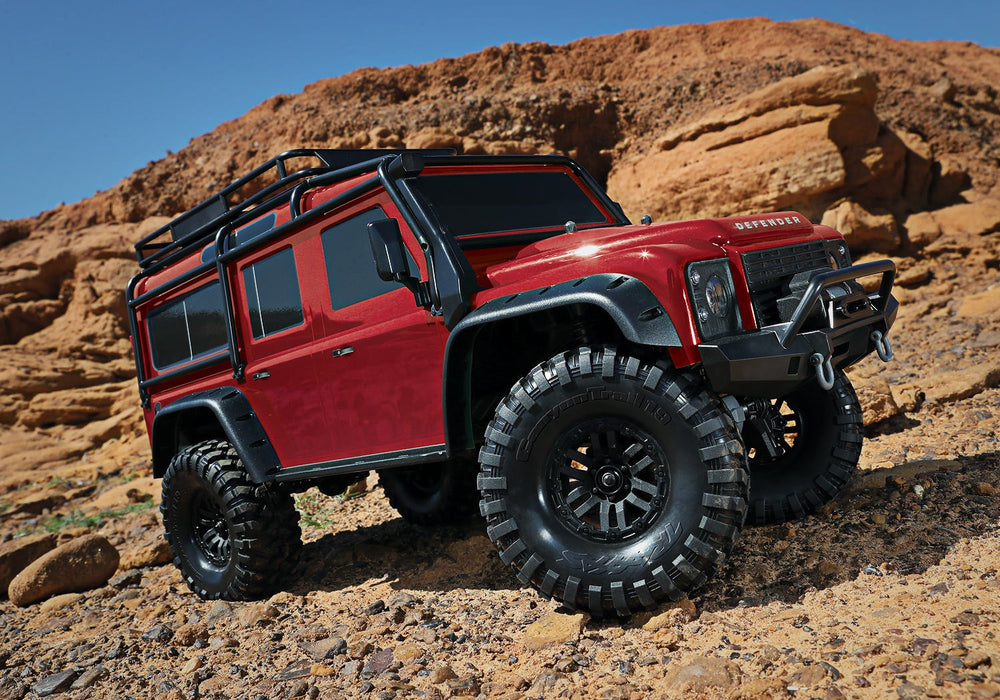

Traxxas TRX-4 Scale Defender Trail Crawler is an all-new Traxxas design that is loaded with innovation that instantly obsoletes the status quo with exciting new features, versatility, and capability. In other words, we built it the Traxxas way, rugged, powerful, and ready for fun!
Underneath the authentic scale look is a machine built for extreme off-road capability that takes you to new places and new adventures. Exclusive portal axles deliver maximum ground clearance that dramatically turns no way into no problem. Whether you are enjoying outdoor trails or getting technical on the rocks, the remote-locking front and rear differentials and high/low range transmission provide unmatched driving versatility.
Traxxas has been working hard on this tough and realistic looking Defender 1/10 RC Crawler
The TRX-4 RC Truck is packed full of features right out of the box! With remote differential locks, remote high and low gearing at a flick of a switch, portal axle, Inner fenders, waterproof electronics, metal geared high torque steering servo, aluminium shocks and the list goes on!

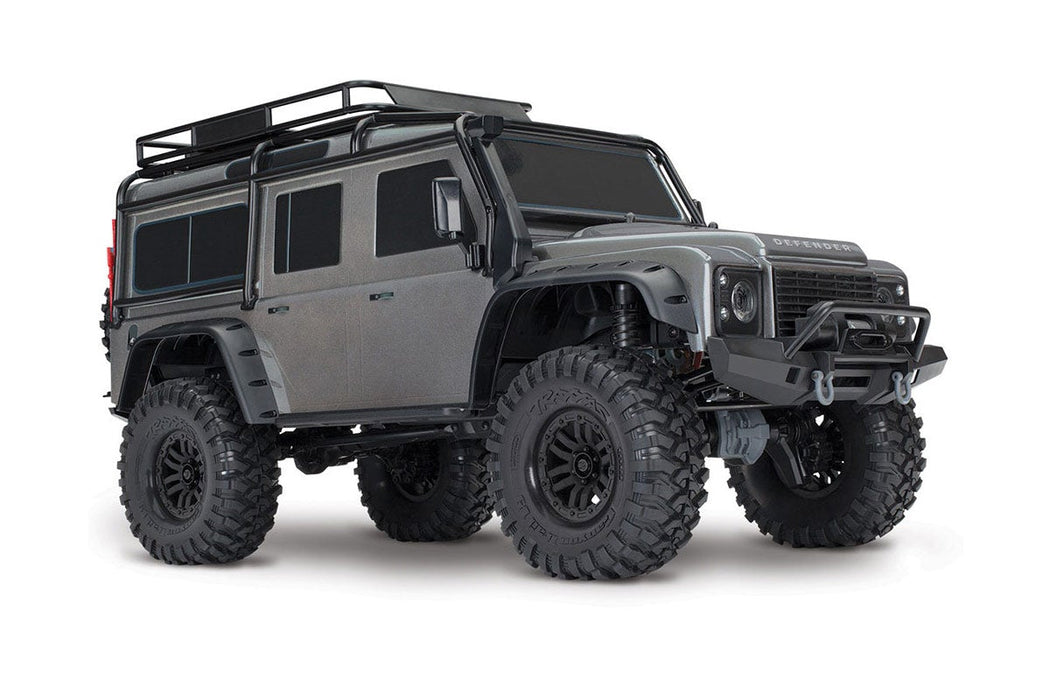

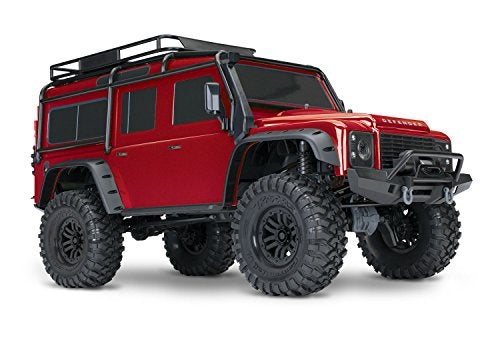

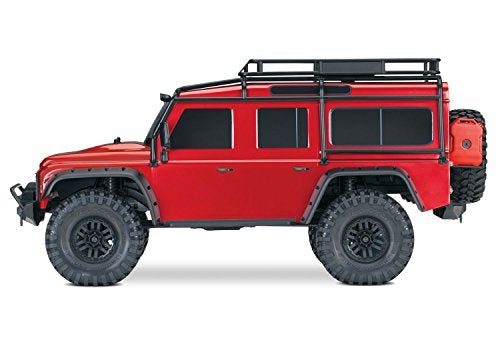

Officially Licensed Land Rover Defender Body
- Injection molded scale details including grille, snorkel, and side mirrors
- Rugged, functional roll cage
- Tough fender flares
- Front bumper with tow hooks and replica winch

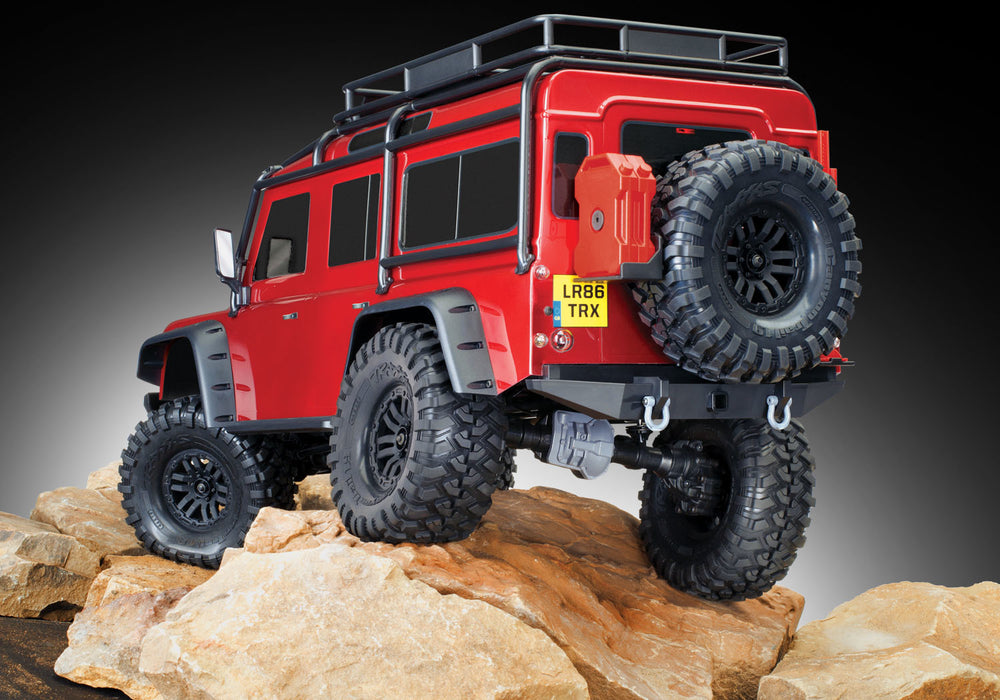

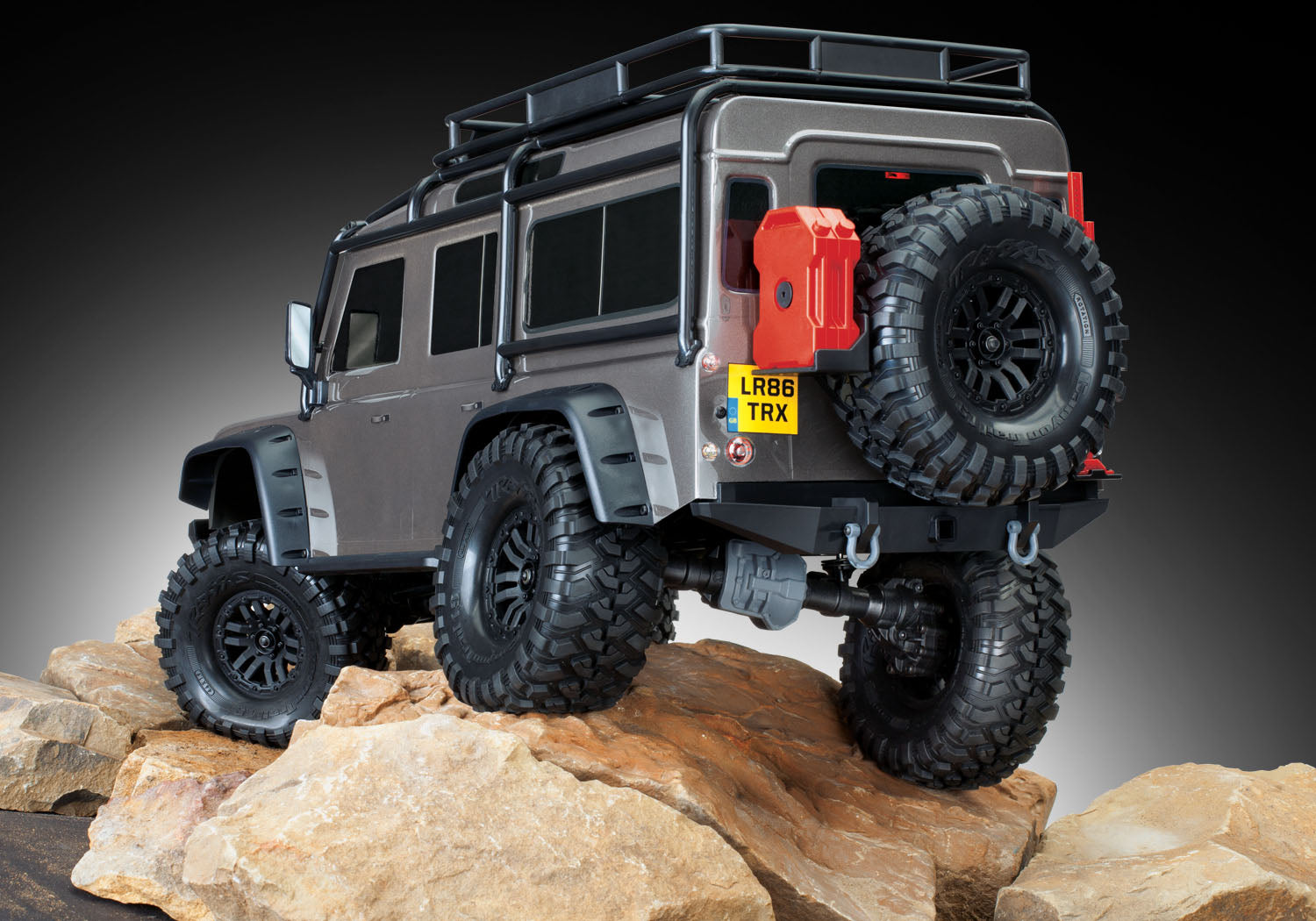

- Rear bumper with scale accessories and functional spare tire
- Full Nylon composite wheel wells and floor pans
The Traxxas TRX-4 is the ultimate adventure 4WD 1:10 scale RC Crawler!
The Traxxas TRX-4 Scale and Trail Crawler is a ground breaking product that could only come from Traxxas. With a feature set that includes parts that you would expect to buy separately, the TRX-4 delivers versatility and capability in a fully ready to run package. The TRX-4 is built for crawling the Traxxas way - rugged, powerful, and ready for fun!
The portal axles use gear reduction right at the wheels that dramatically reduces undesirable torque twist. Total axle gear reduction is over twice non-portal designs. The Titan 550 motor torque is translated into straight, powerful, forward motion, rather than wasted energy twisting your rig right off the rocks.
Improved Geometry

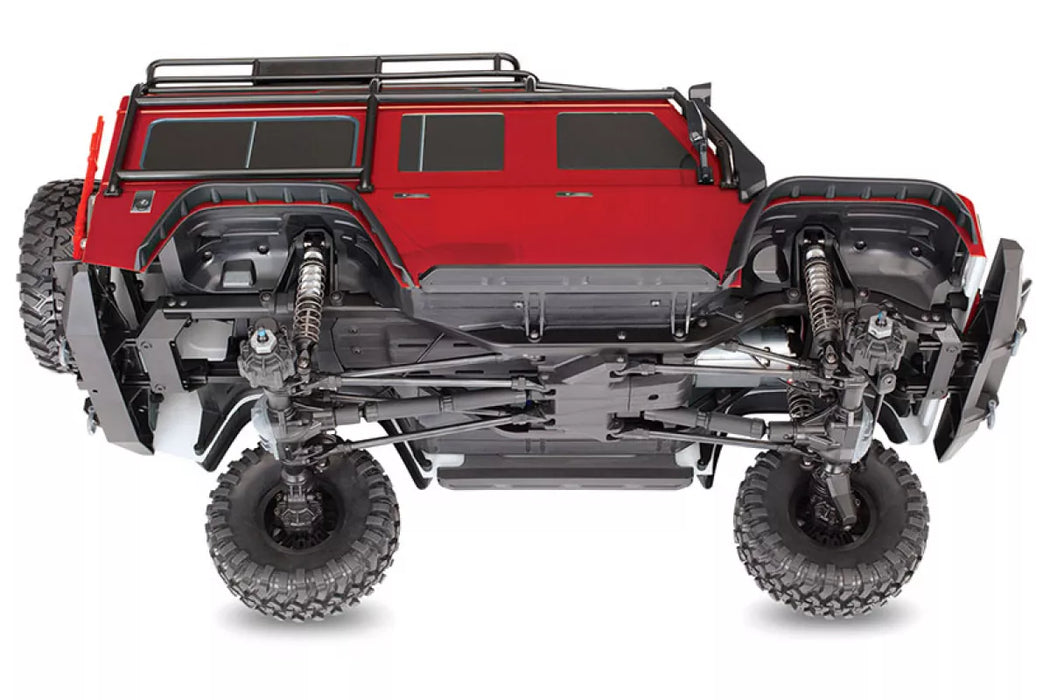

Portal axle geometry raises the axle link mounts and center driveshaft, greatly reducing critical driveshaft and suspension link angles. This means less strain on the driveshafts, and the higher suspension links provide greater clearance with less scraping and dragging across the rocks. The steering drag link and tie rod are also raised up and out of harm's way.
Rigid Steel Frame
A heavy-duty formed-steel ladder frame with molded cross members creates an extremely rigid backbone that lets the suspension do the work it was designed to do. You’ll feel the difference on trails where the elimination of chassis flex allows for precise wheel placement when navigating technical terrain.
Remote Locking Differentials
The TRX-4 has differentials that you can lock from your remote controller. No need to break from the action to push on a lever or install locking parts just flick a switch on the fly and keep having fun.
Portal Axles
The first Rock Crawler to have the luxury of having the extra ground clearance with portal axles enabling to go where others can't with. Go anywhere with the Traxxas TRX-4 Defender.
- Increase ground clearance (3.14)
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
45° Steering Angle
Traditional crawlers sacrifice turning radius for traction. The TRX-4’s remote locking differentials disengage to take full advantage of its superior 45 degree steering angle. Once you clear the obstacle, re-engage the differentials for ultimate traction.
High/Low Transmission
Why carry your crawler down to the trail when you can drive? The Traxxas TRX-4 features a high-speed gear to get to your next crawling challenge quickly. When you get there, flick the rocker switch on your remote controller to engage low range and conquer tough terrain with exception torque.
Cruise Control
The Traxxas TQi radio system is equipped with cruise control for long-distance treks. Set your speed using the transmitter and then use the multi-function knob to fine-tune it faster or slower to precisely match the pace of your caravan of trail explorers. Cruise control makes it easy and comfortable for the TRX-4 Scale and Trail Crawler to be your companion for hours of driving fun and exploration.
3S Power System
The XL-5 HV electronic speed control brings 3S LiPo capability for stronger, more efficient running. Updated speed control profiles have been added for smooth and precise control. A Trail profile facilitates smooth driving for most of your adventures, while a Crawl profile introduces hill hold and instant reverse for extremely technical courses. Either will help you navigate obstacles with ease, right from the start. Long run times, up to 2 hours, are possible with a Traxxas 3S 5000mAh iD LiPo battery pack!
Canyon Trail 1.9 Tyres
The 1.9 Canyon Trail tires and tuned foam inserts are super-soft and grippy to deliver superior bite on rocky surfaces with convincing scale realism. The 12mm steel hex drive makes the TRX-4 chassis compatible with popular 1.9 wheel and tire combinations.
Traxxas Tough
Leave the tools in the bag! The Traxxas TRX-4 chassis is built to handle the rigors of remote locations and all-day driving fun. The foundation begins with a pair of 1.5mm thick steel frame rails. Large diameter steel links and heavy-duty, extra-wide rod ends keep the suspension firmly mounted. Hardened steel CV-style half-shaft joints are ultra reliable, while the brushless-ready steel portal axle and transfer case gears are smooth and quiet. Traxxas’ composite materials have been refined over three decades for the ultimate in strength and durability.
Micro Cables
TRX-4 uses three fully-waterproof micro servos to actuate the front and rear differentials aswell as the high/low range selection on the transmission. Sleeved micro cables eliminate complicated linkages that would otherwise limit suspension articulation.
Metal Gear Digital Servo
A full-metal gear digital servo gives you the durability and steering authority you need to confidently and reliably power through tough situations.

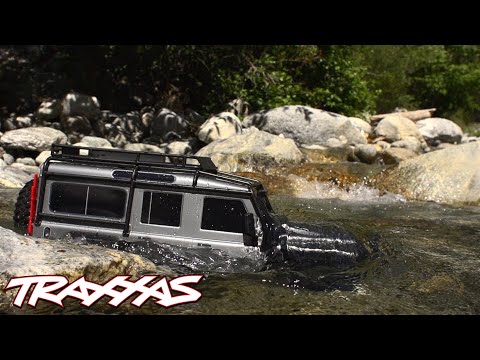

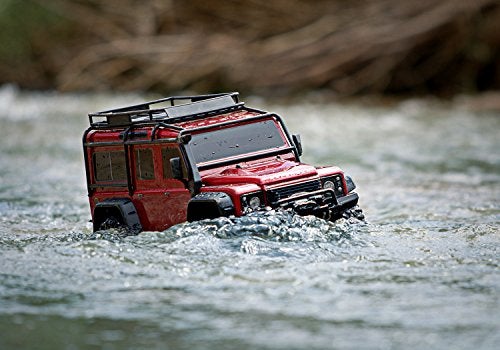

Waterproof
Traxxas was the first to bring you fully waterproof RC vehicles years ago with their innovative designs. The TRX-4 Scale and Trail Crawler is fully waterproof for how you like to really play, not “splash resistant.” There is a big difference. Traxxas’ patented innovation gives you the freedom to tackle creeks, snow, and mud without worrying about water in your electronics.
Optional LED Genuine Lights
Can be purchased from Techno Hobbies
Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
| Motor Type: | Brushed |
| Can Length (mm): | 56.7 |
| Can Diameter (mm): | 36 |
| Shaft Diameter (mm): | 3.175 (1/8") |
| Turns: | 21 |
Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode forward / brake / reverse
- Race Mode forward / brake / no reverse
- Training Mode 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6 cell NiMH (7.28.4V) and 23S LiPo (7.411.1V)
- Two stage low voltage protection (LVD)
Features
- Fully waterproof electronics
- TQi 2.4GHz transmitter
- Aluminium GTS shocks
- Portal axle
- Metal geared steering servo
- Innovative T-Lock™ remote locking differentials
- Pre-installed Inner Fenders
- Traxxas high-torque Titan® 550 21T motor
- Traxxas XL5 HV 3S ESC
- LiPo, NiCad, and NiMH compatible
Specifications
- Length: 586mm (23.07")
- Width: 249mm (9.78")
- Height: 292mm (11.48")
- Weight: 3.372kg (7.43lbs)
- Wheelbase: 324mm (12.75")
- Drivetrain: 4WD
- Box Size: 65 x 32 x 26cm
- Gross Weight: 5.5Kg
| Car | |
|---|---|
| Power: | 7.2v NiMh or 2S (7.4v) |
| Size (Scale): | 1/10 |
| Skill Level: | Intermediate |
| Power Source: | Electric Brushed |
| Chassis Type: | Rock Crawler |
| On/Off Road: | Off Road |
| Drivetrain: | 4WD |
| Factory specs | |
|---|---|
| Max LiPo power: | 3S (11.1v) |
| Front shock oil: | 30w |
| Rear shock oil: | 30w |
| Wheel hex size: | 12mm |
Traxxas ID Connectors
The best connectors in the industry! Secure, easy to use, high-current, also has a RFID chip that tells the charger what settings to charge it on. Now that's one smart connector.
Aluminum GTS Shocks
Oil-filled coil-over GTS shocks were created exclusively for the TRX-4 chassis. These silver-anodized aluminum units deliver silky-smooth damping performance and feature threaded shock bodies for easy ride height adjustments. The convincing scale realism looks great and they perform even better with an O-ring cap seal and dual X-ring shaft seals.
Extreme Capability
Steep approach angles front and rear allow the TRX-4 Scale and Trail Crawler to tackle big obstacles head on. The front motor design biases weight forward for superior climbing ability compared to other designs.
Requires not included
- Batteries for the TRX4 - accepts a wide variety of NiMH (4 cell) and LiPo (7.4v-2s or 11.1v-3s) batteries.
- Compatible Charger or
- Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
- 4 x AA alkaline batteries for the transmitter
Includes
- TRX-4, Ready-To-Race model
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQi 2.4GHz radio system with cruise control
- High quality maintenance tools
