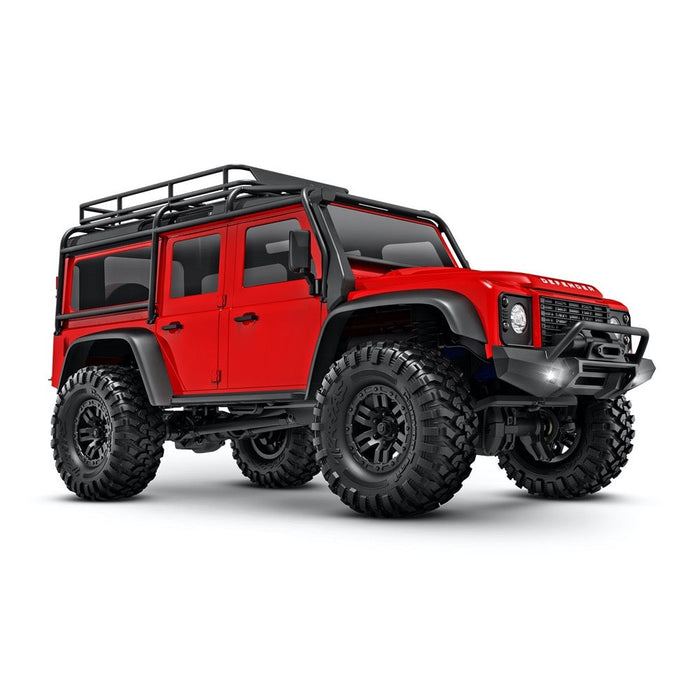

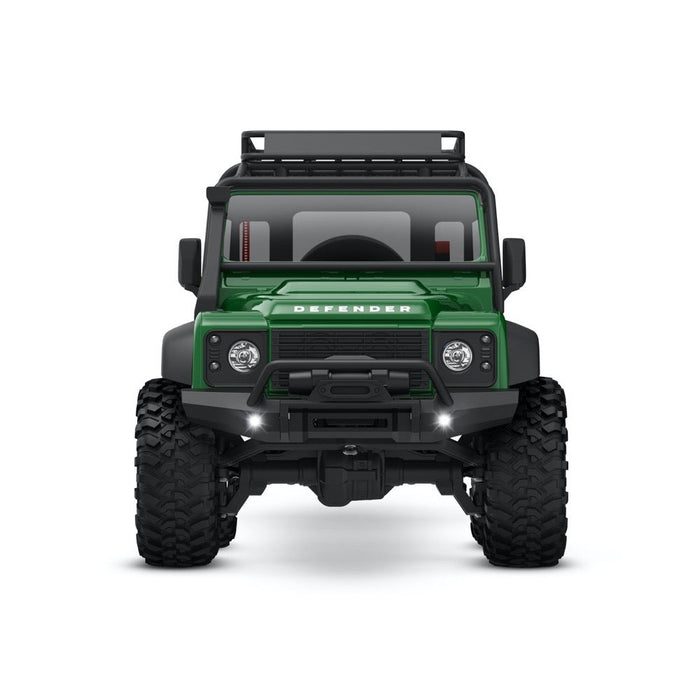

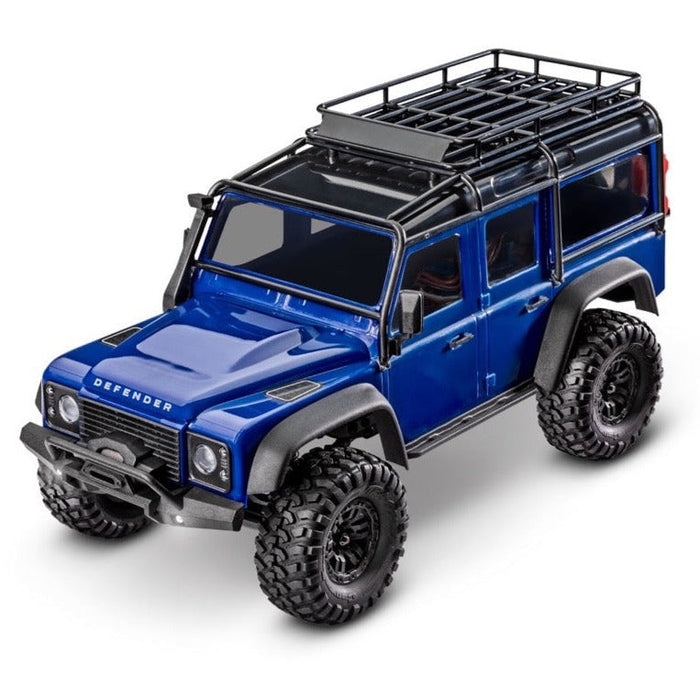

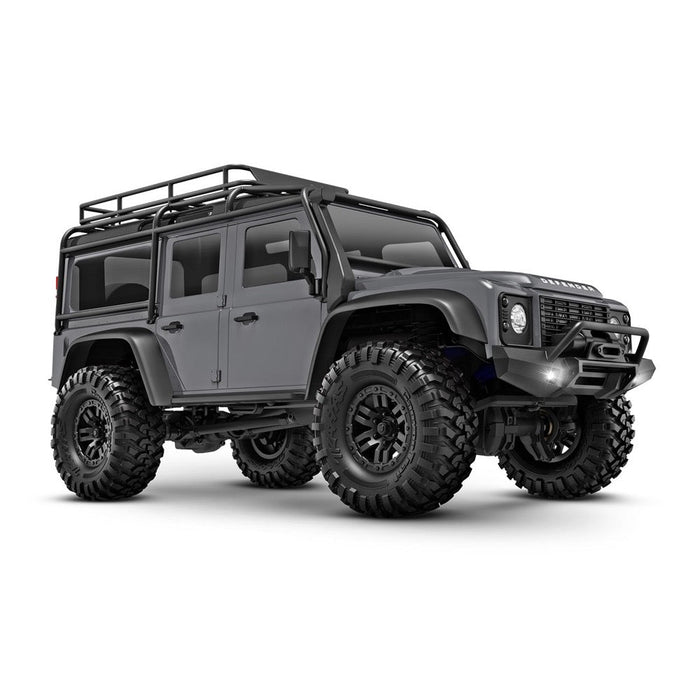

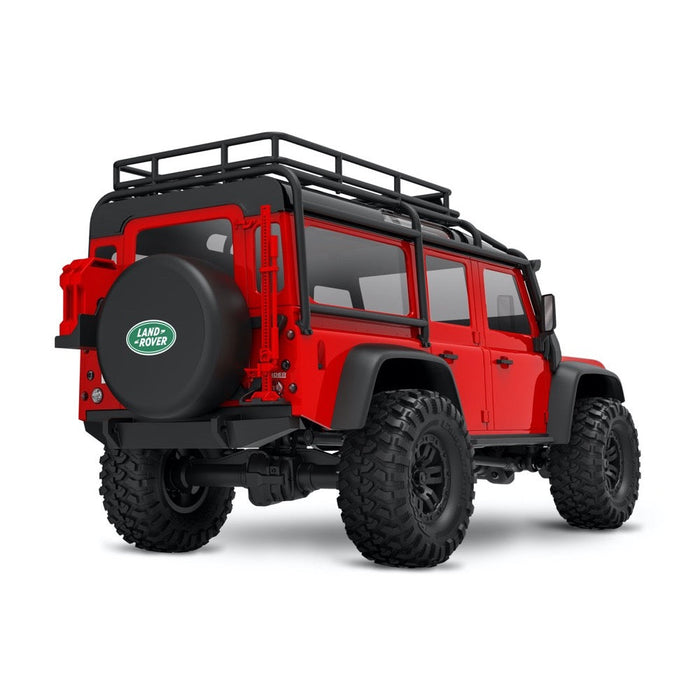

Traxxas 1:18 Scale TRX4M Land Rover Defender RTR Electric Off Road RC Crawler
All New Traxxas TRX-4M 1/18 Land Rover Defender RTR Electric Off Road RC Crawler - 97054 is Back!
BIG FUN AND ADVENTURE IN A SMALLER TRX-4
Introducing TRX-4M, a new way to experience all the fun, adventure, and scale realism of the TRX-4 in a 1/18 platform. TRX-4M bridges the gap between the small crawler scene and 1/10 scale quality and performance. Oil-filled shocks, steel frame rails, and a smooth running drivetrain give it true outdoor capability over rocks and through grass and streams. The tight turning radius and precise throttle control give it fantastic indoor maneuverability.
THE RIGHT SIZE FOR FUN
TRX-4M is the perfect size to fit in a backpack for fun on the go. It’s small, powerful, and maneuverable so just about any space becomes an instant trail or crawling course. Whether it’s a mountain of books indoors or a rock garden in the backyard, TRX-4M is always ready for big fun and adventure.
ALL-TERRAIN VERSATILITY
TRX-4M is equipped to take on tough off-road terrain with grippy soft-compound tires, precision-engineered 4-link suspension geometry, and smooth oil-filled shocks. High center ground clearance, big approach angles, and low CG give the TRX-4M impressive capability everywhere it goes.
45° STEERING ANGLE
A full 45° steering angle gives TRX-4M an exceptionally tight turning radius and extreme maneuverability in small spaces where every inch counts. A heavy-duty 2065T steering servo delivers powerful steering authority, even on thick carpet.
OIL-FILLED GTM™ SHOCKS
TRX-4M’s oil-filled GTM shocks offer smooth suspension damping for the all new Traxxas 1/18 scale crawlers to keep the wheels firmly planted on uneven surfaces. The added control also keeps the body from bouncing around on rough terrain for a more realistic driving experience.
DETAILED ABS BODY WITH CLIPLESS MOUNTING
The innovative clipless body removes and installs in just seconds with no clips to lose or frustrating hook and loop tabs. Tough, highly detailed ABS bodies feature molded-in color with a deep glossy finish that won’t chip or scrape off.
WATERPROOF ELECTRONICS
TRX-4M is the truck that goes where you want to go, without boundaries or restrictions. Only Traxxas’ fully-waterproof innovation gives you the freedom to drive through wet grass, puddles, and streams that force others to turn around.
Features
-
Clipless ABS Body
- Highly-detailed licensed bodies
- Molded-in color won’t chip or flake
- Tough fender flares and rock sliders
- Realistic side mirrors, door handles, & wipers
- LED bumper lights
- Heavy-duty latching clips
- Hold tightly on the trail
- Release in just seconds
- Highly-detailed licensed bodies
-
ECM-2.5™ Electronic Control Module
- Incorporates ESC, receiver, and LED controller in one chassis
- Fully waterproof for all-weather fun
- Three drive profiles
- Sport Mode – forward / brake / reverse
- Trail Mode – forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode – forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Built-in Pro Scale® LED functionality
- Two-stage low voltage protection (LVD)
- Motor overload protection
-
TQ™ 2.4GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
-
Motor
- Powerful Titan® 87-turn brushed motor
- Fixed gear mesh doesn’t require adjustment
- Forward mounting position for improved crawling dynamics
-

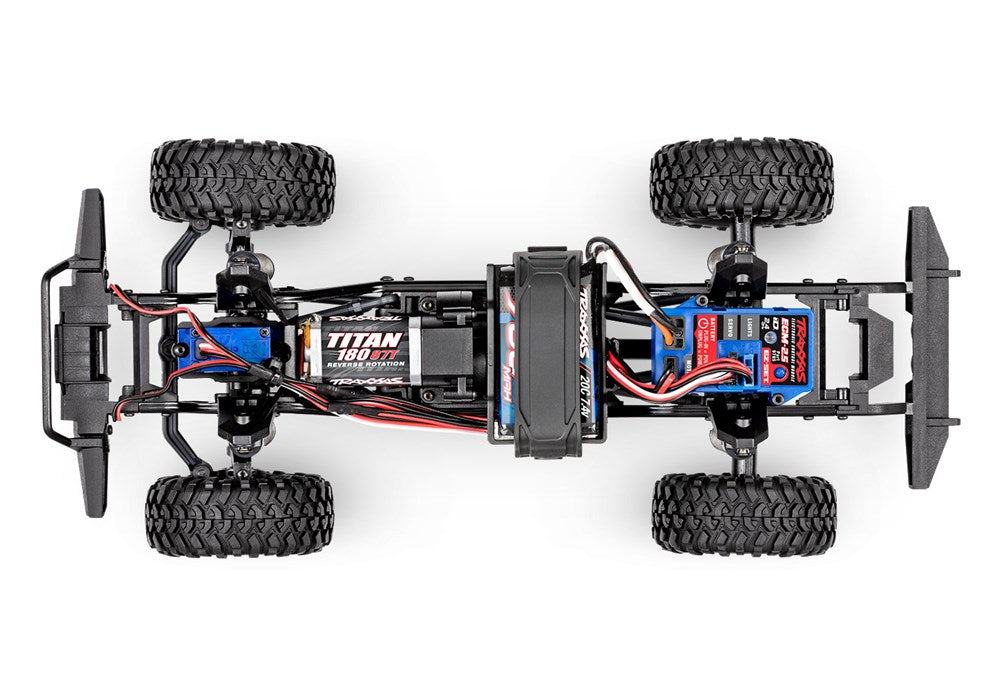

Heavy-Duty Steel Ladder Frame
- Deep C-channel design
- Thicker center section for maximum rigidity
- Rails run from bumper to bumper
-
Drivetrain
- Full-time shaft-driven 4-wheel drive
- Solid steel axles
- Spool-equipped front and rear axles
- Heavy-duty CV center driveshafts
-
Low-CG Battery Tray
- Concentrates weight lower for improved stability
- Wide rubber strap secures battery in place
-
Optional Transmission Ratios (sold separately)
- Optional Low Range or Speed Gearing transmissions
- Modular design swaps out in minutes
- Optional Low Range or Speed Gearing transmissions
-
Steering
- Heavy-duty 2065T steering servo
- Metal main gear
- Superior 45° steering angle
- Direct steering (no servo saver)
- Heavy-duty 2065T steering servo
-
Suspension
- Triangulated 4 link front and rear
- Heavy-duty rod ends
-
Oil-Filled GTM™ Shocks
- Provides smooth controlled damping
- Realistic driving body movements
- Adjustable pre-load spacers
- Easily refreshed with available rebuild kits
-
Wheels and Tyres
- Highly-detailed 1" Replica wheels
- 7mm hex
- Pre-mounted tires
- BF-Goodrich® Mud Terrain T/A® KM3 (Bronco)
- Canyon AT (Defender)
- Trail-tuned rubber compound
- Highly-detailed 1" Replica wheels
-

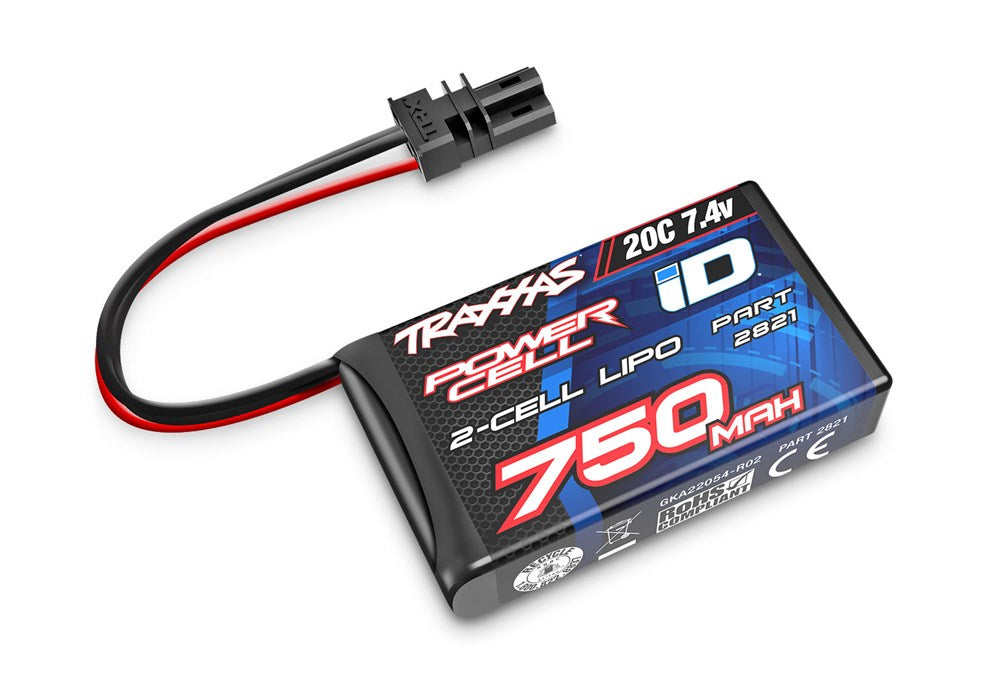

Battery and Charger Included
- High-capacity 2-cell LiPo battery
- 7.4 volts
- 750mAh for over an hour of run time
- 2-amp USB-powered fast charger
- iD® technology for faster, safer charging
- High-capacity 2-cell LiPo battery
- Low-Maintenance Self-Lubricating Bushings
- Durable Hex hardware
Specifications
- Length: 10.3 inches (262mm) (Bronco), 11 inches (279mm) (Defender)
- Front Track: 4.9 inches (124mm)
- Rear Track: 4.9 inches (124mm)
- Ground Clearance: 1.12 inches (29mm)
- Weight (w/o battery): 1.03lbs (468g) (Bronco), 1.06lbs (483g) (Defender)
- Height: 4.6 inches (117mm) (Bronco), 5.3 inches (135mm) (Defender)
- Wheelbase: 6.10 inches (155mm)
- Approach Angle: 54° (Bronco), 52° (Defender)
- Breakover Angle: 45° (Bronco), 45° (Defender)
- Departure Angle: 48° (Bronco), 41° (Defender)
- Shock Length (front and rear): 2.0 inches (51mm)
- Hex Size: 7mm
- Wheels (front and rear): 1.0 x 0.49 inches (25.4 x 12.5mm)
- Tires (front and rear): 2.2 x 1.0 inches (57 x 25.4mm)
- Electronic Control Module: ECM-2.5™
- (Combo ESC, Receiver, Lighting Control*)
- Motor (electric): Titan® 180 87T
- Differential Type: Fully Locked; 2:1 Axle Ratio
- Chassis Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft-Driven 4WD
- Steering: Axle-Mounted Servo
- Radio System: TQ™ 2.4GHz 2-Channel Transmitter
- Servo: #2065T Heavy-Duty Waterproof
- Skill Level: 1
- Battery Tray: 50.5mm L X 31mm W
MOTOR SPECS
- Type: High-torque brushed motor
- Size: 180
- Weight: 33g (1.16oz)
- Dimensions: 1.66” (42mm) overall length, 1.34” (34mm) can length, 0.81” (21mm diameter)
- Turns: 87T reverse rotation
- Voltage: 8.4V
ECM SPECS
- Type: High-torque brushed motor
- Size: 180
- Weight: 33g (1.16oz)
- Dimensions: 1.66” (42mm) overall length, 1.34” (34mm) can length, 0.81” (21mm diameter)
- Turns: 87T reverse rotation
- Voltage: 8.4V
Car | |
---|---|
Assembly Type: | Kit |
Max LiPo Power: | 2S (7.4v) |
Size (Scale): | 1/18 |
Skill Level: | Intermediate |
Power Source: | Electric Brushed |
Chassis Type: | Rock Crawler |
On/Off Road: | Off Road |
Drivetrain: | 4WD |
Factory specs | |
---|---|
Max LiPo power: | 2S (7.4v) |
Included items
- TRX-4M® Ready-To-Race® model
- Licensed ABS hard body
- Titan® 180 87-turn motor
- ECM-2.5™ Electronic Control Module
- TQ transmitter
- 7.4 volt 750mAh 2-cell LiPo battery
- 2-amp USB fast charger with iD®
- High quality maintenance tools
