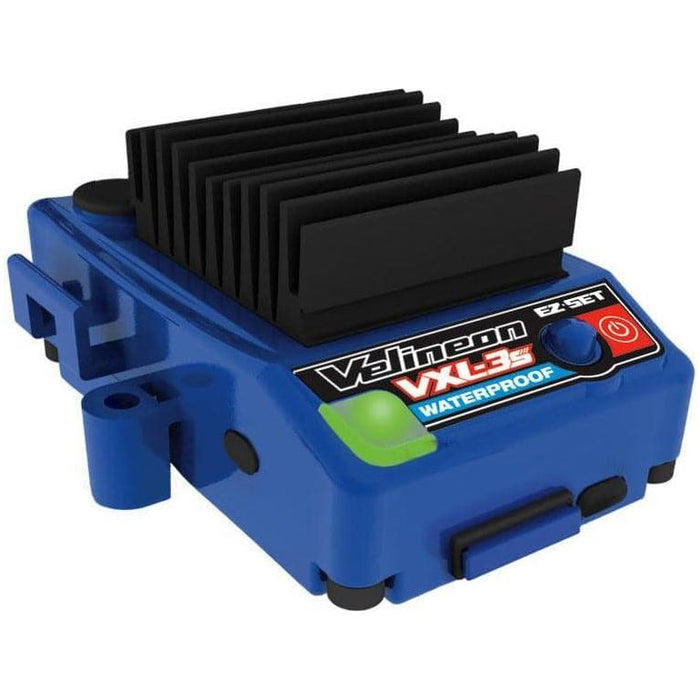

Traxxas 3355X VXL 3 Electric Speed Control

Features:

• Auto detects brushed, brushless or sensored brushless motor types
• Compatible with 4-cell NiCd or NiMH batteries up to 3S LiPo pack (11.1V)
• Three drive profiles Sport, Race and Training mode
• Locked rotor protection if vehicle is stuck or motor is bound
• Battery over-voltage protection triggers failsafe if maximum input voltage is exceeded
• Sensor phase detection protects against improperly wiring aftermarket sensored motors
• Sensored motor backup protection switches to sensorless operation if motor sensor fails
• Auxiliary fan output (fan not included)

Technical Specifications:

• Input Voltage 4.8 - 11.1V (4-9 NiMH, 2S-3S LiPo)
• Motor Compatibility: Brushed/Brushless/Sensorless Brushless
• Motor Limit: None
• Continuous Current: 200A
• Peak Current: 320A
• BEC Current: 6.0V DC
• Transistor Type: MOSFET
• On-Resistance: 0.00075 ohms
• PWM Frequency: 12,000Hz
• Thermal Protection: Two-Stage Thermal Shutdown
• Weight: 3.84 oz (109g)
• Length: 2.19" (57mm)
• Width: 1.54" (39mm)
• Height: 1.3" (33mm) including heatsink

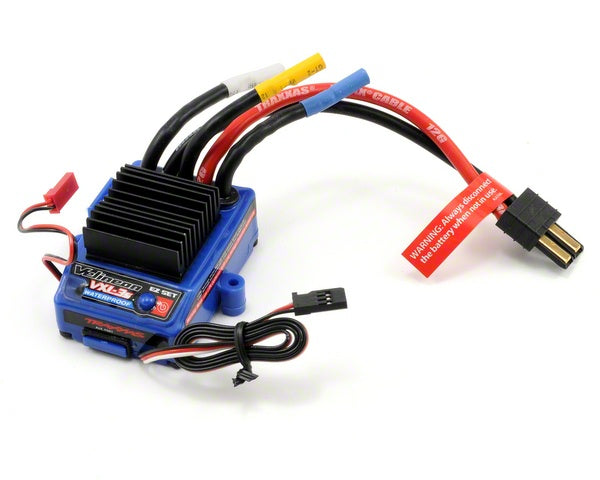

Includes: Traxxas VXL-3s Electronic Speed Control with 12 gauge motor and battery cables, three preinstalled 3.5mm female bullet motor connectors, Traxxas High-Current male battery connector, universal receiver connector and instruction manual
