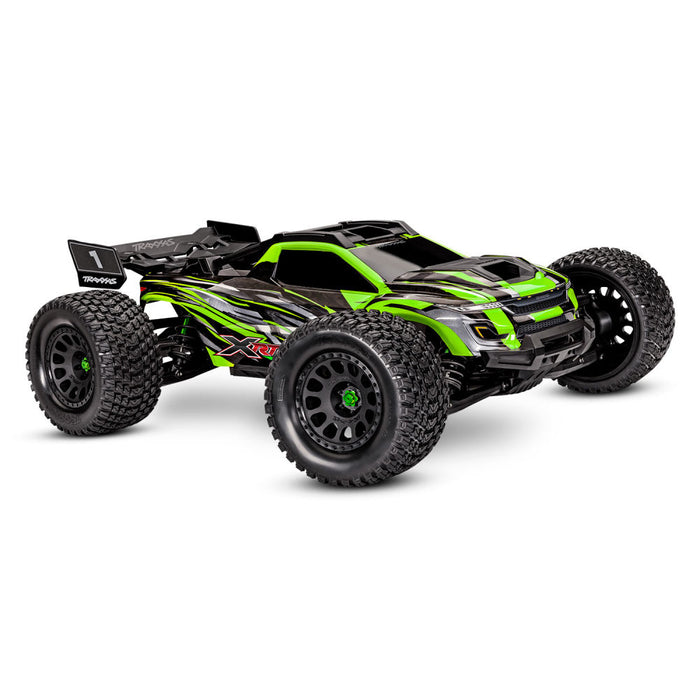

Traxxas XRT 8S Electric Brushless 4WD RC Truck w/TSM - 78086

$2,099.00
Color: Green

All New! TRAXXAS XRT WITH RACE INSPIRED 8S ESC ENGINEERING!  New Limited Stocks Arrived!!!

Image 13 of 21

The XRT redefines what it means to be a racing truck or an extreme basher! It is a fusion of Traxxas’ race-inspired design and engineering with the power and strength of X-Maxx, resulting in an all-new platform with sharp reflexes and unprecedented stability that is capable of exploiting the upper range of extreme 8s power and speed.

With its modified chassis at 1/5 scale, this truck is truly the massive! Make no mistake, however, because this truck is speedy. Conquer every terrain with this incredible machine and smash through every obstacle in style. This RC comes in four different body colors: red, orange, blue, and green.

Traxxas XRT 8S Brushless Electric Race Truck, Blue - Small Addictions RC

Is it a cross breed of the X Maxx and Sledge? or Is it Traxxas's response to 1/5 Kraton?

The Traxxas XRT fuses race-inspired design and engineering with X-Maxx® power and strength. The result is an all-new platform with sharp reflexes and unprecedented stability that is capable of exploiting the upper range of extreme 8S power and speed.

Image 6 of 21





XRT (#78086-4)

Traxxas XRT™ 8S 1/5 4WD Brushless RTR Electric Race Truck Green Edition w/  2.4GHz TQi Radio & TSM



BUILT FOR SPEED AND HANDLING

XRT was engineered with a focus on speed, handling, and performance. XRT’s low center of gravity, ultra-wide stance and low-profile body deliver confidence and control as XRT accelerates across the wide-open spaces to an all-out speed of 60+MPH or 100Km/h.


Traxxas 1/6 XRT 8S Electric Brushless 4WD RC Truck w/TSM

TOUGH ALL-METAL DRIVELINE

XRT performance and durability begins with its all-metal 8s driveline. Steel 4-gear differentials and steel driveshafts are joined by a high-strength extruded aluminium centre shaft. It’s a precision-engineered recipe that has been proven monster-truck tough in the X-Maxx.

Proven Tough All-Metal Driveline





RACE-INSPIRED LOW-CG CHASSIS

XRT’s performance-focused chassis design is configured to lower the center of gravity for superior handling and stability. The dual 6700 4s batteries and the steering servo are positioned to place the weight as low as possible in the chassis and provide protection for these critical components.


Traxxas 1/6 XRT 8S Electric Brushless 4WD RC Truck w/TSM

PATENT-PENDING CLIPLESS BODY

XRT’s patent-pending clipless body easily removes and installs in just seconds and yet it locks in place with incredible strength and security. The system uses a cage inside the body to minimize flex while external skids are strategically placed to protect the body.

Traxxas 1/6 XRT 8S Electric Brushless 4WD RC Truck w/TSM

Patent-Pending Clipless Body


GRAVIX™ RACE TYRES

XRT’s Gravix™ race tyres are a revolutionary new hybrid design with densely packed biting edges and sipes. They deliver outstanding grip on hard-packed surfaces along with fast and quiet-running precision.

Gravix Race Tires


VXL-8S POWER SYSTEM

Already Traxxas’ most powerful speed control, XRT’s VXL-8s™ goes even further with an aggressive tune that maximizes power output across the entire RPM range. More power under the curve delivers mid-range punch that hits hard for rolling wheelies on demand. Bury the throttle at any speed and XRT responds instantly with effortless acceleration.

VXL-8s Power System



Image 8 of 21


Specifications

Vehicle Specs


  • Length (including wing): 31.41 inches (798mm)
  • Front Track: 23.43 inches (595mm)
  • Rear Track: 23.43 inches (595mm)
  • Ground Clearance: 1.93 inches (49mm)
  • Weight: 19.70 pounds (8.94kgs) - without body
  • 21.03 pounds (9.54kgs) - with body
  • 23.87 pounds (10.83kgs) - with body & two 4s 6700mAh LiPos
  • Height: 10.15 inches (258mm) - ride height
  • 12.12 inches (308mm) - full droop
  • Wheelbase: 18.9 inches (480mm)
  • Shock Length (front): 6.79 inches (173mm)
  • Shock Length (rear): 6.79 inches (173mm)
  • Tyres (Pre-Glued): 7.4 x 3.8 inches (188mm x 97mm)
  • Wheels: 4.3 x 5.7 inches (110mm x 147mm)
  • Speed Control: Velineon® VXL-8s
    • Differential Type: Sealed, hardened steel bevel, limited slip
    • Gear Pitch (Spur and Pinion): Module 1.0
    • Chassis Structure/Material: Composite Nylon Tub
    • Brake Type: Electronic
    • Drive System: Shaft-driven 4WD
    • Steering: Bellcrank
    • Radio System: TQi™ 2.4GHz Transmitter with TSM® receiver™
    • Servo: Torque: 365oz. Speed: 0.17 sec/ 60 degrees(6.0V)
    • Top Speed: 60+ MPH with two 4s LiPo batteries and included optional gearing
    • Skill Level: 5
    • Battery Tray: 186mm x 51mm x 44mm
    • Required Batteries: 4 “AA” (transmitter) and 4-cell LiPo battery (x2)
    • Motor (electric): Velineon® 1200XL Brushless
    • with heat sink and dual fan shrouds
    • Overall Drive Ratio: 20.6:1 (20/50 motor pinion and spur gear)
Traxxas 1/6 XRT 8S Electric Brushless 4WD RC Truck w/TSM

Motor Specs

Type: 1275 kv Sensorless BrushlessWeight: 665g (23.44oz)Length: 4.32 inches (110mm)Diameter: 1.88 inches (48mm)Connector Type: Traxxas 6.5mm Bullet Connectors


ESC Specs

  • Input Voltage: 8s LiPo (Max 33.6 Volts)
  • Case Size: 2.23in (58mm) / 2.83in (72mm) / 1.81in (46mm)
  • Weight: 215.5g (7.60oz)BEC
  • Voltage: 6.0 VBEC
  • Current Continuous: 10 ABEC Current Peak: 20A
  • Motor Connectors: Traxxas 6.5mm Bullet Connectors
  • Battery Connectors: Traxxas High-Current Connectors
  • Power Wire: 10-gauge Maxx Cable
  • Ports: RX Input, Auxiliary Fan, Traxxas Accessory Port

Car
Assembly Type: Ready to Run
Max LiPo Power: 8S (29.6v)
Size (Scale): 1/6
Skill Level: Expert
Power Source: Electric Brushless
Chassis Type: Truggy
On/Off Road: Off-Road
Drivetrain: 4WD


Box size:

  • 82.5 x 55.1 x 25.6cm
  • N.W: 12.3Kg
  • G.W: 13.8Kg

Features

  • VXL-8s™ Waterproof Electronic Speed Control
    • Aggressive tuning for more power at any RPM
    • 8s LiPo compatible
    • Built-in cooling fan
    • Real-time telemetry via Traxxas Link
    • Machined heat sinks
    • 10-gauge silicone wire
    • Integrated protection circuits
    • LED status lights
  • Velineon® 1200XL Brushless Motor
    • “Big Block” brushless motor
    • 4-pole 1275 kV
    • 5mm output shaft
    • Oversize aluminum heatsink for improved cooling
    • Dual cooling fans
  • Up to 60+ mph with Two 4s LiPo Batteries and Included Optional Speed Gear
  • Traxxas Stability Management® (TSM)
    • Improves straight line acceleration and braking on low-traction surfaces
    • Never dulls throttle or slows the truck
    • Adjusts from off to 100% assistance from the transmitter
  • TQi™ 2.4GHz High Output Radio System
    • TQi™ 2-channel transmitter
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
    • Programmable multi-function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle end points
    • High 13ms frame rate and near-zero latency for responsive control
    • 5-channel micro receiver (#6533) with fail-safe security
    • Patented waterproof receiver box with easy-access plug
  • X-Maxx® Spec 8s Drivetrain
    • Full-time shaft-driven 4-wheel drive
    • Heavy-duty steel CV driveshafts & axles
    • Splined aluminum center driveshaft
    • Fully machined aluminum stub axles
  • Transmission
    • Mod-1 steel pinion and spur gears
    • Fixed gear mesh system
    • Torque-Biasing Center Drive
  • X-Maxx Spec 8s Differentials
    • Heavy-duty sealed 4-gear design
    • Large scale steel ring and pinion gears
    • Splined outdrives attached with external thru-bolt method
    • Reinforced bulkhead and covers increase bearing support
  • Rock-Solid Motor Mounting System
    • Precise preset gear mesh adjustments
    • 4 keyed pins lock the motor in place
    • Motor retention separate from gear mesh
  • GTX Race Shocks
    • Machined aluminum threaded body
    • Extra-large bore and capacity
    • 5.2mm damper shaft
    • Lower seal cartridge includes integrated wiper seal combination
    • Height-adjustable spring retainer
    • Heavy-duty composite shock caps with pivot balls
    • Lower spring perches bolted on
      • WideMaxx® Suspension
        • Extra-wide suspension arms
          • Made from heavy-duty cold-weather composite
        • Performance-optimized geometry
        • Double-shear connections
        • High-strength steel suspension pins with retainers
        • 4mm machined pivot balls
        • Fixed high-strength camber and toe links
        • Heavy-duty steering blocks and axle carriers
        • Oversized wheel bearings
      • Low-CG Chassis Design
        • Modular chassis with interlocking bulkheads
          • Low center of gravity for improved handling
          • Flat bottom design
          • Heavy-duty interlocking skid plates
          • High-strength buttressing on shock towers
        • Dual snap-lock battery compartments
          • Protects batteries from side impacts
          • Allows secondary battery-clip security
        • Interlocking components for tight tolerances
        • Wire management for clean appearance
      • Patent-Pending Clipless Body
        • Snaps in place in just seconds
        • Secure body latches are easy to use
        • Rigid internal frame
        • Dual cold-air intakes
        • Molded body reinforcements for tear-through protection
        • Protective top skids
        • Rugged high-downforce rear wing
      • Heavy-Duty Bumpers
        • Reinforced front bumper and rear wing support
          • Absorb impact forces while retaining shape
        • Nerf bars for side impact resistance
        • Heavy-duty wheelie bar with carry handle
      • Wheels and Tyres
        • 7.4" Gravix™ race tyres
          • Low sidewall for sharp turn-in response
          • Thick center carcass resists ballooning at high speed
          • Lower rotational mass for faster acceleration
        • 3.8" matte black XRT race wheels
        • High-strength glue and bead design
        • Huge 24mm splined wheel hubs
      • Steering
        • Powerful 365 oz-in steering servo
        • Heavy-duty cam-style servo saver
        • Dirt evacuation channels
        • Fully waterproof
      • Sealed Ball Bearings
      • Hex hardware with Rust-Resistant Black Oxide Coating

Included items

  • XRT, Ready-To-Race® model with Traxxas Big Block™ brushless motor
  • VXL-8s waterproof electronic speed control with integrated telemetry
  • Quick Start GuideTQi™
  • 2.4GHz radio system
  • High quality maintenance tools
  • Optional speed gears

Required items (not included)

  • LiPo Batteries

    Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (Part No: 2890X)

  • LiPo Balance Charger with iD

    Traxxas EZ-Peak® Live 4s-capable charger is recommended for easy and fast charging performance (Part No: 2971).

  • AA Alkaline Batteries

    Four AA alkaline batteries for the transmitter.


Already Traxxas’ most powerful speed control, XRT’s VXL-8s™ goes even further with an aggressive tune that maximizes power output across the entire RPM range.

More power under the curve delivers mid-range punch that hits hard for rolling wheelies on demand. Bury the throttle at any speed and XRT responds instantly with effortless acceleration.

Traxxas XRT™ 8S 1/5 4WD Brushless RTR Electric Race Truck Red Edition w/  2.4GHz TQi Radio & TSM 78086-4RED

What is Inside the Traxxas XRT Box?

Inside a huge box sits the Traxxas XRT, and it is elegant, sleek and beautiful! This newest monster of a machine is a modified and redefined racing truck created for all the enthusiasts out there. It is the perfect combination of a Monster Truck and a Truggy, which means you have the best of both worlds!

Note: If you have unboxed Traxxas RC cars before, the transmitter is placed just right at the opening of the box and it can fall out. Try to unbox it as carefully as possible.

Limited Stocks and colours available in this shipment. Buy one today as no further shipments may be available until end of this year!



In-depth Review of the Traxxas XRT

At first glance, you would probably associate the Traxxas XRT with the X-Maxx since it is based off the same design and concept; the rear transmission and centerpiece do look to be the same, as well as some other significant parts; however, the closer we look at it, it seems less like so. You might see this difference in how the front piece looks or how the center shaft comes through a lot higher on this model than others that came before.

The tires are much more versatile than the rest of the body and were designed to be more of an "all-rounder" type. Its flexible back wheel design is a really cool feature that you would surely feel when driving this thing on the track. They drive pretty well on the road and are stronger than your average X-Maxx, but you do have to be careful since their large size can make them more prone to damage.

It is definitely like an LCG, so not only can they hold their own when performing, they can do it better than an X-Maxx would. It has the same size differentials and same configuration shafts as the X-Maxx, along with a rubbery wheelie bar with great crash support in the wiggles. The exoskeleton and the decals, besides being absolutely huge, are beautifully made as well. Traxxas also went several steps further and put skid plates all over the body, so you knew it would be pretty robust.

As you would expect, the parts are huge! This is definitely going to sit a lot differently than the X-Maxx. The bodywork is absolutely beautiful, with some serious power paired up with it. Would you want one for yourself?

Get yours now!
