Meet the all new Hoss from Traxxas, the tough and intelligent 1/10 scale 4x4 VXL Brushless Monster Truck!
Introducing the all new Traxxas 1/10 HOSS 4x4 VXL Brushless Monster Truck!
The all-new 1:10 Scale Hoss 4X4 VXL unleashes extreme monster truck fun with the power and speed only Traxxas can deliver. Grab a fistful of throttle and the huge Velineon 540XL motor delivers a massive torque punch to wheelie on command, and then keeps pouring on the thrust for a 60+ MPH top speed. The Torque Biasing Center Drive and heavy-duty shaft-driven 4WD system transfers maximum power to the ultra-aggressive Sledgehammer™ tires. It’s built to absolutely shred any terrain, from dirt and sand to mud and snow. Pitch Hoss hard and fast into a turn and Traxxas Stability Management goes to work behind the scenes to help keep you solidly on track while you’re blazing new trails. Non-stop fun and performance always come first, so Hoss stays true to the Traxxas heritage of rugged strength and durability which is engineered into every component. Drive harder, go faster, hang tougher— Nothing stops the Hoss!
Check out the Traxxas Hoss 4x4 VXL RC Monster Truck doing what it does best!
Hoss 4x4 VXL Unique Features:
Traxxas Stability Management
Traxxas Stability Management (also referred to as TSM) is included in Traxxas' latest receivers. It incorporates an advanced gyro system that detects when the tyre' loses traction beyond the control of the user and instantly corrects it to keep you on course.
Extreme Sledgehammer Grip
The Hoss VXL 4X4 relies on huge Sledgehammer tires to put its massive torque to the ground. The 5.3-inch tall Sledgehammers lift the Hoss skyward for superior ground clearance and a menacing stance. The open-block tread design clears away mud and debris for unrivaled traction on loose surfaces. Sledgehammer tires come pre-glued with performance foam inserts and they’re TSM-rated for speeds of 60mph and beyond!
540XL Torque
For those who believe “there’s no replacement for displacement,” Traxxas has built a monster truck for you. The new Hoss 4X4 VXL packs the same Velineon 540XL brushless motor found in the Maxx extreme monster truck. It’s the largest motor we’ve ever offered in a truck this size. The Velineon VXL-3s speed control rolls out the power smoothly utilizing large 6.5 mm connectors and an integrated cooling fan for fast, reliable fun.

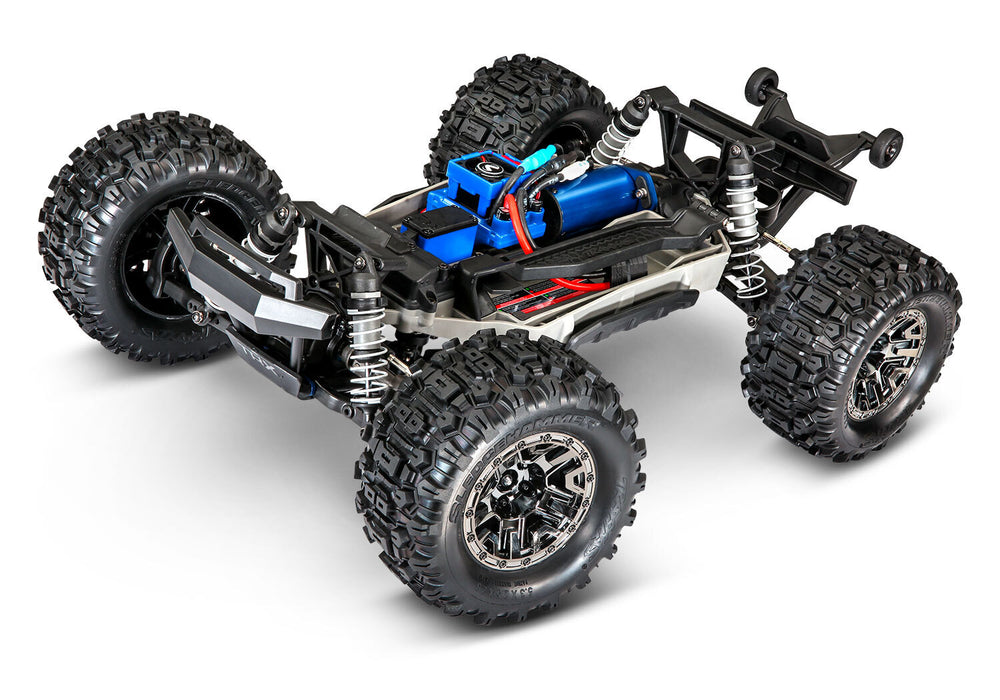

Rock-Solid Drivetrain
A conventional 4-wheel drive system may work for your average RC truck, but average isn’t in the Traxxas vocabulary. We pored over every inch of the Hoss’ drivetrain, strengthening critical areas to handle the 540XL’s immense power. A Torque-Biasing Center Drive outfitted with a steel spur gear replaces a traditional slipper clutch along with a tough aluminum center driveshaft and beefed-up extreme-duty axles. The resulting Hoss drivetrain is a model of both efficiency and brute strength.
Other Features:
- VXL-3s™ Waterproof Electronic Speed Control
- Velineon® 540XL Brushless Motor
- Up to 60+ mph or 100 Km/h with 3S LiPo battery
- Traxxas Stability Management® (TSM)
- Adjustable 4mm steel toe and camber links
- New impact-resistant suspension arm composite
- Oil-filled Ultra Shocks
- Rugged front and rear shock towers
- Chassis-mounted servo
- Dual bellcrank design with integrated servo saver
- Transmission: Single speed with Torque-Biasing Center Drive
- Overall Drive Ratio: 10.99:1
- Differentials: Sealed, 2-gear
- Chassis Structure / Material: Modular composite tub
- Brake Type: Electronic
- Full-time shaft-driven 4-wheel drive
- Torque-Biasing Center Drive™ absorbs shocks and distributes power evenly
- Extreme heavy-duty driveshafts
- Oil-filled steel gear front and rear differentials
- Large 32-pitch steel spur gear
- Anodized-aluminum center driveshaft
- Radio System: TQi™ 2.4GHz 2-ch transmitter with #6533 TSM receiver
- Servo: Waterproof #2075
- Top Speed (optional gearing): 60+ mph with 3-cell LiPo and 23/50 gearing
- Skill Level: 1
- Clipless ProGraphix® Body
- Modular composite tub design
- Secure battery hold-down latch
- Reinforced integrated wheelie bar
- High-approach bumpers
- Integrated nerf bars for side impact resistance
- Tall 5.3” Sledgehammer™ tyres with 2.8" Black Chrome Wheels
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
- Reinforced Front & Rear Bumpers
- ProGraphix Body
- Secure Body Latch
- Modular Chassis
- Heavy Duty Composite Arms
-
5-Channel Receiver with Failsafe Waterproof Receiver Box
- Optimum Geometry Steering with Integrated Servo Saver
- Digital High Torque Waterproof Steering Servo
- VXL-3S ESC with Fan
- Innovative Battery Hold Down
- Chassis Nerf Bar
- Velineon 540XL Motor
- Fixed Gear Adapter
- Heavy Duty 4mm Turnbuckles
- Extreme Heavy Duty Driveshafts
- Steel Gear Differentials
- Extruded Aluminum Driveshaft
- Heavy Duty Steel Spur Gear
- Rubber Sealed Ball Bearings
What’s In The Box
- Hoss 4X4 VXL with Velineon® VXL-3s and 540XL
- Quick Start Guide
- TQi™ 2.4GHz radio system
- High quality maintenance tools
Required items (not included)
- 7.4v or 11.1v LiPo Batteries
- Charger
- 4 AA Batteries
Specifications
- Length: 514mm (20.24”)
- Width: 333mm (13.10”)
- Height: 212mm (8.34”)
- Weight: 2.9kg (6.3 lbs) without battery
- Wheelbase: 295mm (11.62”)
- Ground Clearance: 70mm (2.75”)
- Drivetrain: 4WD
- Box size: 35 x 27.5 x 60cm
- Shipping weight: 14.4Kg
- Gross weight: 5.3Kg
- Nett weight: 4.4Kg
ESC Specs
- Input Voltage (cells): 7.2V (6–9 cells NiMH), 2S–3S LiPo
- Case Size: 2.19” (56mm) x 1.54” (39mm) x 1.65” (45mm)
- Weight: 3.84oz (109g)
- BEC Voltage: 6.0 V
- Reverse Delay: Yes, with lockout
- Thermal Protection: Two-stage thermal shutdown
- Ports: Auxiliary fan
Car | |
---|---|
Assembly Type: | Ready to Run |
Max LiPo Power: | 3S (11.1v) |
Size (Scale): | 1/10 |
Skill Level: | Intermediate |
Power Source: | Electric Brushless |
Chassis Type: | Truck |
On/Off Road: | Off Road |
Drivetrain: | 4WD |
Factory specs | |
---|---|
Max LiPo power: | 3S (11.1v) |
Battery connector: | Traxxas iD |
Front shock oil: | 50w |
Rear shock oil: | 50w |
Front differential oil: | 30,000w |
Rear differential oil: | Grease |
Pinion gear: | 14T 32dp/0.8Mod |
Spur gear: | 54T 32dp/0.8Mod |
Wheel hex size: | 12mm |
