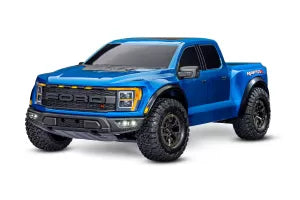

Traxxas 1/10 Ford F-150 Raptor R 4WD Electric Brushless RTR RC Pickup Truck
All New Traxxas 1/10 Ford F-150 Raptor R 4WD Electric Brushless RTR RC Pickup Truck -Arriving Soon!
Overview
The Traxxas Raptor R™ is the latest addition to the Traxxas Pro Scale® lineup, combining superb scale detail and proportion with 4X4 traction and extreme Velineon® brushless horsepower. This captures the Raptor R™ driving experience, delivering both realism and unbeatable speed and durability performance.
The Traxxas Raptor R boasts a Ford-licensed body and moulded replica parts for maximum authenticity. Its Velineon® brushless horsepower and extreme heavy duty 4WD driveline give it performance credentials to match its stunning looks. The pre-installed Extreme Heavy Duty Upgrade Kit withstands the punishment of high-power brushless systems, with driveshafts and suspension components made from tough cold-weather material. The clipless body is held tightly by locking tabs, but can be released in seconds for easy access to the chassis.
Features
Moulded Scale Details
Raptor R sets the standard for scale detail with injection-moulded parts for enhanced realism. Unique front and rear bumpers integrate neatly with the body for a clean look and strong impact resistance. The deep-inset front grille features bold Ford lettering and replica marker lights. Tough side mirrors, a hood vent, and rear tailgate panel complete the package
Clipless Convenience
Raptor R’s innovative clipless body features secure mounting with quick and easy removal. No posts, no clips—just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift up to access the chassis in just seconds. Patent Pending
Traxxas Stability Management
Traxxas Stability Management® (TSM) works behind the scenes to help harness Raptor R’s extreme brushless power for maximum acceleration and precise control. Adjust the amount of assistance from off to 100% right from your transmitter.
New Extended 4X4 Chassis
Raptor R’s new extended chassis features a longer wheelbase developed specifically for this application. In addition to ensuring accurate proportions, the longer footprint improves high-speed stability and refines handling. Extra reinforcements in the chassis improve structural rigidity for hard-charging action and high-flying stunts
Velineon Brushless Power
Velineon® equals extreme brushless horsepower. The power system is optimised for speed and acceleration, from the patented Traxxas High-Current connector to the custom-wound 4-pole motor. The system delivers the ultimate in efficiency, speed, and run-time along with refined control. This is brushless performance the Traxxas way: wicked fast and easy to use.
Waterproof Electronics
Raptor R gives you the freedom to drive where and when you want, regardless of weather conditions. Traxxas’ patented innovation means Raptor R is waterproof, not merely "water resistant." Just pin the throttle and go! Water, mud, and snow won’t slow down Raptor R.
TQi Radio System
The high-output Traxxas TQi™ 2.4GHz radio system delivers superior range, 30-model memory, and maximum control. Add sensors and the Traxxas Link Wireless Module. (both sold separately) to send real-time telemetry to your smart phone using the free Traxxas Link app.
Replica Wheels and Tyres
Large black chrome wheels faithfully replicate the Raptor R’s full-size rims. Licensed BFGoodrich® All-Terrain T/A® KO2 replica tyres come pre-glued to the wheels with raised lettering and authentic tread blocks for enhanced realism. Their oversize 114mm diameter gives Raptor R a commanding presence and superior grip on the road or in the wild
Quick Release Battery Compartment
Raptor R stows its battery deep in the chassis, behind reinforced sidewalls for maximum protection. A quick-release, dual-height battery mount accommodates a wide range of batteries including long format NiMH and LiPo battery packs. A beefed up latch provides solid locking action to keep batteries safe no matter how wild the action gets
LED Lighting
Raptor R features front and rear LED bumper lighting to extend your fun into the late hours. Impact-resistant bumpers protect the lights against crash damage with fully waterproof construction for all-weather fun
Features
- Officially Licensed Ford® F-150® Raptor R™ Body
- Moulded scale details, LED lighting, body reinforcements
- Clipless Body Mounting, Extreme Heavy Duty Upgrade Kit
- Tough cold-weather resistant composite, strengthened parts
- Extreme heavy duty driveshafts, VXL-3s™ Waterproof ESC
- Cooling fan, heat sink, EZ-Set®, LiPo detection
- Traxxas Stability Management® (TSM), improves acceleration
- Improves braking and steering on low-traction surfaces
- Adjustable assistance, never dulls throttle or slows truck
- TQi™ 2.4GHz High Output Radio System
- Heavy duty suspension arms, adjustable steel links
- Oil-filled Ultra Shocks, white powder-coated springs
- Velineon® 3500 kV Brushless Motor, Neodymium magnets
- Optimised for power and efficiency in 1/10th scale vehicles
- Efficient ball bearings, precision-balanced rotor, blue-anodised finish
- Extended modular composite tub design chassis, side nerfs
Specifications
- Length: 637mm (24.98in)
- Width: 289mm (11.63in)
- Height: 226mm (8.91in)
- Weight (no battery): 2.74kgs (6.05lbs)
- Wheelbase: 384mm (15.11in)
- Tread F/R: BFGoodrich® All-Terrain T/A® KO2
- Tyre Width/Diameter: 48x114mm (1.89/4.9in)
- Chassis: Composite Tub
- Drivetrain: Hardened Steel Bevel, Sealed, Limited Slip
- Steering: Dual-Bellcrank W/ Integrated Servo Saver
- Suspension: Progressive Rate Shock
- Gear Ratio: 37/13 Ring/Pinion Gear Ratio
- Motor: 3500KV Velineon® Brushless
Car | |
---|---|
Assembly Type: | Ready to Run |
Max LiPo Power: | 3S (11.1v) |
Size (Scale): | 1/10 |
Skill Level: | Intermediate |
Power Source: | Electric Brushless |
Chassis Type: | Truck |
On/Off Road: | Off Road |
Drivetrain: | 4WD |
Factory specs | |
---|---|
Max LiPo power: | 3S (11.1v) |
Battery connector: | Traxxas iD |
Front shock oil: | 50w |
Rear shock oil: | 40w |
Front differential oil: | 30000w |
Rear differential oil: | Grease |
Pinion gear: | 13T 32dp/0.8Mod |
Spur gear: | 37T 32dp/0.8Mod |
Wheel hex size: | 12 |
Included items
Description | QTY |
---|---|
Raptor R with Velineon® VXL-3s ESC and 3500 kV motor | 1 |
Quick Start Guide | 1 |
TQi™ 2.4 GHz radio system | 1 |
High quality maintenance tools | Set |
Required items (not included)
- 11.1v LiPo Battery
- Comaptible Charger
- 4 x AA Alkaline Batteries
