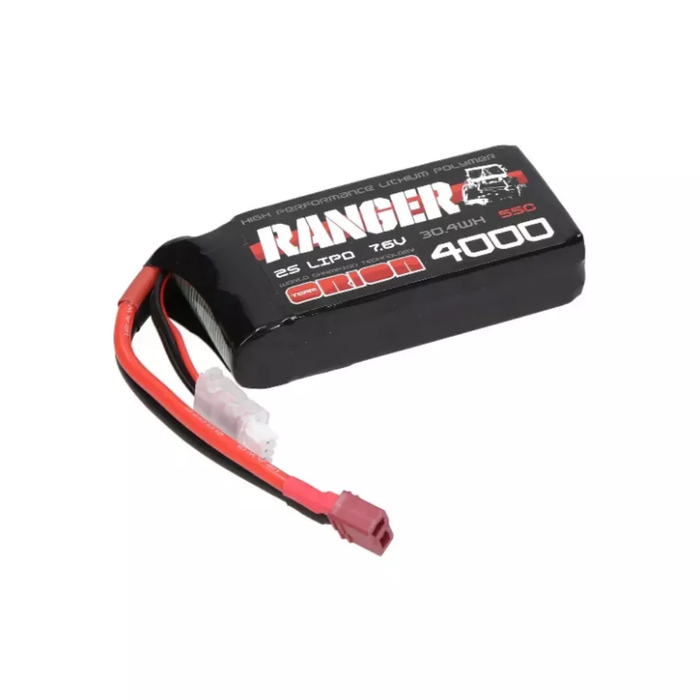

Team Orion Ranger 4000mAh 2S 7.6V 55C LiPo Battery Shorty Deans Connector ORI143


Team Orion 7.6V 4000Mah 2S 55C Ranger Crawler HV Shorty LiPo Battery

 Team Orion Ranger Crawler HV Shorty 7.6V 4000mAh 55C LiPo Battery


Team Orion's goal is to revolutionise the design of the electric motor with V2 technology. Which creates affordable World Championship Technology without sacrificing performance or reliability.

Team Orion's Ranger LiPo batteries have been a huge success thanks to their race-level quality, affordable price point, and wide variety of configurations. Now team Orion is proud to release the next generation of batteries that take the Ranger philosophy to the next level. Thanks to increased capacities and generous discharge capabilities, overall power and top speeds are improved while extending run times far beyond what is capable with NiMH batteries or lower-quality LiPo batteries.

Each Ranger battery features Team Orion's molded hard case for maximum crash protection in sizes that fit the most popular car configurations. Wires now exit the case through a rubber gasket which protects the wire's insulation while helping to prevent moisture from entering the case. High-quality cell manufacturing and construction techniques result in reliable operation and maximum cycle-life.

Team Orion's Ranger LiPo batteries come equipped with beefy silicone wires and a reliable, low-resistance High Power Plug connector. An integrated balancing harness with a XH connector is included.


  • Deans connector and JST-XH Balance Lead as standard
  • Genuine Team Orion LiPo Battery


  • Type: LiPo
  • Capacity: 4000mAh
  • Voltage: 7.6V
  • Connector Type: Deans
  • Number of Cells: 2
  • Weight: 183g (.403lbs)
  • Length: 95mm (3.74")
  • Width: 40mm (1.57")
  • Height: 20mm (.787")
  • Application: Surface
  • Maximum Continuous Discharge: 55C
Total Voltage: 7.6
mAh: 4000
Discharge C Rating: 55
Battery Type: LiPo
Connector Type: Deans
Battery Length (mm): 95
Battery Width (mm): 40
Battery Height (mm): 20
Battery Weight (g): 183
Cell Voltage: 3.8
Lithium Case: Soft Case
Balance Lead Connector: JST-XH
