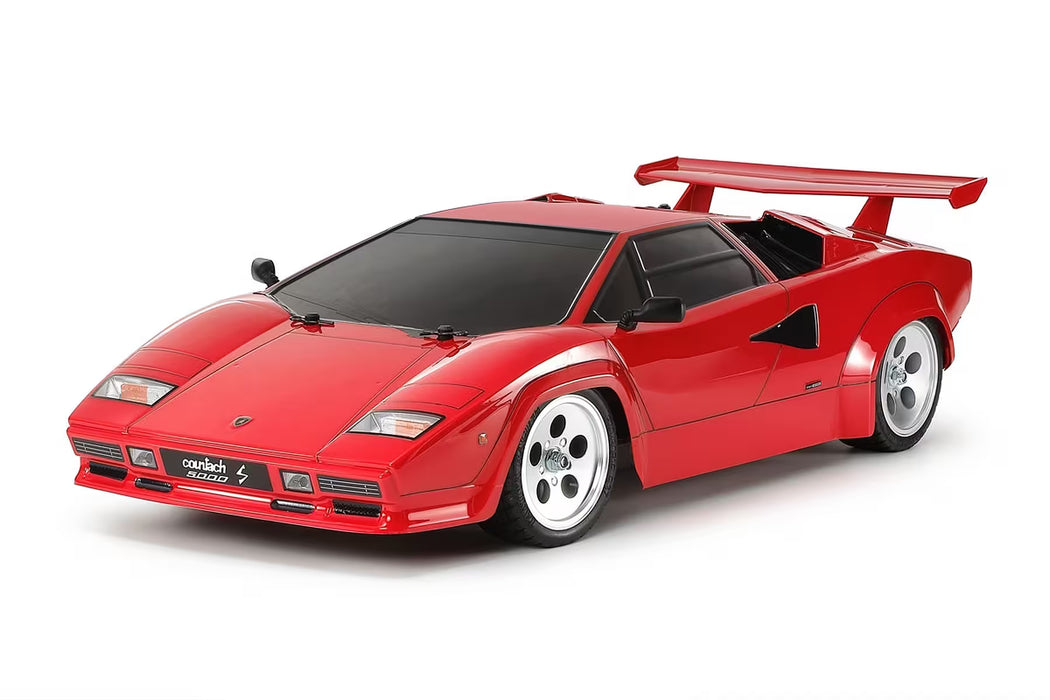

The Tamiya TT-02 Lamborghini Countach 5000S RC Car brings back a highly celebrated 1982 supercar design in a brand new limited-edition release. Sporting a distinctive wedge-shaped silhouette, the 1/10 scale unassembled kit features a detailed 1.0mm (0.04") thick clear polycarbonate body ready for custom painting. The exterior captures the racing spirit perfectly with separate white plastic parts depicting side mirrors and a rear wing, alongside metal-plated light cases compatible with aftermarket LED systems. The vehicle sits atop five-hole dish wheels wrapped in treaded racing radial tyres, ensuring the aggressive stance of the original V12 machine translates accurately to the local circuit.

Mechanical grip and reliability drive the engineering behind the versatile TT-02 chassis architecture. The bathtub frame employs a longitudinal layout, positioning the battery on the left and the motor on the right to deliver excellent cornering balance. Power is generated by a Torque Tuned 540 brushed motor managed by an included HobbyWing THW 1060 electronic speed control, feeding torque through an efficient shaft-driven 4WD system. The sealed gearboxes ensure the internal components remain protected from dust during fast runs.

Assembling a famous supercar offers a highly rewarding hobby experience. Complete the entire build process, apply the window masking stickers, and carve up the streets with a classic today!

Features

Stylish Brake Disc Wheel Hubs

Smooth Precision Steering Linkages

Experience incredibly smooth and precise control thanks to the steering linkage joints featuring resin ball links. This design ensures accurate command over your TT-02 chassis, enhancing your driving experience on any surface

Smooth Planetary Gear Diffs

Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving

Rear Double-Wishbone Suspension

The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience

Efficient Motor Cooling Cover

The motor cover includes a clever, removable cooling duct engineered to significantly improve motor performance. This design helps keep your motor running at optimal temperatures, ensuring consistent power and reliability during extended use (duct not shown)

Designed for Easy Maintenance

The TT-02 chassis is engineered for effortless upkeep. Its sealed gearbox features a four-screw top cover that's easily removable, allowing for quick routine maintenance and ensuring your car runs at its best for longer

Dust and dirt-proof receiver case

To make sure the receiver keeps free of dust and dirt, the TT-02 is equipped with a cover that keeps it all out and ensures your receiver lasts longer

Features Summary

• Classic 1982 supercar design returns in a limited edition unassembled car kit

• Clear 1.0mm thick polycarbonate body arrives ready for custom paint applications
• The kit features an existing body
• The body is moulded in 1.0mm thickness polycarbonate
• Separate white plastic parts realistically depict side mirrors and rear wing, with metal plated light cases (separately sold LED lights are attachable)
• The 5-hole dish wheels are paired with tread pattern racing radial tyres
• The efficient shaft-driven 4WD TT-02 chassis features superior adaptability and stability
• Comes with stickers and masking stickers for use in the paint job
• The instruction manual has background story texts of the actual car on its cover
• Separate plastic parts accurately depict the side mirrors and aerodynamic wing
• Metal plated light cases arrive ready for optional aftermarket LED installation
• Tuned 540 brushed motor provides excellent torque for street driving
• Includes the Waterproof HobbyWing THW 1060 electronic speed controller
• TT-02 chassis layout positions the battery and motor for high balance
• Efficient shaft driven 4WD system ensures maximum traction on smooth surfaces
• Fully independent double wishbone suspension absorbs harsh bumps on the track
• Five hole dish wheels come wrapped in grippy tread pattern racing radial tyres
• Wheelbase: 257mm
• Sealed front and rear gear differentials prevent dust from entering the gears
• Shaft-driven 4WD TT-02 Chassis
• The chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes.
• This highly adaptable chassis offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios.
• Genuine Tamiya Product

Included Items

• 1x Tamiya TT-02 Lamborghini Countach 1/10 Scale RC Car Kit
• 1x Tamiya 540 Brushed Motor
• 1x HobbyWing THW 1060 Brushed Electronic Speed Control
• 1x Clear Polycarbonate Bodyshell
• 1x Decal And Window Mask Sheet
• 1x Product Assembly Manual

Required Items

• 1x 2-Channel Radio System
• 1x Standard Steering Servo
• 1x 7.2V NiMH Or 7.4V LiPo Stick Battery w/ Charging/Storage Bag
• 1x Compatible Battery Charger
• 1x Tamiya PS Spray Paint
• 1x Assembly Tool Set
