TOYOTA SUPRA (JZA80) (BT-01)
The 2WD BT-01 chassis offers choices of FF/MR/FR drive system based upon the drive system of the actual car your body recreates. Its very first body depicts the fourth generation Toyota Supra (JZA80) which was announced as a Toyota’s flagship sportscar in 1993.
Its top grade RZ model employed a 3-liter inline-6 twin turbo engine capable of 280hp, 6-speed transmission, 4-wheel double wishbone suspension and ventilated disc brakes for front and rear.
The muscular form and high-spec performance mesmerized fans all over the
world and achieved success in motorsports races, and now the car is depicted by this R/C model assembly kit with a realistic polycarbonate body.
The 2WD BT-01 chassis gives a choice of two types of wheelbase, and front- or rear-wheel drive system. Without removing battery pack, motor and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; front (FR) or midship rear (MR) motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features
symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance. An MR setup is recommended for this model of the Supra, but the FR setup is similar to that of the full-size car and will be worth a try.
Features
-
This is a 1/10 scale R/C model assembly kit. Length: 457mm, width: 185mm, height: 135mm. Wheelbase: 257mm.
-

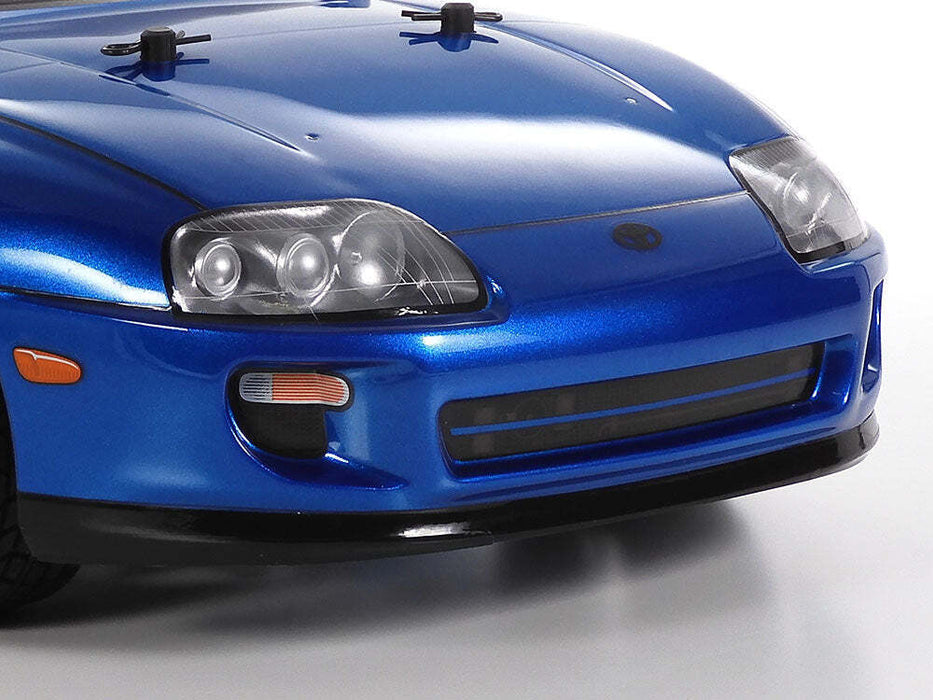

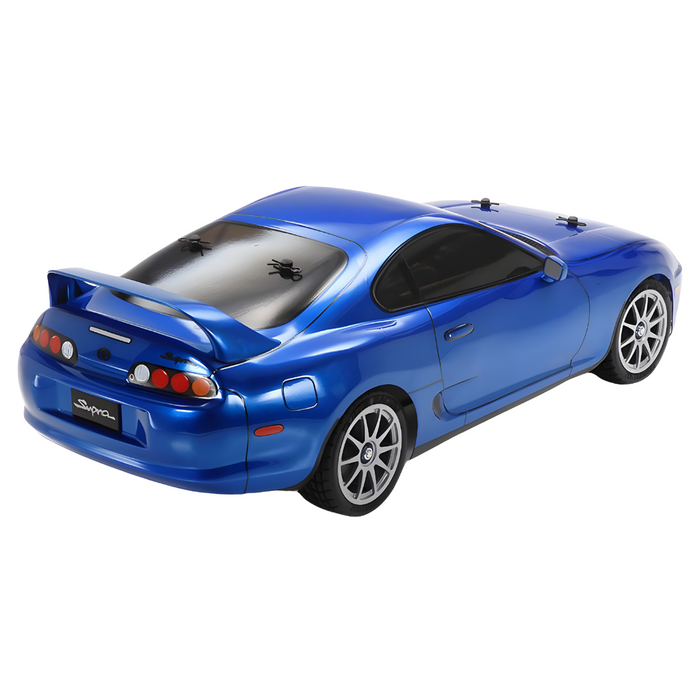

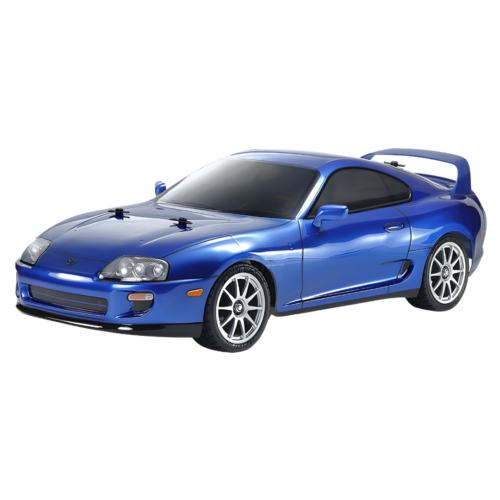

The form of the Toyota Supra (JZA80) is realistically recreated in lightweight polycarbonate.
-
10-spoke one-piece wheels (silver colour) are paired with racing radial tires (Item 50419).
-

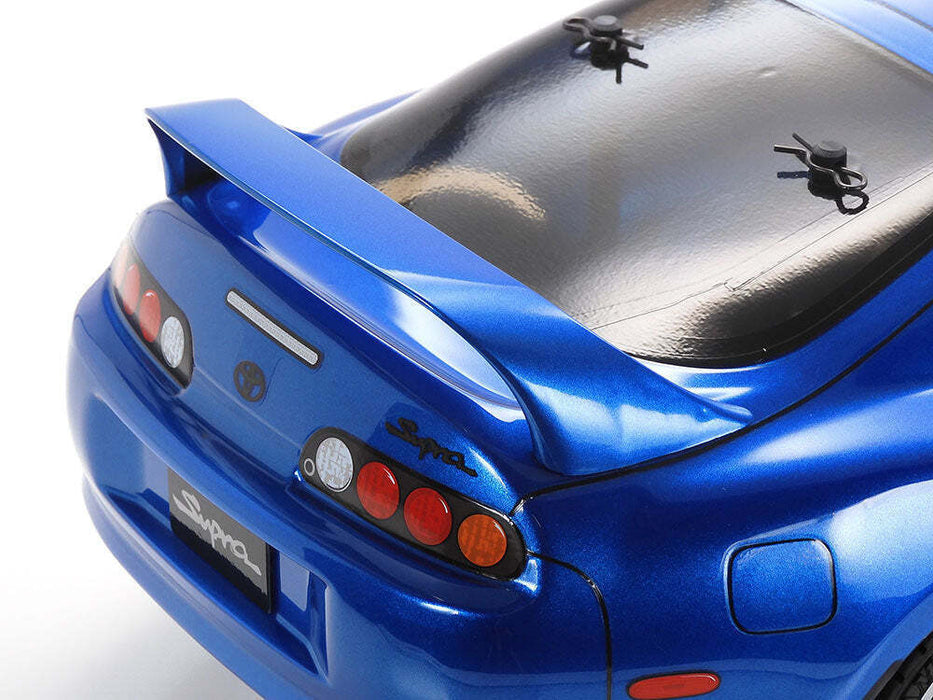

Separate moulded plastic parts: mirrors, wing, light cases
-
Length: 397mm, width: 185mm. Wheelbase: 257mm / 251mm (*).
-
The 2WD BT-01 chassis gives a choice of two types of wheelbase (*), and front- or rear- wheel drive system.
-
Without removing battery pack, motor and R/C equipment setups from the centre frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; front (FR) or midship rear (MR) motor position can be chosen for rear-wheel drive cars. (Six setups are available in total.)
-
The 4-wheel double wishbone suspension features symmetrical structure and friction dampers.
-
Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.
-
Many Hop-Up Option parts for TT-chassis cars can be used to fine-tune setup.
Specifications
- Length: 457mm, width: 186mm, height: 125mm
- Wheelbase: 257mm (standard)
- Tread: 157mm (front and rear, chassis width: 184mm)
- Tyre width/diameter: 27/67mm (front and rear)
- Rear-wheel drive
- Plastic 4-bevel differential gear
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension
- Friction dampers (front and rear)
- Gear ratio = 8.27:1 (with kit standard 22T pinion)
As illustrated here, the BT-01 can be assembled in 3 different setups, each offering 2 wheelbases: 251mm and 257mm.
Requires
- 2-channel R/C system
- ESC
- Servo motor for steering
- Battery pack & charger
