Tamiya TT-02 Mercedes-AMG GT3 EVO RC Car Electric 4WD 1/10 Scale Kit w/ESC - 58750
Tamiya TT-02 Mercedes-AMG GT3 EVO RC Car Electric 4WD 1/10 Scale Kit with ESC
Overview
- This is a 1/10 scale R/C model assembly kit
- Length: 454mm, width: 189mm, height: 120mm Wheelbase: 251mm (short)
- The powerful form of the Mercedes-AMG GT3 EVO is captured in style by a lightweight, rigid polycarbonate body with separate polycarbonate front light cases (LED lights are not attachable),
- Rear wing and canards Separate black ABS plastic parts realistically depict side mirrors and rear wing stays
- The efficient shaft-driven 4WD TT-02 chassis features superior adaptability and stability
- Black mesh type wheels are paired with racing slick tyres

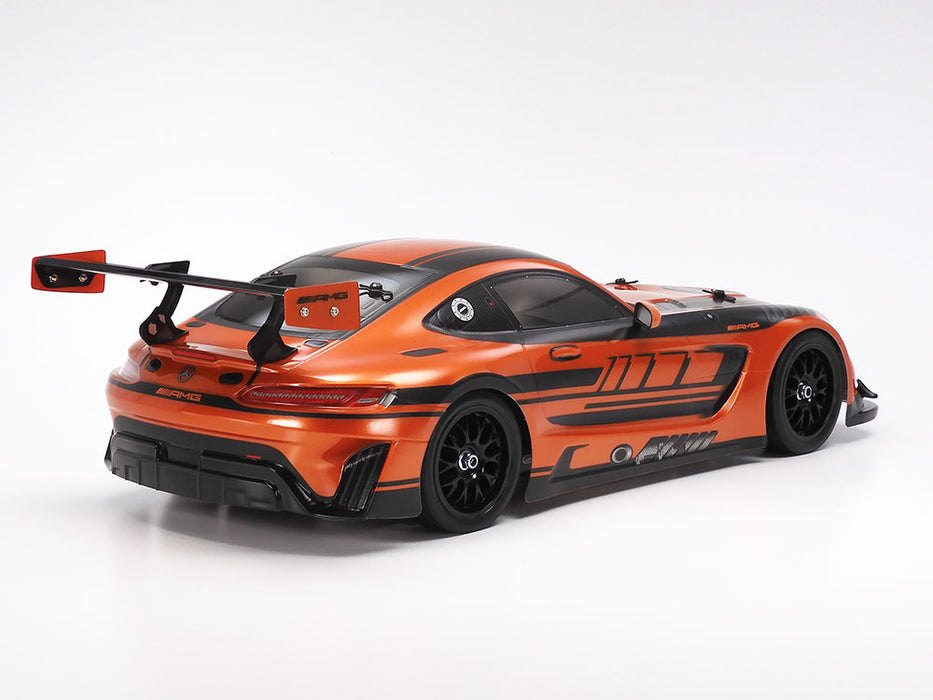

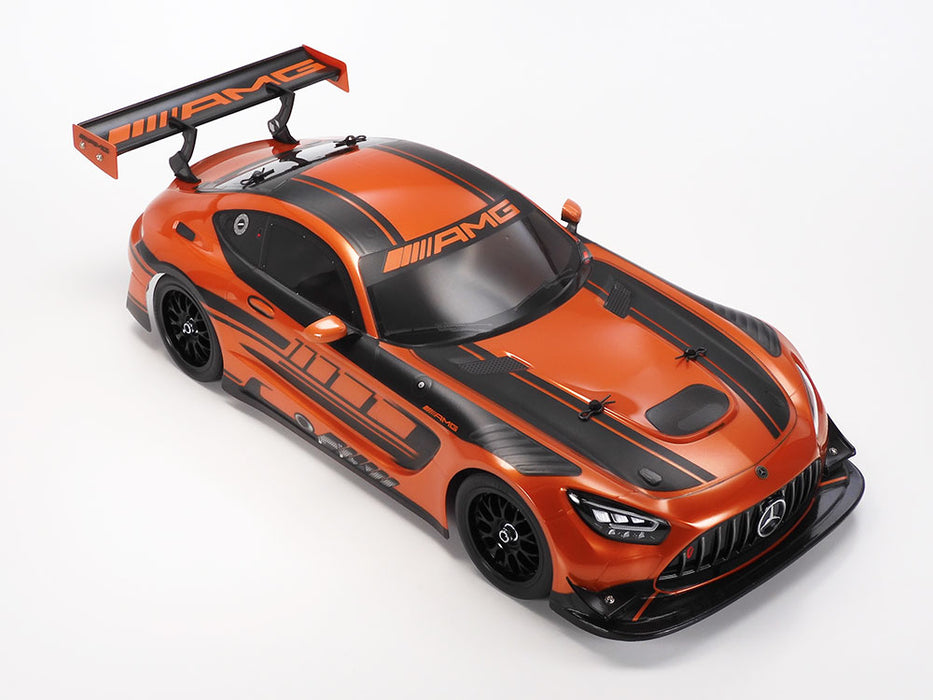

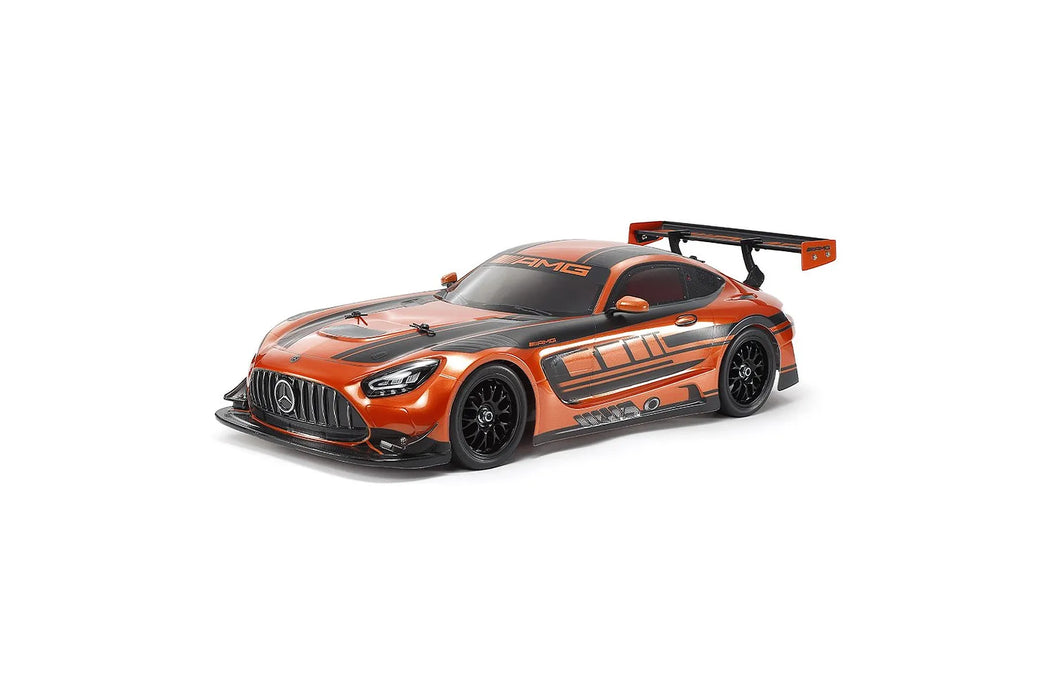

Note: Image shows assembled and painted kit.
Mercedes-AMG GT3
The stunning Mercedes-AMG GT3 The is one of the world's most popular Customer Racing cars. Equipped with innovative motorsport technologies such as the optional drop-start function or state-of-the-art aerodynamics, it delivers tremendous reliability and high-level performance. It is characterised by excellent drivability and pioneering safety standards. Powered by an AMG 6.3-liter naturally aspirated V8 engine, the Mercedes-AMG GT3 generates a maximum torque of 650 Nm and an output of 550 hp (404 kW). Now, it is recreated by this assembly kit radio control car model, with a detailed polycarbonate body and wing, plus stickers to decorate it. The 251mm short wheelbase version of the TT-02 chassis is paired with black type wheels and racing slick tyres.
TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Black mesh design wheels use semi-pneumatic slick tyres.

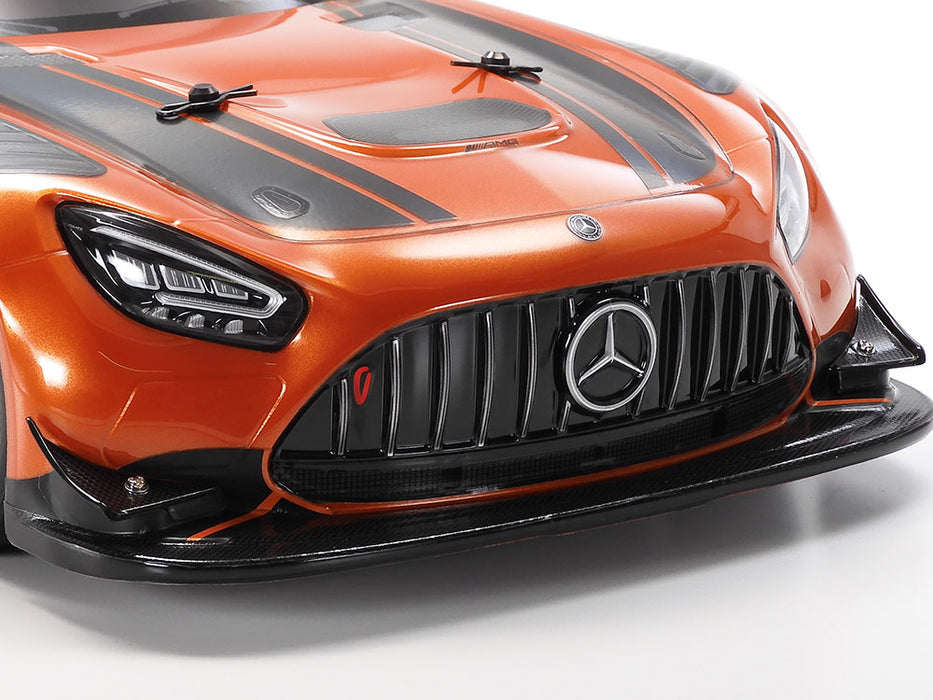

An attractive body is recreated in polycarbonate, with separate rear wing and front/rear light case parts

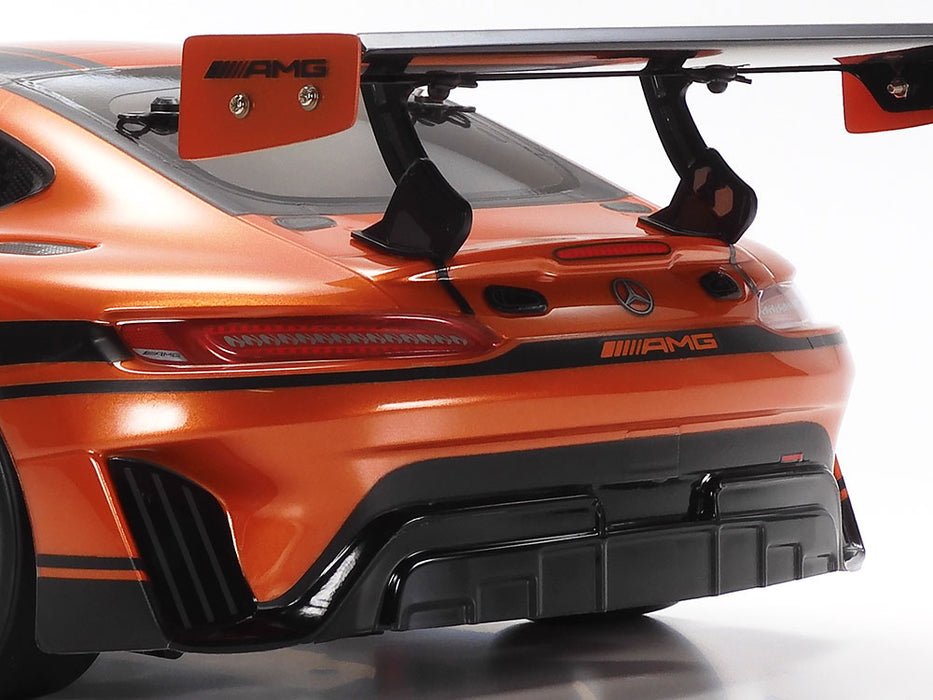

The long-nose short deck polycarbonate body looks great from the back, too! A comprehensive set of stickers recreates many details including black livery graphics.
The Gearbox cover can be removed by simply loosening screws on the frame
Resin ball links in the steering linkage joints make for smooth, comfortable motion
The Wheel hubs are designed to look like brake discs
A case is included to keep the all-important receiver protected from dust and dirt
The Motor cover includes a removable cooling duct (not attached in above image)
Features
- Highly Detailed 1/10 Mercedes AMG GT3 Clear Body
- Super Tough Bathtub Type Chassis
- Balanced Longitudinal Chassis Layout
- Adjustable Wheelbase
- Shaft-Driven 4WD System
- Front/Rear 4 Bevel Resin Differentials
- 3-Piece Steering Tie-Rod System for Superior Handling
- 4-Wheel Double Wishbone Suspension
- Front/Rear Friction Dampers
- Powerful Brushed 540 motor
Specifications
- Length: 454mm (17.8")
- Width: 189mm (7.44")
- Height: 120mm (4.68")
- Wheelbase: 251mm (10.1")
- Box size: L 49 x w 23.5 x H 15.5cm Weight: 2Kg
- Body Shell: Clear Polycarbonate
- Chassis Type: TT-02
- Construction Type: Assembly Kit
- Motor: Type 540 Brushed
- Electronic Speed Control (ESC): Not Included
- Motor Mount: Longitudinal
- Wheel Drive: 4WD
- Gear Ratio: Adjustable
- Friction Shocks: Front & Rear
- 4-Wheel Independent Double-Wishbone Suspension
- Terrain Use: On-Road
What's in the Box
- 1/10 scale R/C model assembly kit
- Torque-tuned Motor & ESC
- Decals and masking stickers included
Requires and can be purchased from Techno Hobbies to complete;
- FlySky GT2 2-Channel R/C Radio or similar with receiver ($79)
- NiMh 7.2V Battery ($35) or LiPo 7.4V Battery (from $59)
- Suitable Charger NiMh $35 or LiPo balance charger (from $40)
- Steering Servo - Metal geared minimum 9-25Kg (from $45)
- AA batteries for the transmitter
- Poly-carbonate Tamiya spray paint for body shell ($13.95)
