Nissan GT-R – TT-02D Drift Spec
The GT-R supercar was unleashed on the world by Nissan in December 2007. Laden with a powerful 3.8-liter V6 twin-turbo engine, dual clutch transmission, independent transaxle 4WD and more, it was designed to be a supercar ready to be driven any time, anywhere and by anyone, and featured regular annual performance-boosting design tweaks. This R/C model assembly kit recreates the car as a drift spec model on the TT-02D chassis, which comes with drift-specific parts.
Tamiya TT-02D Chassis - Drift Version
Enjoy the thrill of drifting with this specially tuned drift spec version of the TT-02 chassis. The TT-02D chassis features drift spec parts such as 24mm width drift tyres fitted to stylish matte-finish metal-plated wheels, and CVA shocks on the 4-wheel double wishbone suspension. Reinforced resin uprights, damper stays and more contribute to the chassis' tough suspension. Semi-gloss metal-plated parts such as brake disc-shaped wheel hubs and blue battery holder will catch the eye. Full ball bearings, an aluminium motor heat sink, and a sport-tuned motor come as standard. Of course, the chassis retains the original TT-02's excellent drivability, ease of maintenance, and adaptability.
4-wheel double-wishbone suspension is fitted with CVA oil-filled shocks front and rear with Drift spec 24mm width resin tyres
A responsive, powerful drive is at your fingertips thanks to the Sport-Tuned motor. Full ball bearings and aluminium heat sink are standard
Race-proven reversible suspension arms and CVA oil-filled shocks, complete with soft springs on 3mm-thick FRP mounts
Highly durable drivetrain with metal drive shaft and joint cup parts
Features

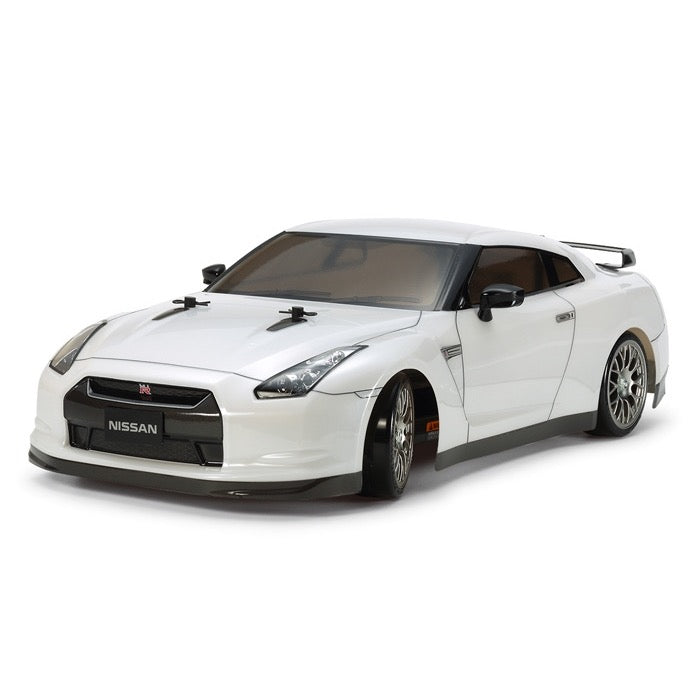

- The sleek, powerful form of the GT-R is captured faithfully by the polycarbonate body
- Features separately-moulded side mirror and rear wing parts
- The TT-02D is the specially tuned drift spec of the popular shaft-driven 4WD entry chassis, the TT-02
- Features CVA oil-filled shocks, full ball bearings, a Sport-Tuned motor and aluminium motor heat sink
- Stickers and masking stickers are included in the kit
- Features 24mm width drift-spec tyres on metal-plated mesh wheels
- Mesh-type wheels are paired with super driftech tyres
- Super Tough Bathtub Type Chassis
- Balanced Longitudinal Chassis Layout
- Adjustable Wheelbase
- Shaft-Driven 4WD System
- Front/Rear 4 Bevel Resin Differentials
- 3-Piece Steering Tie-Rod System for Superior Handling
- 4-Wheel Double Wishbone Suspension
- Front/Rear Friction Shocks
- Powerful Brushed 540 motor
Specifications
- Length: 444mm (17.4")
- Width: 187mm (7.36")
- Height: 130mm (5.11")
- Wheelbase: 257mm (10.1")
- Box size: L 49 x w 23.5 x H 15.5cm Weight: 2Kg
- Body Shell: Clear Polycarbonate
- Chassis Type: TT-02D
- Construction Type: Assembly Kit
- Motor: Type 540 Brushed
- Electronic Speed Control (ESC): Not Included
- Motor Mount: Longitudinal
- Wheel Drive: 4WD
- Bearings: Full
- Gear Ratio: Adjustable
- Friction Shocks: Front & Rear
- 4-Wheel Independent Double-Wishbone Suspension
- Terrain Use: On-Road
Included items
| Description | QTY |
|---|---|
| 1/10 TT-02D Nissan GT-R Kit | 1 |
Requires and can be purchased from Techno Hobbies to complete;
- FlySky GT2 2-Channel R/C Radio or similar with receiver ($79)
- Brushed Waterproof 60A ESC with Tamiya plug - Hobby Wing HAWPWP1060, Quicrun 30120201 WP60 ($59) or Surpass 79794 ($50)
- NiMh Battery ($35) or Lipo 7.2V Battery (from $59)
- Suitable Charger NiMh $39 or LiPo balance charger (from $35)
- Steering Servo - Metal geared minimum 9-25Kg (from $45)
- AA batteries for the transmitter
- Poly-carbonate Tamiya spray paint for body shell ($13.95)
_____________________________________________________________________________________________Please Note: This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as Tamiya PS series to finish these bodies as standard paints will not adhere and/or cause damage to the body shells surface.
