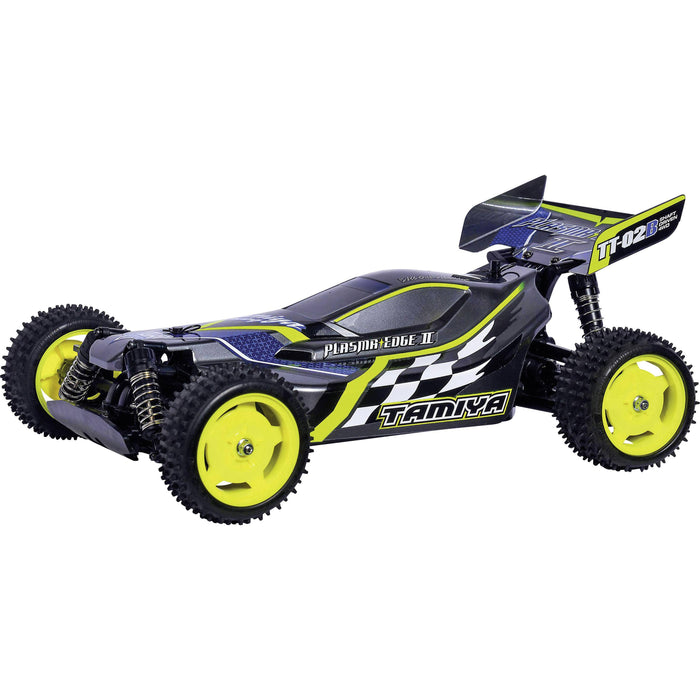

Tamiya 1/10 TT-02B Plasma Edge II 4WD Electric RC Buggy Kit w/o ESC - Gunmetal


Tamiya 1/10 TT-02B Plasma Edge II 4WD Electric RC Buggy Kit w/o ESC - Gunmetal - 47446-60A


The Plasma Edge II pairs a shaft-driven 4WD TT-02B chassis with independent double wishbone suspension and long-arm CVA shocks for ultimate control and rugged handling. Identical left/right suspension parts and a hassle-free build make maintenance a breeze. Switch between 4 gear ratios to conquer any course, while sealed gearboxes and protective motor cover keep the dirt at bay.

This isn't just a buggy, it's an off-road weapon with your name on it.

Get an Edge on the Competition

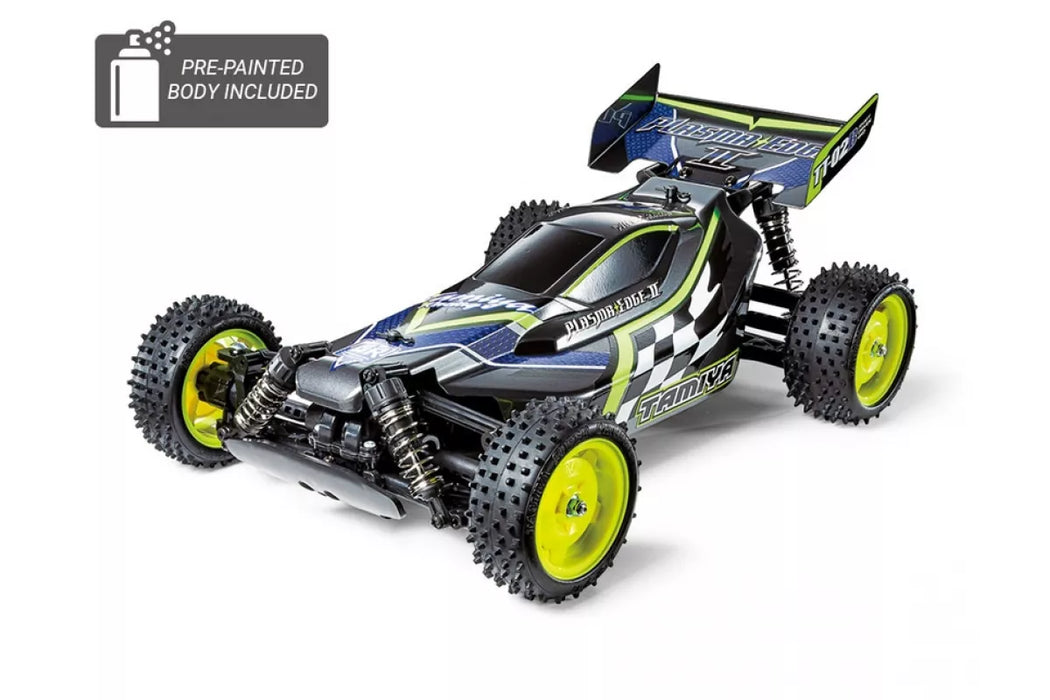

This assembly kit creates a Gun Metal version of the Plasma Edge II, an exciting buggy capable of super offroad driving! Both the dynamic body and the large wing are pre-painted in gun metal, and come pre-cut for your convenience. Simply cut out and appply the dedicated stickers, and your body is ready! Fluorescent yellow star dish wheels and black CVA oil shocks round off its stunning looks.

Shaft-Driven 4WD and Superior Handling from the TT-02B

The shaft-driven 4WD TT-02B buggy chassis employs a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus white CVA oil shock units, giving the car assured handling, while left/right suspension arms and uprights are identical to facilitate hassle-free assembly. Front/rear gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can't get inside. The tops can be removed simply by loosening a few screws, making maintenance a breeze. 4 different gear ratios can be applied with the use of 3 separately-sold types of pinion gear, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.

47446 | Tamiya 1/10 TT-02B Plasma Edge II Gunmetal 4WD Electric Off Road RC  Buggy Kit


  • The TT-02B chassis features a shaft-driven 4WD system, ensuring smooth and efficient power delivery to all four wheels for enhanced traction and control on various terrains
  • The independent double wishbone suspension absorbs bumps and provides precise handling with long arms and CVA oil shock units, allowing for smooth and stable driving performance even on rough surfaces
  • The high grip square spike tyres bite into both paved and loose surfaces, providing excellent traction and control for a confident driving experience
  • The TT-02B chassis is designed for easy assembly and maintenance, with identical left/right suspension parts and a straightforward construction process
  • Adjust the gear ratio (with sold separately pinion gears) to match different track conditions or driving styles, allowing for versatility and adaptability in various scenarios
  • The sealed gearboxes and protective motor cover protect the internal components from dirt and debris, ensuring optimal performance and durability even in challenging environments
  • The bathtub frame for low centre of gravity positions the battery and R/C electronics flat and low, resulting in a lower centre of gravity for enhanced stability and cornering ability.


  • Length: 370mm (14.57in)
  • Width: 250mm (9.84in)
  • Height: 160mm (6.30in)
  • Wheelbase: 266mm
  • Weight: Varies
  • Tyre Diameter/Width F/R: F: 82/32mm (3.23/1.26in) R: 82/41mm (3.23/1.61in)
  • Chassis: Off Road Buggy
  • Drivetrain: 4WD
  • Gears: 10.71:1
  • Suspension: Oil Filled Coil Over Shock Absorbers
  • Motor: 540 Sized Brushed Motor
  • ESC: Not Included
Assembly Type: Kit
Max LiPo Power: 2S (7.4v)
Size (Scale): 1/10
Skill Level: Beginner
Power Source: Electric
Chassis Type: Buggy
On/Off Road: Off-Road
Drivetrain: 4WD
Factory specs
Front shock oil:
Rear shock oil:
Front differential oil:
Rear differential oil:
Pinion gear:
Spur gear:
Wheel hex size: 12


  • ESC (electronic speed control)
  • 2-Channerl radio, steering servo, 7.2volt battery pack with compatible charger.

Included items

Description QTY
Tamiya 1/10 TT-02B Plasma Edge II 4WD Electric RC Buggy Kit 1
540 Sized Brushed Motor
