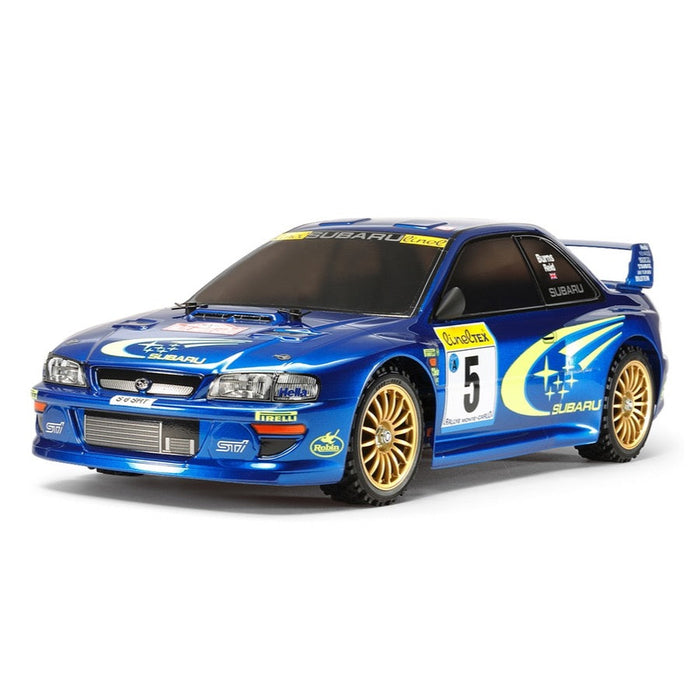

Tamiya 1/10 TT-02 Subaru Impreza WRC Monte Carlo '99 Electric On Road RC Car Kit w/o ESC - 58631A

$209.00

Tamiya 1/10 TT-02 Subaru Impreza WRC Monte Carlo '99 Electric On Road RC Car Kit w/o ESC - 58631A

1/10 1999 Subaru Impreza Monte-Carlo 4WD Rally TT-02 Kit

Rally Legend on the TT-02

The 1999 version of the two-door Subaru Impreza rally car was a highly balanced beast, with 4-cylinder turbocharged all-aluminum boxer engine, a drive-by-wire throttle and semi-automatic 6-speed transmission. This R/C model assembly kit recreates the Impreza from the year's opening rally in Monte-Carlo, with the form faithfully depicted in durable polycarbonate, and separate parts used to recreate rear wing and side mirrors. Stickers are included to recreate the multitude of team and sponsor logos. The model runs on the adaptable TT-02 chassis, which is equally at home on road and flat dirt surfaces.

 Tamiya 1/10 TT-02 Subaru Impreza WRC Monte Carlo '99 Electric On Road RC Car Kit w/o ESC

TT-02: Adaptable, balanced shaft driven 4WD

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gold color fin-spoke wheels are paired with rally block tyres.

Features

  • The classic form of the car is recreated in polycarbonate, with separately-molded side mirror and rear wing parts.
  • Stickers are included to recreate the markings on the car, as are window masking stickers for use when painting.
  • The TT-02 chassis features a shaft-driven 4WD system that offers easy handling and great customization.
  • Highly Detailed 1/10 1999 Subaru Impreza WRC Clear Body
  • Super Tough Bathtub Type Chassis
  • Balance Longitudinal Chassis Layout
  • Adjustable Wheelbase
  • Front/Rear 4 Bevel Resin Differentials
  • 3-Piece Steering Tie-Rod System for Superior Handling
  • 4-Wheel Double Wishbone Suspension
  • Front/Rear Friction Dampers
  • Powerful Brushed 540 motor

4WD Shaft-Driven TT-02 Chassis

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gold colour fin-spoke wheels are paired with rally block tyres.

The Gearbox cover can be removed by simply loosening screws on the frame.

The Gearbox cover can be removed by simply loosening screws on the frame.


Resin ball links in the steering linkage joints make for smooth, comfortable motion.

Resin ball links in the steering linkage joints make for smooth, comfortable motion.


The Wheel hubs are designed to look like brake discs.

The Wheel hubs are designed to look like brake discs.


A case is included to keep the all-important receiver protected from dust and dirt.

A case is included to keep the all-important receiver protected from dust and dirt.

The Motor cover includes a removable cooling duct (not attached in above image)
The Motor cover includes a removable cooling duct (not attached in above image).

Specifications

  • Scale: 1/10
  • Length: 442mm (17.4")
  • Width: 186mm (7.32")
  • Height: 140mm (5.51")
  • Wheelbase: 257mm (10.1")
  • Body Shell: Clear Polycarbonate
  • Chassis Type: TT-02
  • Construction Type: Kit
  • Motor: 540-Brushed Type
  • Electronic Speed Control (ESC): Not Included
  • Wheel Drive: 4WD
  • Gear Ratio: 9.58:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
  • Shocks: Friction Front & Rear
  • Suspension: Fully independent double wishbone
  • Terrain Use: On & Off Road
Car
Assembly Type: Kit
Size (Scale): 1/10
Skill Level: Intermediate
Power Source: Electric Brushed
Chassis Type: Car
On/Off Road: On Road
Drivetrain: 4WD

Requires and can be purchased from Techno Hobbies to complete;

  • FlySky GT2B 2-Channel R/C Radio or similar with receiver ($79)
  • Brushed Waterproof 60A ESC with Tamiya plug - Hobby Wing HAWPWP1060, Quicrun 30120201 WP60 ($59) or Surpass 79794 ($50)
  • NiMh Battery ($35) or Lipo 7.2V Battery (from $59)
  • Suitable Charger NiMh $39 or LiPo balance charger (from $35)
  • Steering Servo - Metal geared minimum 9-25Kg (from $45)
  • AA batteries for the transmitter
  • Poly-carbonate Tamiya spray paint for body shell ($13.95)
