Tamiya 1/10 TT-02 Porsche 911 GT3 (992) Electric RC Touring Car Kit w/o ESC


Tamiya 1/10 TT-02 Porsche 911 GT3 (992) Electric RC Touring Car Kit w/o ESC

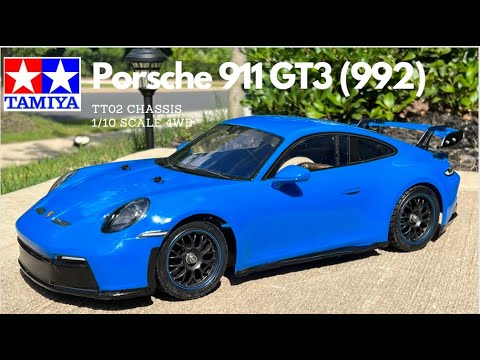

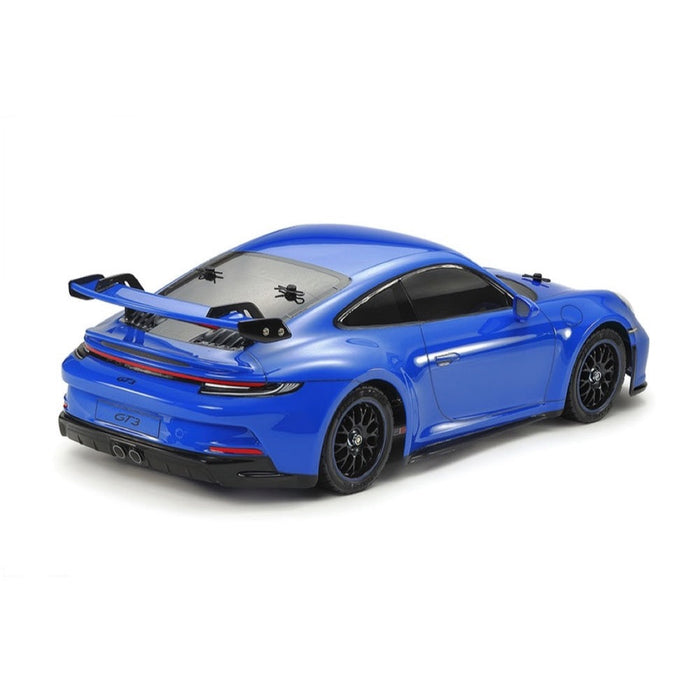

This R/C model assembly kit recreates the Porsche 911 GT3 (992) with a stunning and highly detailed polycarbonate body.

The kit is based on the beginner friendly and highly customizable TT-02 chassis. The full-size 7th generation model, Porsche 911 GT3 features double-wishbone front suspension – changed from MacPherson strut – and a horizontally opposed 6-cylinder engine. Lightweight components and aerodynamic design extensively improved its performance. gives lightweight design. Also, hanging type wing stay supply greater downforce and lower drag.

TT-02: Adaptable, balanced shaft driven 4WD

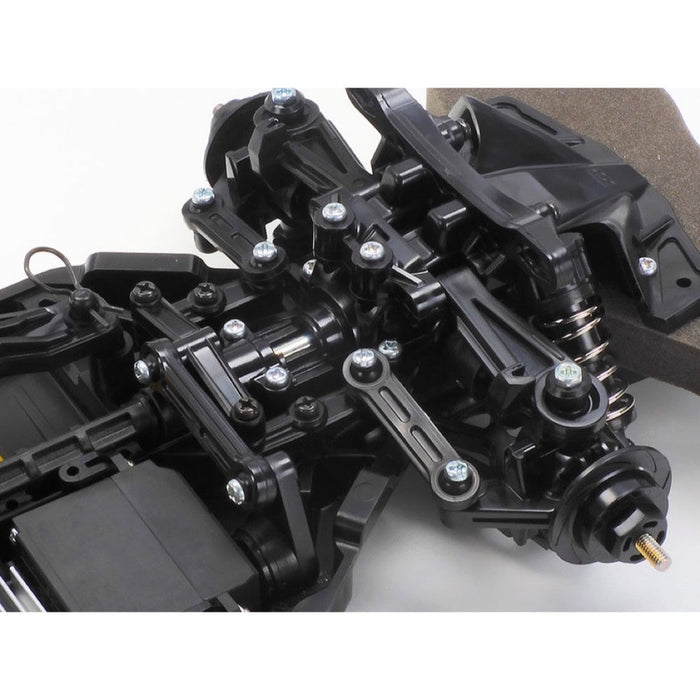

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

Shaft drive 4WD with excellent handling performance and easy maintenance – TT-02 chassis

This product adopts the TT-02 chassis with shaft drive 4WD. The compartment design that puts the battery on the left side and the motor on the right side makes the car body easy to balance and easy to control. At the same time, the left and right common design of the suspension arm and steering cup also makes assembly easy to use, and the upper and lower split gearboxes improve the readiness. In addition, simply interchange and combine the parts to form 2 types of wheelbase, vehicle height and wheelbase, plus up to 10 types of gear ratio combinations, and you can choose the most suitable configuration for you.

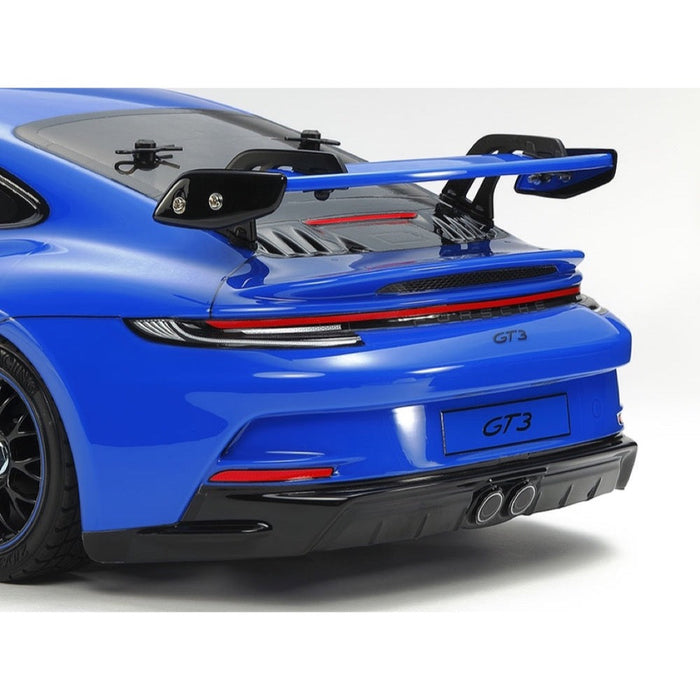

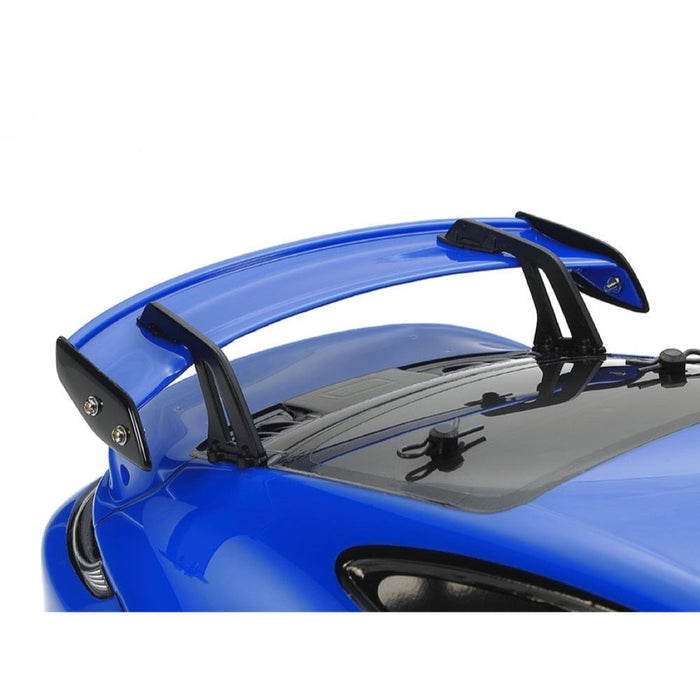

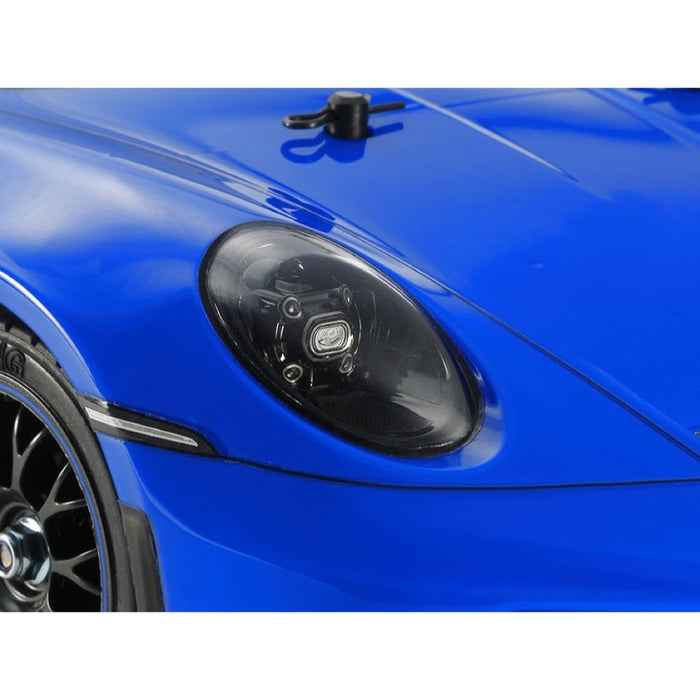

  • Lightweight, durable polycarbonate body with separate polycarbonate rear wing and light cases.

  • Separate plastic parts molded in black realistically depict side mirrors and wing stays.

  • The model uses the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability.

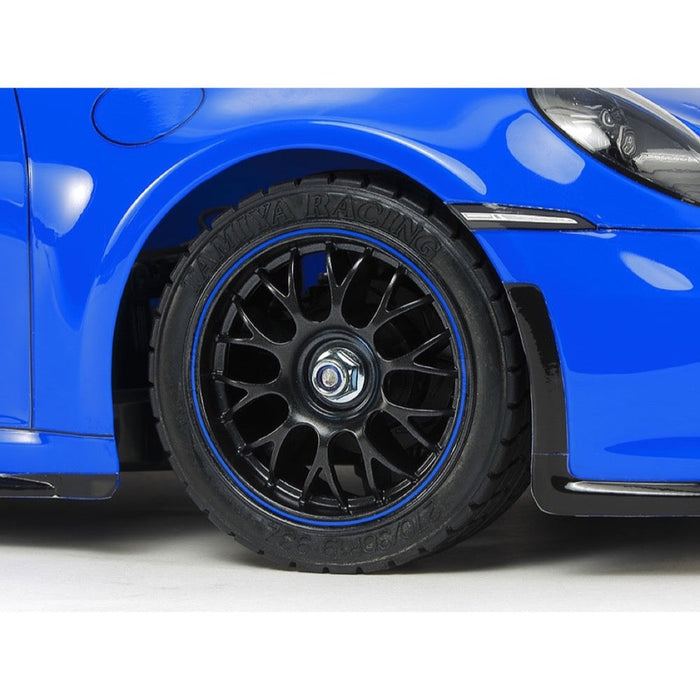

  • Dark gun metal color spoke wheels are paired with racing radial tires.

  • Comes with trim detail stickers and window masking tape for use in the paint process.

  • Requires 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete.


  • Overall length 467mm, width 188mm, height 131mm

  • Wheelbase 251mm (short wheelbase specification)

  • Tyre Width 27mm / Diameter 67mm (Front & Rear)

  • Box size: L 49 x w 23.5 x H 15.5cm  Weight: 2Kg
  • Bathtub base

  • Drive mode: direct motor. shaft drive 4WD

  • Differential: Resin 4-bevel gear type (front & rear)

  • Steering device: 3 split elastic buckle type

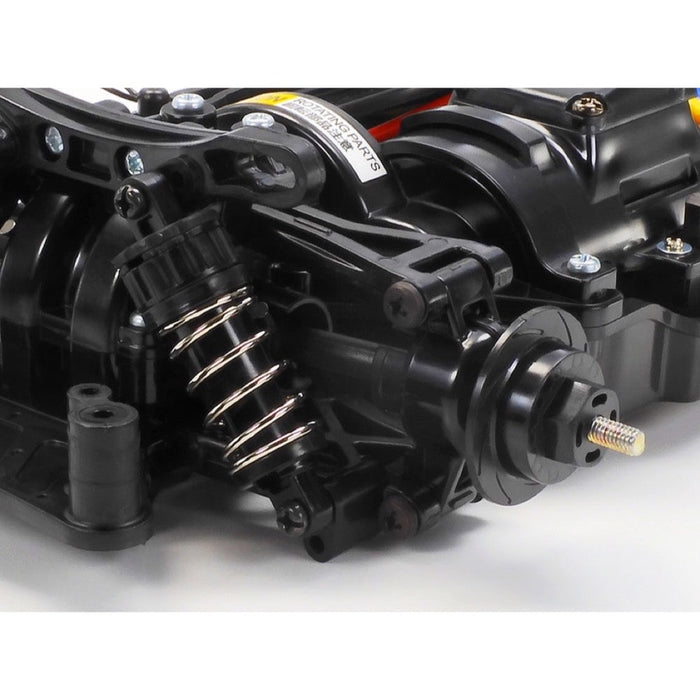

  • Suspension system: 4-wheel double wishbone suspension

  • Suspension System: Friction Type (Front & Rear)

  • Gear ratio: standard configuration 8.27:1 (11.38:1~7.28:1, a total of 10 gear ratios can be selected in combination with the optional motor gear)

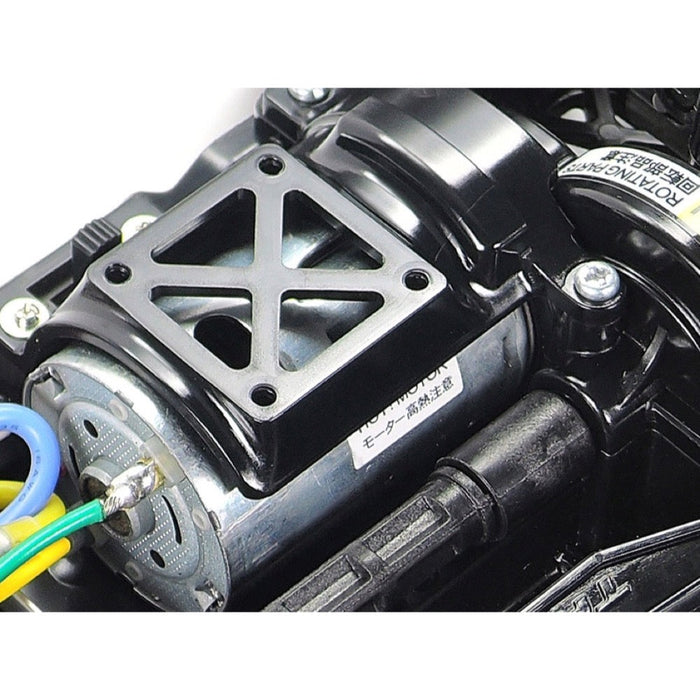

  • Motor: 540 type

  • Speed ​​control: ESC electronic transmission form (need to be purchased separately)

Assembly Type: Kit
Max LiPo Power: 3S (11.1v)
Size (Scale): 1/10
Skill Level: Intermediate
Power Source: Electric Brushed
Chassis Type: Car
On/Off Road: On Road
Drivetrain: 4WD
Factory specs
Max LiPo power: 3S (11.1v)
Wheel hex size: 12

The following need to be purchased separately

  • 2ch remote control & ESC electronic transmission

  • Steering servo motor

  • Transmitter with AA batteries

  • Rechargeable battery and charger for remote control car

Separately Required Items

  • 2-channel R/C system w/ESC

  • Servo motor for steering

  • R6/AA/UM3 batteries for transmitters

  • Battery pack & charger
