Tamiya 1/10 TT-01E Opel Calibra V6 Cliff Electric On Road RC Car Kit - Black 58701A

$199.00

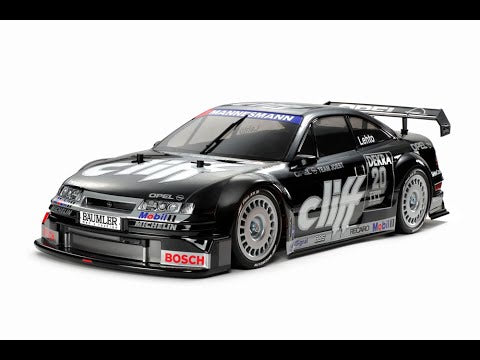

Tamiya 1/10 TT-01E Opel Calibra V6 Cliff Electric On Road RC Car Kit - Black

Tamiya Opel Calibra V6 Cliff (TT-01E) - RC Car Action

Opel Calibra V6 Cliff

This R/C assembly kit recreates the Opel Calibra V6 Cliff. The polycarbonate body is mounted on the TT-01 Type-E chassis, for ease of assembly. The Opel Calibra V6 Cliff was previously released on the Tamiya TA-02 chassis during the 1990’s touring car boom.

The Opel Calibra V6 Cliff took part in the 1995 running of the Deutsche Tourenwagen Meisterschaft (DTM) series. Entered by Joest Racing with the driver JJ. Lehto, the car was powered by a 2.5-liter V6 engine capable of 420 hp. The distinctive black body with the Cliff logo caught people’s eye, and this car showed off race pace strength in DTM races.

Tamiya 1/10 TT-01E Opel Calibra V6 Cliff Electric On Road RC Car Kit - Black

A Fine Vintage

The cars in the 1995 German DTM touring car series were finely honed beasts, battling it out over twenty-four races in six countries. Opel, Mercedes-Benz and Audi cars took part; six Opels from two teams took to the track, including this Calibra V6 clad in a striking black livery bearing the name of title sponsor Cliff, and piloted by JJ Lehto. This R/C model assembly kit depicts the car in style, with the two-door coupe body molded in lightweight polycarbonate and stickers included to recreate markings.

Evolved Chassis

The bathtub frame of the evolved shaft-driven 4WD TT-01 Type-E has its motor and battery close to the ground for lower center of gravity and optimum balance. Mounted on the bathtub frame is a fiberglass reinforced nylon upper deck and gear covers improving rigidity, as well as a three-piece tie rod providing smooth steering action. The low center of gravity, highly balanced design, 4-wheel double wishbone suspension system, and front and rear differential gears all come together to produce an excellent drive. Silver dish wheels are paired with racing slick tires for the finishing touch, while a host of Hop-Up Option parts are available to soup up the TT-01 Type-E!

Tamiya Opel Calibra V6 Cliff TT-01E (THC58701) - SC Models



Features

  • 1/10 scale R/C model assembly kit. Length: 448mm, width: 185mm, height: 128mm. Wheelbase: 257mm.
  • Lightweight, rigid polycarbonate body (clear) with separate side mirrors and a rear wing.
  • The model utilizes the shaft-driven 4WD TT-01 Type-E chassis, which is based around a durable bathtub frame and gives an intuitive, highly controllable driving experience.
  • Features 4-wheel double wishbone suspension system.
  • Silver ABS, dish wheels are paired with racing slick tires.
  • Comes with stickers and window masking stickers for use in the paint job process.
  • Includes Tamiya Torque-Tuned 540-brushed motor.

Specifications

  • Adjustable Gear Ratio: Yes
  • Bearings: Plastic Bushing
  • Body Material: Polycarbonate
  • Body Stickers: Included
  • Chassis Material: ABS Plastic
  • Chassis Type: TT-01E
  • Construction Type: Assembly Kit
  • Differential Type: Gear
  • Drive Type: 4WD
  • Motor: 540-brushed type
  • Scale: 1/10
  • Shock Damper: Friction type
  • Suspension: Fully Independent Double Wishbone
  • Terrain Use: On-Road
Car
Assembly Type: Kit
Size (Scale): 1/10
Skill Level: Intermediate
Power Source: Electric Brushed
Chassis Type: Car
On/Off Road: On Road
Drivetrain: 4WD


1/10 Opel Calibra V6 (No ESC) R/C Kit-T58701A - Tamiya

Requires and can be purchased from Techno Hobbies to complete;

  • FlySky GT2 2-Channel R/C Radio or similar with receiver ($79)
  • Brushed Waterproof 60A ESC with Tamiya plug - Hobby Wing HAWPWP1060, Quicrun 30120201 WP60 ($59) or Surpass 79794 ($50)
  • NiMh Battery ($35) or Lipo 7.2V Battery (from $59)
  • Suitable Charger NiMh $39 or LiPo balance charger (from $35)
  • Steering Servo - Metal geared minimum 9-25Kg (from $45)
  • AA batteries for the transmitter
  • Poly-carbonate Tamiya spray paint for body shell ($13.95)

_____________________________________________________________________________________________Please Note: This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as Tamiya PS series to finish these bodies as standard paints will not adhere and/or cause damage to the body shells surface.

Tamiya 58701 1/10 Scale RC Car TT-01E Chassis DTM Opel Calibra V6 Cliff Kit  | eBay

Included items

Description QTY
1/10 TT-01E Electric On Road RC Car Kit - Black & Motor 1
Decal Sheet Set
