Tamiya 1/10 Super Hotshot Electric RC Car Kit w/o ESC - 58517A
As Super As Ever

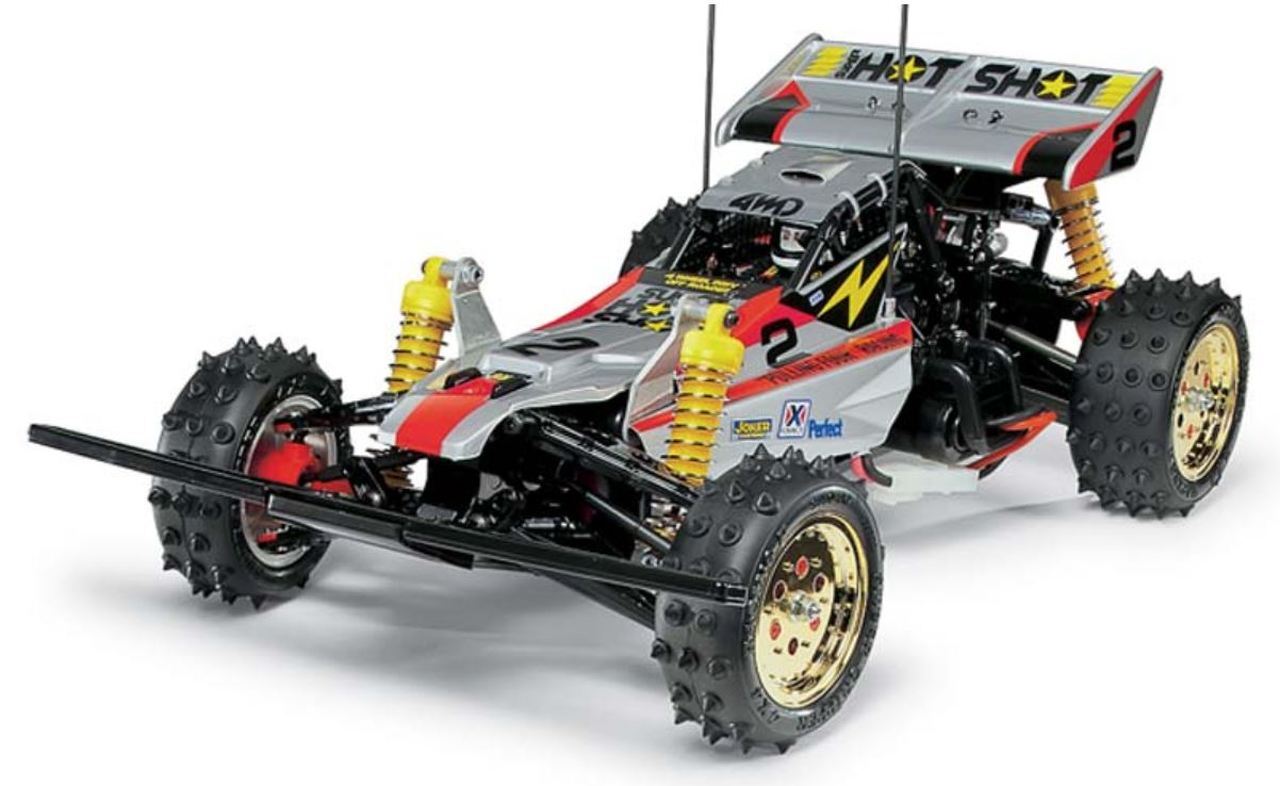

Tamiya originally released a special version of the R/C 4WD racing buggy Hotshot in 1986. This famous machine is set for a return as the Super Hotshot and features modern improvements while keeping the basic layout of the original. Distinctive external features such as the stylish silver body and rear wing, yellow oil dampers, and spiked tyres with gold metal-plated wheels have also been kept.
Modern Updates

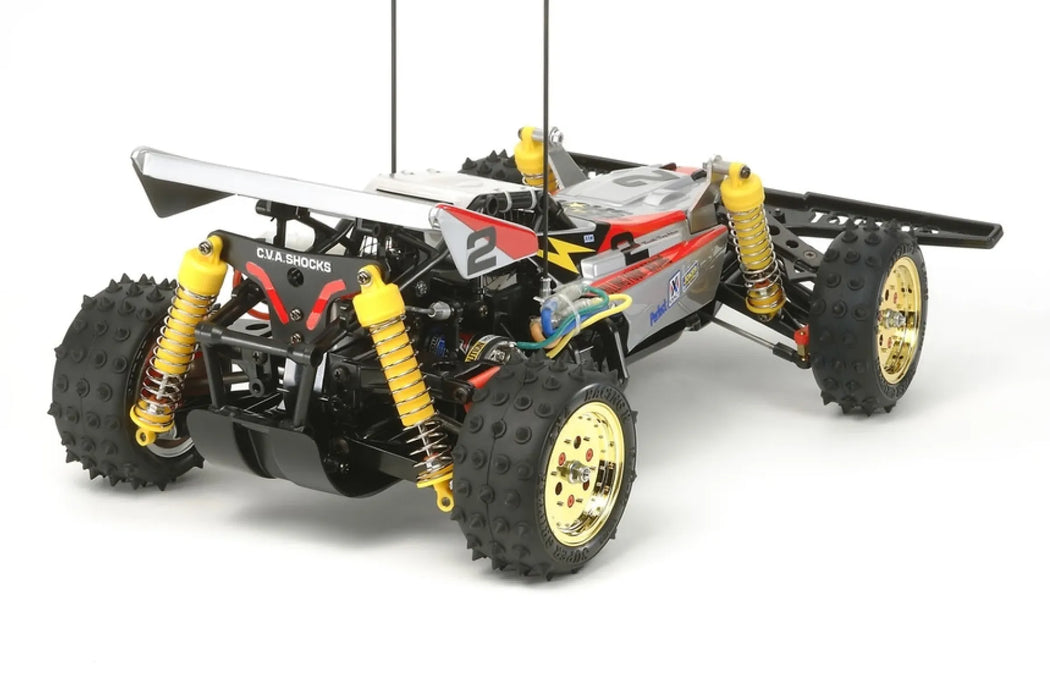

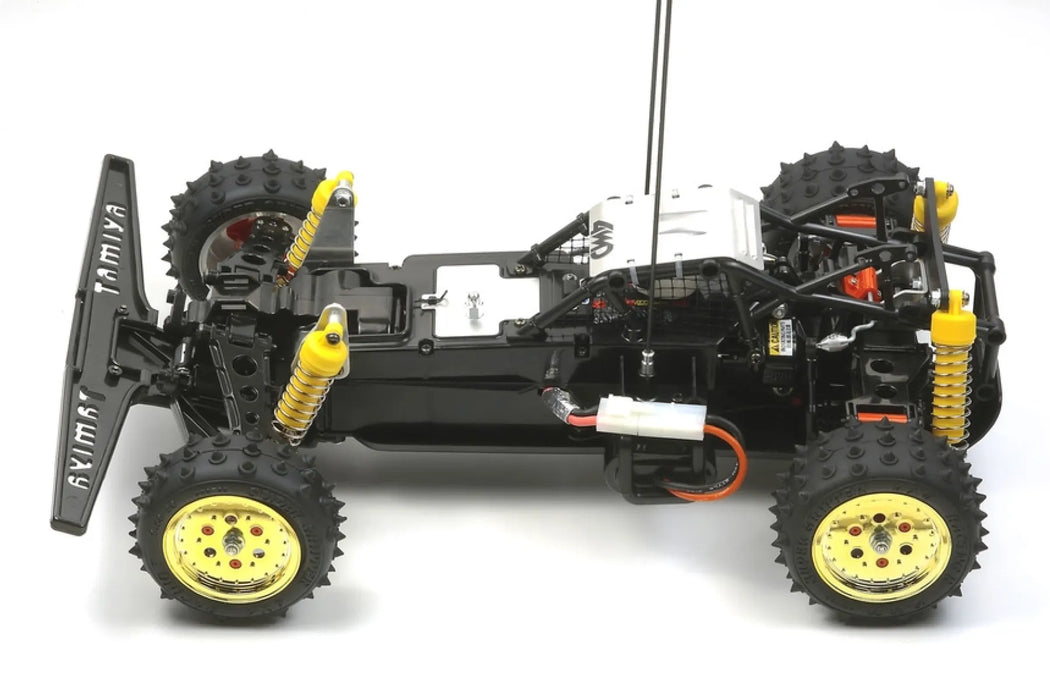

The chassis maintains original features of the Super Shot, including the durable ABS monocoque frame, roll cage, and under guard. At the same time, full ball bearings minimize friction loss as power from the horizontally-mounted motor is transmitted to all four wheels via dog-bone type drive shafts. 4-wheel double wishbone suspension is equipped with oil dampers which allow 3 adjustable spring tensions to match track conditions. In addition, a GT-Tuned Motor (25T) provides plenty of power for dynamic off-road driving.
Specifications
- Length: 390mm
- Width: 235mm
- Height: 150mm
- Weight: 1,330g
- Tread: 205mm (Front), 208mm (Rear)
- Tire Width/Diameter: 31/88mm (Front), 38/88mm (Rear)
- ABS Monocoque Chassis Frame
- Shaft-Driven 4WD
- F/R 3-Bevel Differentials
- 2-Piece Steering Tie-Rod
- 4-Wheel Double Wishbone Suspension
- Gear Ratio＝8.1:1 or 10.04:1
- GT-Tuned Motor (25T)
Included items
| Description | QTY |
|---|---|
| Tamiya 1/10 Electric RC Car Kit | 1 |
| Decals | Set |
| Product Manual | 1 |
Requires and can be purchased from Techno Hobbies to complete;
- FlySky GT2B 2-Channel R/C Radio or similar with receiver ($79)
- Brushed Waterproof 60A ESC with Tamiya plug - Hobby Wing HAWPWP1060, Quicrun 30120201 WP60 ($59) or Surpass 79794 ($50)
- NiMh Battery ($35) or Lipo 7.V Battery (from $59)
- Suitable Charger NiMh $39 or LiPo balance charger (from $35)
- Steering Servo - Metal geared minimum 9-25Kg (from $45)
- AA batteries for the transmitter
- Poly-carbonate Tamiya spray paint for body shell ($13.95)
- Box Dimensions Length: 50cm, width: 35cm, height: 20cm
- Please Note: This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as Tamiya PS series to finish these bodies as standard paints will not adhere and/or cause damage to the body shells surface.
