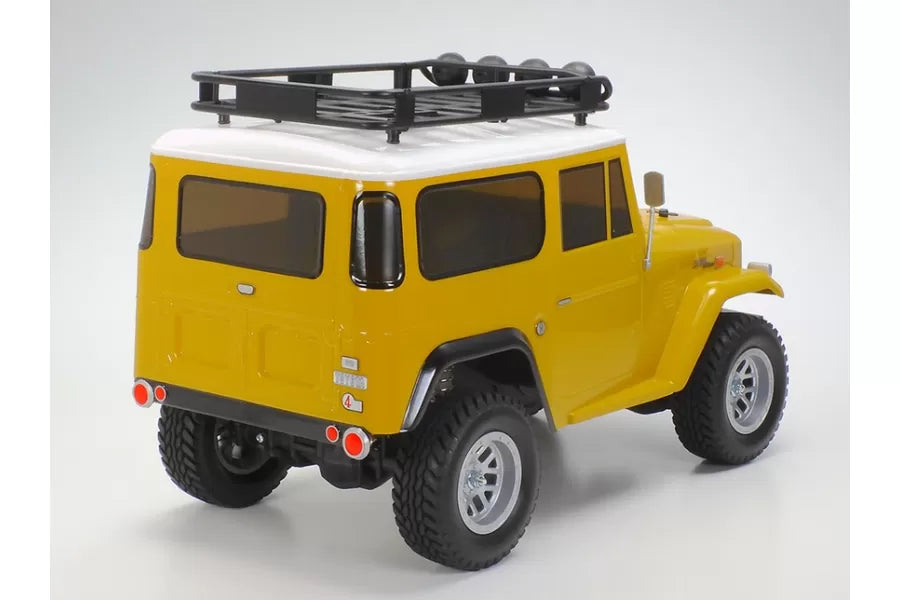

Tamiya 1/10 CC-02 Toyota Land Cruiser 40 4WD Electric RC Rock Crawler Kit - Yellow 47490


Tamiya 1/10 The Legendary Toyota Land Cruiser 40 - 4WD CC-02M RC Crawler Kit with Yellow Painted Body - 47490

The Toyota Land Cruiser 40 has been a staple subject for Tamiya since 2008. It first appeared on the CR-01 crawler chassis then later the simpler CC-01 cross country chassis. Now, the classic Land Cruiser makes its way on to Tamiya’s newest cross-country platform, CC-02 with a few detail tweaks for the scale enthusiast!

CC-02 Chassis - Off Road, Evolved

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with 12-spoke wheels and semi-pneumatic rubber tyres.


  • 1/10 scale R/C model assembly kit. Length: 390mm, width: 198mm, height: 237mm. Wheelbase: 252mm (M-size wheelbase).
  • The CC-02 chassis is designed for a wide range of off-road driving expeditions and has a ladder frame which was inspired by full-size vehicles.

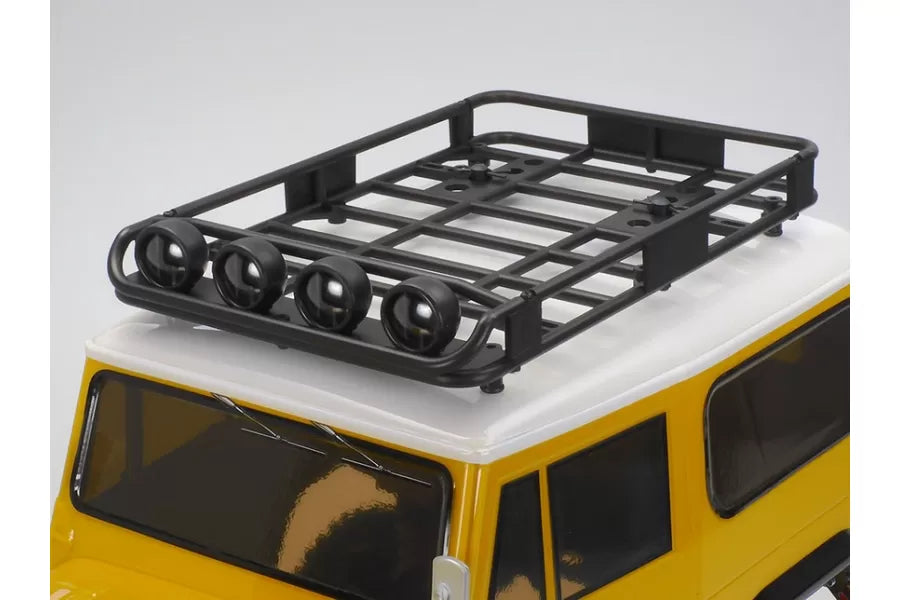

  • NEW: A roof rack with light pods is realistically depicted with separately molded parts.
  • NEW: Silver colour 12-spoke wheels are paired with block pattern tires. (Wide wheels are included to recreate the customized look of this version.)
  • NEW: New stickers feature integrated tinted window and window frame sections to allow ease of applying stickers and eliminate the need for painting the window tint.
  • Includes Motor
  • Pre-painted Shell provides a high quality factory finish
  • The CC-02 chassis is perfect for off-road driving
  • The chassis has a ladder frame inspired by full-size vehicles
  • It features a roof rack with light pods, made with separately moulded parts

Ladder Frame for Excellent Rigidity

The 1/10 scale vehicle's ladder frame is modelled on those used by full-size cars and provides excellent rigidity.

Four Link Arms for Superlative Cushioning

Four-link arms connect the front and rear axle housings, which combine with oil shocks for outstanding cushioning.

Tamiya 1/10 CC-02 Toyota Land Cruiser 40 4WD Electric RC Rock Crawler Kit - Yellow

Tamiya 1/10 CC-02 Toyota Land Cruiser 40 4WD Electric RC Rock Crawler Kit - Yellow

Wide Range of Gear Ratios Available

Twenty gear ratios between 11.09 and 29.28:1 are possible by changing the gear layout and using separately-sold pinions of nine other sizes.

Tamiya 1/10 RC No.688 Toyota Land Cruiser 300 CC-02 Chassis NEW | eBay

Exemplary Durability with Metal Chassis Frame

Metal chassis frame sections provide excellent durability, and CVA oil shocks ensure maximum off-road performance.

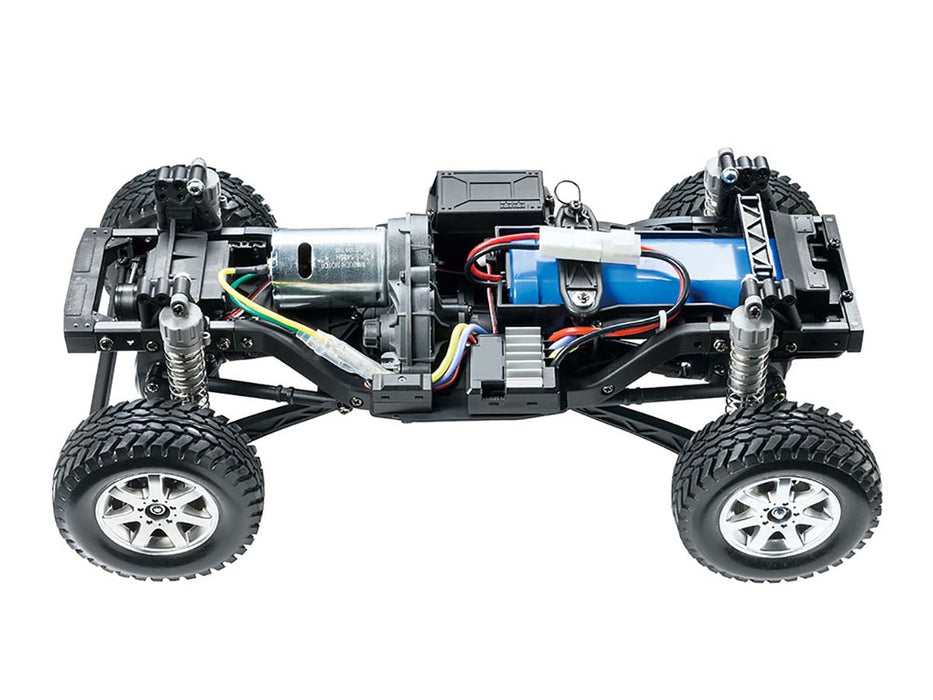

CC-02 Chassis

CC-02 Chassis

3-Bevel Differentials for Locked Running on Low-Grip Surfaces

The axle housings are made of reinforced plastic and house 3-bevel differentials. They can be locked when running on lower-grip surfaces.


  • Length: 390mm (15.35")
  • Width: 198mm (7.79")
  • Height: 237mm (9.33")
  • Wheelbase: 252mm (9.92")
  • Chassis: CC-02
  • Drivetrain: 4WD
  • Gear Ratio: Adjustable
  • Suspension: Rigid 4-Link, Oil-Filled Shocks

Required items not included (See our website under Parts, Batteries and Transmitters)

  • Requires 2-Channel Radio and Receiver
  • Standard 1/10 scale Steering Servo
  • 7.2 NiMh -7.4V LiPo Battery
  • Compatible charger
