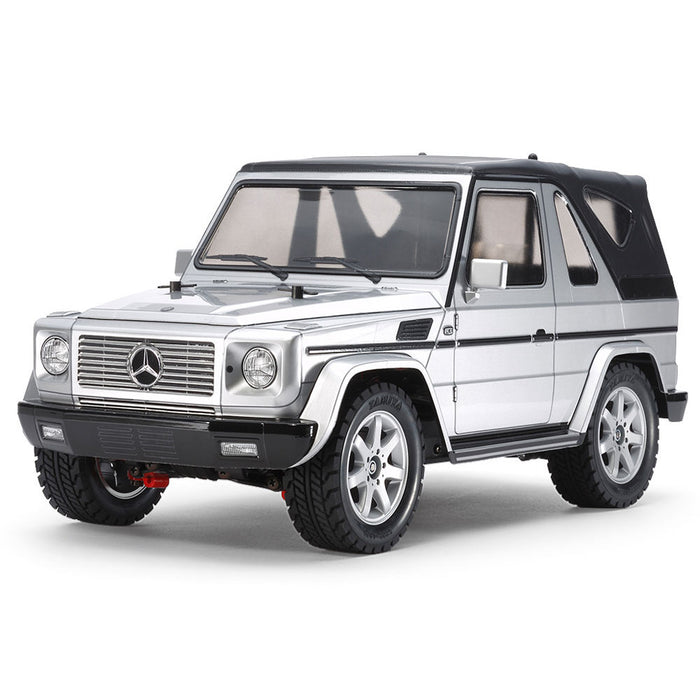

TAMIYA 1/10 MERCEDES-BENZ G 320 CABRIO KIT (Licensed by Daimler Benz) - 58629

Sold out
Original price $299.00
Current price $279.00

TAMIYA 1/10 MERCEDES-BENZ G 320 CABRIO 4WD High Performance Off-Road Crawler

The Mercedes Benz G320 Cabrio was a G Class series vehicle that was sold between 1997 and 2001. While many G Series cars were produced, this version featured a soft convertible top and was based on a short wheelbase version of the chassis. The Tamiya radio control replica is featured on the 4WD MF-01X chassis. Power is transmitted from the rear mounted motor to the front wheels via a propeller shaft that runs down the side of the MF- 01X. Gearboxes are integrated into the monocoque for a sturdy and easy-to-assemble structure.

Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears. The battery pack location in the chassis center secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers. Off-road capable M-05Ra chassis uprights and hub carriers are also included.


The artfully molded polycarbonate body beautifully captures the G 320, complete with realistic soft top and sticker-recreated stitching details. The monocoque frame MF-01X chassis uses a rear-mounted motor, with power provided by gear to the rear diff and propeller shaft to the front.

MF-01X - Compact 4WD At Home on a Range of Surfaces

  • Versatile and compact 4WD chassis
  • Adjustable Gear Ratio: Yes
  • Bearings: Plastic bushing
  • Body Material: Polycarbonate
  • Chassis Material: Plastic
  • Construction Type: Assembly kit
  • Integrated Gearbox with Built-in Differentials
  • Differential Type: Gear
  • Drive Type: Gearbox
  • Led Light Buckets: No
  • Led Lights: No
  • Motor: 540-brushed type


  • Scale 1/10
  • Shock Damper Friction damper
  • Length: 385mm, width: 178mm, height: 175mm, Wheelbase: 239mm
  • The G 320 Cabrio body is expertly captured in light weight , durable polycarbonate
  • Side mirrors are recreated using separately molded plastic parts
  • The 4WD MF-01X chassis has a rear mounted motor, and uses a prop shaft to transmit power to the front wheels. It features a robust, easy to maintain monocoque frame. It is at home on road and flat dirt surfaces
  • This model uses the L wheelbase (239mm). The chassis can be set up in S (210mm) and M (225mm) wheelbases using separately-sold propeller shafts
  • A range of option parts are available to hop up the MF-01X chassis, including light weight , rigid aluminum propeller shafts
  • Suspension Fully independent double wishbone
  • Terrain - On-Road or Off Road


  • Tamiya TBLE-02S Kit
  • Mabuchi RS-540 Torque Tuned Motor

Requires and can be purchased from Techno Hobbies to complete;

  • FlySky GT2 2-Channel R/C Radio or similar with receiver ($79)
  • Brushed Waterproof 60A ESC with Tamiya plug - Hobby Wing HAWPWP1060, Quicrun 30120201 WP60 ($59) or Surpass 79794 ($50)
  • NiMh Battery ($35) or Lipo 7.2V Battery (from $59)
  • Suitable Charger NiMh $39 or LiPo balance charger (from $35)
  • Steering Servo - Metal geared minimum 9-25Kg (from $45)
  • AA batteries for the transmitter
  • Poly-carbonate Tamiya spray paint for body shell ($13.95)

_____________________________________________________________________________________________Please Note: This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as Tamiya PS series to finish these bodies as standard paints will not adhere and/or cause damage to the body shells surface.
