Tamiya 1/10 M-06 Volkswagen Type 2 T1 Electric On Road RC Car Kit w/o ESC - 58668A

Sold out
$259.00

Tamiya 1/10 M-06 Volkswagen Type 2 T1 Electric On Road RC Car Kit w/o ESC - 58668A

 Tamiya 1/10 M-06 Volkswagen Type 2 T1 Electric On Road RC Car Kit w/o ESC

Volkswagen Type 2 (T1)

This Tamiya R/C model assembly kit depicts the 1st-generation (T1) variant of the Volkswagen Type 2 van, which was introduced in 1950 and also known as the Volkswagen Bus to many of its legions of fans. Production of the actual van continued through until 1967. The iconic body is paired with the rear-wheel drive M-06 chassis for realistic fun driving, just like the real RR Type 2 T1.

Tamiya 1/10 M-06 Volkswagen Type 2 T1 Electric On Road RC Car Kit Box Art

Rear Engine, Rear-Wheel Drive M-06 Chassis

The M-06 chassis features a Rear-Mounted Motor, Rear-Drive setup and features a longitudinally-mounted battery pack, with R/C radio gear positioned on either side for optimum balance and low centre of gravity. 4-wheel double wishbone suspension is equipped with 60D radial tyres at the front and 60D super grip tyres at the rear. In addition, a 3-piece steering linkage offers nimble handling response.


Install separately sold LED's in the front and rear lights for super realism! Turn signals are separate parts

Install separately sold LED's in the front and rear lights for super realism! Turn signals are separate parts.



Separate parts are also employed to depict the distinctive round side mirrors and their slimline stalks

Separate parts are also employed to depict the distinctive round side mirrors and their slimline stalks.

The rear of the model also shows off excellent attention to detail, including a separate bumper part

The rear of the model also shows off excellent attention to detail, including a separate bumper part.

Dish wheels feature gleaming plated components. Paint the rim sections with TS-26 Pure white to finish

Dish wheels feature gleaming plated components. Paint the rim sections with TS-26 Pure white to finish.

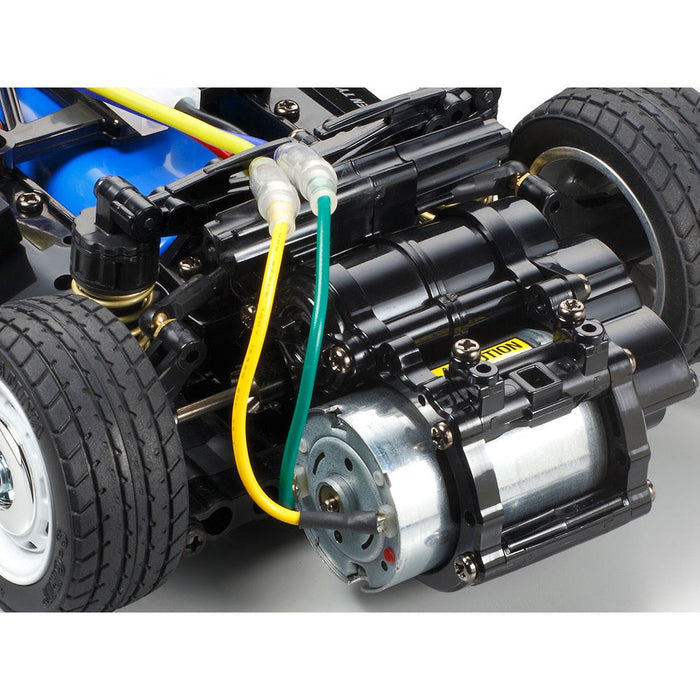

The rear-mounted motor, rear-wheel drive setup provides the model with exceptional traction at the rear

The rear-mounted motor, rear-wheel drive setup provides the model with exceptional traction at the rear.

Three different wheelbase lengths are accessible by switching the position of rear section parts

Three different wheelbase lengths are accessible by switching the position of rear section parts.

Features

  • Polycarbonate body with separate moulded plastic parts included to create bumper, light cases and side mirrors.
  • Rear-motor, RWD setup
  • Longitudinal battery mount
  • Metal-plated dish type wheels
  • Adjustable Wheelbase
  • 3-Piece Steering Tie-Rod System for Superior Handling
  • 4-Wheel Double Wishbone Suspension
  • Front/Rear Friction Dampers

Requires

  • 2-Channel R/C System
  • ESC Electronic Speed Control
  • R6/AA/UM3 batteries for transmitter
  • Battery pack & charger

 Specifications

  • Length: 453mm (17.8")
  • Width: 189mm (7.44")
  • Height: 119mm (4.68")
  • Wheelbase: 239mm (9.40")
  • Body Shell: Clear Polycarbonate
  • Chassis Type: M-06
  • Construction Type: Assembly Kit
  • Motor: Type 540 Brushed
  • Electronic Speed Control (ESC): Not Included
  • Motor Mount: Rear
  • Wheel Drive: 2WD
  • Gear Ratio: 5.8:1
  • Friction Shocks: Front & Rear
  • 4-Wheel Independent Double-Wishbone Suspension
  • Terrain Use: On Road

Requires and can be purchased from Techno Hobbies to complete;

  • FlySky GT2 2-Channel R/C Radio or similar with receiver ($79)
  • Brushed Waterproof 60A ESC with Tamiya plug - Hobby Wing HAWPWP1060, Quicrun 30120201 WP60 ($59) or Surpass 79794 ($50)
  • NiMh Battery ($35) or Lipo 7.2V Battery (from $59)
  • Suitable Charger NiMh $39 or LiPo balance charger (from $35)
  • Steering Servo - Metal geared minimum 9-25Kg (from $45)
  • AA batteries for the transmitter
  • Poly-carbonate Tamiya spray paint for body shell ($13.95)

_____________________________________________________________________________________________Please Note: This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as Tamiya PS series to finish these bodies as standard paints will not adhere and/or cause damage to the body shells surface.

Car
Assembly Type: Kit
Max LiPo Power: 2S (7.4v)
Size (Scale): 1/10
Skill Level: Intermediate
Power Source: Electric Brushed,Electric Brushless
Chassis Type: Car
On/Off Road: On Road
Drivetrain: 2WD
Factory specs
Max LiPo power: 2S (7.4v)
