Tamiya 1/10 Fiat Abarth 1000 TCR Berlina Corse MB-01 Chassis Blue Grey Pre-Painted Body RC Kit 47492
Tamiya 1/10 MB-01 Fiat Abarth 1000 TCR 2WD Electric RC Rally Car Kit w/o ESC - Blue/Grey
The origin of M-chassis series history goes back to December 1994, and this series has been popular due to cost-effective kits with a wide choice of bodies, ease of maintenance and control for any level user. Enter, the all-new MB-01!

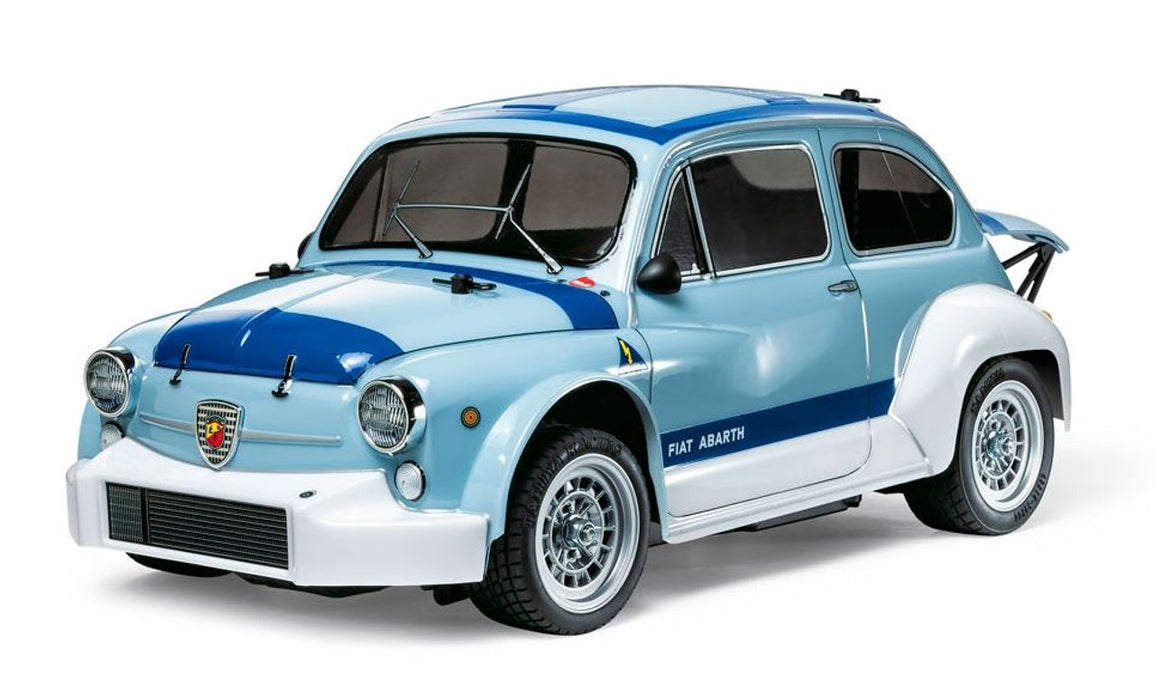

The new MB-01 chassis continues that tradition and allows six setups by choosing from three types of wheelbases, and front- or rear- wheel drive system. Its first body recreates the Fiat Abarth 1000 TCR Berlina Corse which was a car developed with high level tune-ups based upon the compact 2-door Fiat 600.
Features
-
The multi-purpose, 2WD MB-01 chassis gives choices of three types of wheelbases (*), and front- or rear- wheel drive system. Six setups are available in total.
-

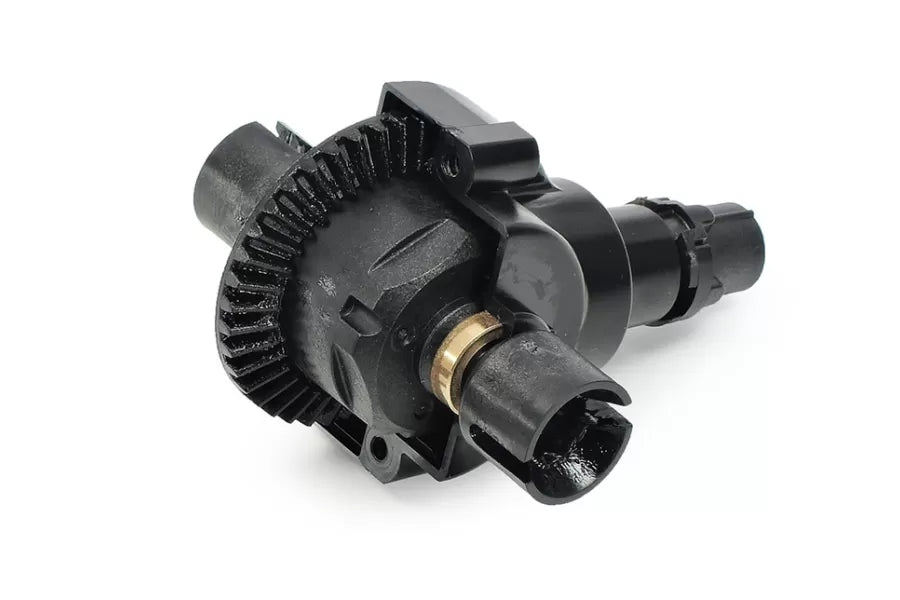

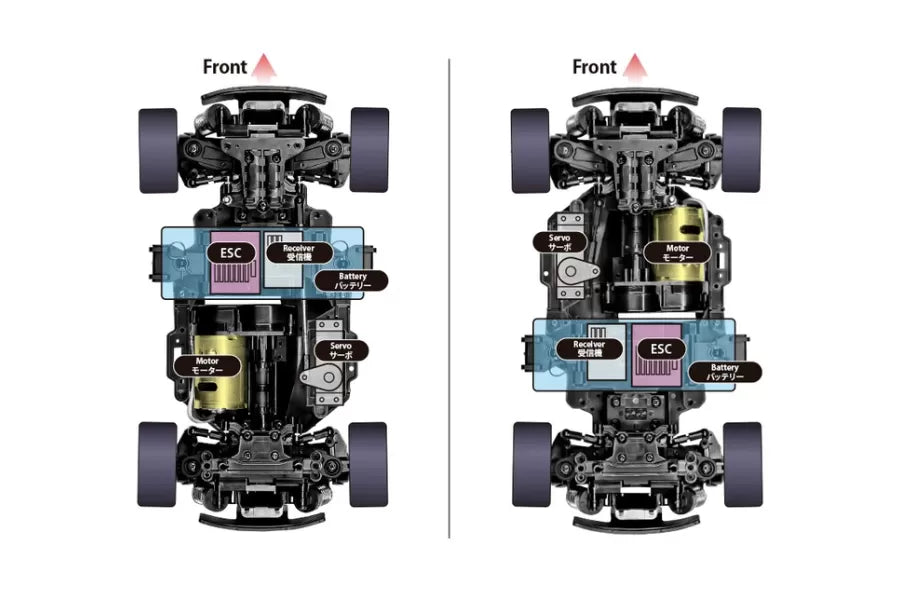

Simply change attachment directions of final gears and steering linkage to switch between front- and rear- wheel drive; low or high motor position can be chosen for rear-wheel drive cars.
-

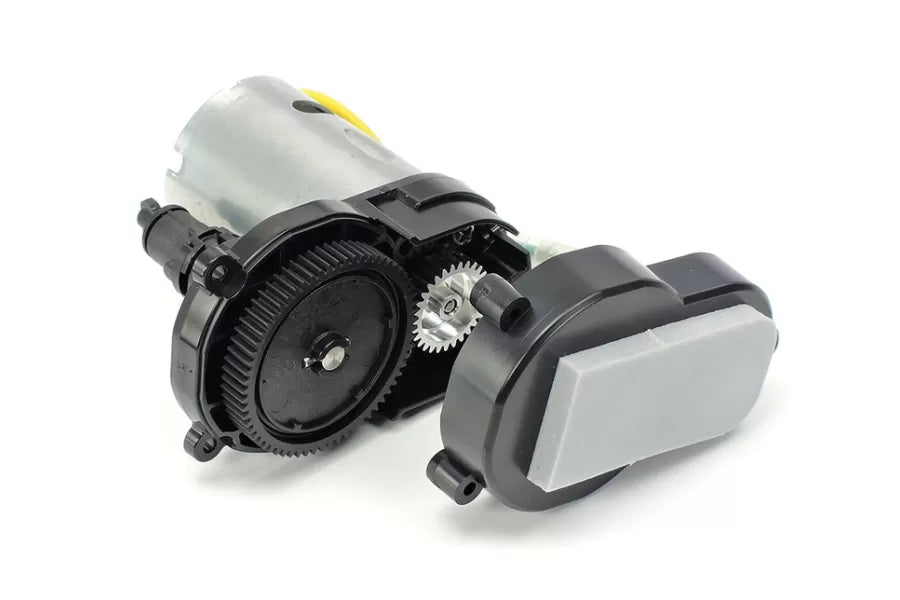

Unitized sections such as motor mount and final gears facilitate ease of assembly and effective maintenance.
-
The 4-wheel double wishbone suspension features symmetrical structure and friction dampers.
-
While this is a 2WD model, multi-link suspension is compatible with tires featuring the same compound and rear tire with toe-in as 4WD models.
-
Gear ratio: 5.83:1 (when using kit-standard 29T pinion gear)
-
Features 55mm diameter front tires and 60mm diameter rear tires to authentically recreate the stance of the actual car.
-
Many Hop-Up Option parts for M-chassis and TT-chassis cars can be used to fine-tune setup.
-
Pre-painted body.
Includes
- 540 motor
Specifications
- Length:322mm (12.6)
- Width: 163mm (6.4")
- Wheelbase: 209mm (S) / 224mm (M) / 239mm (L) (8.22/8.81/9.40") *Fiat Abarth uses the LONG wheelbase setup
- Tyre Diameter F/R: 55/60mm (2.16/2.36")
- Chassis: MB-01
- Drivetrain: 2WD
- Suspension: Friction Shocks
- Gear Ratio: 5.83:1
- Motor: 540 Brushed Type
Car | |
---|---|
Assembly Type: | Kit |
Max LiPo Power: | 2S (7.4v) |
Size (Scale): | 1/10 |
Skill Level: | Intermediate |
Power Source: | Electric |
Chassis Type: | Car |
On/Off Road: | On Road |
Drivetrain: | 2WD |
Factory specs | |
---|---|
Max LiPo power: | |
Battery connector: | |
Front shock oil: |
Requires
- 2-channel radio & receiver
- 7.2-7.4volt battery with compatible charger
- ESC
- Steering servo
