Tamiya 1/10 CC-02 1990 Land Rover 90 RC Defender with Painted body - 47478A


Tamiya 1/10 CC-02 1990 Land Rover 90 RC Defender with Painted body - 47478A

Tamiya 1/10 CC-02 1990 Land Rover Defender 90 RC Car Kit


This is a Limited-Edition Radio Control kit of the 1990 Land Rover Defender 90. Unlike item 58700, this version includes a pre-painted body in light blue!

The Defender 90 is a legendary Land Rover off-road car, and its roots go back to 1948. Based on differences in wheelbases, this car has three types – the Defender 90/110/130. This R/C model depicts a 3-door model with 93-inch wheelbase.

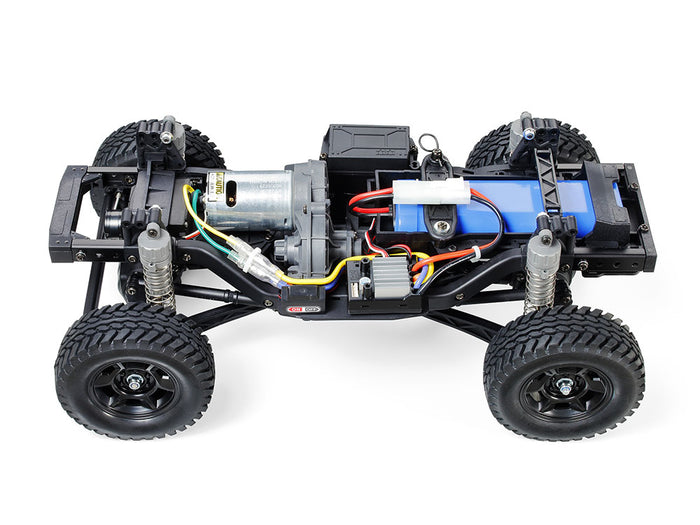

CC-02 Chassis is designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with black wheels and grippy block pattern tires.



  • 1/10 scale R/C model assembly kit. Length: 429mm, width: 200mm, height: 215mm, wheelbase (short): 242mm (CC-01S chassis).
  • Polycarbonate body pre-painted in light blue.

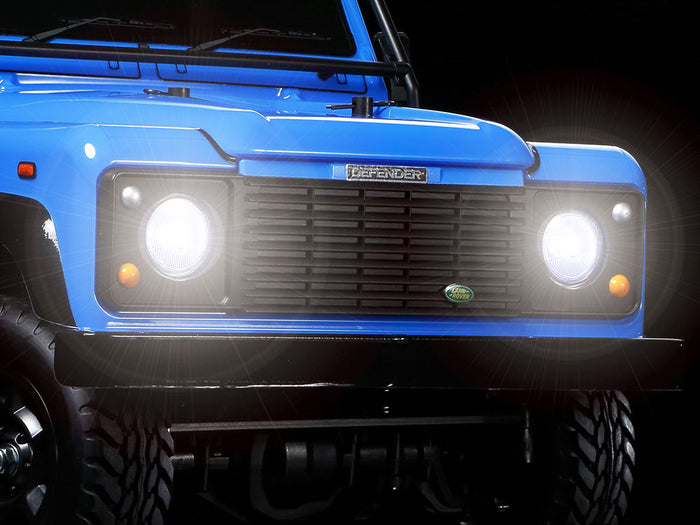

  • Compatible with 5mm-diameter LEDs x2 for headlights and 5mm-diameter LEDs x6 for the rear.
  • Includes separately molded parts for grille, side mirrors, light cases and outer roll gages.

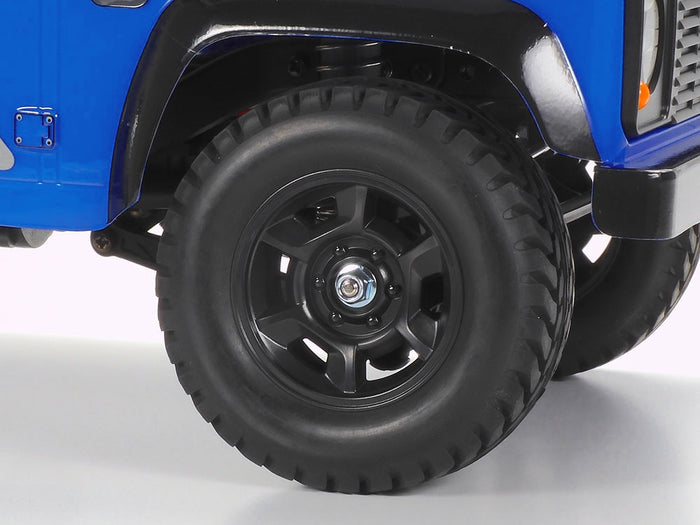

  • Black ABS resin wheels are paired with semi-pneumatic all-terrain rubber tires.

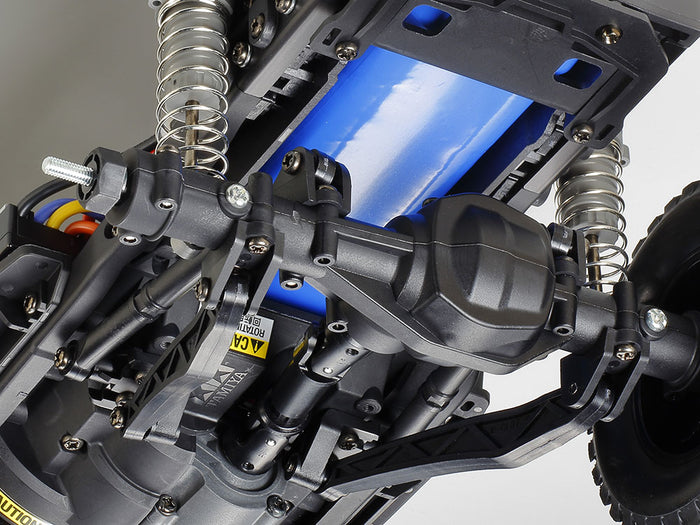

  • The ladder frame CC-02 chassis features superior durability and employs front/rear coil spring suspension which is
  • Great for off-road surfaces including rocky terrain.
  • Includes 540 Type brushed motor
  • A wide range of Hop-Up Option Parts is available to customize the CC-02 chassis.


  • Adjustable Gear Ratio: Yes
  • Bearings: Plastic Bushing
  • Body Material: Polycarbonate Pre-Painted Body
  • Body Stickers: Included
  • Chassis Material: FRP Fiberglass Reinforced Plastic
  • Chassis Type: CC-02
  • Construction Type: Assembly Kit
  • Differential Type: Gear
  • Drive Type: 4WD
  • Motor: 540-Brushed Type
  • Scale: 1/10
  • Shock Damper: CVA Oil Filled
  • Suspension: 4-link
  • Terrain Use: Multi-Purpose
Assembly Type: Kit
Size (Scale): 1/10
Skill Level: Intermediate
Power Source: Electric Brushed
Chassis Type: Car
On/Off Road: On-Road,Off-Road
Drivetrain: 4WD

Needed to Complete:

  • 2-Channel Radio Transmitter (FlySky FlySky FS-GT2 2.4Ghz 2ch Radio w/ Receiver $79)
  • Steering servo (13 or 20Kg Metal geared servo $39-$45)
  • Electronic Speed Control (Hobbywing Quicrun 1060 60A Waterproof Brushed ESC $59 or Surpass 60A Waterproof Crawler Brushed ESC - SUR 79677 $49)
  • 7.2-7.4volt battery pack (Tornado or similar 7.2V NiMh $39 7.4 LiPo $59)
  • Compatible charger (From $35 on wards)


  • Scale: 1/10
  • Length: 429mm
  • Width: 200mm
  • Height: 215mm
  • Wheelbase: 242mm (Short)


  • (1) Tamiya 1990 Land Rover Defender 90 Pre-painted 1/10 4WD Scale Truck Kit
