Tamiya 1/10 Boomerang (2008) 4WD Electric Off Road RC Buggy Kit w/o ESC - White
Tamiya 58418 Boomerang 4WD 2008 RC 1/10 Off Road Kit
Overview
The Boomerang, originally released in 1986, is now available as a 1/10 scale re-release assembly RC kit. It features a wedge-shape form, large-sized rear wing, and ball bearings installed in the gearboxes. The newly designed polycarbonate chassis cover ensures easy maintenance and prevents dirt and debris from entering.
The Boomerang inherits the chassis and shaft driven 4WD power train of the famous Hotshot. The 3-piece bathtub chassis, consisting of a centre frame with front and rear gearboxes, ensures easy maintenance. It has a mono-shock oil shock and a stabiliser in the front, and CVA long oil shocks in the rear. A newly included polycarbonate chassis cover protects the chassis from dirt and debris. It can be upgraded with a variety of Option Parts such as Item 53791 DF-02 Assembly Universal Shaft and Item 53926 DF-03 Aluminium shock Set.
Features
- New and improved gear box, drive shafts, and axle joints for better steering control
- Driveshaft placement helps to minimise effects of abrupt shocks
- Comes with a chassis cover to prevent interference from dirt and debris
- Based on the popular Hotshot's chassis and shaft driven 4WD power train
- Mono-shock oil damper and stabiliser in the front, CVA long oil dampers in the rear
- Polycarbonate chassis cover included for added protection
- Option to upgrade with a range of Option Parts, such as the DF-02 Assembly Universal Shaft and Aluminium Shock Set
- Bathtub chassis for easy maintenance
- Relive your childhood with this updated version of the classic Boomerang RC buggy
- Get ready for a fun and exciting ride with the improved steering and shock absorption of the Boomerang
-

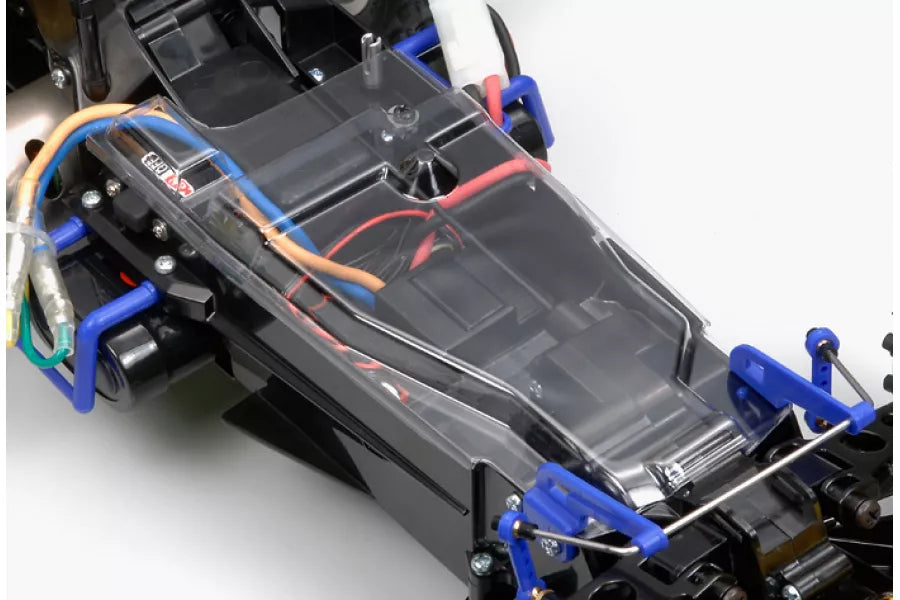

Dust & Chassis Cover
In addition to the dust cover on top of the steering servo, the polycarbonate chassis cover prevents dirt and debris from entering the inside of the chassis
-

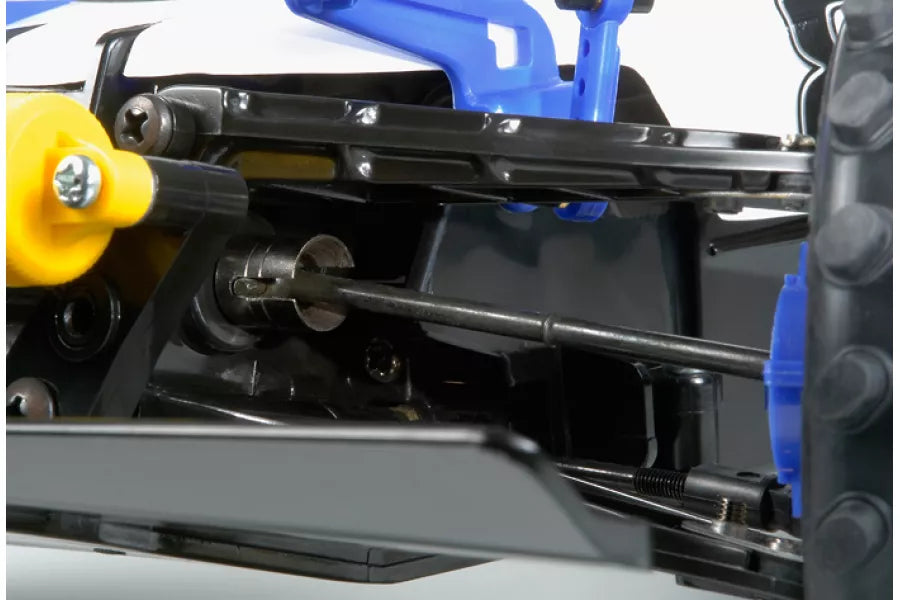

Dog-Bone Driveshafts
The reliable dog-bone type propeller shaft transmits the power. Front suspension features an oil shock and a stabiliser
-

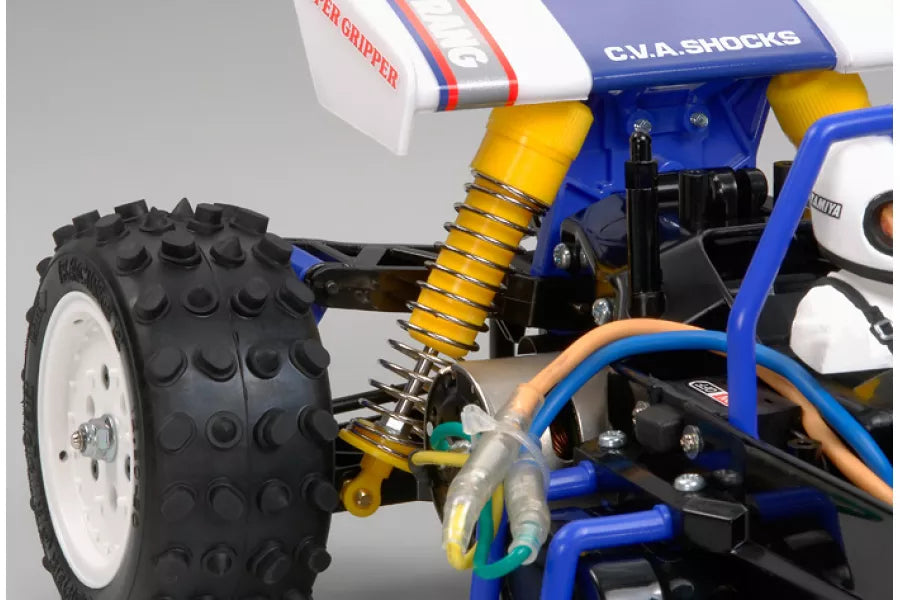

Oil-Filled Shocks
Rear features CVA oil-filled shocks which effectively absorb shocks from off-road tracks and improve traction
Specifications
- Length: 385mm (15.1")
- Width: 234mm (9.21")
- Height: 153mm (6.02")
- Weight: approx. 1160g (2.54lbs)
- Tread F/R: (7.71/7.63")
- Tyre Width/Diameter F/R: 30/88mm (1.18/3.46") / 38/88mm (1.49/3.46")
- Chassis: ABS Resin Bathtub
- Drivetrain: Shaft Driven 4WD
- Gears: Front and Rear 3-Bevel Differential
- Steering: 3-Piece Tie-Rod
- Suspension: 4-Wheel Double Wishbone
- Gear Ratio: 8.7:1, 10.04:1
- Motor: RS540 Type Motor
Car | |
---|---|
Assembly Type: | Kit |
Max LiPo Power: | 2S (7.4v) |
Size (Scale): | 1/10 |
Skill Level: | Intermediate |
Power Source: | Electric |
Chassis Type: | Buggy |
On/Off Road: | Off Road |
Drivetrain: | 4WD |
Factory specs | |
---|---|
Max LiPo power: | 2S (7.4v) |
Pinion gear: | 13T,15T |
Box Size: 49.5 x 33 11.5cm
Required items (not included)
- 7.2v NiMh Battery and compatible charger
- Steering Servo (Standard size)
- Electronic Speed Controller (ESC)
- 2Ch Transmitter and Receiver
- Tamiya PS Paint
