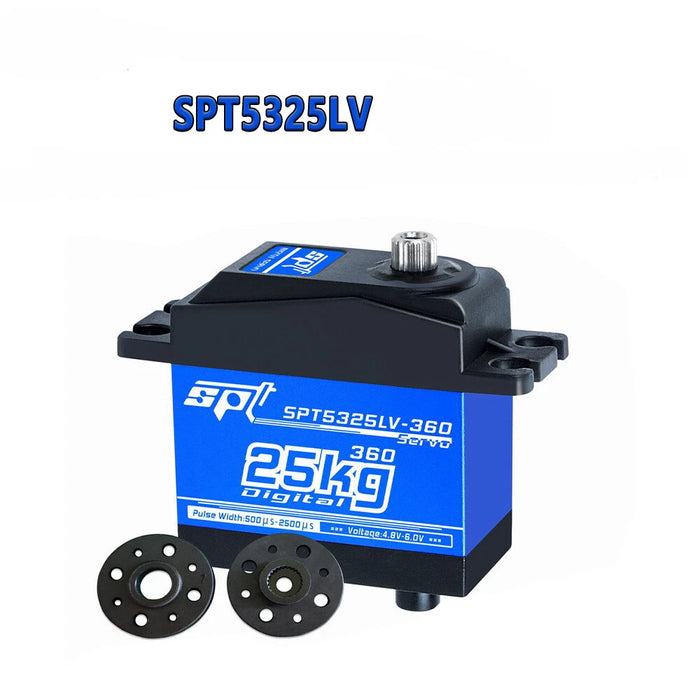

SPT 25KG Digital Servo

Specifications

• Frequency: 50hz
• Dead Band: 4μs
• Neutral Position: 1500μs/330hz

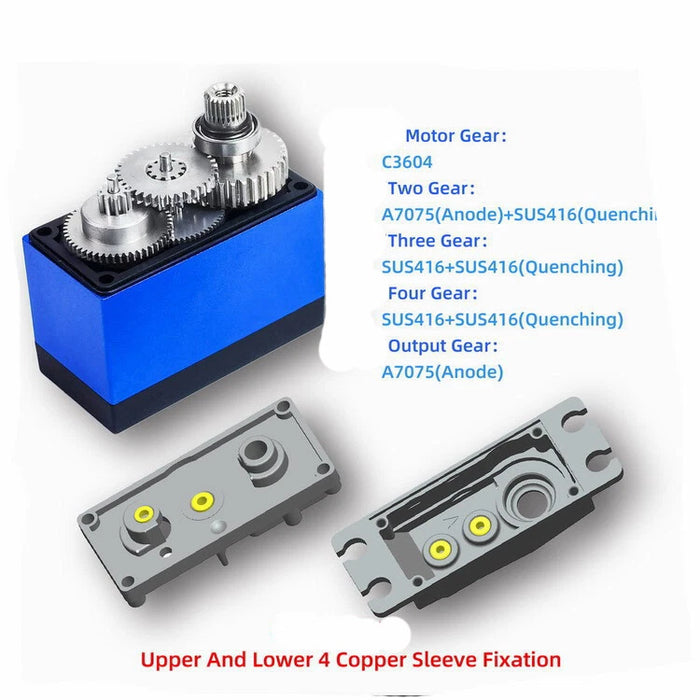

• Motor: Core motor
• Remote Control Angle: 90-200°±2° (Max.200 Degs)
• 500μs-2500μs : 200 Deg
• Voltage Range: 4.8V-6.0V
• Operating Speed(4.8V): 0.22''/60°
• Operating Speed(6.0V): 0.18''/60°
• Stall Torque(4.8V): 24 kg.cm
• Stall Torque(6.0V): 36 kg.cm
• Weight: About 57g
• Connector Wire Length: JR  260 mm
• Bearing: 2BB
• Dimensions: 40 x 20 x 40.mm (See below)
• Application: For 1:8 1:10 RC Robot Car RC Boat
