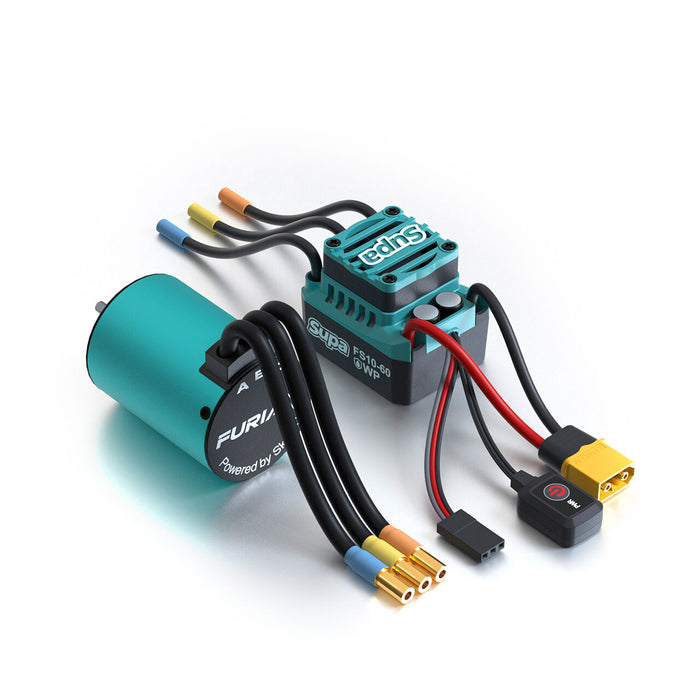

SkyRC Supa Combo 60A 3100kV
Overview
The SkyRC FuriaX Supa Combo combines the powerful FuriaX Supa 60A Brushless ESC with the FuriaX Supa 3650 3100kV Motor to create a perfectly balanced setup for 1/10 RC vehicles. This combo delivers strong, smooth acceleration, precise throttle response, and efficient cooling ideal for touring cars, buggies, and short course trucks. With convenient app-based programming, performance parameters can be adjusted directly via smartphone, while built-in protection features ensure maximum reliability and safety.
Description
The SkyRC FuriaX Supa Combo 60A 3100kV is a high-performance brushless power system engineered for 1/10 scale RC vehicles demanding higher RPM and aggressive throttle response. This matched combo pairs the FuriaX Supa 60A Brushless ESC with the FuriaX Supa 3650 3100kV 4-pole motor to deliver powerful acceleration, smooth power delivery and efficient cooling performance.
With its higher 3100kV rating, this system is suited to drivers wanting stronger top-end speed for touring cars, drift cars, buggies and short course trucks. The 4-pole 12-slot motor design enhances torque efficiency and throttle smoothness, while the 60A ESC ensures stable current management and thermal reliability under load.
App-based programming allows performance tuning directly from a smartphone, enabling adjustment of throttle curves, braking strength and drive characteristics. Integrated safety protections help maintain long-term reliability. At Campbelltown Hobbies, this combo is recommended for drivers upgrading to higher-speed brushless performance while maintaining dependable control.
In an RC car, the primary difference between these motors is their speed potential (RPM) and starting torque. While both can work with a 60A ESC, they suit different driving styles and terrain.
| Features | 3100KV Motor | 3600KV Motor |
|---|---|---|
| Top Speed | Lower (approx. 25,940 RPM on 2S) | Higher (approx. 30,130 RPM on 2S) |
| Torque | Higher "starting" or crawling torque | Lower starting torque; better at high speed |
| Heat/Load | Runs cooler; easier on the ESC | Runs hotter; easier to overload |
| Best Use | Heavy cars, off-road, or 3S LiPo | Lighter cars, street racing, or 2S LiPo |
Detailed Breakdown
-
KV Rating (RPM per Volt): This number tells you how many times the motor rotates per minute for every volt of input.
- 3600KV spins faster than 3100KV at the same voltage, theoretically giving you more speed.
- Torque vs. Speed: While higher KV generally means more speed, it often results in less "starting torque". A 3100KV motor is better at moving a heavy vehicle from a standstill or climbing obstacles.
-
ESC and Battery Compatibility (60A): A 60A ESC is standard for many 1/10 scale builds. However, the 3600KV motor will draw more current (Amps) to reach its higher speeds, which generates more heat.
- If you plan to use a 3S LiPo (11.1V), the 3100KV is safer to prevent the motor from over-spinning and overheating.
- If staying on 2S LiPo (7.4V), the 3600KV is a popular "basher" choice for extra punch on flat ground.
- Gearing: Higher KV motors are more sensitive to gearing. If you use the 3600KV motor, you may need a smaller pinion gear (fewer teeth) to prevent it from overheating under load.
Specifications
- ESC: FuriaX Supa 60A Brushless ESC
- Motor: FuriaX Supa 3650 3100kV
- Continuous Current: 60A
- Burst Current: 360A
- BEC Output: 6.0V / 7.4V (switchable)
- Battery Compatibility: 2–3S LiPo / 6–9 cell NiMH
- Motor Type: Brushless, 4-pole, 12-slot
- Motor Weight: Approx. 150g
- ESC Weight: Approx. 100g
- Application: 1/10 Touring, Buggy, Drift, Short Course
