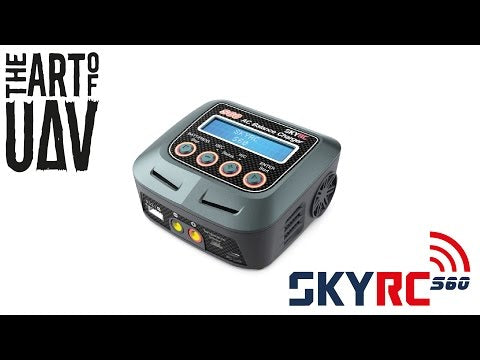

Skyrc S60 AC Balance Charger For Ni-Cd Ni-Mh 2-4S LiPo Smart Charger

$99.00

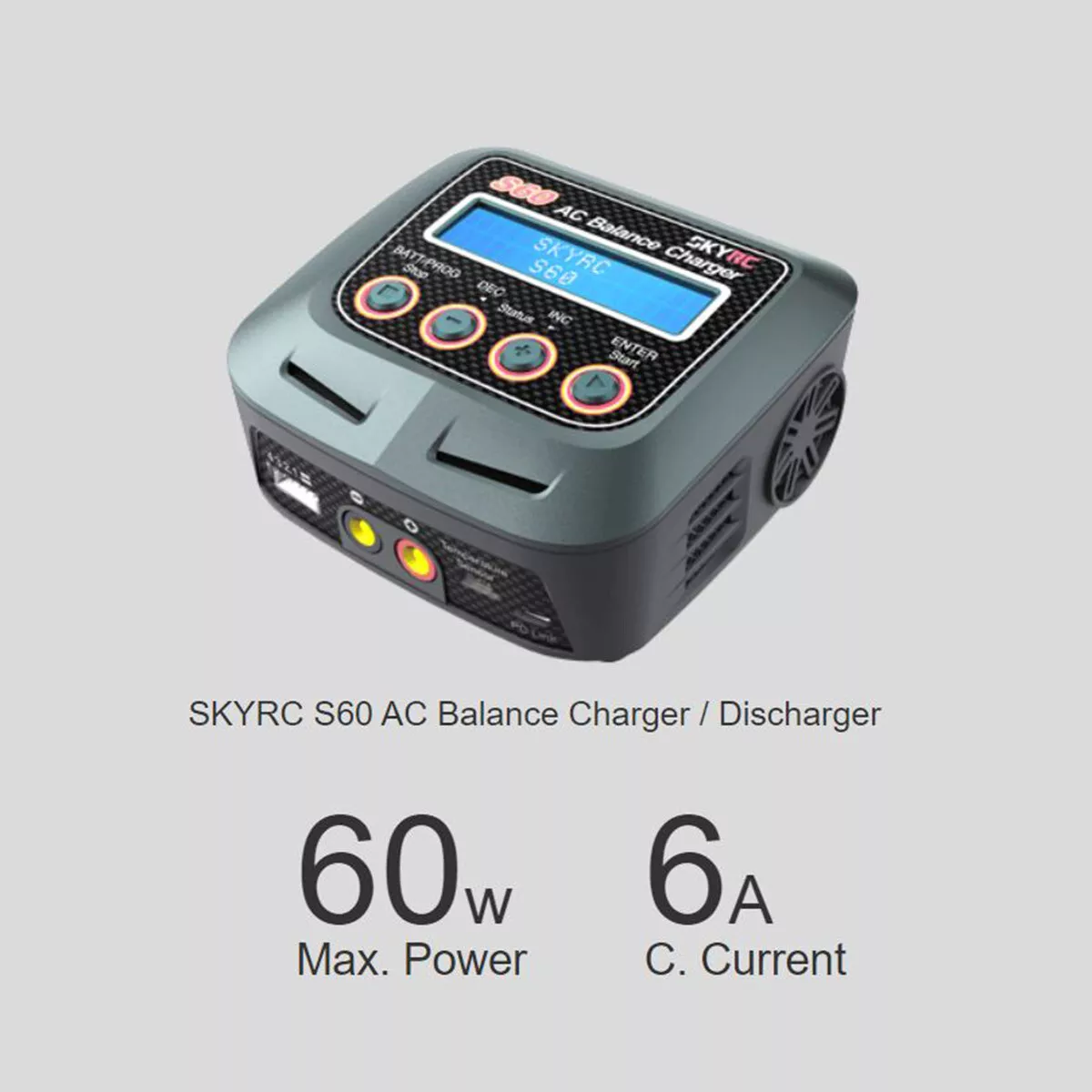

Skyrc S60 AC Balance Charger For Ni-Cd Ni-Mh 2-4S LiPo Smart Charger Discharger

Skyrc S60 AC Balance Charger For Ni-Cd Ni-Mh 2-4S LiPo Smart Charger Discharger - Picture 3 of 11

Description
The SkyRC S60 AC Professional Charger/Discharger stands out with its exquisite and stylish design. It can charge nearly all current battery types in the market, including new generation LiPo batteries with voltage specification 4.35V. Furthermore, users are able to set the terminal voltage and connect it to a PC for direct PC control and firmware upgrades. Additionally, users can also use the S60 as a powerful Lithium Battery Meter and Battery Internal Resistance Meter. There are Automatic Charging Current Limits, Capacity Limits, Temperature Thresholds and Processing Time Limits which makes the charger even more safe to use.

Specifications

  • Net Weight: 310g
  • Input Voltage: AC100-240V
  • Charge Circuit Power: Max. 60W
  • Discharge Circuit Power: 10W
  • Charge Current Range: 0.1-6A
  • Discharge Current Range: 0.1-2A
  • Current Drian for Balancing Port: Max 200mA/cell
  • Trickle Charging Current: 50mA-300mA & OFF
  • LiPo/LiFe/Lilon/LiHV Battery Cell Count: 2-4S
  • NiMH/NiCd Battery Cell Count : 6-8S
  • Pb Battery Voltage: 6-12V
  • Size: 112 x 106 x 52mm

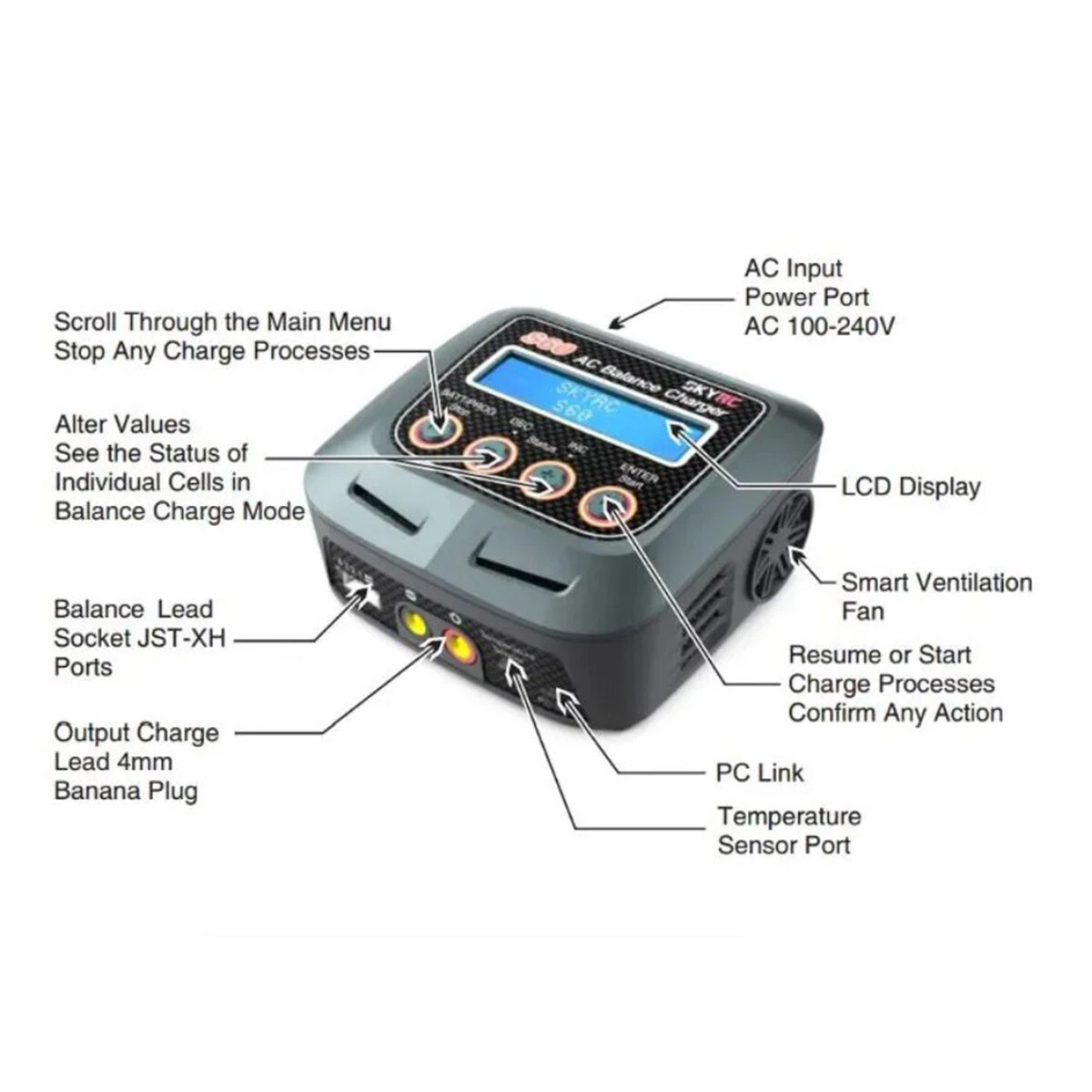

Skyrc S60 AC Balance Charger For Ni-Cd Ni-Mh 2-4S LiPo Smart Charger Discharger - Picture 2 of 11

Features

Optimized Operating Software
SkyRC S60 features the so-called AUTO function that set the feeding current during the process of charging or discharging. Especially for lithium batteries, it can prevent the overcharging which may lead to an explosion due to the user’s fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two way linkage and communication, to achieve the maximum safety and minimize the trouble. All the settings can be configured by users!

Battery Memory (Data Store/Load)
The charger can store up to 10 different charge/discharge profiles for your convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting.

Terminal Voltage Control (TVC)
The charger allows user to change the end voltage. (For expert user only)

PC Control Software “Charge Master”
The free “Charge Master” software gives you unparalleled ability to operate the charger through the computer. You can monitor pack voltage, cell voltage and other data during the charging, view charge date in real-time graphs. And you can initiate, control charging and update firmware from “Charge Master”.

Internal Independent Lithium Battery Balancer
SkyRC S60 employs an individual-cell-voltage balancer. It isn’t necessary to connect an external balancer for balance charging.

Balancing Individual Cells Battery Discharging
During the process of discharging, SkyRC S60 can monitor and balance each cell of the battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.

Adaptable to Various Type of Lithium Battery
SkyRC S60 is adaptable to various types of lithium batteries, such as LiPo, LiIon,LiFe and the new LiHV batteries.

Fast and Storage Mode of Lithium Battery
Purposes to charge lithium battery varies, ‘fast’ charge reduce the duration of charging, whereas ‘store’ state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery.

Re-Peak Mode of NiMH/NiCd Battery
In re-peak charge mode, the charger can peak charge the battery once, twice or three times in a row automatically. This is good for making certain the battery is fully charged.

Delta-peak Sensitivity for NiMH/NiCd
Delta-peak sensitivity for NiMH/NiCd battery: The automatic charge termination program based on the principle of the Delta-peak voltage detection. When the battery’s voltage exceeds the threshold, the process will be terminated automatically.

Cyclic Charging/Discharging
1 to 5 cyclic and continuous process of charge > discharge or discharge > charge is operable for battery refreshing and balancing to stimulate the battery’s activity.

Automatic Charging Current Limit
You can set up the upper limit of the charging current when charging your NiMH or NiCd battery, it is useful for the NiMH battery of low impedance and capacity in the ‘AUTO’ charging mode.

Battery Meter
The user can check battery voltage and battery internal resistance.

Capacity Limit
The charging capacity is always calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.

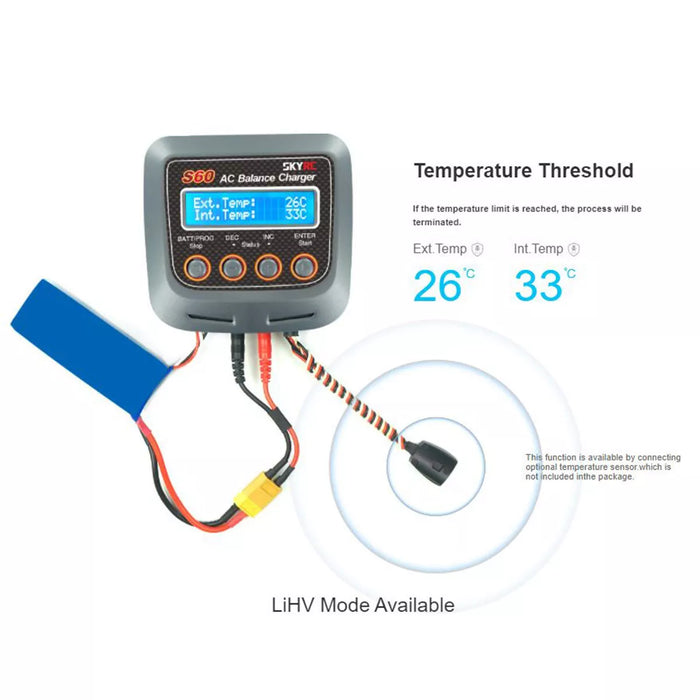

Temperature Threshold*
The battery’s internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated.
*This function is available by connecting optional temperature probe, which is not included in the package

Processing Time Limit:
You can also limit the maximum process time to avoid any possible defect.

Skyrc S60 AC Balance Charger For Ni-Cd Ni-Mh 2-4S LiPo Smart Charger Discharger - Picture 10 of 11

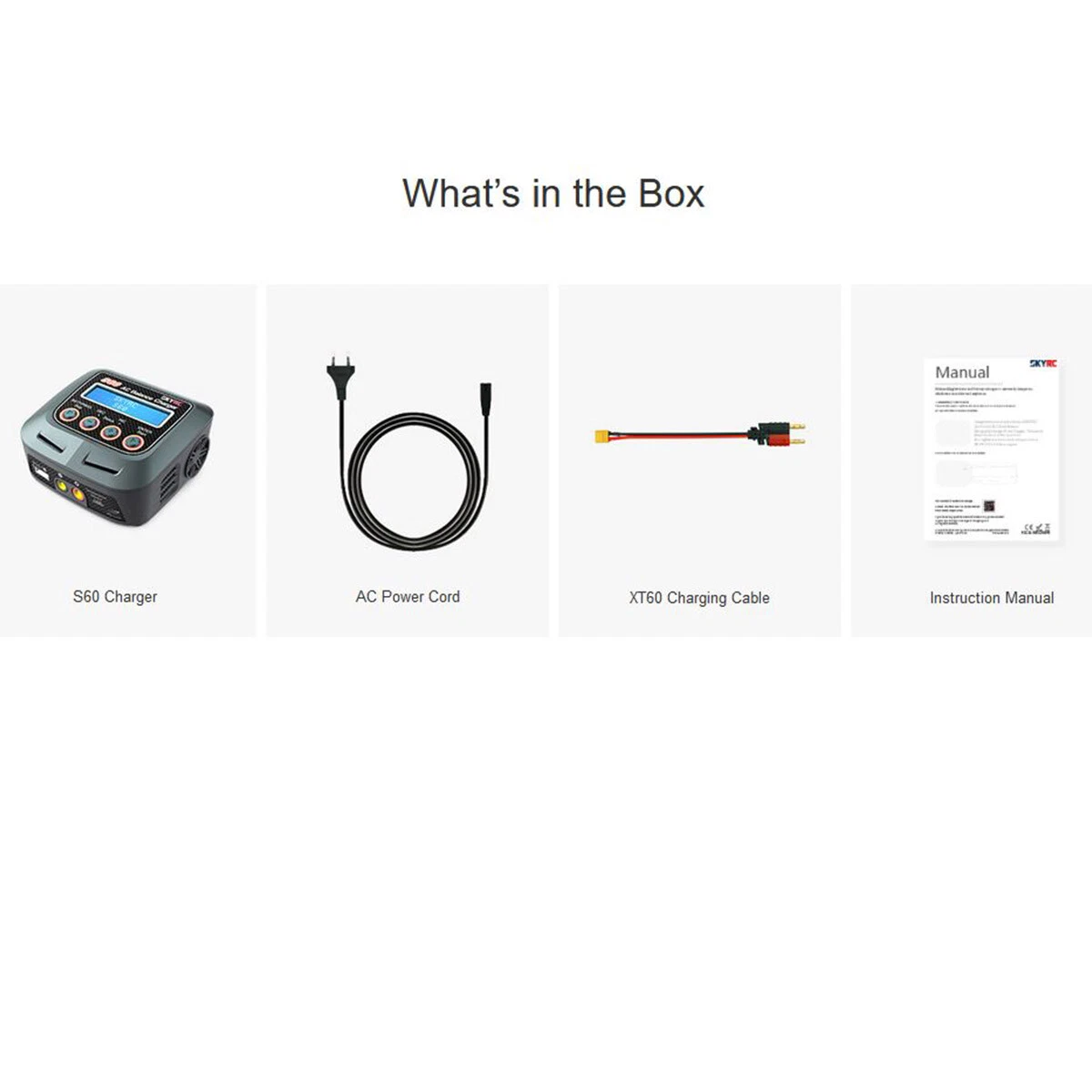

Package Contents

  • 1 x SKYRC S60 charger
  • 1 x XT60 Charging cable

Skyrc S60 AC Balance Charger For Ni-Cd Ni-Mh 2-4S LiPo Smart Charger Discharger - Picture 11 of 11

Skyrc S60 AC Balance Charger For Ni-Cd Ni-Mh 2-4S LiPo Smart Charger Discharger - Picture 4 of 11
