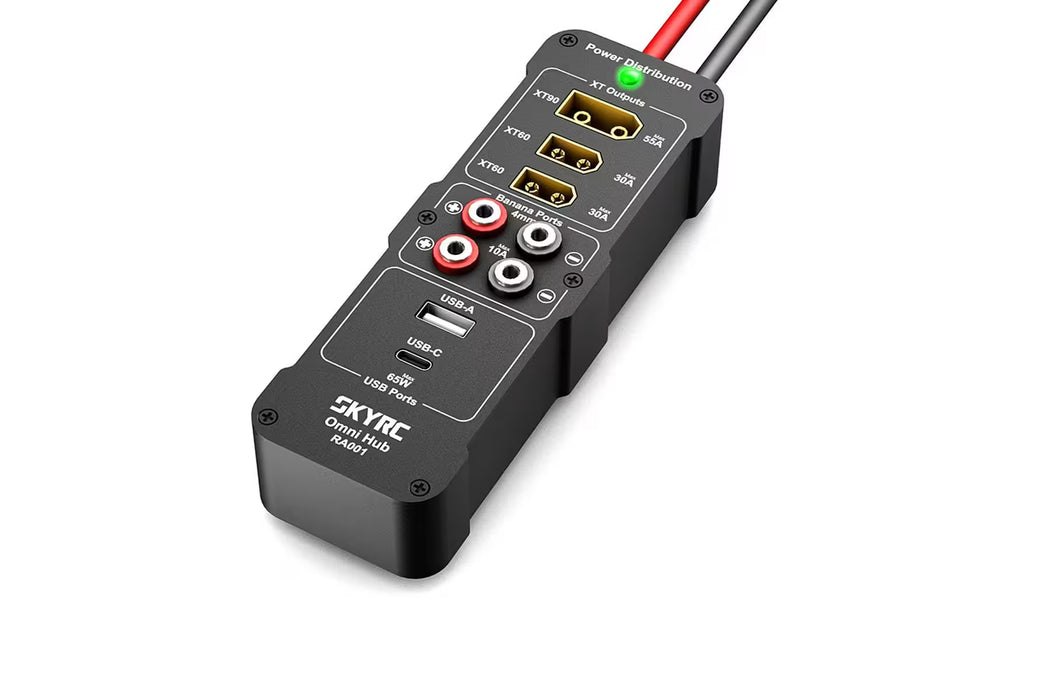

SkyRC Omni XT90 Power Distribution Hub
Overview

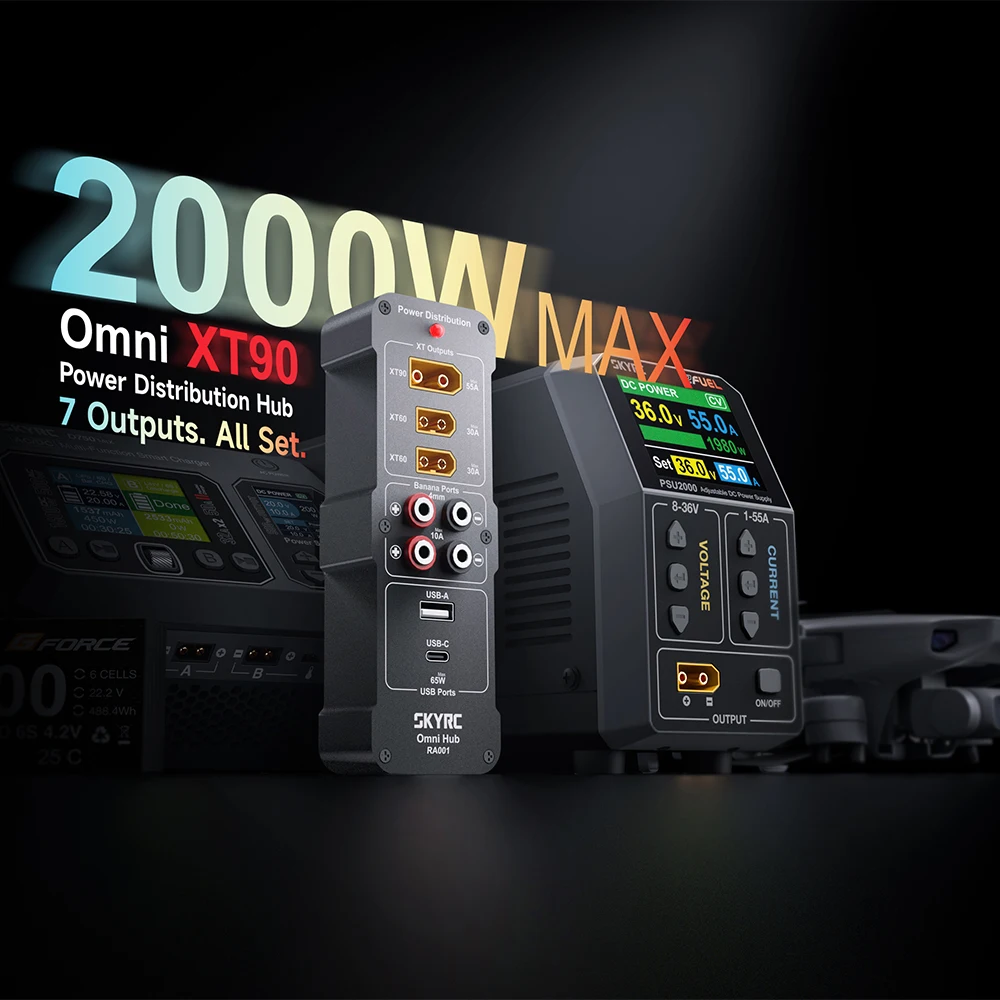

The SkyRC Omni XT90 Power Distribution Hub (Model SK-600163-01) is a high power multi port DC power strip designed to clean up messy RC workbenches and field charging setups. It expands a single XT90 DC input into 7 concurrent outputs, delivering up to 2000W of continuous power when paired with a high-capacity power supply like the SkyRC eFUEL PSU2000
Description
High-load power distributor equipped with reliable XT90, dual XT60 and Type-C fast charging ports, delivers steady up to 1980W power output, compatible with SkyRC eFUEL PSU2000.
Features

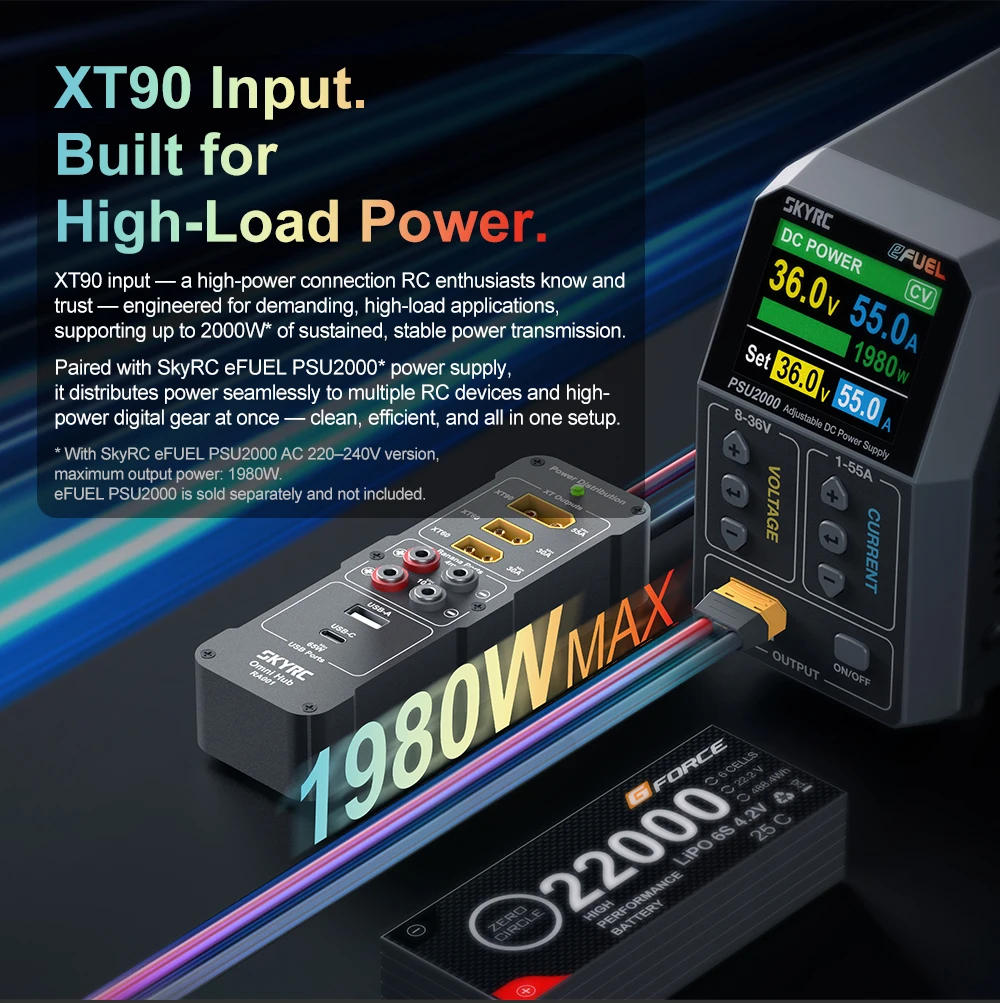

- High-Load Power.XT90 input-a high-power connection RC enthusiasts know and trust-engineered for demanding, high-load applications, supporting up to 2000W* of sustained, stable power transmission
- Paired with SkyRC eFUEL PSU2000* power supply,it distributes power seamlessly to multiple RC devices and high-power digital gear at once - clean, efficient, and all in one setup
- With SkyRC eFUEL PSU2000 AC 220-240V version,maximum output power:1980W.eFUEL PSU2000 is sold separately and not included

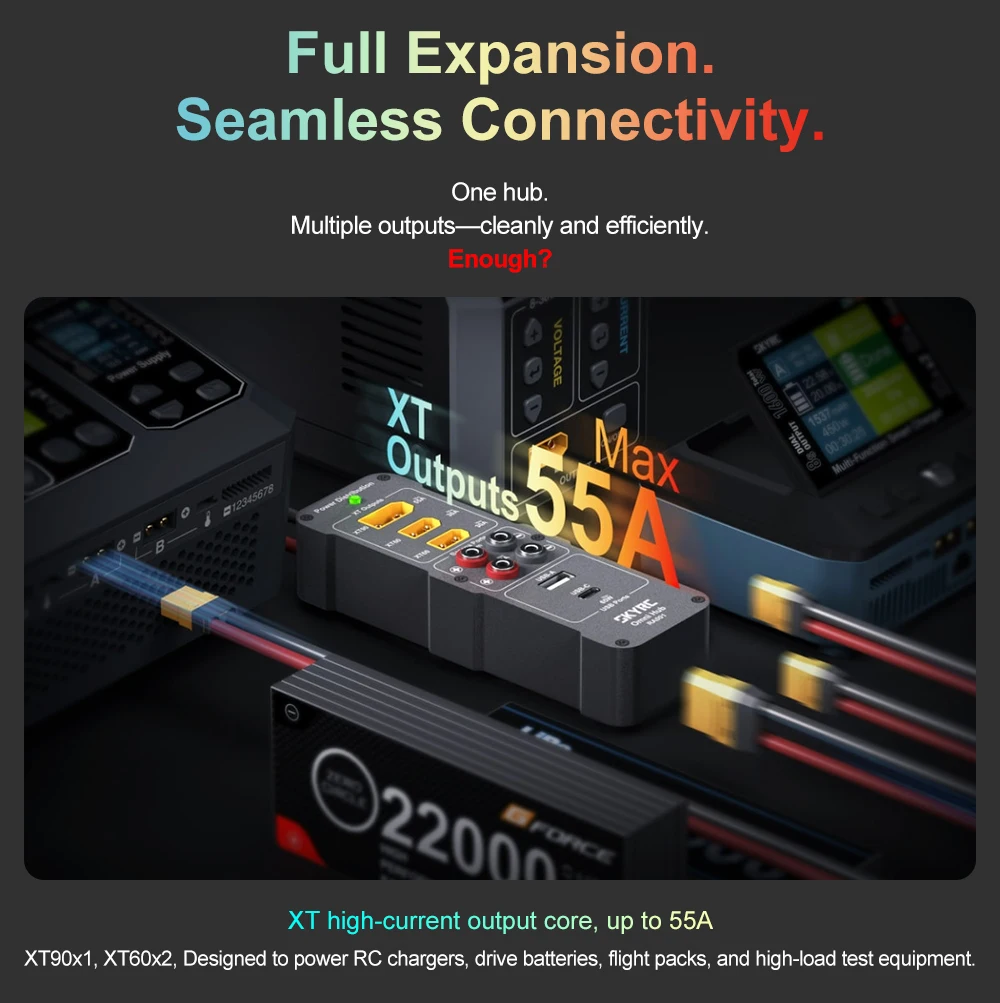

- XT90 x 1, XT60 x 2, Designed to power RC chargers, Batteries, flight packs, and High-load test equipment

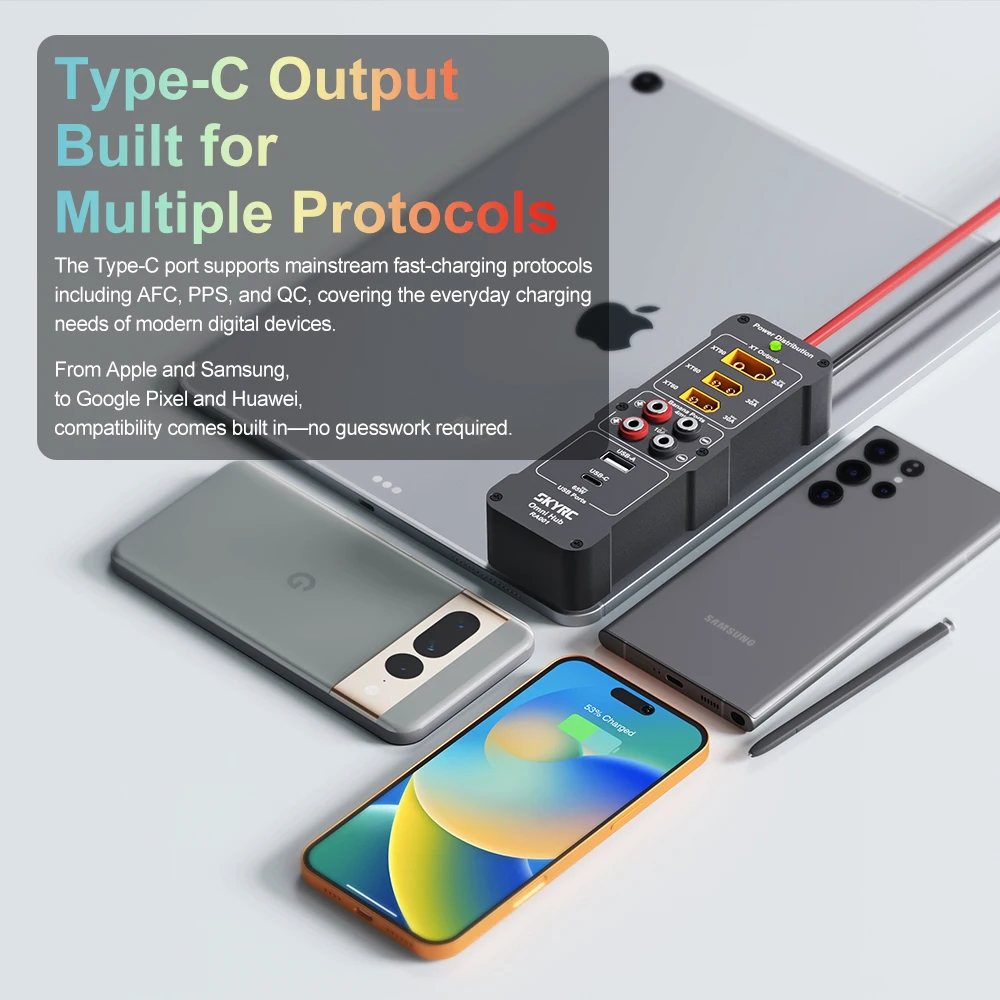

- Type-C port supports mainstream fast-charging protocols including AFC, PPS, and QC, covering the everyday charging needs of modern digital devices

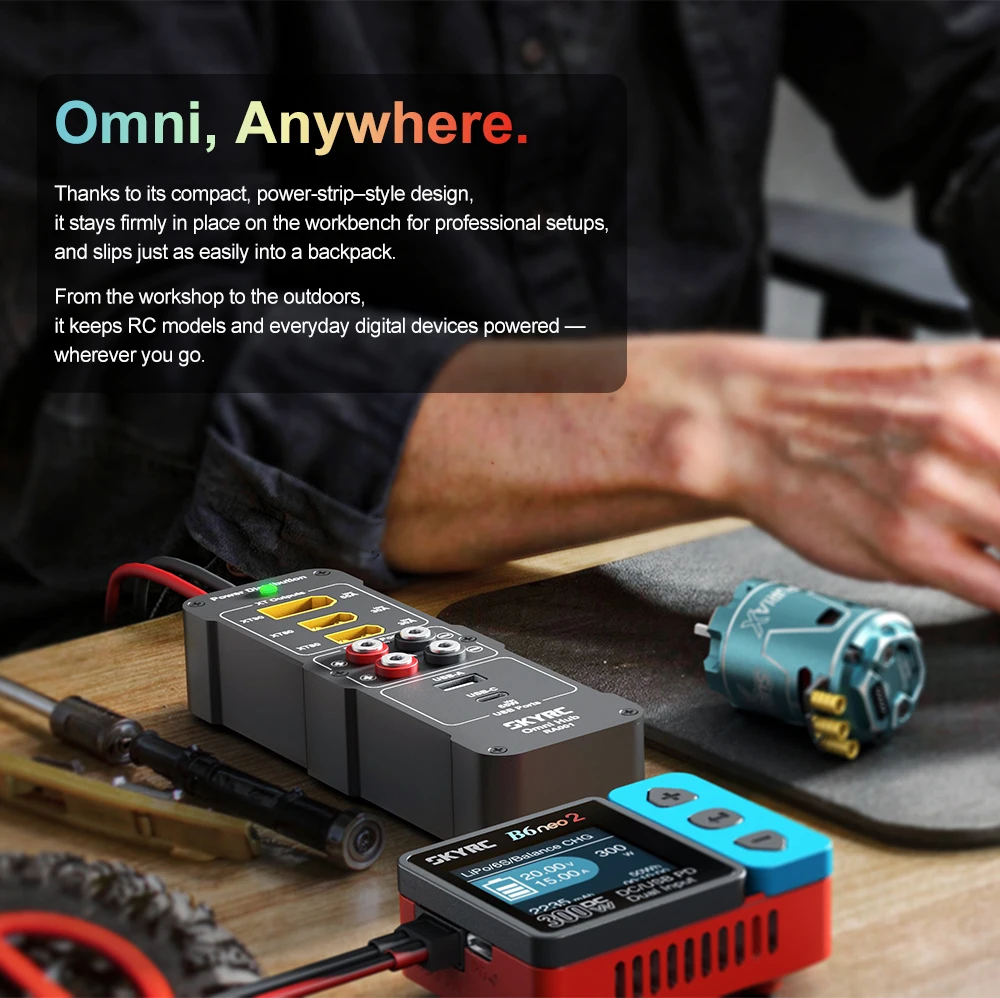

- Compact and portable, it can power RC models and daily digital devices both in the workshop and outdoors.

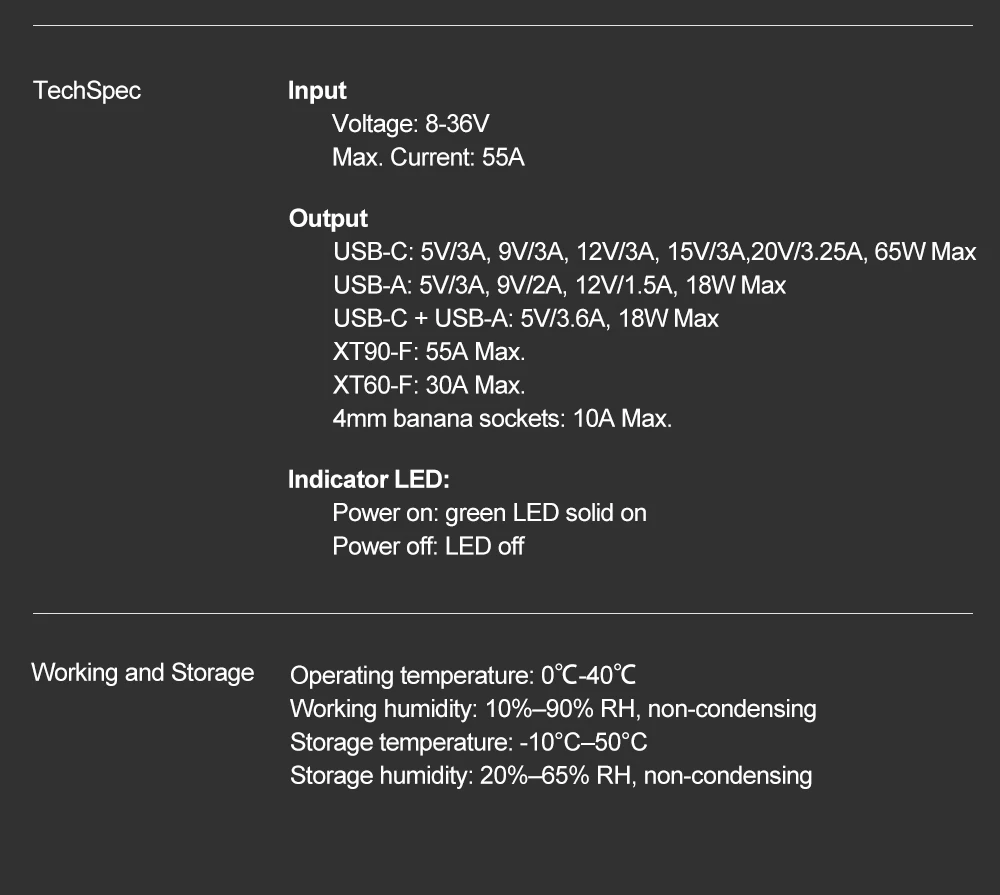

Specifications

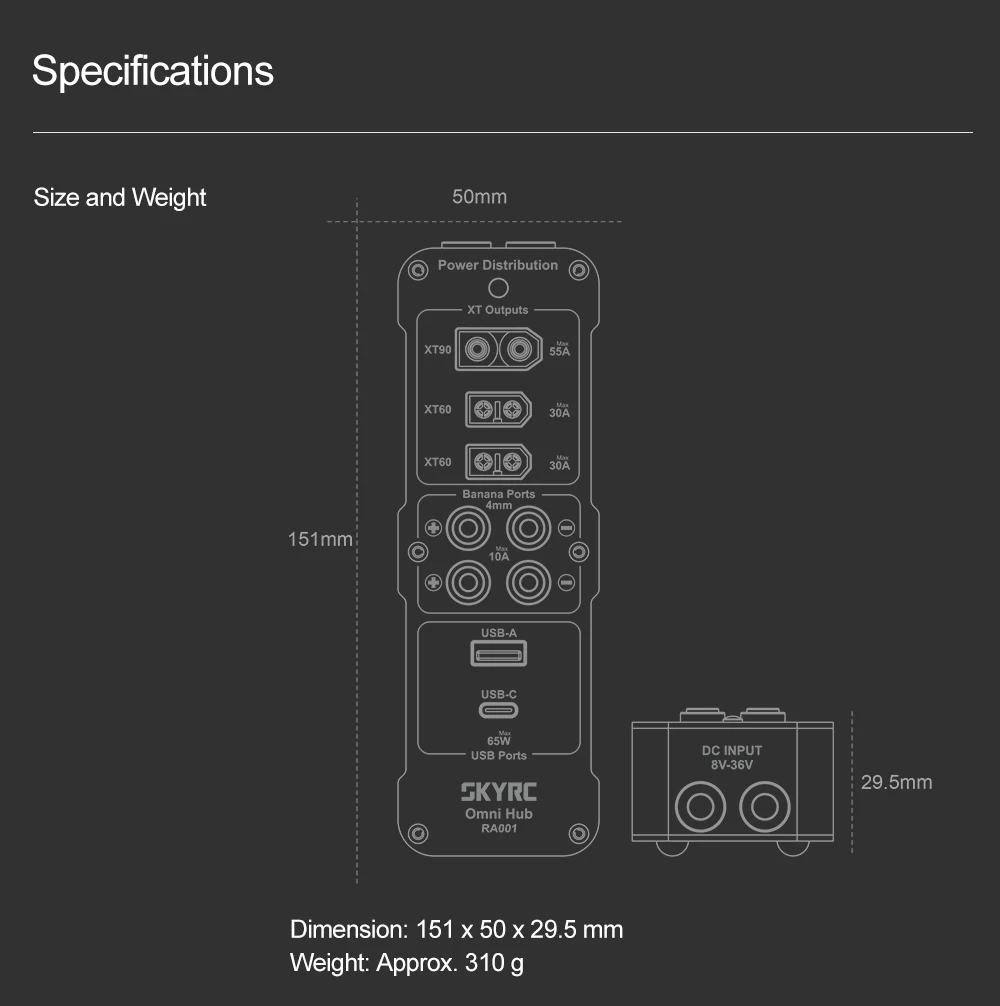

- Dimension: 151 x 50 x 29.5 mm
- Weight: Approx. 310 g
-
Input:
- Voltage: 8-36V
- Max. Current: 55A
-
Output:
- USB-C: 5V/3A, 9V/3A, 12V/3A, 15V/3A,20V/3.25A, 65W Max
- USB-A: 5V/3A, 9V/2A, 12V/1.5A, 18W Max
- USB-C + USB-A: 5V/3.6A, 18W Max
- XT90-F: 55A Max.
- XT60-F: 30A Max.

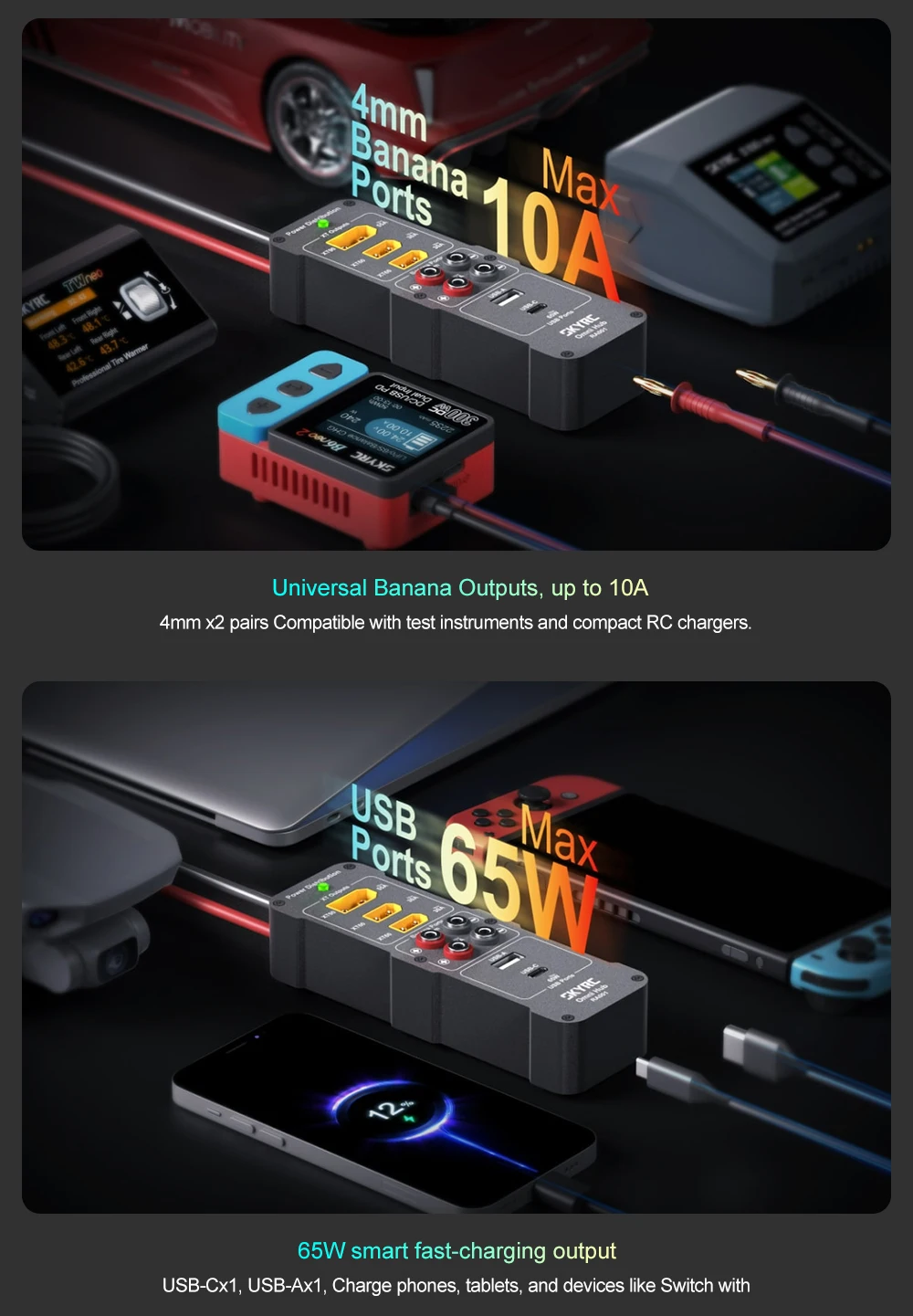

- 4mm banana sockets: 10A Max.
-
Indicator LED:
- Power on: green LED solid on
- Power off: LED off
- Operating temperature: 0℃-40℃
- Working humidity: 10%–90% RH, non-condensing
- Storage temperature: -10°C–50°C
-
Storage humidity: 20%–65% RH, non-condensing

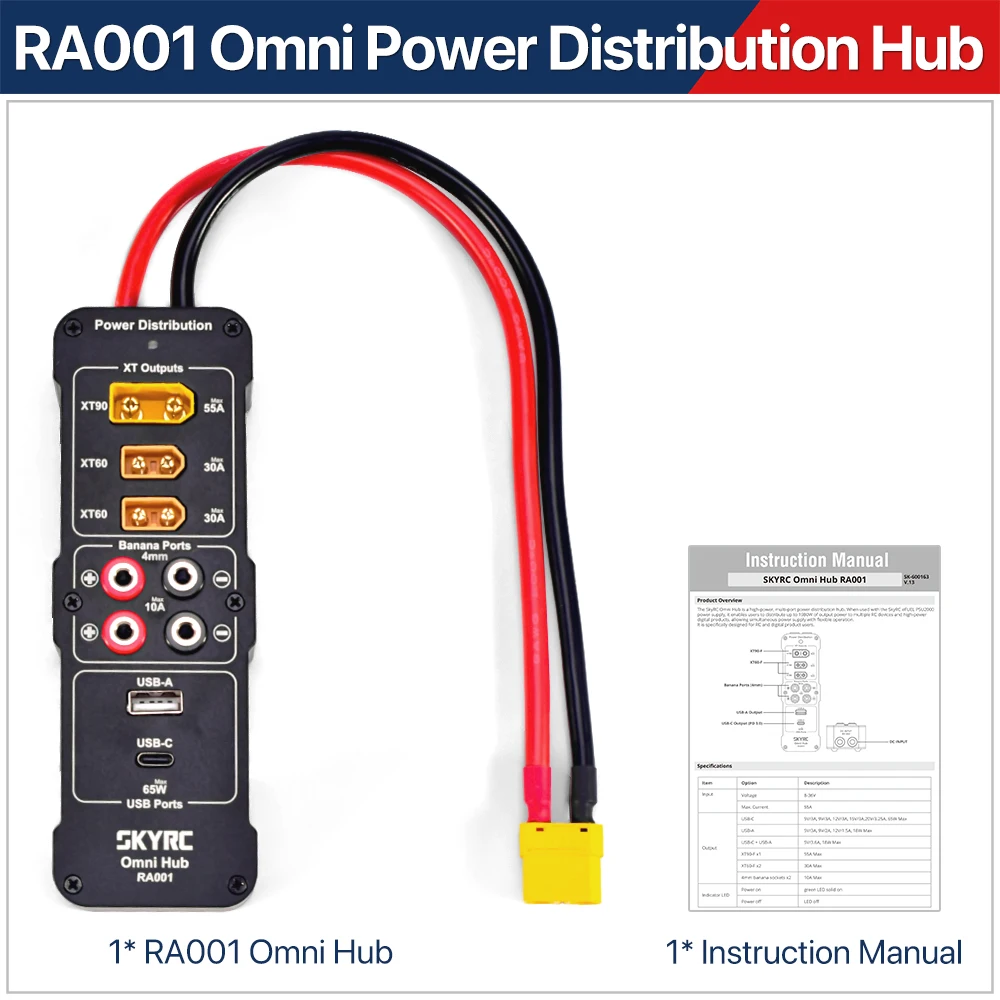

Package contents
- 1 x RA001 Omni XT90 Power Expansion Dock
- 1 x Instruction manual
