Overview

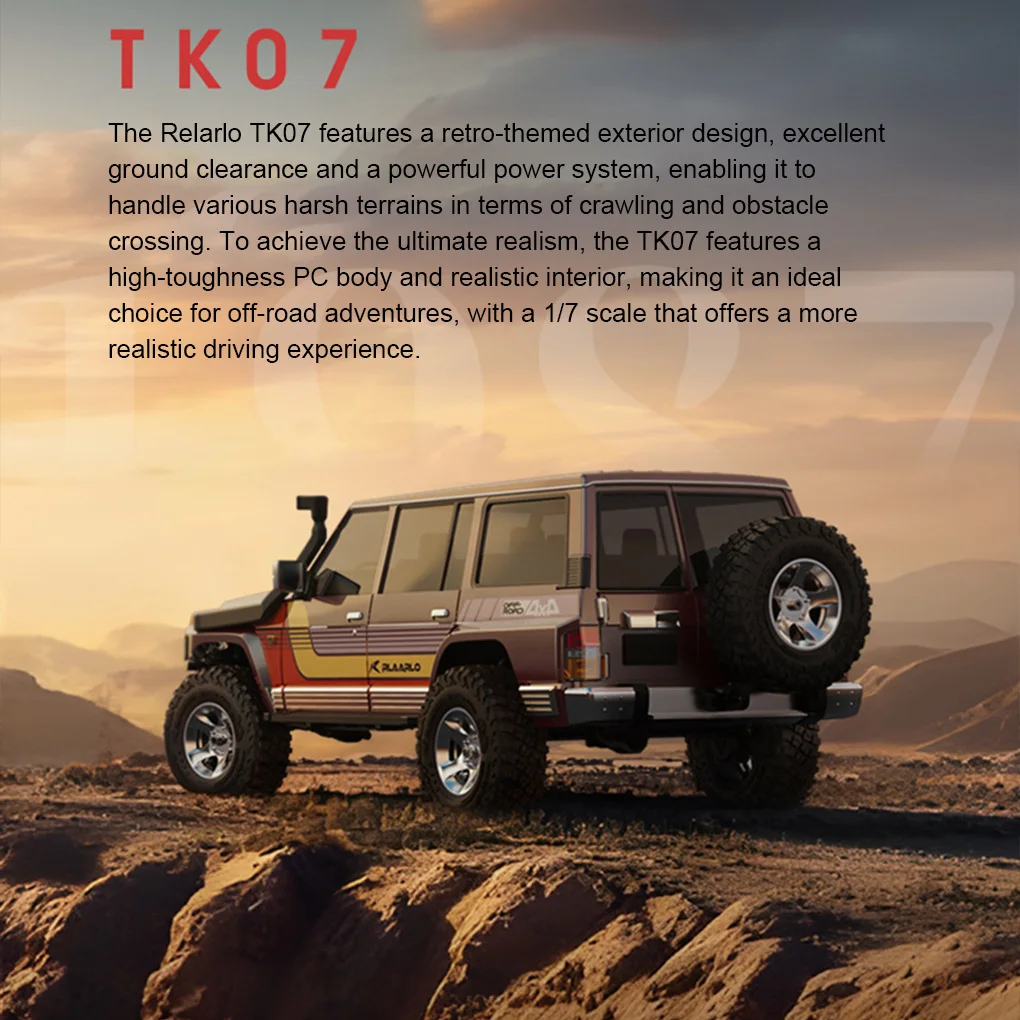

TK07 is scaled down according to the scale of the real car, with the same exquisite appearance as the real car, high simulation, full-vehicle linkage lights, but also has the standard RC structure, excellent performance and full of design details of the realistic appearance! This is an extremely attractive RC Crawler, a must have in your collection!

Description

The TK07 sets a new benchmark for scale RC crawlers, combining rugged engineering, premium materials, and true-to-life detailing. Built for enthusiasts who demand both realism and performance, the TK07 is equally at home on rocky trails, steep climbs, sandy dunes, or scale display shelves.

Take on any terrain with the TK07 1/10 Scale RC Crawler, a high-performance rock crawler designed for serious RC enthusiasts. With full CNC steel gears, selectable 4WD to 2WD transmission, and a 2600kv brushless motor, the TK07 delivers raw power, durability, and precision control. Built for rugged landscapes, this crawler combines professional hobby-grade electronics with an incredibly realistic design, making it one of the most versatile RC crawlers on the market.

Whether you’re scaling rocks, tackling steep inclines, or cruising flat trails, the TK07 is engineered to handle it all. With hydraulic shocks, oversized axles, and advanced differential locks, this crawler ensures superior stability, traction, and realism.

(Battery and charger sold separately. Supports up to 4S LiPo batteries with XT60 connector).

Key Features

• Full CNC Chromium Steel Gears – Gearbox features 1.0cm motor pinion and spur gears, with 0.8cm transmission gears for unmatched durability.

• Selectable 4WD/2WD Transmission – Switch between front-wheel drive, rear-wheel drive, or full-time 4WD for maximum adaptability on obstacles, downhill slopes, and rough terrain.

• Lockable Differentials – Front and rear differential locks provide smoother steering on easy trails and superior traction when tackling extreme climbs and uneven terrain.

• High & Low Gear Switching – Shift on the fly between high speed for flat surfaces and low gear for torque-heavy off-road power.

• Twin Friction Plate Slipper Clutch – Protects gears and motor under extreme loads, ensuring long-lasting performance.

• Forward Mounted Gearbox – Lowers the centre of gravity and improves climbing performance, with reverse rotation design to minimise torque twist.

• 3-Link Panhard Steering System – Reduces lateral swing and improves straight-line stability across rough terrain.

• 8mm Stainless Steel Suspension Rods – Heavy-duty suspension components increase overall chassis strength.

• Oversized Front & Rear Axles – Provides maximum sturdiness and durability while enhancing transmission space and movement.

• 120mm Full Metal Hydraulic Shocks – Long-travel shocks with 37mm stroke deliver smooth damping, even over extreme terrain.

• Realistic LED Lighting – Integrated headlights and taillights for night-time realism and scale detail.

• Professional Hobby-Grade Radio – 2.4GHz 10-channel transmitter with 350m range ensures precise control.

• 2600kv Brushless Motor – High-output motor supports up to 4S LiPo batteries for powerful crawling and speed.

• Powerful Servos – 45kg waterproof steering servo plus four 25g servos for speed switching and differential locks.

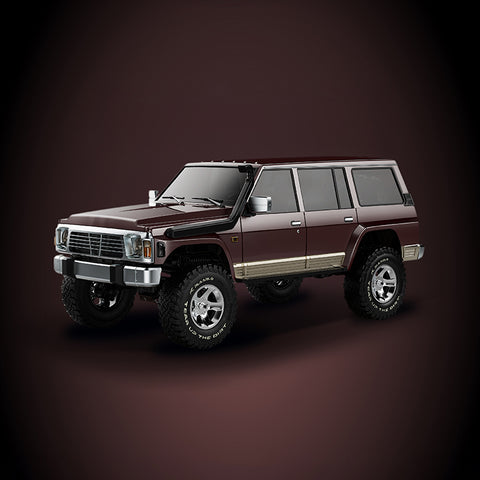

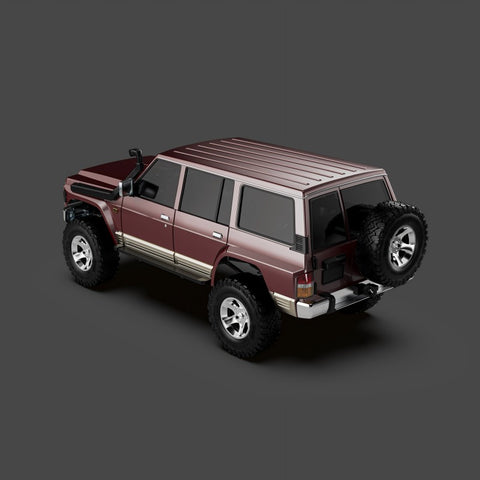

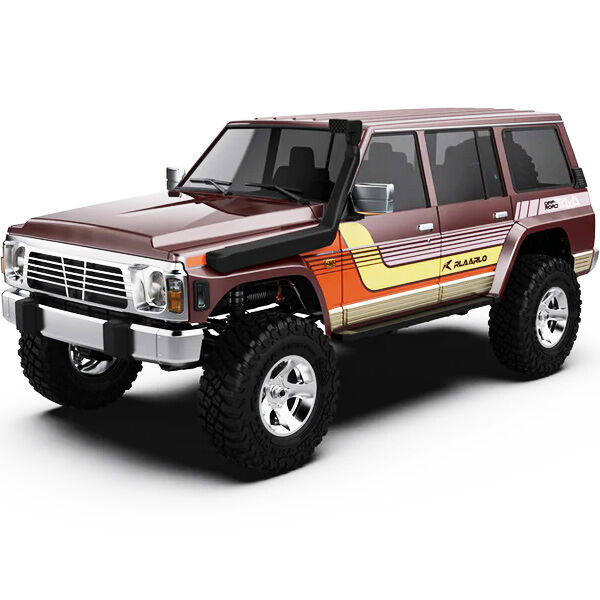

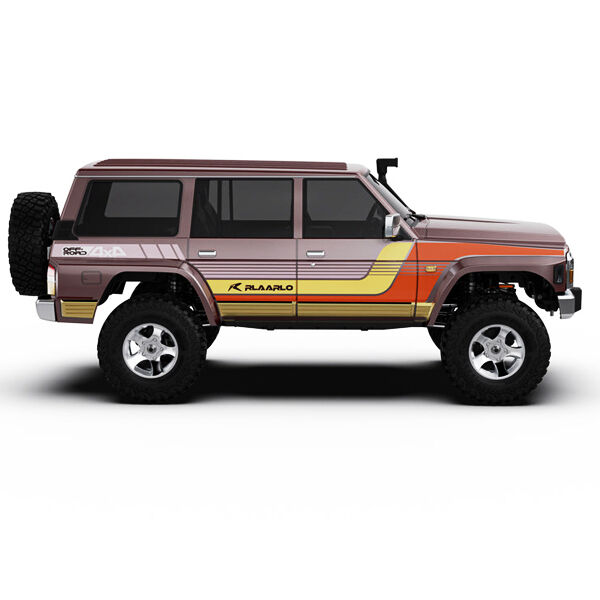

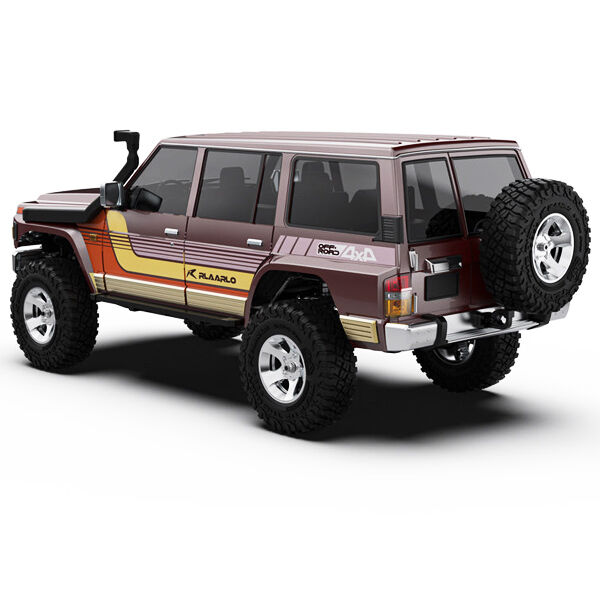

Realistic Scale Body

• 1.5mm Polycarbonate Shell: Strong, impact-resistant PC body designed to handle harsh terrains.

• Over 30 Injection-Moulded Scale Parts: Includes windshield wipers, mirrors, door handles, steering wheel, and more for unmatched realism.

• Quick-Release Mounting: Spring-loaded swivel clasp makes body removal and maintenance simple.

• Simulation Details: Functional-looking bumpers, molded inner fenders, and a simulated spare tire complete the authentic crawler look.

• Lighting System: Linked LED headlights and taillights enhance night driving realism.

Specifications

• Brushless Version:

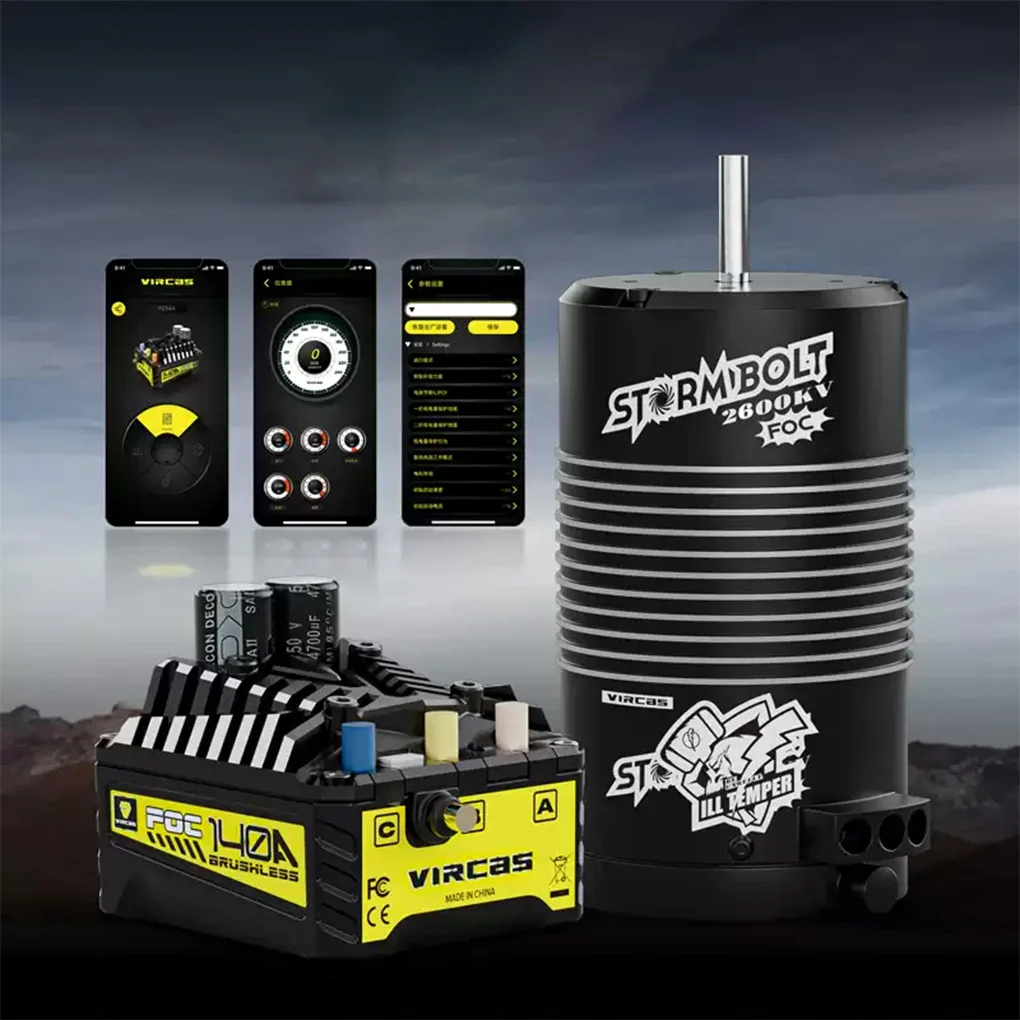

  • 4282 high-torque 2600KV FOC sensored motor with magnetic encoding.

  • Plug-and-play with hot-swappable sensors for ultra-smooth power delivery.

  • 140A FOC ESC: Supports 2–4S LiPo with vector control, improving efficiency by 5–20% over square wave ESCs and doubling acceleration/deceleration response.

  • Delivers low-speed torque compensation for precision crawling, plus strong performance in drifting and sand runs.

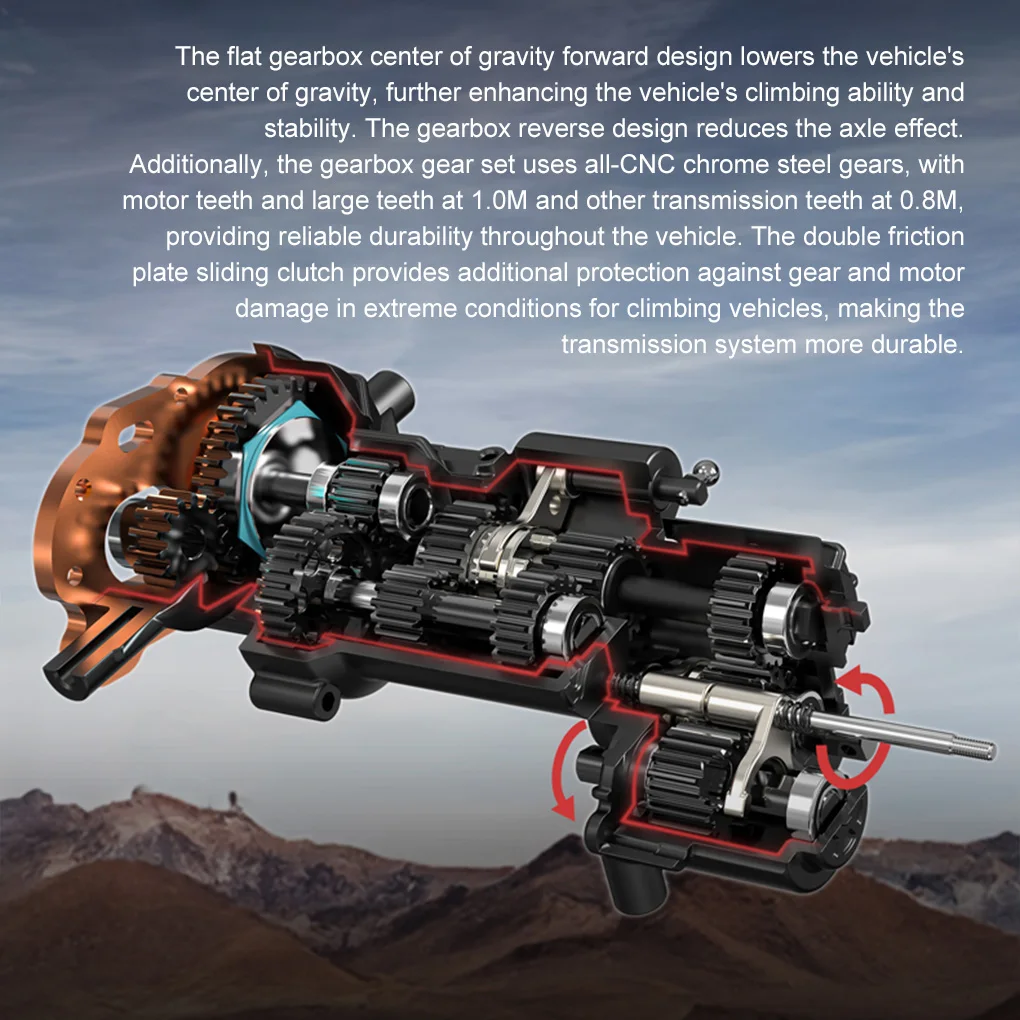

Transmission & Drivetrain

• Selectable 4WD / 2WD Modes: Switch between front-wheel drive, rear-wheel drive, or full-time 4WD to adapt to terrain.

• Front & Rear Locking Differentials: Unlock for smoother steering and tight turns, or lock for maximum traction in technical climbs.

• High-Low Transmission: Change gears on the move—high gear for speed, low gear for torque.

• Twin Friction Plate Slipper Clutch: Protects motor and drivetrain under extreme load.

• Large Steel CNC Gears: 1.0cm pinion and spur, 0.8cm transmission gears, and 1.2m differential gears for long-lasting strength.

• Forward-Mounted Gearbox: Central front placement lowers the center of gravity and reduces torque twist for superior climbing.

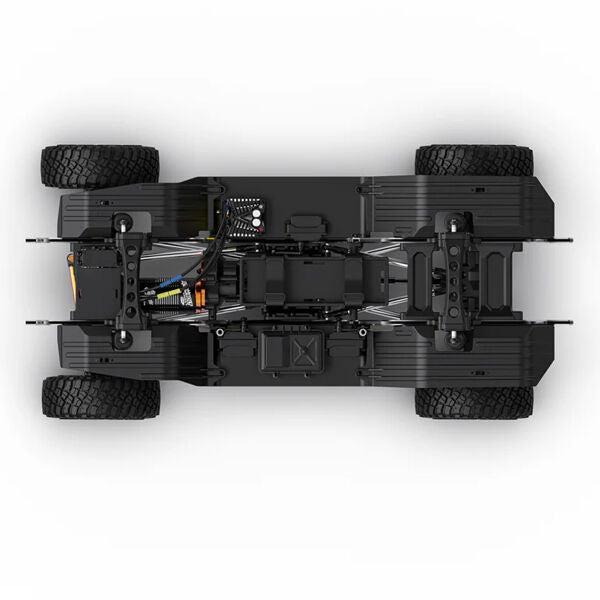

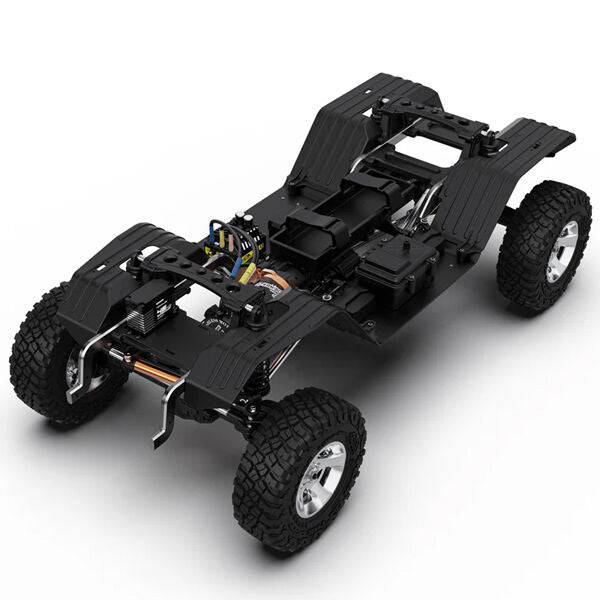

Chassis & Suspension

• CNC-Machined 6mm Aluminium Alloy Rails: Gloss-coated for durability and aesthetics.

• 3-Link Panhard Steering Link: Improves straight-line stability and reduces body sway on rough ground.

• Oversized Front & Rear Axles: Built for strength and extra transmission space.

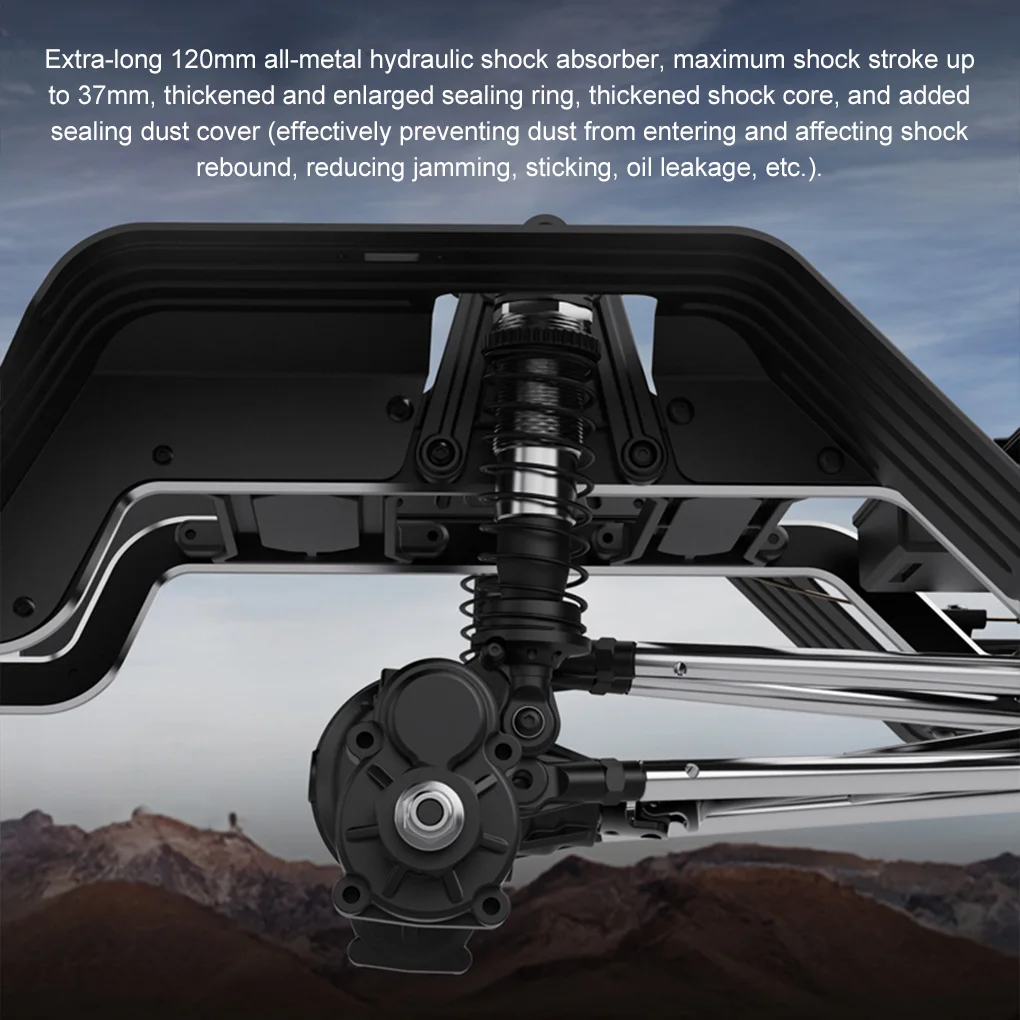

• 120mm All-Metal Hydraulic Shocks: Long-travel design with 37mm stroke absorbs heavy impacts with ease.

• 8mm Stainless Steel Suspension Links: Thick, rust-resistant rods provide chassis robustness.

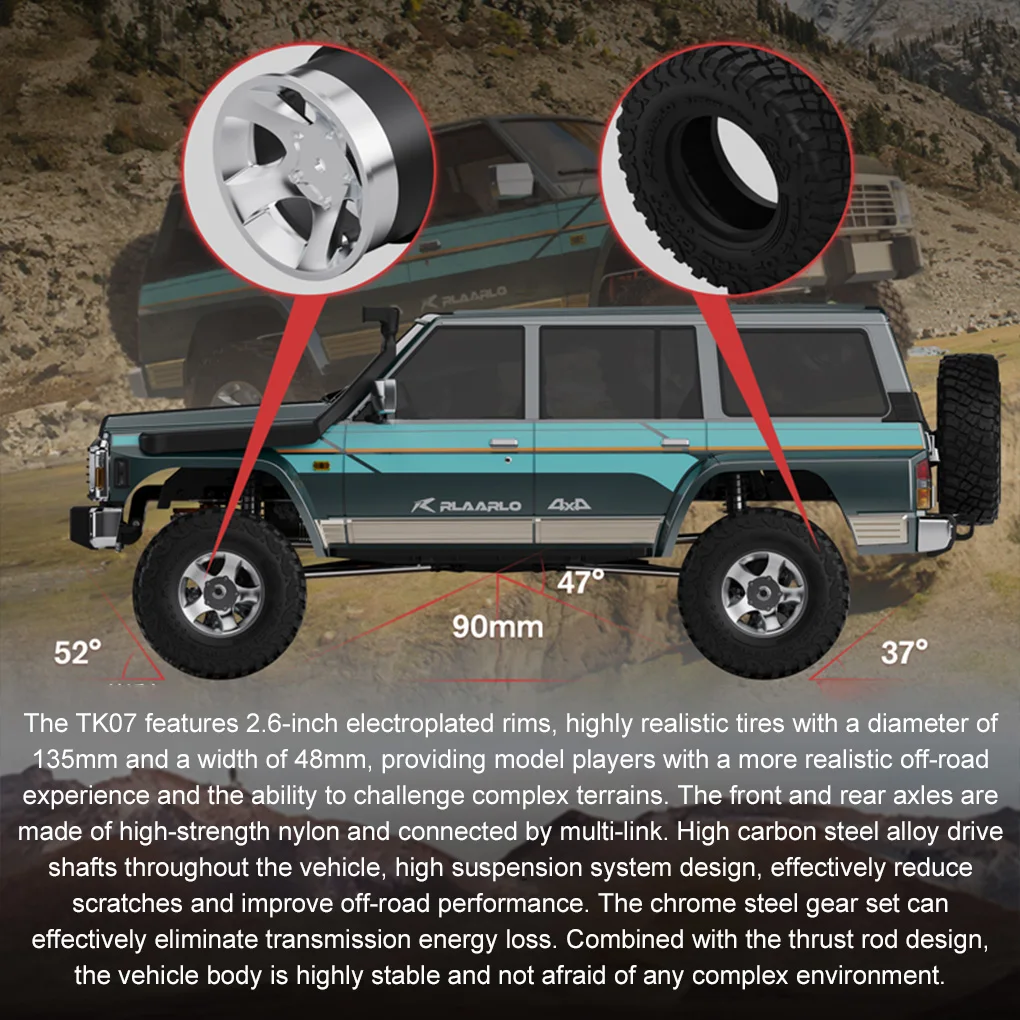

• High Ground Clearance & Angles:

  • 52° Approach Angle – climb over walls and steep obstacles.

  • 37° Departure Angle – tackle ruts and descents with confidence.

  • 45° Steering Angle – enables tighter turning radius in technical terrain.

Electronics & Control

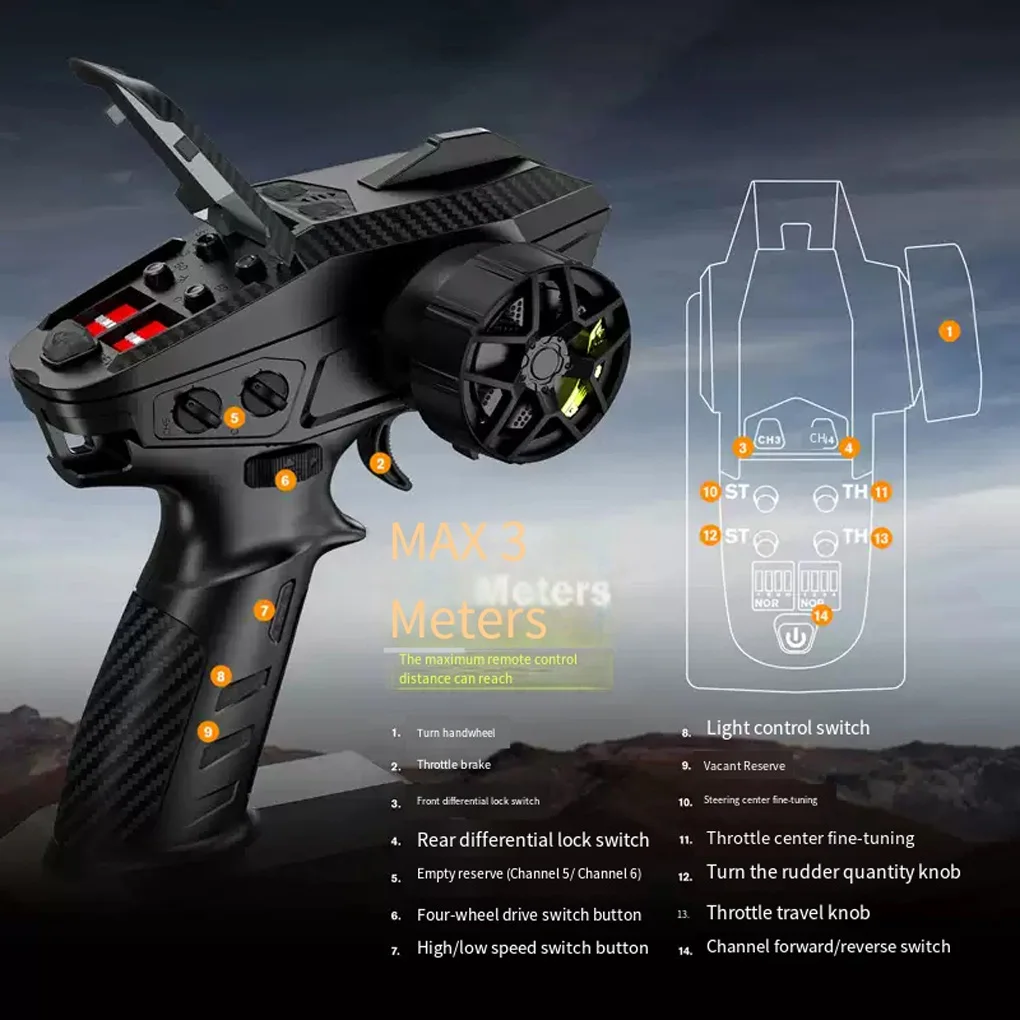

• Professional Hobby-Grade Radio: 2.4GHz 10-channel transmitter with up to 350m range.

• Heavy-Duty Servos:

  • 45kg waterproof steering servo for precision control.

  • Four 25g servos for gear shifting and differential locks.

• Battery System: XT60 connector, supports up to 4S LiPo (sold separately).

Needed To Complete:

• 4x AA Batteries
• 3S or 4S LiPo Battery (XT60 Connector)
• Compatible Charger
