RGT FJ Cruiser style 1/10 2.4Ghz 4WD Rock Crawler with 7.2V 2000mh Battery and charger - RTR

Following the released all-terrain “Pioneer” (EX86110, RGT launched the “Desert Fox”. Desert Fox (EX86120) , is also an all-terrain high-performance off-road vehicle with the reverse drive system. Besides, the wheelbase is 313mm. Basing on the Pioneer platform, Desert Fox redesign the reverse drive system, improve the weight layout, and upgrade the steering function. Desert Fox has split transmission structure with the reverse drive system, the battery mounted in front and the all-metal suspension. 45° steering angle, positive Ackerman design, integrally moulded steel chassis rail, the solid steel links, ball-bearing applied in the whole car, high-intensity powder metal gear with slipper, high-precise steel CVA transmission, beadlock wheel and 4 sets of LED functions light, etc, all these are the design characters.

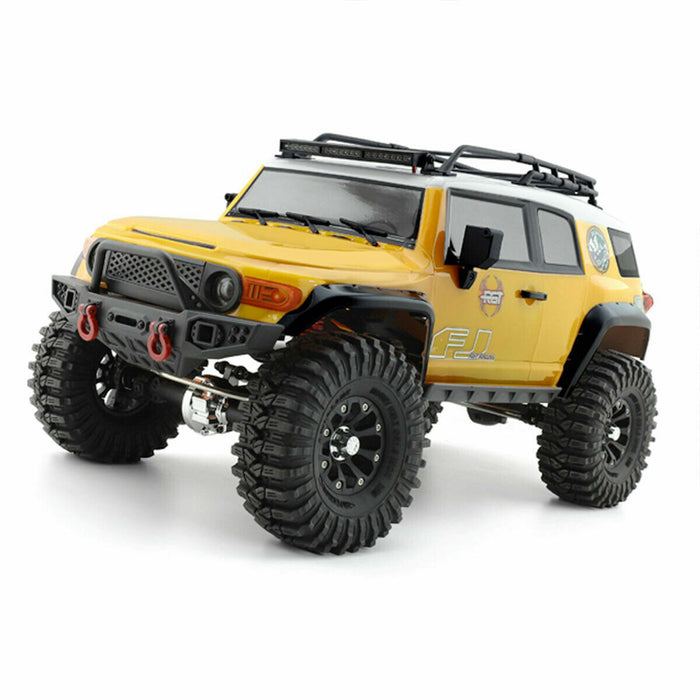

The Desert Fox follows the FJ Cruiser classic style. The bodyshell uses the environmental protection paint PC softshell, and has three colours for option (grey, blue and orange). The body accessories have the spare tire, roof rack, rack lamp, foot pedal, grill, LED cornering lamp, headlight with the angle eye function, rear-view mirror, wiper, handle, axe and shovel, etc. Also, the simulated front and rear bumpers, and the hidden front body post, make the overall car more beautiful!

Features

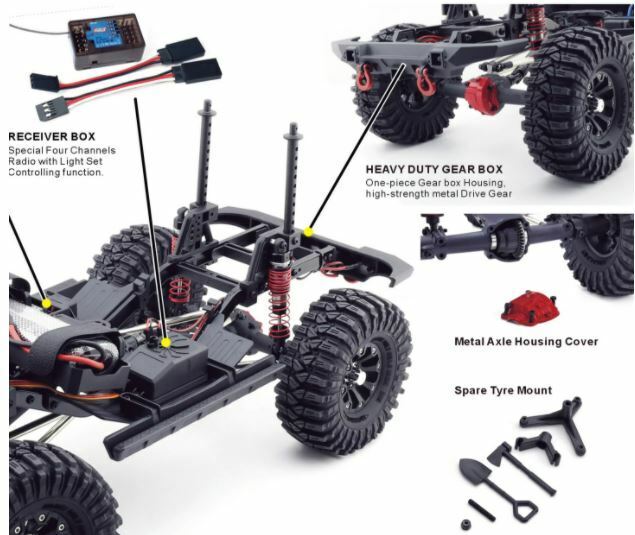

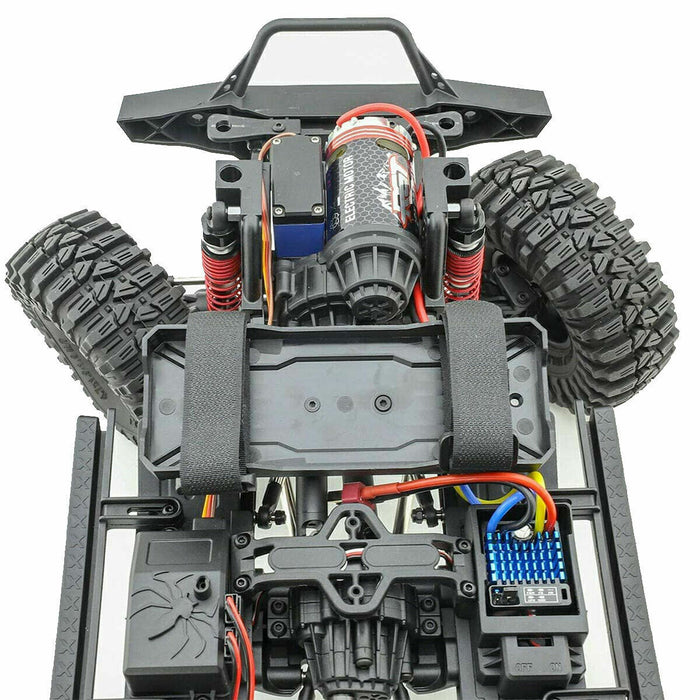

• The motor and Gear unit mounted in the front. 4WD reverse drive system with slipper and central transfer structure
• Ball bearing in the whole car, metal transmission gear, front and rear integrated cast with metal shaft housing cover.
• High-precise stem CVA structure in front-wheel drive steering axle
• Large steering angle, panhard bar, positive Ackerman angle

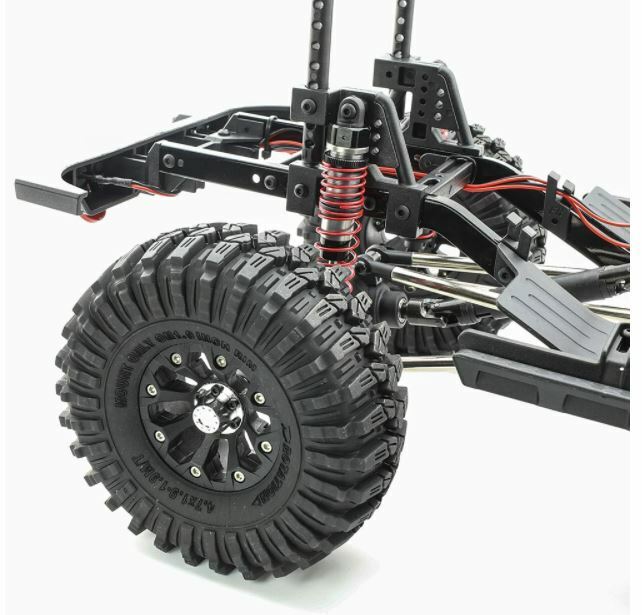

• The suspension uses metal tube and oil filled adjustable shock absorber, and red spray spring
• 1.2mm thick PC paint body shell with accessories.
• Concealed front body post design makes the whole appearance more realistic
• 1.9-inch beadlock wheels.  Realistic and easy to maintain
• 4 Channel Transmitter with 4 LED functioning lights ar factory-mounted
• Hobbywing 60A ESC, configured with metal gear servo and metal servo horn as standard

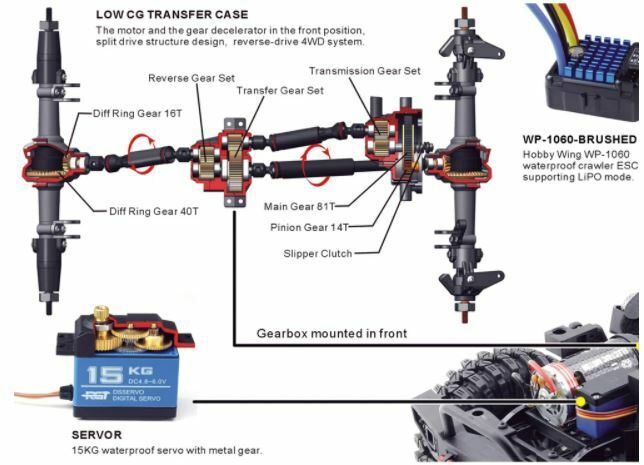

Split Transfer Structure:
The motor and the gearbox mounted in the front increases the weight of the front of the car, and improves the climbing traction force, and effectively enhances the climbing angle. The gearbox mounted in the front could connect to the central transfer case, reduces the bevel angle between the central driveshaft and the gears in the case, and realize more effective power transmission. Besides, the transfer case can also prevent the sudden stop of the motor from affecting the climbing performance.

Specifications

• Material: Nylon Plastic + Metal + Electronic Components
• Scale: 1/10
• Dimensions: 550 x 245 x 252mm
• Wheelbase: 313mm
• Tyre Size: 120x40mm
• Drive train: 4WD
• Remote Control Mode: 2.4GHz wireless remote control
• Channels: 3Ch
• Remote control Distance: about 150 meters depending on the environment
• Car Motor: RC550 17T super torque motor
• Car ESC: Hobby Wing WP-1060 track dedicated waterproof board (support LiPo mode)
• Battery: 7.2V 2000mah included
• Running Time: Approximately 30 minutes
• Vehicle Steering Servo: 15KG all-metal gear waterproof servo
• Product Weight: 3.5Kg
• Package Dimensions: 59 x 30 x 29cm
• Package Weight: 5Kg
• Box: Graphic Carton

Package Contents

1 x RGT EX86120 Desert Fox 4WD Rock Crawler
1 x Rechargeable Battery
1 x Australia Standard Charger
1 x Instruction Manual/Part List
