RadioMaster TX16S MKII MAX 2.4GHz 16CH Radio Transmitter - Multi-Protocol w/ AG01 Gimbals
All new RadioMaster TX16S MKII MAX 2.4GHz 16CH Radio Transmitter - Multi-Protocol w/ AG01 Gimbals with switchable Modes (Mode 1 & 2)- Arriving Soon!

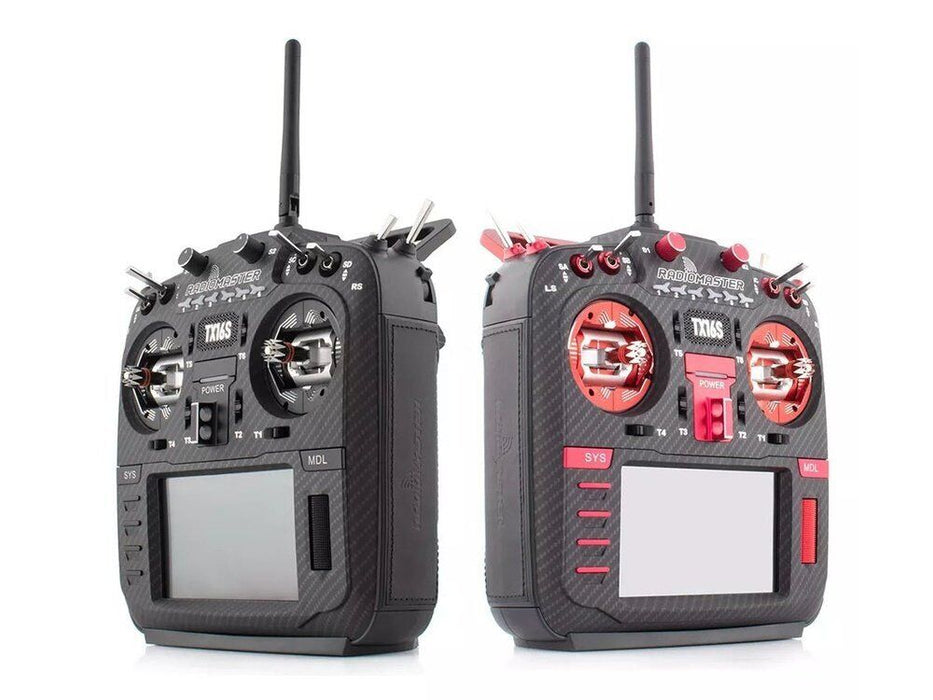

The RadioMaster TX16S Mark II MAX Radio Transmitter is the latest in radio transmitter technology. These Max Editon radios have carbon-look faceplates and CNC finishing components and buttons.
The RadioMaster TX16S Mark II MAX Radio Transmitter is the latest in radio transmitter technology. This radio features AG01 Gimbals, a Multi-Protocol 4-in-1 Internal Module, OpenTX and EdgeTX compatibility, and 2.4GHz radio frequency with 16 Channels. This updated design includes an easily removable battery cover, raised and flat grips for better ergonomics, and improved S1/S2 knobs with center detents. The 4.3" IPS color dispay provides easy programming with touch panel precison and the brand new 3.5mm audio headphone jack and built-in dual speakers provide great audio options for pilots! These Max Editon radios have carbon-look faceplates and CNC finishing components and buttons.
THE BEST JUST GOT BETTER.
Features
- Max Editon with carbon-look faceplates and CNC finishing components and buttons
- Optimized charge IC now allows up to 2.2A internal USB-C charge current.
- New charge circuitry with integrated reverse-polarity protection
- Optional high/low rear grips included for improved ergonomics
- Redesigned battery cover for improved battery access
- Improved internal circuity and optimized power supply
- Rear mounted audio jack provided headphone output
- Improved S1/S2 knobs with clear center-detents
- Retooled body shell with improved fit and finish
- Multi-Protocol 4-in-1 version
- AG01 Gimbals
Specifications
- Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
- Upgrade method: Supports USB-C online / SD card offline upgrade
- Antenna gain: 2db (transmit power adjustable)
- Transmitter module: (CC2500 CYRF6936 A7105 NRF2401)
- Option 1: Internal 4-in-1 multi-protocol module
- Transmitting power: (protocol dependent)
- Internal 4-in-1 multi-protocol module : Max 100mw
- Channels: Up to 16 channels (depending on the receiver)
- Module Firmware: Multiprotocol Module (41N1)
- Transmission frequency: 2.400GHz-2.480GHz
- Remote control distance:> 2km @ 22dbm
- Gimbal:
- Option 2: AGO1 CNC Hall sensor
- Module Bay: JR compatible module bay
- Weight: 750g (without battery)
- Working voltage: 6.6-8.4V DC
- Color Options: Black or Red
- Radio firmware: EdgeTX
- Working current: 400mA
- Size: 287 x 129 x 184mm
