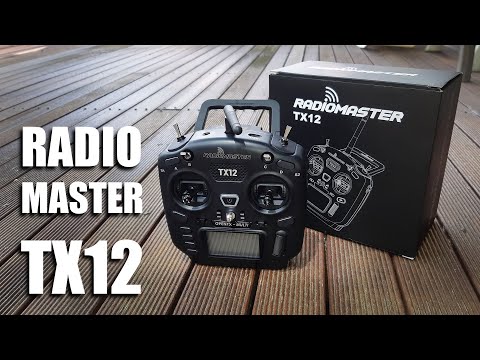

Radio Master TX12 Multi-Protocol OpenTX 2.4GHz RC Transmitter

$179.00
Mode

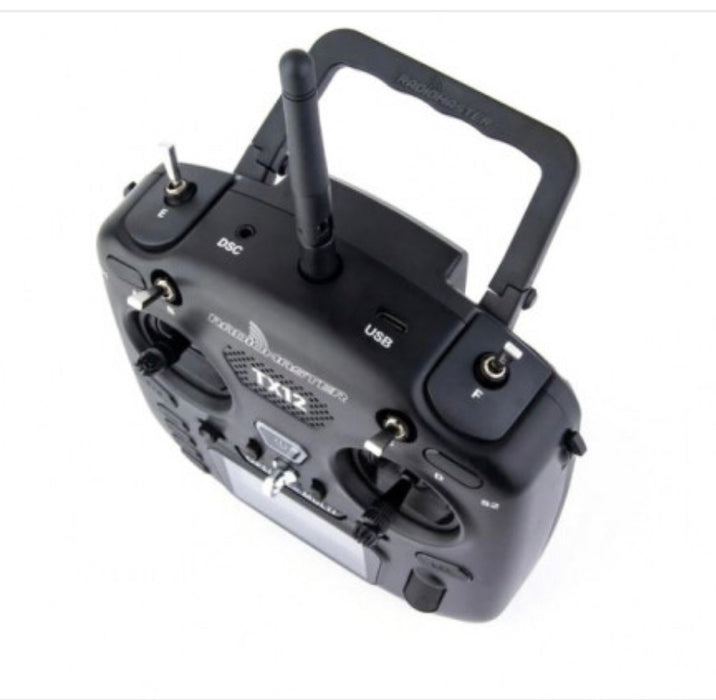

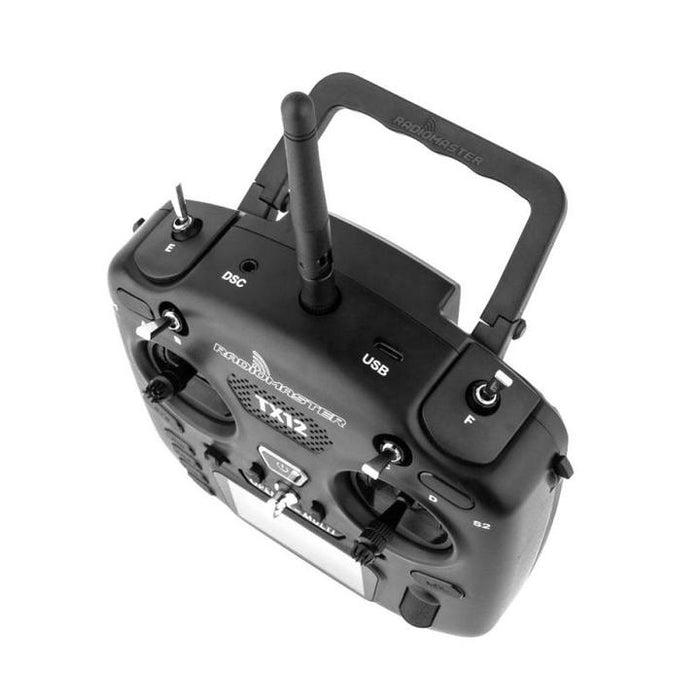

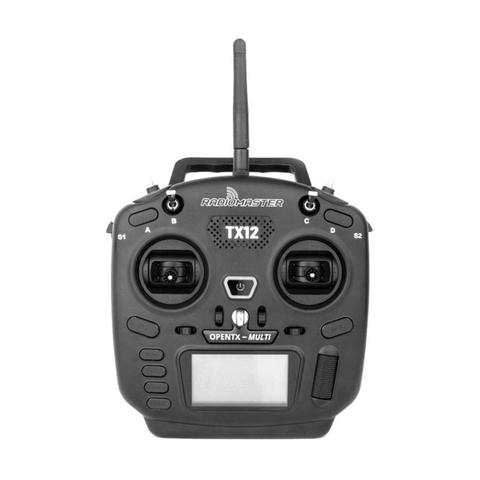

RadioMaster TX12 Multi-Protocol OpenTX 2.4GHz RC Transmitter

The RadioMaster T12 Multi-Protocol OpenTX 2.4GHz RC Transmitter is the most affordable in its class! This mini radio controller is officially supported by OpenTX Firmware and Companion PC software.

Features

  • JR Style External Module Bay
  • Supports up to 16 Channels.

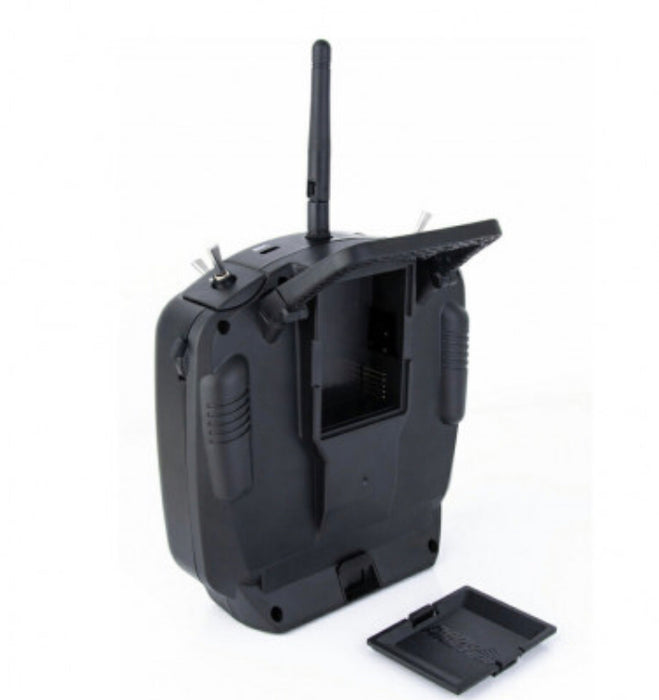

  • Large Battery Compartment
  • Built-In CC2500RF Chip.
  • Removable Antenna
  • Compact - Mini Size
  • Ergonomic Design
  • Supports MicroSD
  • Built-In Charging
  • Easy Navigation
  • Folding Handle
  • Voice Support
  • OpenTX
  • Metal roller

RECEIVER NOT INCLUDED

(MultiProtocol radio allows you to use many existing receivers... choose your own or one of the excellent Radio Master Receiver available from Dragon Sailing!

Size: 170*159*108mm
Weight: 363g
Frequency: 2.400GHZ-2.480GHZ
RF Chip: Single-chip Multi-protocol(CC2500)

Warning:
ANTENNAE MUST BE INSTALLED PRIOR TO TURNING THE POWER ON TO AVOID DAMAGE TO THE RADIO*

*(Requires micro SD Card and format  correctly prior to using.  Once the micro SD card is flashed then install the antennae and turn power on to calibrate  the Radio).


Supported Protocols: Corona, Hitec, Futaba S-FHSS, Frsky D16/D8, RadioLink, Graupner HoTT
Transmitting Power: 20dbm
Antenna Gain: 2db
Working Current: 160mA@8.4V
Voltage Range:6.6-8.4v DC
Range: > 2km @ 20dbm (depending on receiver)
Radio Firmware: OpenTX(Transmitter)/  Multi-Module(RF module)
Channels: Up to 16 (depending on receiver)
Display:128*64 Monochrome LCD display
Gimbal: High precision potentiometer gimbals
External module:JR/FrSKY/Crossfire compatible
Upgrade Method: USB/SD card* & OpenTX Companion PC software

PLEASE NOTE THIS RADIO WILL NOT WORK WITH FLYSKY RECEIVERS!

Included in the Techno Hobbies TX12 Package:

  • Complete TX12 Transmitter
  • USB3.0 to USB C Cable
  • TX12 Quick Start guide

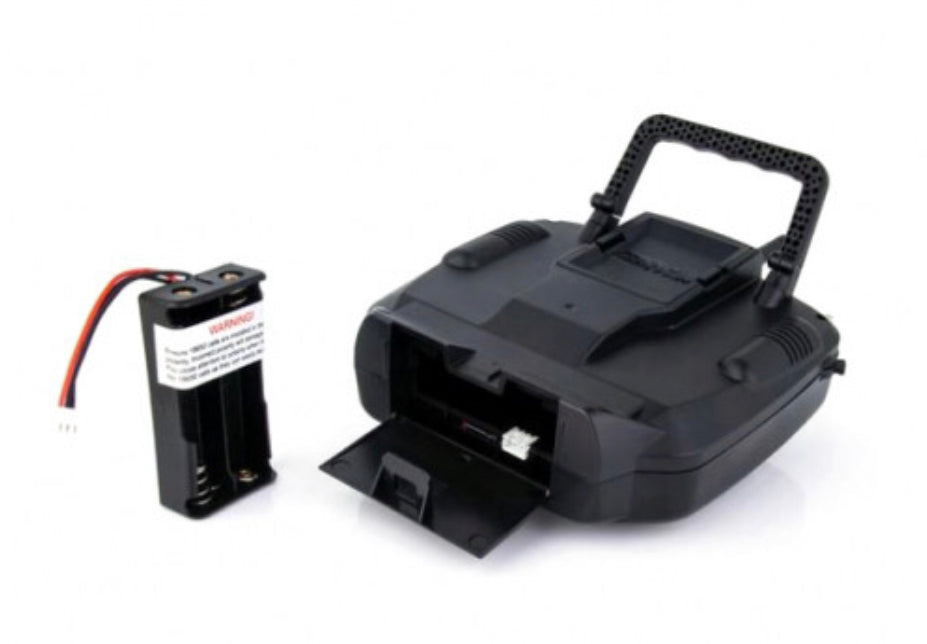

  • Battery Holder (requires 2x 18650 Li-Ion Batteries _NOT INCLUDED)
  • Other 2S LiPo can be used in the battery compartment with balance lead
  • Requires micro SD Card and format  correctly prior to using.  Once the micro SD card is flashed then install the antennae and turn power on
