SkyRC IMAX B6AC Professional Balance Charger/Discharger

$95.00

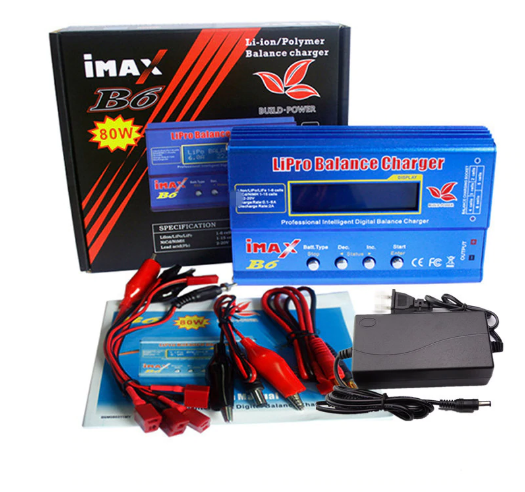

SkyRC IMAX B6AC Professional Balance Charger/Discharger

Description

Genuine SkyRC B6 AC Charger With Anti-Fake Verification

IMAX B6AC is the ultimate RC hobby intelligent multifunction charger which can charge and discharge for Li-ion /Polymer batteries, Ni-MH/Cd batteries, even Pb batteries. It's all-powerful at an extremely well known model to enthusiasts in the RC and model hobby industry. In comparison with similar products currently available in the market, the IMAX B6AC has special features as follows:

Optimized Operating Software

B6AC features an AUTO function that sets the feed current during the process of charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which may lead to an explosion. It can disconnect form the circuit automatically and sound an alarm if any malfunction is detected. All the programs of this product are controlled through two way linkage and communication buttons to achieve maximum safety and minimize setting confusion.

Balancing Individual Cells While Battery Discharging

During the process of discharging, the B6AC can monitor and balance each cell of the battery individually. An Error message will be displayed and the process will be ended automatically if the voltage of any single one cell is abnormal.

Adaptable to Various Types of Lithium Battery

The B6AC is adaptable to various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries.

Fast and Storage Mode Charging of Lithium Batteries

These functions allow Lithium batteries to be ‘fast’ charged to greatly reduce total duration of charging time, whereas ‘store’ state can control the final voltage of your battery to allow safe storage over long periods of time.

Maximum Safety

Delta-peak sensitivity: Automatic charge termination program based on the principle of Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated automatically.

iMAX B6 Charger for lipo battery balance

a

iMAX B6 Charger for lipo battery balance

SkyRC IMAX B6AC V2 Professional Balance Charger/Discharger

SkyRC iMAX B6AC Rapid Digital Li-Po And NiMH Battery Charger

Automatic Charging Current Limit

You can set up the upper limit of the charging current when charging your NiCd or NiMH battery which useful when charging a NiMH battery of low impedance and capacity in the 'AUTO' charging mode.

Capacity limit

The charging capacity is calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.

Temperature threshold*

The battery’s internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated. * This function is available by connecting optional temperature probe, which is not included in our package.

Processing Time Limit

You can also limit the maximum process time to avoid any possible possible problems.

Input Power Monitoring

If using a car battery as a DC input power source the B6AC constantly monitors the battery for low voltage. If the voltage drops below the lower limit, the process will be ended automatically.

Data Store/Load

A maximum of five batteries’data can be stored for user convenience. You can store the data pertaining each batteries' program setting of their continuous charging or discharging. Users can recall this data at any time without any special program setting.

Cyclic Charging/Discharging

1 to 5 cyclic and continuous process of charge/discharge or discharge/charge is selectable for battery refreshing and Balancing to help optimize the performance of your battery.

Specifications:



  • AC input: 100-240Volt
  • DC input: 11-18Volt
  • Circuit power: Max.charge power 50W
  • Max.discharge power 5W
  • Charge current range: 0.1-6.0A
  • Discharge current range: 0.1-2.0A
  • Current drain for balancing Li-po: 200mA/cell
  • NiCd/NiMH battery cell count: 1-15cells
  • Li-ion/Polymer cell count: 1-6cells
  • Pb battery voltage: 2-20V
  • Net weight: 575g
  • Dimension: 135x144x36mm
  •
