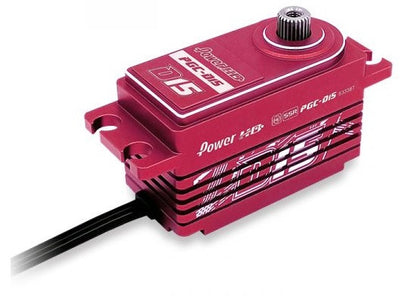

Power HD G1 D15 Red  is a high-performance electronics combo specifically designed for 1/10 scale RWD (Rear-Wheel Drive) drift cars. It consists of the D15 Programmable Low Profile Digital Servo and the G1 Drift Gyro, both featuring a matching red CNC-machined aluminium casing for a cohesive chassis aesthetic.

• Performance Specifications:
  • Torque: 13.5 kg-cm (6.0V), 16.5 kg-cm (7.4V), up to 18.0 kg-cm at 8.4V.
  • Speed: 0.10 sec (6.0V), 0.095 sec (7.4V), and a fast 0.085 sec/60° at 8.4V.
• Build Quality: Features a titanium and steel gear set and dual ball bearings for durability.
• Design: The low-profile dimensions (41.0 x 20.0 x 26.3 mm) and weight (55g) make it ideal for tight drift chassis installations.
• Key Feature: Includes a reverse receiver wire layout to ensure cleaner wiring within the car

Specifications

• Torque(6.0V): 13.5 kg-cm ( 187.5 oz/in)
• Torque(7.4V): 16.5 kg-cm ( 229.1 oz/in)
• Torque(8.4V): 18.0 kg-cm ( 250.0 oz/in)
• Speed: 0.10 sec (6.0V) │ 0.095 sec (7.4V) │
• Speed: 0.085 sec (8.4V)
• Operating Voltage：6.0 ~ 8.4 DC Volts
• Weight: 55.0 g (1.94 oz)
• Bearing Type：Ball Bearing x 2
• Motor Type：Coreless Motor
• Gear Type：Titanium & Steel
• Operating Temperature：-10℃~60℃
• Working frequency：1520μs / 333hz
• Size：41.0 x 20.0 x 26.3 mm ( 1.61 x 0.79 x 1.04 in)
• Compatible with program box only

• Technical Specs:
  • Operating Voltage: 4.8V – 7.4V.
  • Sensor: High-quality American Invensense sensor with a maximum angular velocity of ±4000°/s.
  • Control System: Uses a refined PID control system for smooth steering corrections.
• Adjustability:
  • End Point Adjustment (EPA): Features a dedicated button to limit steering travel and equalize left/right turns.
  • Dual System Operation: Allows drivers to adapt the gyro's feel to different track surfaces and driving styles.
• Visual Indicators: Features LED status lights (Blue/Red) to indicate different operating modes or initialization status.
