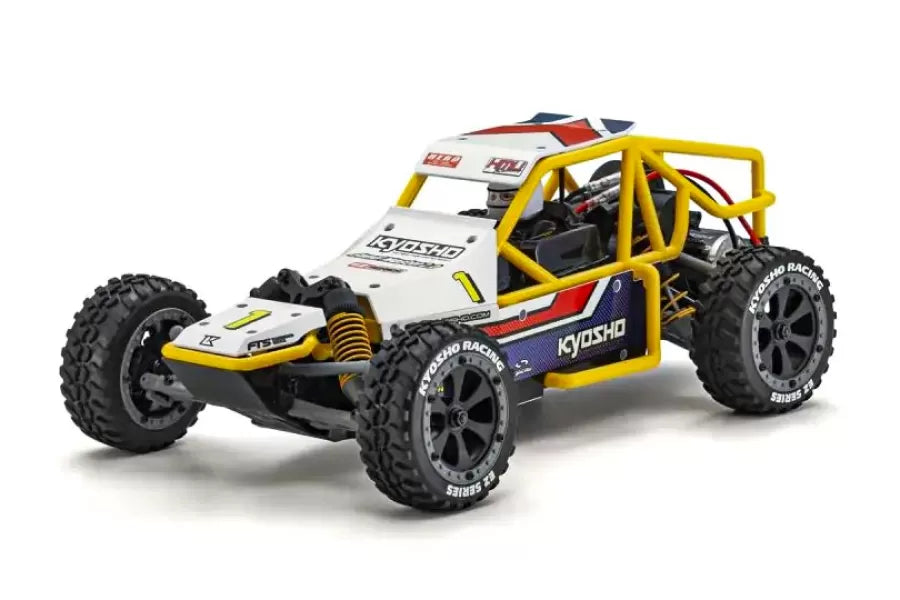

Kyosho 1/10 Sandmaster 2.0 Electric RTR RC Buggy

Overview

The EZ series Sandmaster 2.0 from Kyosho presents a perfect opportunity for people new to the hobby, while also providing a fantastic driving experience that will excite even the most experienced veteran hobbyists. Designed to be easy to work on with easily removable parts and an accessible design, this buggy is sure to delight with adjustable and oil filled coil over shock absorbers that pair well with the front and rear double wishbone arms to provide a smooth and consistent driving experience on a wide variety of surfaces.

The Sandmaster is part of the Kyosho Readyset range and requires only a 7.2V NiMH or 7.4V LiPo Battery, compatible charger and AA transmitter batteries. Just charge your battery and get ready for hours of fun!

Key Features

• Kyosho Speed House Water-proof 40A ESC
• Water-proof Kyosho KS202W servo
• Updated suspension with more travel / higher ground clearance!!
• Syncro KT232P 2.4GHz radio system(Same protocol as KT231P)
• Updated steering servo fixture - New servo saver design.
• Updated motor mount!!
• 540 Motor(22T)
• Oil shocks as standard!
• Double Wishbone suspension system
• Sturdy bathtub chassis design
• Easy battery compartment access(Through bottom)
• Heavy duty diff gear design
• Covered electric compartment protecting ESC& Rx unit from dust and debris
• Front and Rear tyres are interchangeable
• Plastic Roll cage and body panels with slick new graphics!
• Simple effective chassis design influenced from the Ultima Series!!
• FRP dust plate keeps dust from being sucked into the motor
• Compatible with the standard Sandmaster Hop Up Range
• Eye-catching yellow pipe frame
• Front and rear double wishbone suspension provides reliable and predictable steering
• Bottom mounted battery tray cover provides easy access for quick swaps
• Labelled motor mount makes adjusting gear mesh a breeze
• In built servo saver protects the servo from crashes and bashes
• KT-232P Transmitter provides quick and reliable connection

Eye Catching Pipe Framing

Turn heads with the vibrant yellow pipe frame, reminiscent of a classic sand buggy, and the alluring lace-like pattern adorning the panels. This striking body snaps effortlessly onto and off the chassis, allowing for quick and painless maintenance.

Easy Pinion Tuning

The Sandmaster sports a 540 G22 brushed motor sitting in a mount with adjustable settings for perfect power delivery. Say goodbye to fiddly backlash adjustments, thanks to the innovative motor mount with perfectly aligned pinion gear holes.

Scale Wheels

The Sandmaster is equipped with nostalgic style buggy wheels that perfectly complete the buggy look, while also delivering incredible on road and off-road performance.

Easy Accessibility

No need to remove the body to access the battery tray. On the Sandmaster this can be done through a handy bottom hatch on the chassis. Plus, most screws use standard 2.0 mm hex heads for quick and easy tightening with just one wrench - convenience and control in perfect harmony.

Adjustable Suspension

Using a double wishbone type suspension system for reliable and predictable handling, the steering system is complimented well by the coil over shock absorbers that feature an adjustable shock collar that allows you to adjust ride height on the fly and improve off-road performance.

Readyset, Go!

The Sandmaster is a Readyset Kyosho vehicle. Just pick your battery and charger and you are good to go with the buggy including a 6 kg steering servo, Kyosho Speed House KA040 40A ESC and a Kyosho G22 Brushed motor.

TECHNICAL DATA

• Length: 405mm
• Width: 230mm
• Height: 140mm
• Wheelbase: 270mm
• Tread (F/R): 190mm
• Tyre (F/R): 100mm
• Tyre width: 36mm
• Gear Ratio: 18.76:1
• Weight: approx. 1,700g
• Chassis: Off Road Buggy
• Drivetrain: 2WD
• Gears: 8.76:1
• Suspension: Oil Filled Coil Over Shock Absorbers
• Motor: Kyosho G22 540 Sized Brushed Motor
• ESC: Kyosho KA040-71W 40A Brushed ESC

Specifications

READYSET CONTENTS

• Factory assembled chassis with complete body with decals applied
• 2ch 1 Servo + ESC
• Transmitter KT-232P / Receiver KR-331 / 6kg Servo / ESC
• R/C system Assembled Chassis

REQUIRED FOR OPERATION(RTR)

• 4 x AA battery (4pcs for transmitter)
• 7.2V 2200 NiMh Battery pack and charger
