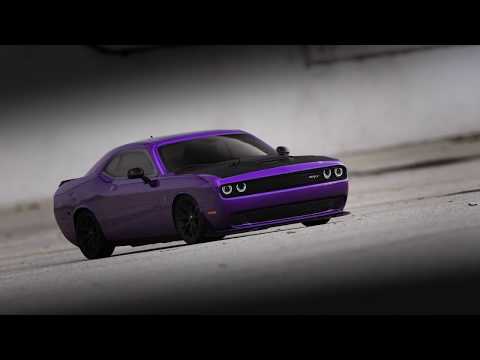

Kyosho 1/10 Fazer Mk2 Dodge Challenger SRT Hellcat 4WD Electric RC Car

$399.00
Color: Purple

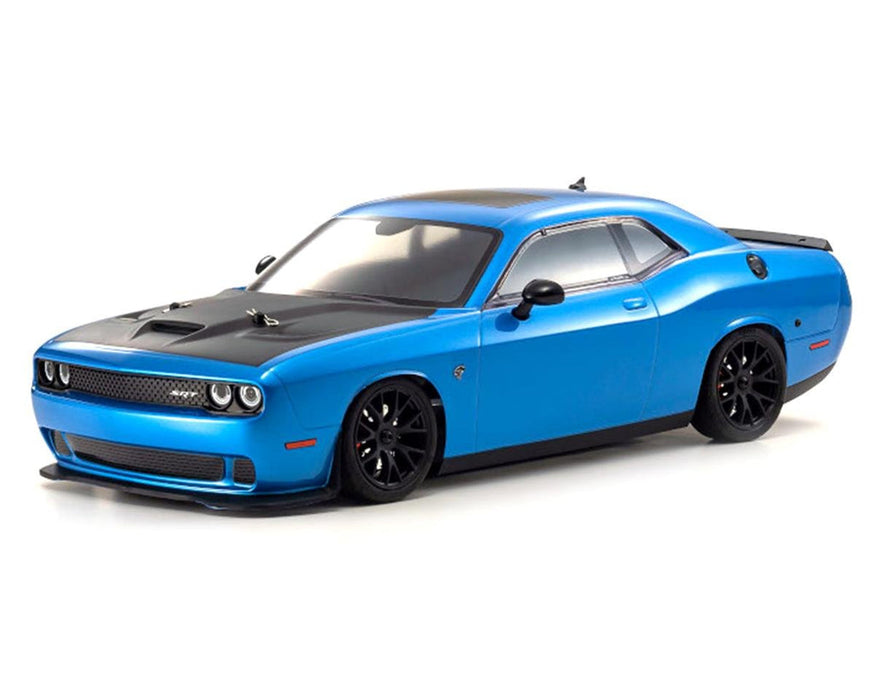

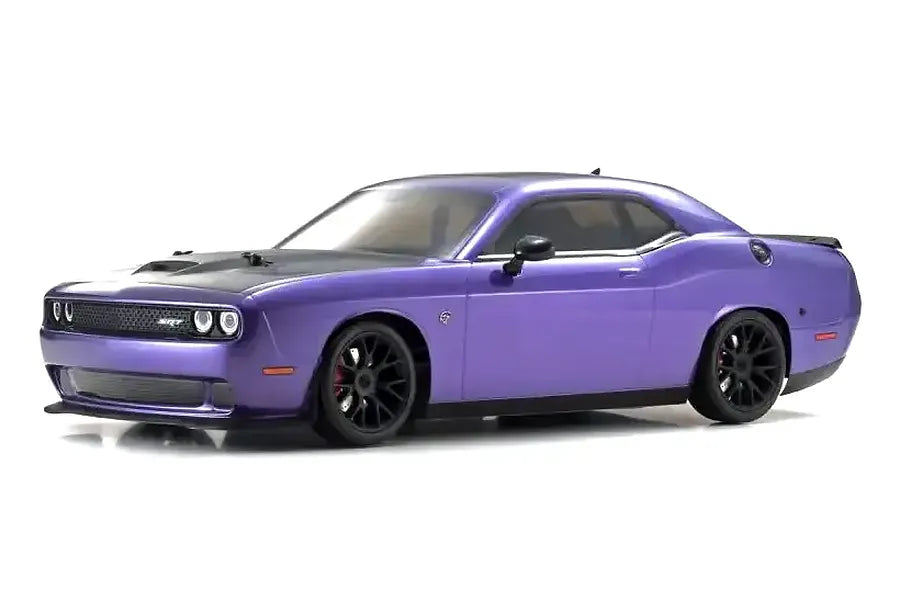

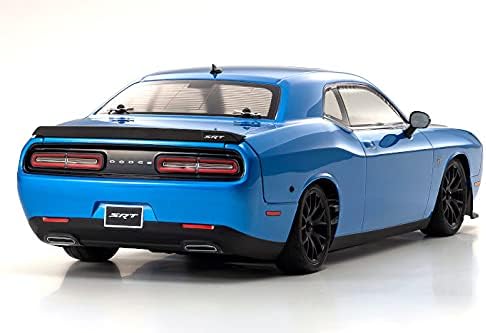

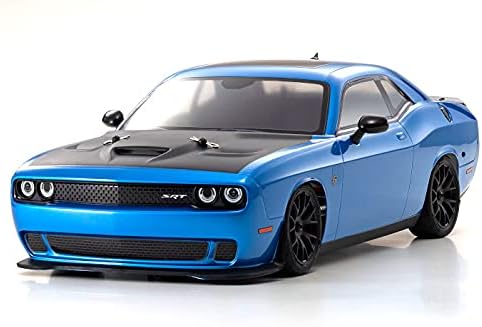

Kyosho 1/10 Fazer Mk2 Dodge Challenger SRT Hellcat 4WD Electric RC Car - 34415T1 (Purple) and T2 (Blue)

Built for pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring slipper clutch, front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 260mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included.

The Ready to Run package comes fully assembled and includes everything except Car battery & charger and batteries for the Radio transmitter.





Features

  • “Ultra Scale Body” replicates the fine details of the actual body of the car. Kyosho took a step further in scale realism.
  • New design shaft drive full-time 4WD touring chassis(FZ02L).
  • Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis.
  • Equipped with 2-bevel grease-filled gear diffs on front and rear.
  • Large size dog bones and cup joints realize superior reliability and durability.
  • Belt mounting battery compartment allows various battery types to be used.
  • Full ball bearings that reduce drive loss equipped throughout the drive system.
  • Features KS202W waterproof steering servo.
  • Includes completely finished body with color scheme and decals applied.
  • Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces.
  • Performance can be further enhanced by installing various optional parts.
  •

    The Ready To Run package comes fully assembled and includes everything except charger and battery for the chassis and batteries for the transmitter.

    Mounted on the FAZER Mk2 touring car chassis is the awesome polycarbonate American muscle car body form of the Dodge Challenger SRT Hellcat with its supercharged 6.2L V8 outputting a maximum of 717ps and 89.7kg/m.

    Other Features

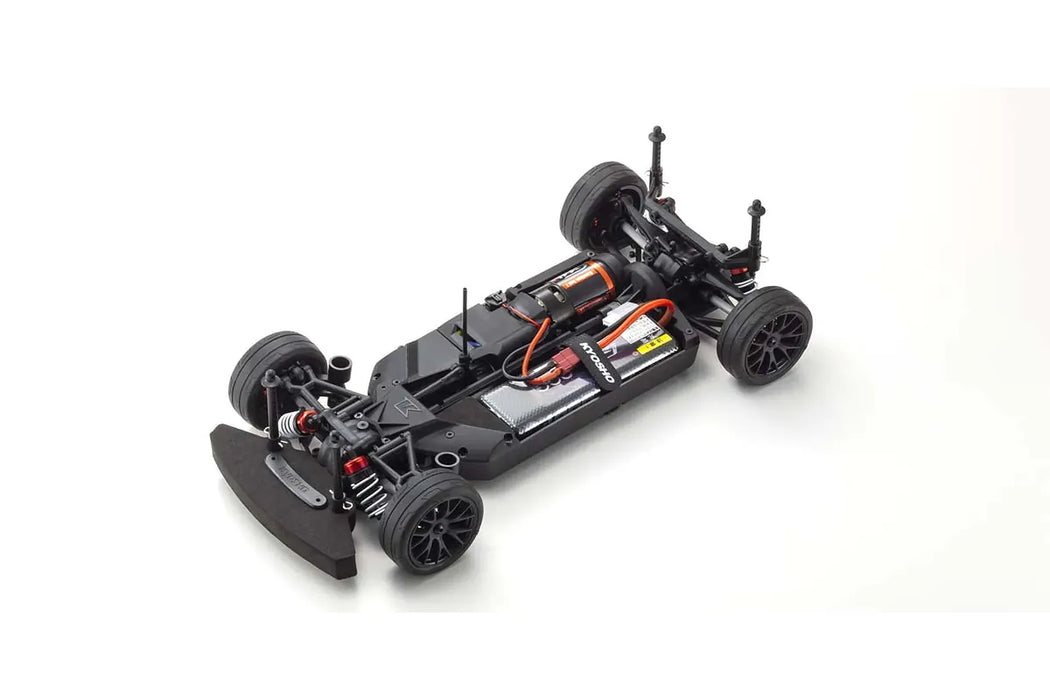

    Simple low centre of gravity upper deckless chassis design features an electronic speed controller and receiver cover and a one-piece gearbox that optimizes main chassis torsional rigidity and strength while reducing weight with the introduction of lightweight impact-resistant nylon.

    Features a reduced number and variety of screws and parts and consolidation of frequently used screws into the same size. Most screws are flat-head screws that can be removed with a 2.0mm hex wrench for easy disassembly.

    Handling factors such as bump steer and scrub radius are optimized on the front suspension. A simple ball-connected steering knuckle promises reliable control movement. Interchangeable on both front and rear left-right hub carriers optimize spare parts utilization and improve maintenance efficiency.

    Oil shocks mark an evolutionary step up from previous models. Oil shock is newly designed. Optimal front-rear geometry and balance simultaneously deliver both light handling and precise control.

    Standard spur and pinion gear set are 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratio settings. Also, the motor is mounted directly according to the pinion gear modules.

    Original low-profile semi-slick pattern tyres produce superior performance.

    Equipped with new powerful 550 size 14T brushed motor(G14L). The long can with a Steel ring around the motor case and internal cooling fan provides efficient torque and high speeds.

    Front grille compatible with the (sold separately) 97054 LED light unit series. By installing the LED light unit, improves scale realism for the body shell.








    Specifications

    Motor - G14L 550 Type

    Gear Ratio - 6:5:1

    Chassis

    • Scale: 1/10
    • Length: 486mm (19.1")
    • Width: 200mm (7.87")
    • Wheelbase: 274mm (10.7")
    • Weight: 1650g (8.04lbs)
    • Type: On Road
    • Drivetrain: 4WD

    Front Tyres

    • Tread: 174mm (6.85")
    • Diameter: Φ66mm (2.59")
    • Width: 25mm (0.98")

    Rear Tyres

    • Tread: 174mm (6.85")
    • Diameter: Φ66mm (2.59")
    • Width: 25mm (0.98")



    Included items

    • Completed chassis with R/C radio installed
    • Factory assembled body complete with color scheme
    • Syncro KT-231P+ transmitter
    • Installed 60A waterproof electronic speed controller (forward/brake/reverse)
    • Hexagonal wrench
    • Spanner



    Required items (not included)

    • 4Pcs AA batteries for transmitter
    • Battery for chassis (recommended: 7.2V Ni-MH battery or 7.4V LiPo)
    • Charger for battery for chassis
    • Tools

    Specifications

    Car
    Assembly Type: Ready to Run
    Max LiPo Power: 2S (7.4v)
    Size (Scale): 1/10
    Skill Level: Beginner
    Power Source: Electric Brushed
    Chassis Type: Car
    On/Off Road: On Road
    Drivetrain: 4WD
    Factory specs
    Max LiPo power: 2S (7.4v)
    Battery connector: Deans
    Front shock oil: Coming soon
    Rear shock oil: Coming soon
    Front differential oil: 2,000w
    Rear differential oil: 2,000w
    Pinion gear: Coming soon
    Spur gear: Coming soon
    Wheel hex size: 12mm
