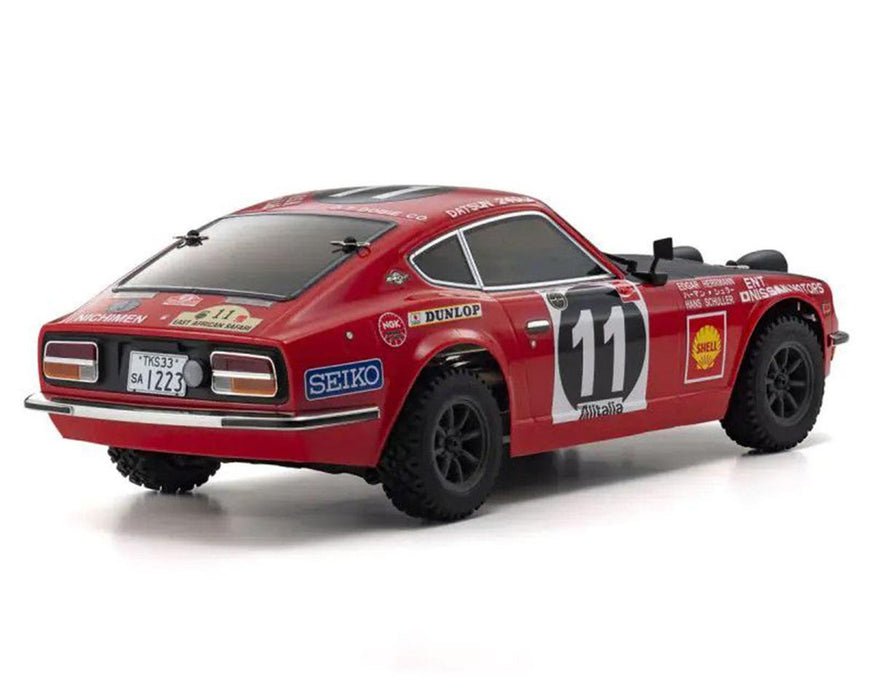

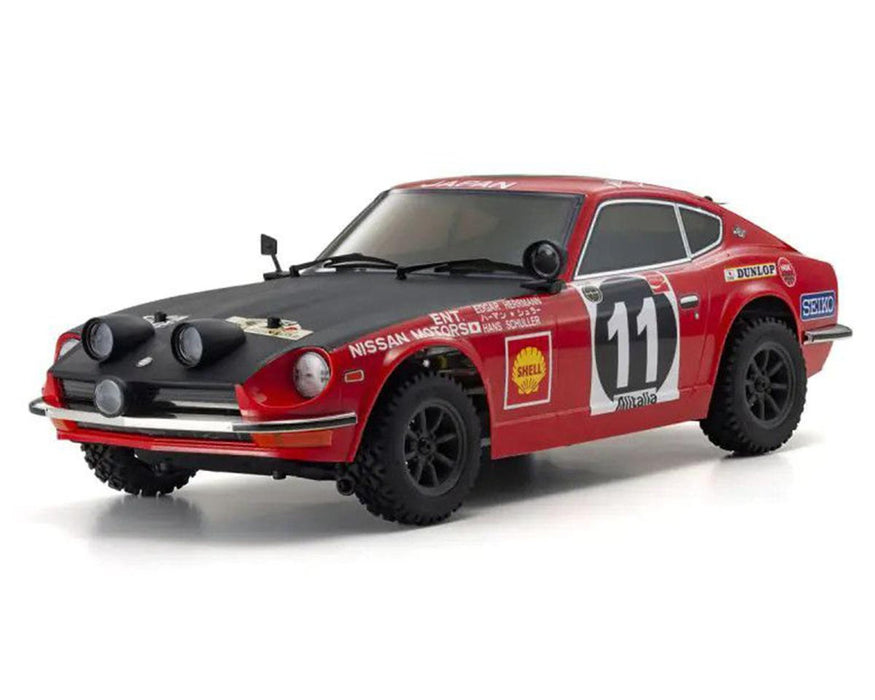

Kyosho 1/10 Fazer Mk2 1971 Datsun 240Z 4WD Electric RTR RC Rally Car

$469.00

Kyosho 1/10 Fazer Mk2 1971 Datsun 240Z Rally model joins the FAZER Mk2 Series - FZ02-R

1:10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02-R Series  readyset 1971 DATSUN 240Z RALLY 34482T1 - KYOSHO RC

Overview

In the realm of 1/10 EP (electric) models, the FAZER Mk2 has gained immense popularity thanks to its exceptional performance and handling, catering to both beginners with the pre-assembled Readyset and those who prefer the assembly kit. Now, the FAZER Mk2 introduces a rally-focused addition, the FZ02-R.At the heart of rally prowess lies the suspension system, and the FZ02-R excels in this aspect. Its front and rear shock stays are meticulously designed to accommodate the oil filled shocks, with newly crafted pistons to provide enhanced suspension travel and remarkable performance on various terrains. The shaft-type 4WD system ensures top-notch traction control, working seamlessly with the new rally tires to efficiently transfer motor power to the road. Safety measures include a front bumper skid for impact protection during jumps and a chassis cover to shield R/C components from debris.




This Fazer is a faithful replica of the 1971 Datsun 240Z that claimed overall victory in its first appearance at the 1971 East Africa Safari Rally.

1/10 EP (electric) models, the booming popularity of the FAZER Mk2 is driven by the combination of its exceptional performance and handling, whether for beginners with the pre-assembled Readyset or the easy to assemble kit. Now the FAZER Mk2 adds a rally weapon in the form of the FZ02-R to its lineup. The suspension system is the foundation of rally performance, and the FZ02-R features front and rear shock stays developed to support oil shocks with pistons and cases designed for rally use provide sufficient suspension stroke and excellent performance even on paved roads or the roughest surfaces. Shaft-type 4WD produces superior traction control and works optimally with vintage tires efficiently transfer motor power to the road surface. Front bumper skid protects the front part of the chassis from impact before and after jumps, and a chassis cover protects the R/C units from dirt, sand, and stones. The body included in the kit faithfully reproduces the rally specifications of a Nissan (exported as Datsun) sports car that made its debut in the 1971 East African Safari Rally, where it remarkably clinched the overall victory despite being a newcomer, known for its harsh conditions. This body, crafted uniquely by Kyosho in an ultra-scale form, was meticulously sculpted based on data and materials from the actual vehicle. Additionally, it is possible to attach a separately sold LED light unit to the body. Enjoy the convenience of an easy-to-assemble, pre-finished ready set to your heart's content.

The rally version of this Nissan (export name: Datsun) conquered the harshest conditions to claim the overall victory in its first appearance at the 1971 East Africa Safari Rally. Engine output was increased to 210 horsepower and lights were mounted on the hood.

The headlights, rear combination lamps, mirrors, etc. are reproduced using injection parts, and new moulds are created for the front and rear fog lamps. The light buckets are compatible with separately sold LED light units, resulting in a more scaled appearance when installed. (Recommended: 97054-4B x1 set / 97054-4CR x2 sets)

Vintage rally tires to enhance the scale realism of vintage rally cars.

Fazer Mk2 FZ02-R chassis has been specially developed for rally models. Shaft 4WD system produces exceptional control and reliability, ideal for both on and off-road rally driving.

Features big bore oil shocks designed specifically for Rally style driving. Off-road tested reliable shocks!!

Shock stay designed specifically for Rally style driving. The design allows higher ground clearance and longer suspension stroke.

Steering hub arms and tie rods are designed specifically for Rally style driving. Design for less bump steer and improved Ackermann ratio. Reliable steering control on harsh terrains!

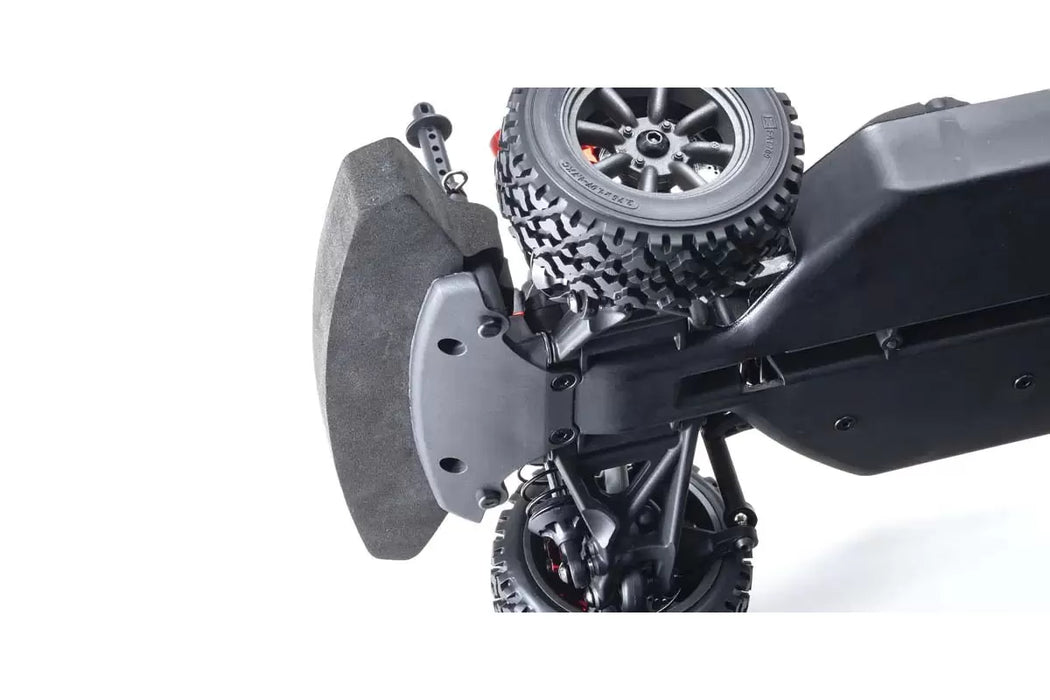

Skid angle on the rally model front bumper reduces resistance with uneven road surfaces and suppresses changes in posture before and after jumps.

Chassis cover to protect the sensitive R/C equipment from dirt and other elements is included as a standard feature. Furthermore, it comes equipped with a sintered 32T pinion gear that exhibits outstanding durability even during high-load off-road driving. The motor mount, which requires no backlash adjustment, allows compatibility with pinion gears ranging from 29T to 37T.

Features

Rally Focused Chassis

The Fazer Mk2 FZ02-R chassis is purpose-built for rally vehicles, featuring a shaft-driven 4WD system that delivers outstanding control and reliability, making it the perfect choice for rally driving on both on and off-road terrains.

New Shock Set Up

New shock stays have been developed in conjunction with the new big bore oil filled shocks. This allows you to optimise your suspension set-ups by giving you three different mounting points!

Chassis Cover

Included as a standard feature, there's a chassis cover to shield the delicate R/C equipment from dirt and environmental elements. Additionally, it's outfitted with a robust sintered 32T pinion gear, known for its exceptional durability even in high-load off-road driving scenarios. The motor mount, which doesn't necessitate backlash adjustment, is compatible with pinion gears spanning from 29T to 37T.

Big Bore Shock Absorbers

Conquer the toughest terrain with the Fazer's all-new big bore oil-filled shocks. These burly beasts are built for hardcore off-roading, absorbing bumps and jumps with effortless grace, letting you push the limits of your driving without fear.

Scale Look Wheels

Block-patterned tires provide excellent grip on surfaces ranging from asphalt to dirt. Paired with the Classic Watanabe style rims, they not only improve off road performance but also provide an essential piece to the overall style to match its outstanding performance

LED Ready

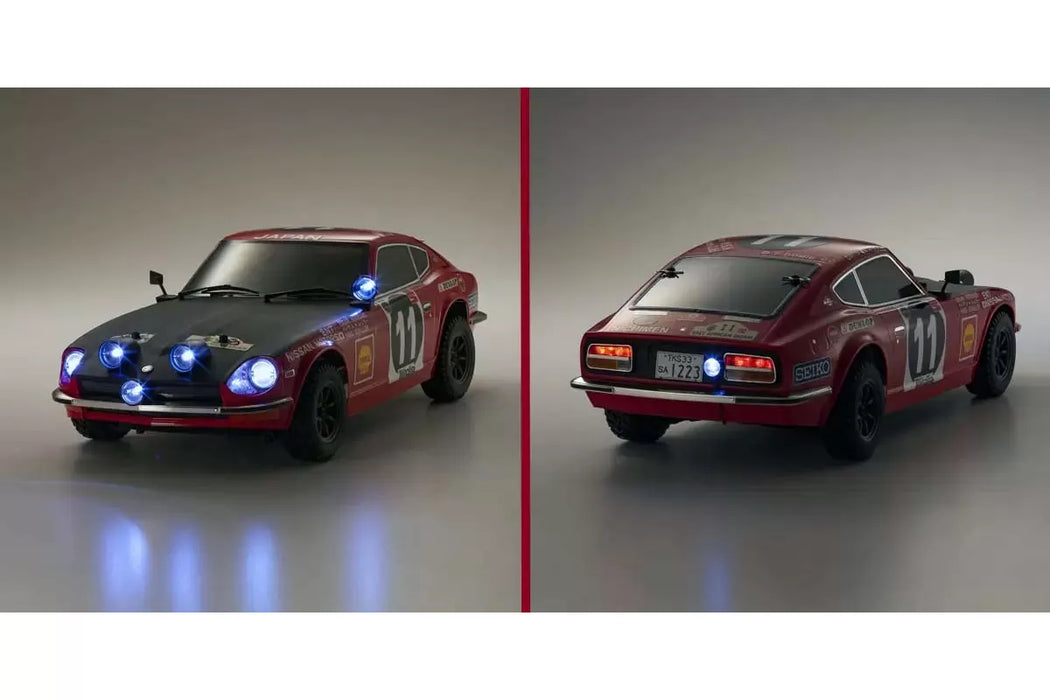

Put a personal stamp on your Fazers' night time persona with the optional 97054 LED light unit set (sold separately). Front and rear light buckets are prepped for installation, just installed the kit and light up the track.


  • Readyset includes fully assembled chassis and body with pistol-grip transmitter.
  • Ultra-scale 1971 DATSUN 240Z Rally body captures the heart and soul of rally driving.
  • Includes two types of wheel hubs with different offsets so tread can be changed according to the body width.
  • Shaft 4WD system produces exceptional control and reliability.
  • Shock case, piston, shock stay and front bumper designed specifically for Rally style driving.
  • Completely sealed gearboxes are equipped with proven bevel-type differential gears on front and rear.
  • Equipped with chassis cover that protects the R/C units and drive system from dirt and other elements.
  • Features full ball bearing specifications for optimal drive efficiency.
  • Hexagonal socket screws enable easy and efficient maintenance.
  • Syncro KT-231P+ pistol-grip transmitter included and provides various setting options.
  • Add your own batteries for chassis, transmitter and battery charger, and you are ready to run!
  • Compatible with existing FAZER Mk2 optional parts so you can enjoy tuning and upgrading your machine.

Specifications

  • Length: 473 mm (18.62 in)
  • Width: 194 mm (7.63 in)
  • Height: 142 mm (5.59 in)
  • Wheelbase: 260 mm (10.23 in)
  • Weight: 1650 g (3.63 lbs)
  • Tire Diameter: 70 mm (2.75 in)
  • Chassis: Off Road
  • Drivetrain: 4WD
  • Gears: 6.54:1
  • Suspension: Oil Filled Big Bore Coil Over Shock Absorbers
  • Motor: Kyosho G14L 550 Sized 14T Brushed Motor
  • ESC: Kyosho KSH KA060-91W 60A Brushed ESC

Included items

Description QTY
Kyosho 1/10 Fazer 4WD Electric RTR RC Car 1
Factory assembled body complete with painted colour scheme 1
Syncro KT-231P+ transmitter 1
+5mm off-set wheel hub (for 200mm width chassis), M4 x 22 wheel screw set 1
Hexagonal wrench 1
Spanner 1


Requires

  • 4 x AA batteries for transmitter
  • Battery for chassis (recommended: 7.2V NiMh battery)
    • Or 7.4V LiPo battery
  • Charger for battery for chassis
    • Compatible NiMh or LiPo charger

Chassis

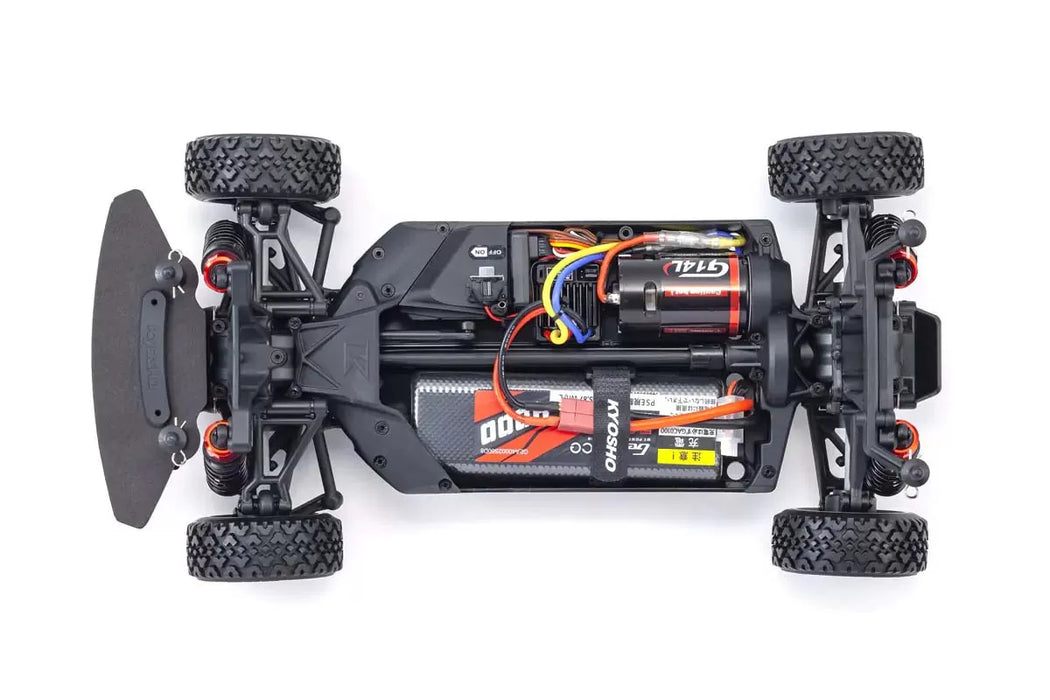

Fazer Mk2 FZ02-R chassis has been specially developed for rally models. Shaft 4WD system produces exceptional control and reliability, ideal for both on and off-road rally driving.



・FAZER Mk2 "FZ02-R"chassis is a vehicle equipped with front and rear damper stays developed specifically for rally, a front bumper with skid angles, shock cases and pistons, and rally tires.
・Full-time 4WD touring chassis with shaft drive that allows anyone to enjoy driving.
・Chassis cover to protect the sensitive R/C equipment from dirt and other elements is included as a standard feature.Furthermore, it comes equipped with a sintered 32T pinion gear that exhibits outstanding durability even during high-load off-road driving.
・Full ball bearings that reduce drive loss equipped throughout the drive system.
・Features KS202W waterproof steering servo.
・Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces.


The model that clinched the overall victory despite making its debut at the 19th East African Safari Rally in 1971 has been thoroughly detailed and reproduced with an "ULTRA SCALE BODY."






Now driving R/C is even more fun FZ02 chassis with realistic racing car body

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten.



Body

The rally version of this Nissan (export name: Datsun) conquered the harshest conditions to claim the overall victory in its first appearance at the 1971 East Africa Safari Rally. Engine output was increased to 210 horsepower and lights were mounted on the hood.

Readyset

Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis.

1:10 Scale  4WD FAZER Mk2
FZ02-R Series readyset
