Features

• "Ultra Scale Body" replicates the fine details of the actual body of the car - Kyosho took a step further in scale realism
• Shaft drive full-time 4WD touring chassis (FZ02) with slipper clutch
• Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis
• Equipped with full ball bearings to reduce power loss throughout the entire drivetrain
• 12mm big bore shocks
• Features KS202W waterproof steering servo
• Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces
• Equipped with a plated dummy brake disc and a painted brake caliper for improved scale realism
• Uses button head screws with hexagonal holes, making maintenance possible with fewer tools and the reliable tightening
• Since the motor mount has mounting holes according to the pinion gear, troublesome backlash adjustment is unnecessary and allows for 29T to 37T
• Performance can be further enhanced by installing various optional parts

The completely new chassis offers a low centre of gravity with its simple, functional design. Featuring an integrated gearbox that optimises torsional rigidity of the main chassis, the nylon material reduces weight while improving impact resistance. Each key component has been reinforced in this simple design without the need for an upper deck.

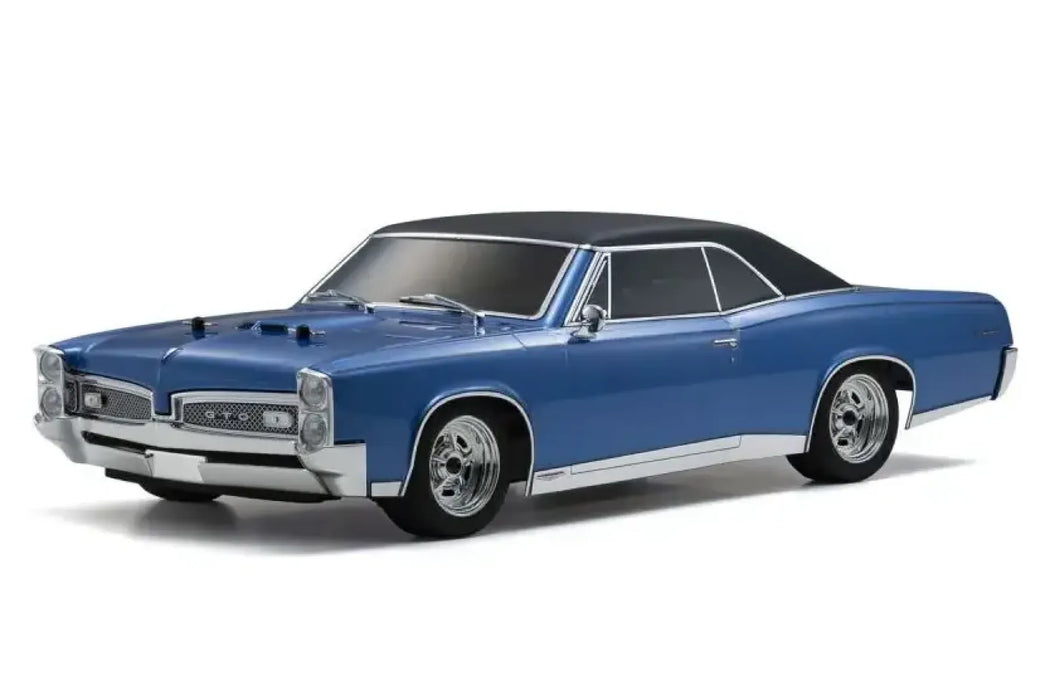

The officially licensed Pontiac GTO body is meticulously recreated as an "Ultra Scale Body," capturing the fine details of this classic muscle car. Vintage touring car (VTC) tyres and Rostyle-type wheels complete the authentic look.

Low CG Design

Intuitive Suspension Design

The Fazer's suspension system is engineered for performance, with carefully tuned geometry that translates to exceptional handling and control. The ball-connected steering knuckle provides smooth and precise steering, while interchangeable hub carriers offer added convenience and variable setup options.

Features a reduction to the amount of screws and other parts. The majority of screws are countersunk and can be removed using a 2.0mm hex wrench for easy disassembly.

Handling factors such as bump steer and scrub radius are optimised with the front suspension. Simple ball-connected steering hubs provide reliable control and smooth movement. Front & rear hub carriers are interchangeable, optimising the need for spare parts & easy maintenance.

Includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body shell widths.

Scale Disc Brake Hubs

The Fazer comes with two sets of offset brake disc wheel hubs, complete with scale look dummy calipers, allowing you to not only customise the car's appearance but adjust the width of the car to accommodate body widths from 190mm to 200mm. Mix and match for a unique look and perfect fit.

Oil Filled Shock Absorbers

Fine-tune your Fazer's performance with ease, thanks to the simple and adjustable oil shocks. Add in the included spacers to quickly adjust ride height and optimise handling for any track or terrain. For even more fine-tuning options, the shocks can be disassembled to change the pistons and oil, providing an even more custom driving experience.

Newly designed oil-filled shocks mark an evolutionary step from the previous models. Optimal front-rear geometry & balance simultaneously provides tight-handling and precise control.

Powerful 550 Brushed Motor

The Fazer Mk2 boasts a new, powerful 550 size 14T brushed motor (G14L). The long can design with a steel ring and internal cooling fan ensures efficient torque delivery and exhilarating high speeds.

Tuneable Gear Ratios & Motor Mount

Dial in your Fazer's performance with a variety of pinion gear options. Choose from nine different sizes (29T-37T) to fine-tune the gear ratio and achieve the perfect balance of speed and acceleration for your driving style. The direct-mount motor design simplifies gear changes, making it easy to experiment and optimise your setup.

Standard spur and pinion gear setting is 68T and 32T, and 9 pinion gear settings can be used from 29T - 37T to produce a wide range of gear ratio settings. The new fixed gear mesh motor mount has holes for use with different pinion gears. Just simply mount the motor directly to the hole locations corresponding to the pinion gear. No gear mesh adjustment is necessary.

Hassle-Free Maintenance

The Fazer Mk2 simplifies maintenance with fewer screws and parts, and many common screws share the same size. Most are countersunk (flat-head) screws easily removed with a 2.0mm hex wrench, making disassembly and upkeep a breeze.

Scale Look Wheels

Every detail of the Fazer has been carefully crafted to capture the essence of classic motor vehicles. Rostyle-style wheels and VTC tyres provide incredible scale realism in conjunction with the body, creating a timeless aesthetic that will impress even the most discerning enthusiast.

LED Ready

Take the Fazers incredible scale looks to the next level with an optional LED light unit set. The factory installed light buckets make installation a breeze, allowing you to add a brilliant glow to your nighttime RC adventures.

Specifications

• Length: 500mm
• Width: 210mm
• Height: 146mm
• Wheelbase: 274mm
• Tread: (F/R) F：167mm／R：167mm
• Tyres: (F/R) F：64×27.7mm／R：64×27.7mm
• Gear Ratio: 6.54：1
• Weight: 1650g (3.63lbs) approx
• Chassis: On Road
• Drivetrain: 4WD
• Pinion Gear - 32T 48dp/0.5Mod
• Front & Rear Shock Oil - 100cSt
• Wheel Hex  size-12mm
• Suspension: Oil Filled Coil Over Shock Absorbers
• Motor: Kyosho G14L 550 Sized 14T Brushed Motor
• ESC: Kyosho KSH KA060-91W 60A Brushed ESC
• Maximum LiPo power 2S 7.4V
• Spur Gear- 68T 48dp/0.5Mod



  Car
  Assembly Type:	Ready to Run
  Max LiPo Power:	2S (7.4v)
  Size (Scale):	1/10
  Skill Level:	Beginner
  Power Source:	Electric Brushed
  Chassis Type:	Car
  On/Off Road:	On Road
  Drivetrain:	4WD

  Factory specs
  Max LiPo power:	2S (7.4v)
  Battery connector:	Deans
  Pinion gear:	32T
  Spur gear:	62T
  Wheel hex size:	12




  Front and rear light buckets compatible with the sold separately.

 Included Items

• 1x Kyosho 1/10 Fazer 4WD Electric RTR RC Car
• 1x Factory assembled body complete with painted colour scheme
• 1x Syncro KT-231P+ transmitter
• 1x Installed 60A waterproof electronic speed controller (forward/brake/reverse)
• 1x +5mm off-set wheel hub (for 200mm width chassis), M4 x 22 wheel screw set
• 1x Hexagonal wrench
• 1x Spanner

Required Items

• Compatible 7.4v LiPo Battery
• Compatible Charger
• 4x AA Transmitter Batteries
