HTRC C240 DUO Dual Multi-Charger AC 150W /DC 240W 10A RC Balance Charger Discharger
$159.00
HTRC C240 DUO Dual Multi-Charger - RC Balance Charger Discharger for LiPo LiHV LiFe Lilon NiCd NiMh Pb Battery
C240 is a new design dual balance charger by HTRC,which can charge two different kinds of batteries simultaneously. Multi-function, high power, Utilizing 2 x 16 LED display, built-in cooling fan, DC 11-18V or AC 100-240V dual power. Designed for charging LiPo, LiFe, Lilon, LiHV, NiCd, NiMh, Pb Smart Batteries.
It can support power distribution in AC mode, total power 150W (CH1+CH2=150Watt), and in DC mode, works in 2 x 120W. Max charge current can reach 10A each port in both AC and DC mode.
Product Information
HTRC
Features
- Full plastic shell, safe, compact, beautiful
- Twin-channel ,charge two different kinds of batteries simultaneously
- High power single port max 150W. Support power distribution

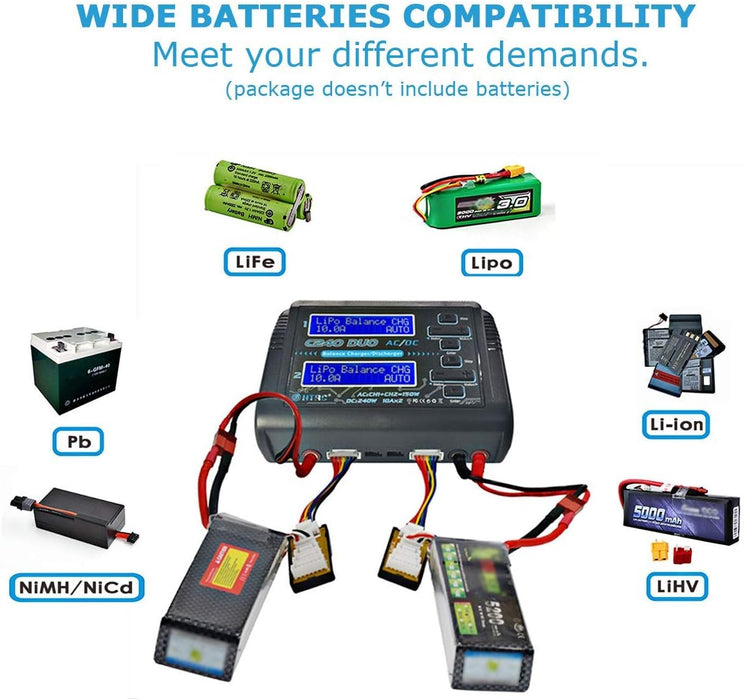

- Practical for variety of batteries
- LiPo LiFe Lilon NiCd NiMh Pb,and high power battery LiHV
- Automatic identification of Li-Po batteries cells counts
- Adjustable digital DC Power
- Built in smart cooling fan for easy heat dissipation
- Built-In PFC AC adapter high efficiency. Comes with power switch
- Multiple charging modes
- Lipo/Lilo/LiFe/LiHv: balance charge, charge, fast charge, storage, discharge
- NiMH/NiCd: Charge, Discharge, Cycle
- PB: Charge,Discharge,Trickle
- Multi-extra function: Battery Meter: Display lithium battery cell counts, total voltage, battery capacity percentage, each cell's voltage. (does not support 1s battery)
- TVC(Terminal voltage control):The Charger allows user to set the charge/discharge end voltage
- Lithium Battery internal Resistance Check: can display each cell's resistance.(does not support 1s battery)
- Balancer: individual-cell-voltage balancing, cell voltage Monitoring
- Smart battery:Smart battery I,II,III,(Need optional DJI Charging cable)
- Data storage and loading
- Re-peak and cycling of NiMH/NiCD battery
- Maximum Safety:Automatic charge current limit,Delta-peak sensitivity, capacity limit, processing time limit,temperature threshold
- Firmware update
Specification
- Input: AC 100-240V / DC 11-18V
- Charge power: AC mode 150W (CH1+CH2=150Watt),DC mode 120W x 2 =240W
- Discharge power: Max 10W x 2
- Charge current range:0.1-10A x 2
- Discharge current range:0.1-2A x 2
- Lilon/LiPo/LiFe/LiHV cell count : 1-6cells x 2
- NiCd/NiMH battery cell count: 1-15cells x 2
- PB Battery voltage:2-20V x 2
- Smart battery: I/II/III x 2
- Current drain for balancing: 500mA/cell
- Net Weight: 0.48kg
- Dimension: 145 x 105 x 64mm
- Gross weight: 0.9kg
- Package size: 215 x 155 x 75mm

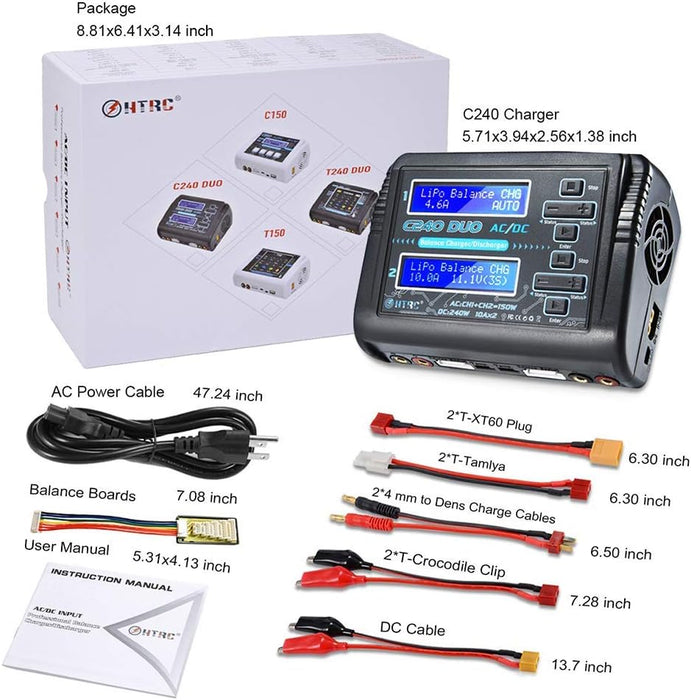

Package Included
1x C240 charger
2x Charge cable banana plug to T-Plug
2x Extension charge cable T-Plug to XT60
2x balance board with pin cord
1x AC Cord (AU)
1x DC Cord
1x User's Manual
