HSP MONSTER JAM MONSTER TRUCK BRUSHLESS EDITION
HSP MONSTER JAM MONSTER TRUCK BRUSHLESS EDITION

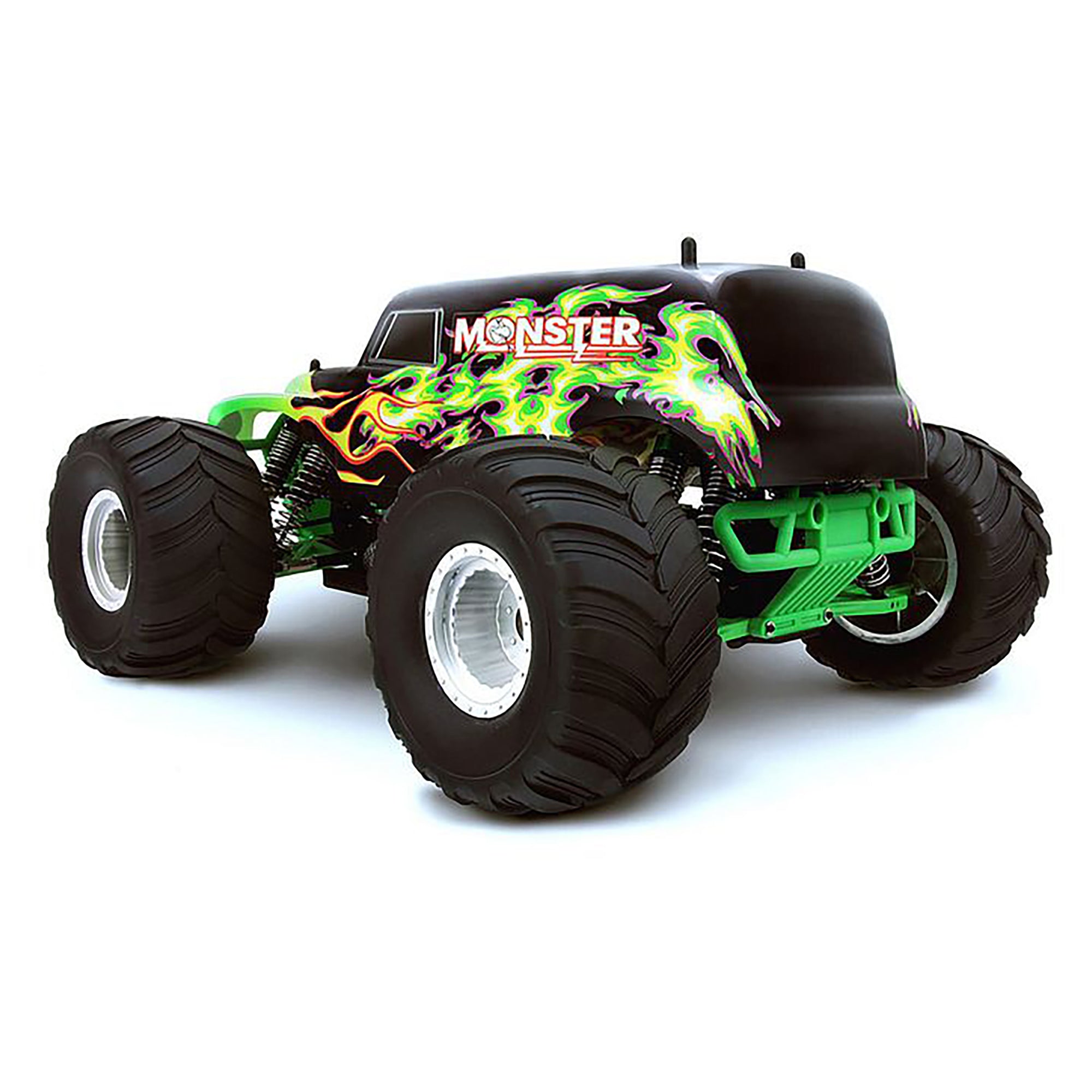

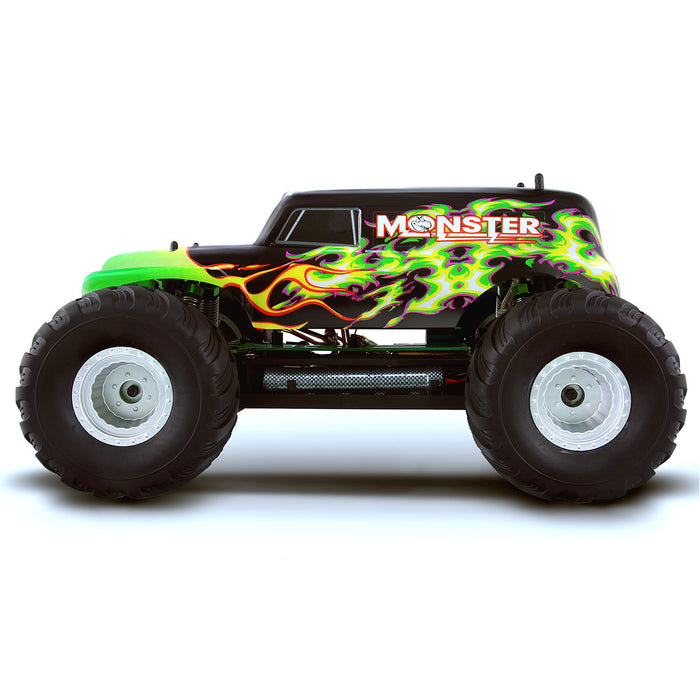

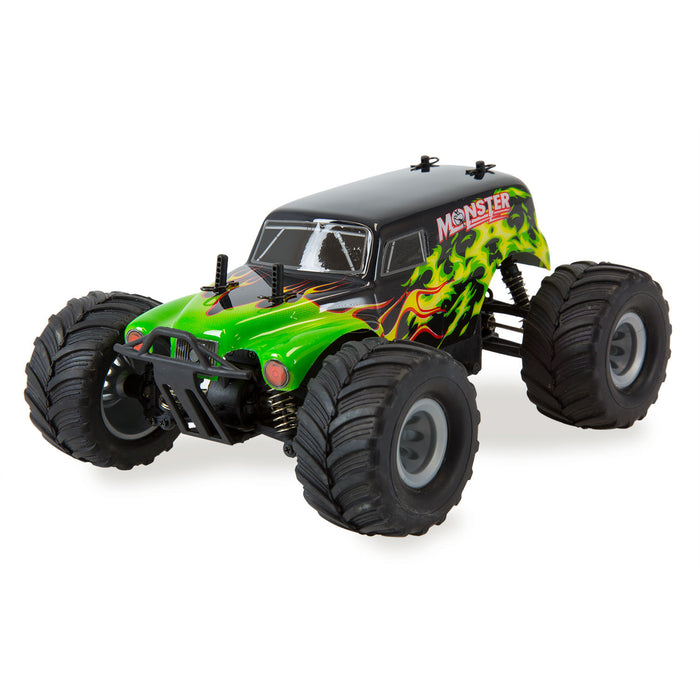

This all new 1:10 scale Brushless MONSTER 4 Wheel Drive Truck is an exclusive edition which comes with realistic Monster wheels and tyres so that you can crush other RC cars or tear up your favorite patch of dirt with all the ferocity of a real wheel standing off-road competition machine.
Adding to the appeal of this truck is the color coded bumpers, suspension arms and all aluminium components to compliment the unique cover design.
Dual Shock Absorbers
With oil filled aluminium bodied long travel dual shocks at each corner this Monster Truck can operate in difficult terrain but still keep itself upright while powering on to the next challenging obstacle.
All 8 shock absorbers are fully adjustable and allow the operator to drive in the suspension to suit the type of terrain they want to operate on. Simply turn the adjustment nut on the shock body and you can apply more pre-load to the spring, firmer for a smooth surface to reduce body roll or softer for rugged off road environments where you need all the suspension travel you can get. Rear wheel camber is adjustable along with front wheel camber and toe in - toe out also being fully adjustable via a simple turnbuckle system on the steering arms. Your sure to find the set-up that is right for just about any operating surface.
Monster Wheels & Tyres
The all new rim design is unique and compliments the truck perfectly with is rippled deep rim, scale bead lock rivets and wheel nuts.
The tyres with their deep tread pattern allow this machine to claw its way through the dirt with control and authority. This deep tread pattern also helps bring about quick stops when the action gets out of hand.Awesome Performance
Motivation for the ACE truck comes from a powerful Brushless 3300kV motor. The drive train is coupled to metal motor and main differential gears which translates to scintillating wheel standing performance. Squeeze the throttle and watch this guided missile rocket into the distance.
The 60A Brushless Electronic Speed Controller is fan cooled and supplies current to the motor and on-board electronics with authority. It is programmable by the user to set race mode without reverse and also with brake function enabled which the operator can select different "Drag Braking Forces" to suit the type of operating environment the vehicle is being run in.
The Supplied 8.4v 4200mAh Ni-MH hump pack battery keeps the motor, ESC and on-board electronics supplied with plenty of current for super performance along with a realistic operational time.
The ACE version truck can be fitted with an optional Cougar 7.4V 4500mAh 2S 30C Hard case Lithium Polymer battery for even more power that will take this truck to the next level of performance should the driver want insane acceleration.
(Please note the CG-HL30C-4500-2S Cougar 4500mAh 7.4v 2S 30C Hard Case LiPo Battery is not included with the truck but is available as an optional extra from our web store.)
When changing the battery from Ni-MH to LiPO the setting on the ESC will need to be changed so that the low voltage cut off is activated to protect this battery type from accidental over discharge. Instructions for programming the ESC are included in the box.
Protective Battery Box
All "TOP" models have a protective battery box and retaining strap hard mounted to the chassis. This offers superior protection for your batteries from the harsh environments these vehicles typically operate in.
High Torque Steering Servo
Steering duties are commanded by a HSP E6001 6kg "High Torque" steering servo. The servo is also protected from heavy shock loads that can be amplified through the steering components while operating in harsh terrain by a unique "Servo Saver" system. A special spring loaded joint is incorporated into the steering system which helps dampen severe jarring to the servo and helps extend its longevity.
2.4GHz Digital Radio Transmitter System
The "Monster Truck Special Edition" is supplied with a quality HSP 2.4GHz digital radio transmitter which means you can run other vehicles utilizing the same system without interference at the same time.
The radio has forward, reverse, left/right along with proportional throttle control and steering travel adjustment.
2.4 GHz Receiver
The supplied 3 channel 2.4 GHz receiver is compact and lightweight and comes matched to the transmitter out of the box. This receiver also offers superior interference rejection and has a failsafe function that can be set by the user if signal is lost or transmitter voltage falls to low.
Ready To Run
This HSP 1/10 Monster Truck comes as a complete package, including an ESC, 2.4GHz radio system, 4 wheel drive system, high torque Brushless motor, aluminium upper deck chassis, aluminum drive shaft and shock mount, oil-filled shock absorbers with progressive springs, 8.4V 4200mAh Ni-MH battery with battery charger. The only extra items required to get this beast on the track are 8 x AA batteries for the transmitter and your ready to rip up your favorite patch of dirt.
