HOBBYWING 45A WP Brushless ESC with Tamiya Connector - HW-WP-S10E

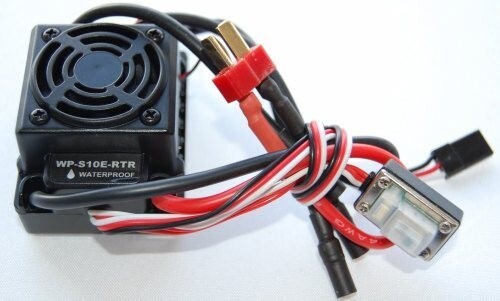

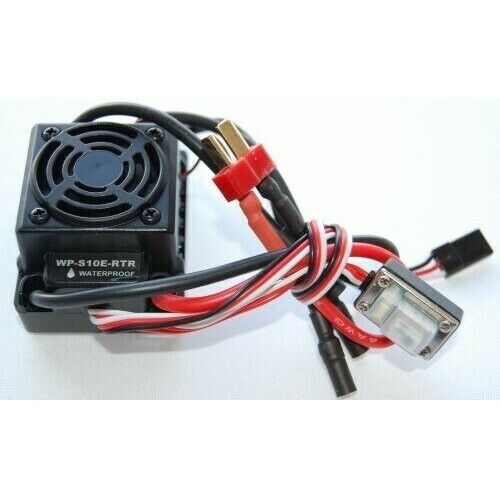

Hobbywing WP-S10E Water Proof 45A Brushless ESC with Tamiya Connector


  • Water-proof and dust-proof. The ESC can work under water for a short time.
    (Please remove the cooling fan when running car in water, and after running, please make the ESC
    clean and then dry it to avoid the oxidation to copper connectors)
  • Specially designed for RC car and truck, with excellent start-up, acceleration and linearity features.
  • Drive sensorless brushless motors.
  • 2 running modes (“Forward with brake” mode, “Forward/Backward with brake” mode).
  • Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force
  • 4 start modes (“Punch”) from “Soft” to “Very aggressive” to be suitable for different chassis, tires and tracks.
  • Multiple protection features: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection /
    Throttle signal loss protection / Motor blocked protection.
  • Easily programmed with the “SET” button on the ESC or with the LED Program Card.


  • HOBBYWING 45A WP Brushless ESC with Tamiya - HW-WP-S10E
  • Hobbywing 45A Brushless Speed Controller, Splashproof (NOT SUBMERSIBLE)
  • Specifications:Maximum continuous current: 50A
  • Maximum burst current: 300A
  • Input: 2-3S LiPO, 4-9 cell NiCD/NiMH
  • Motor limit: On 2S LiPO or 4-6 cell NiCD/NiMH: 3800kvMotor limit and
  • On 3S LiPO or 7-9 cell NiCD/NiMH: 2600kvBEC: 3A/6V switching type
  • Dimensions: 48.5*38*32mm
  • Weight: 90g
  • (Only 2S LiPO or 6-7 cell NiMH/NiCD battery packs are recommended for Redcat Racing vehicles that use this ESC)
  • Tamiya plug
