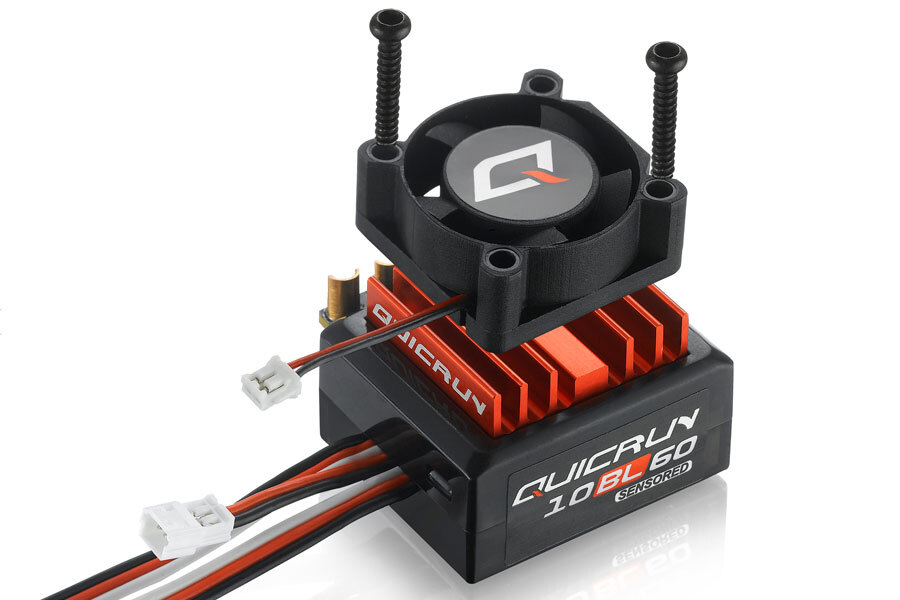

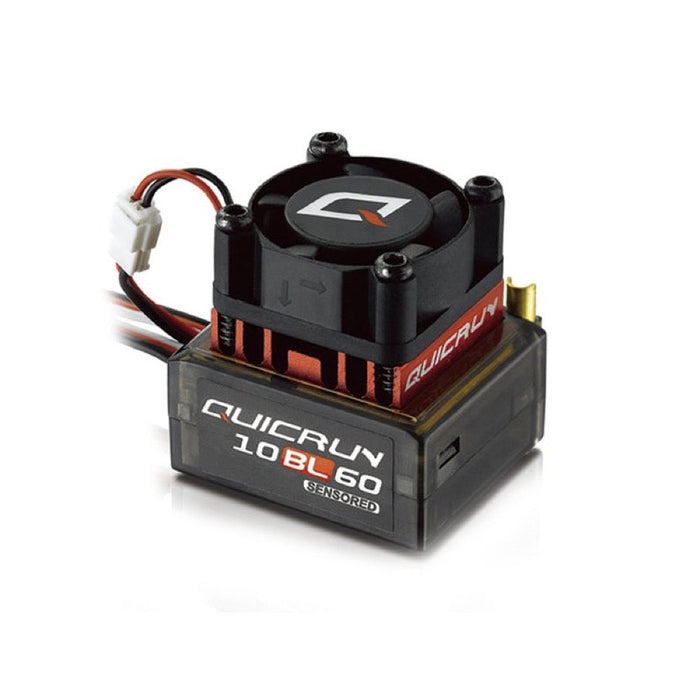

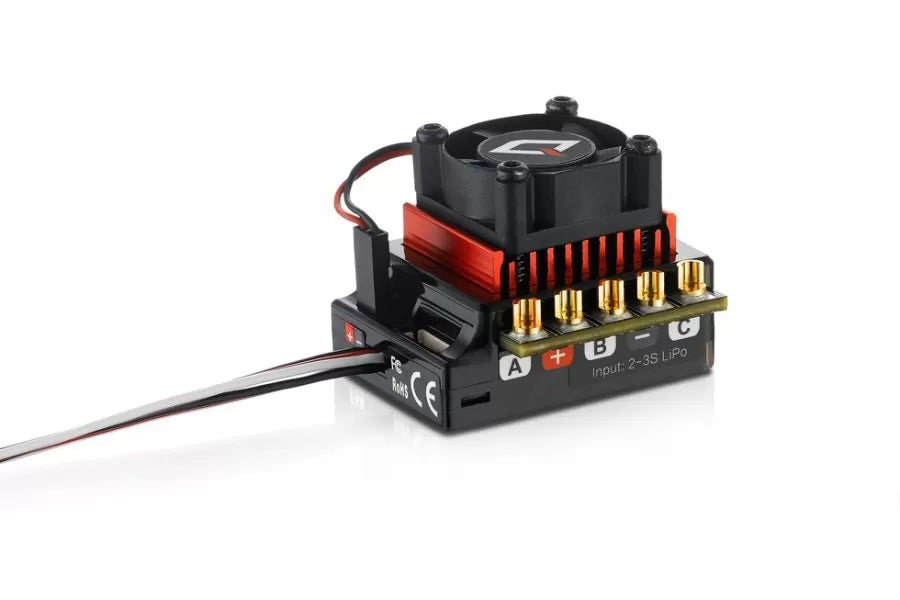

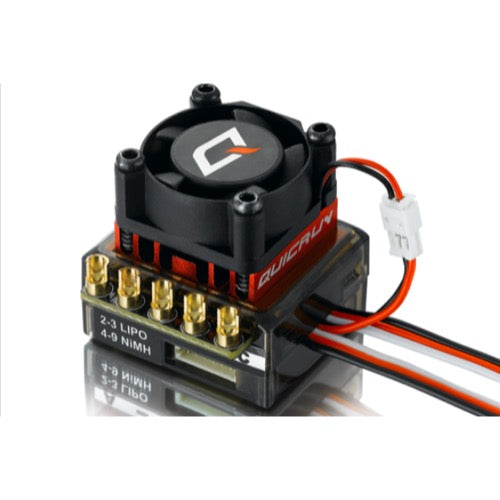

Hobbywing QUICRUN 10BL60 Sensored 60A Brushless ESC - 30108000
Hobbywing QUICRUN 10BL60 Sensored 60A Brushless ESC - 30108000
Overview
The QuicRun 10BL60 sensored ESC is specially designed for beginners and intermediate RC drivers. This speed controller is designed for practice and daily training of 1/10th and 1/12th scale Touring cars, Buggies, F1 and Drift cars as well as 1/10th scale Rock Crawlers.
Hobbywing patented heat-conductive copper bar cover on the power board of the QUICRN 10BL60, which can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum heat sink housing, combined with reticulated heat-sink and high-performance cooling fan can keep your ESC as cool as possible.
With the compact design, it’s applicable to various chassis. With the Dual (Sensored/Sensorless) Drive Mode, it’s compatible with different motors and brings racers two different control feel.
The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.
Features
- High Reliability & Durability
- Efficient Cooling System
- Easy Operation
- Compact Design & SD/SL Dual Mode Supported
- Single-button Programming & Factory Reset
About the ESC
High performance but low price, users can own this reliable race-ready ESC at an affordable cost.
Compact size, suitable for various car chassis.
Auto identification system can recognize sensored / sensorless brushless motors automatically.
Excellent operating feelings and plentiful adjustment options, suitable for most kinds of competitions.
8 steps of timing adjustment greatly increase the output power of the motor, and unlock its maximum potential.
Proportional brake with 4 steps of Maximum Brake Force adjustment, 8 steps of Drag Brake Force adjustment and 4 steps of Initial Brake Force adjustment.
9 steps of acceleration (punch) adjustment, from soft to very aggressive to fit for different kinds of cars, tires and tracks.
Multiple protections: Low voltage cut-off protection for LiPo or NiMH battery / Over-heat protection / Throttle signal loss protection / Motor Lock-up protection.
One-button (the SET button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
Compatible with the optional device - the portable Digital LED Program Card, especially convenient for outdoor use.
Specifications
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensored
- Waterproof: No
- Cont./Peak Current: 60A/380A
- Input: 2-3S LiPo/6-9 Cells NiMH
- BEC Output: Switch Mode:6V/2A
- Input Wires: Red-12AWG-200mm*1/Black-12AWG-200mm*1
- Output Wires: Blue-12AWG-200mm*1/Yellow-12AWG-200mm*1/Orange-12AWG-200mm*1
- Input Connectors: No
- Output Connecotors: No
- Fan Size: 25.0x25.0x10.0mm
- Fan Voltage Range: 5-8.4V
- Size: 59.5x48.0x42.0mm
- Weight: 59g
ESC (Electronic Speed Controller) | |
---|---|
For Motor Type: | Brushless |
Max Voltage: | 11.1 |
Continuous Amps: | 60 |
Motor Connectors: | N/A |
Battery Connector: | N/A |
LiPo Cut-off: | Yes |
Programmable: | Yes |
Waterproof Design: | No |
Cooling Method: | Fan |
BEC Voltage: | 6 |
Dual Motor: | No |
Recommended Motor: Hobbywing Quicrun Sensored 3650 Motor
About the Motor
Built-in Hall sensor brings drivers the amazing sense of control.
Top-quality components: heat-resistant magnet, heat-resistant wires and name-brand bearings.
Dustproof design at the location where motor leads exit.
Creative design, the gold-plated lockable connector, which can be fastened by screws, utterly eliminated all the potentialities that connectors may loose.
Detachable structure, easy for clean and maintenance, greatly prolongs the service life of the motor.
*** This motor is high speed or high torque motor, please take precaution on gear ratio. Dont treat it as stock motor as it may overload the esc or motor itself.
