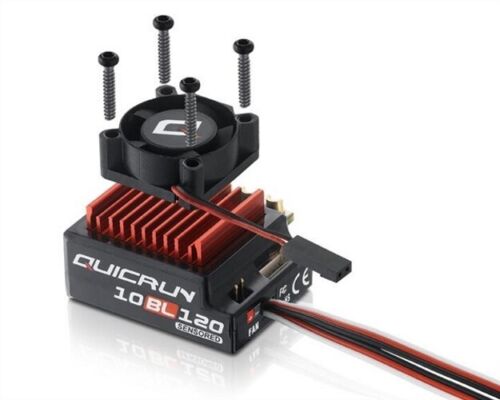

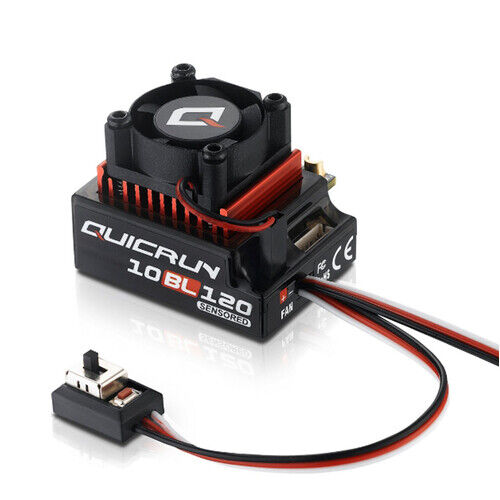

HW30125000 - Quicrun-10BL120-Sensored

Easy Operation

This ESC is specially designed for beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Compact Design & SD/SL Dual Mode Supported

With the compact design, it’s applicable to various chassis. With the Dual (Sensored/Sensorless) Drive Mode, it’s compatible with different motors and brings racers two different control feel.

High Reliability & Durability

Reliable hardware combined with advanced software technology allows the QUICRUN 10BL120-SD to not only provide high power output but also overload protection of the ESC circuit.

Efficient Cooling System

Hobbywing patented heat-conductive copper bar cover on the power board of the QUICRUN 10BL120-SD, which can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum heat sink housing, combined with high-performance cooling fan can keep your ESC as cool as possible.

Single-button Programming & Factory Reset

The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.

Wide Applicability

This ESC is designed for practice and daily training of 1/10th, 1/12th scale touring cars, buggies, and F1.

Specifications

• Scale - 1/10th
• Brushless
• Sensored/Sensorless
• Current - 120A
• 2-3S Lipo/5-9 Cell NiMH
• BEC Output - 6V@3A, Linear Mode
• No Connectors
• Fan Size - 25 x 25 x 10
• Voltage Range - 5-8.4v
• Programmed by set button and LED Program Box.
• Unit size - 33x28x31.5mm
• Unit Size with fan - 43 x 36 x 33mm (w/ Fan)
• Weight 105g with wires and fan
• Max motor 4.5T Touring Cars
• 5.5T Buggies
• 3s Touring 10.5T
• 3s Off Road 13.5T
