Hobbywing Quicrun 1060 60A Waterproof Brushed ESC - 30120201

$59.00

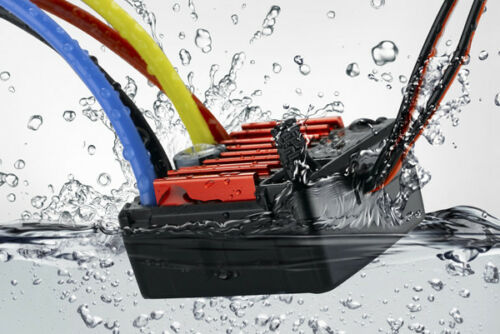

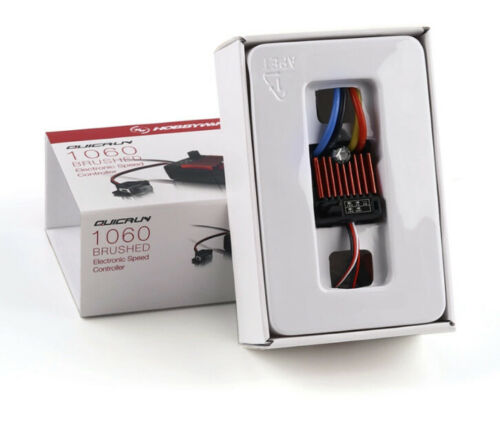

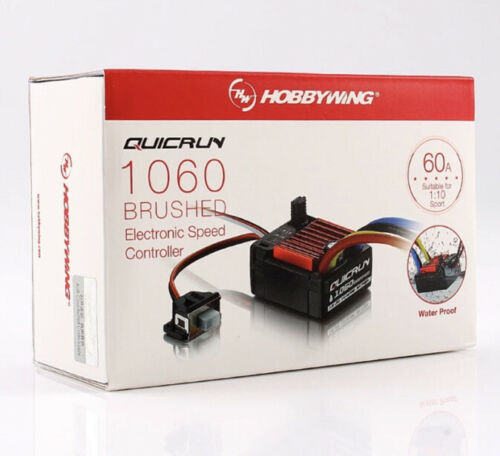

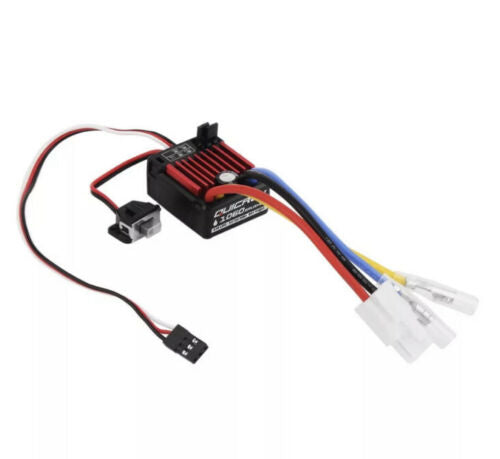

Hobbywing Quicrun 1060 60A Waterproof Brushed ESC



Hobbywing Quicrun 1060 60A Waterproof Brushed ESC



The Hobbywing 1060 is a waterproof ESC that is great for general purpose brushed 1/10 scale RC cars.

Capable of taking 2-3s LIPO or 5-9 cell NIMH batteries.

Best combined with 540/550 size brushed motors

Some application examples: 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers

Specifications

ESC (Electronic Speed Controller)
For Motor Type: Brushed
Max Voltage: 11.1
Continuous Amps: 60
Motor Connectors: Basic Bullet
Battery Connector: Tamiya
LiPo Cut-off: Yes
Programmable: Yes
Waterproof Design: Yes
Cooling Method: Air
BEC Voltage: 6
Dual Motor: No



Pros: Very straightforward to install, everything provided in the box.

Cons: The Blue / Yellow motor wires had to be connected in reverse polarity to work correctly and the On/Off switch cabling needs to be longer as it has to be spliced in yo extend the wire to reach the location of some cars on/off switch.   Appears its designed to only mount on the side of the ESC.
