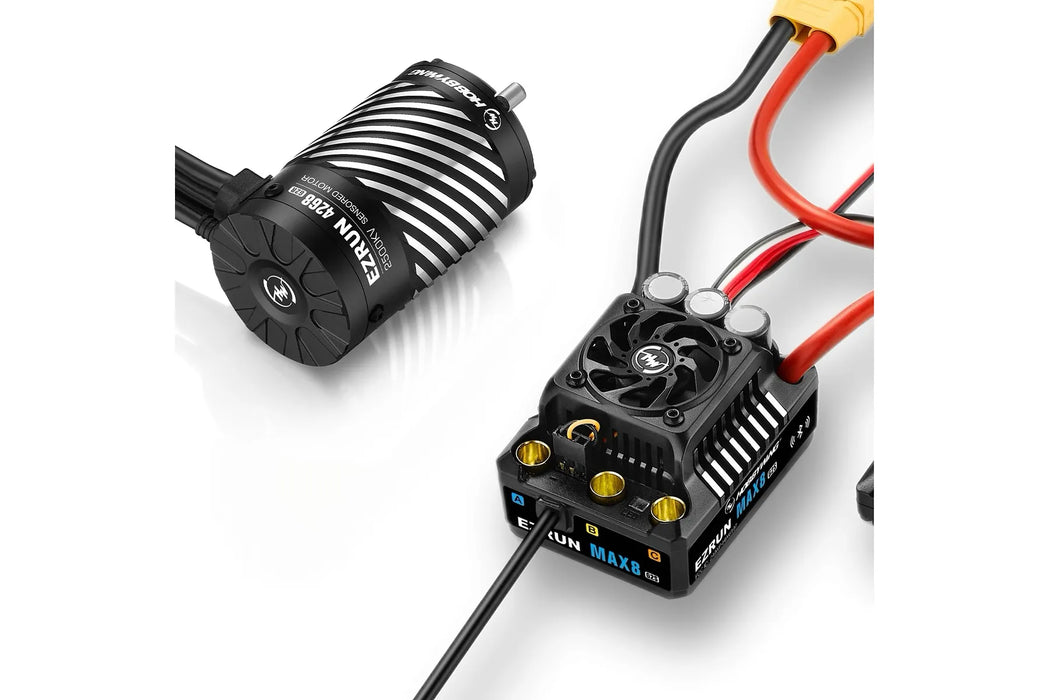

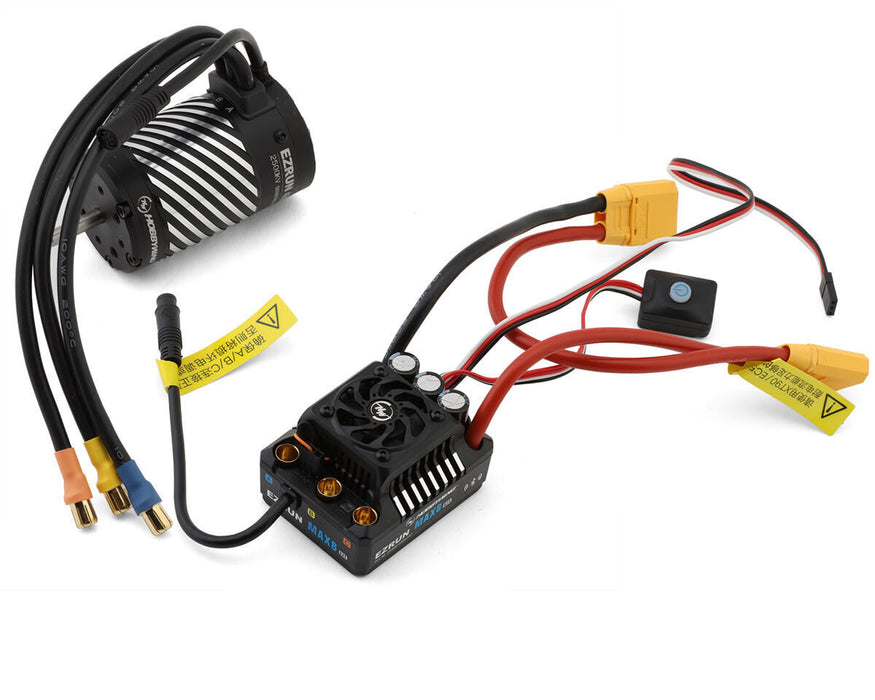

Hobbywing EzRun Max8 G2S 160A ESC and 4268SD 2500kV G2R Brushless Sensored Motor Combo - HW 38010606
Hobbywing EzRun Max8 G2S 160A ESC and 4268SD 2500kV G2R Brushless Sensored Motor Combo - 38010606
Description
Experience a new level of power and intelligent control with the Hobbywing EzRun MAX8 G2S ESC and 4268 SD G2 motor combo. This 1/8th scale system is engineered for extreme output, delivering 160A of current and handling up to 6S LiPo batteries for incredible performance in monster trucks, short course trucks, and buggies. The fully sensored G2 motor provides exceptionally smooth and linear throttle response, while the entire system boasts an IP67 waterproof rating for confident all-weather operation.
The standout feature of the G2S ESC is its built-in Bluetooth module, allowing you to connect directly to the HW LINK V2 mobile app. This provides a simple and convenient way to adjust parameters, perform firmware upgrades, and view real-time telemetry. The ESC also includes a data logging function to store and analyse your runs. With advanced features like adjustable turbo timing, a powerful switch-mode BEC with up to 15A peak output, and an intelligent cooling fan, this combo offers both immense power and sophisticated tuning capabilities.
Features
- A complete, factory-matched power system with the MAX8 G2S ESC and an EzRun G2 motor
- Features a built-in Bluetooth module in the ESC for direct connection to the mobile app
- Full sensored mode operation provides exceptionally smooth, cog-free throttle control
- Fully IP-67 rated waterproof and dustproof design for both the ESC and motor
- Powerful 160A ESC is capable of handling up to 6S LiPo power for extreme performance
- Built-in data logging function records real-time data viewable on the HW Link V2 App
- Advanced ESC features include Turbo Timing, intelligent fan control, and capacitor protection
- Genuine Hobbywing Product
Technical Data
| ESC | |
| Type: | Brushless Sensored |
| Current (Continuous/Peak): | 160A/1050A |
| Cell Count: | 3-6S LiPo |
| Motor Limit: | 4S LiPo: <= 3000kV 6S LiPo: <= 2400kV (4278 motors) |
| BEC: | 6V/7.4V/8.4V @ 6A |
| Battery Connector: | XT90 |
| Dimensions: | 60x48x40.5mm |
| Weight: | 192g |
| Waterproof: | Yes, IP67 |
| Motor | |
| Type: | Brushless, Sensored |
| RPM: | 2500kV |
| No-Load Current: | 5.3A |
| Cell Count: | 3-6S LiPo |
| Number of Poles: | 4 |
| Length: | 68mm |
| Diameter: | 42mm |
| Shaft Diameter: | 5mm |
| Weight: | 455g |
ESC:
- Length: 60mm (2.36")
- Width: 48mm (1.89")
- Height: 40.5mm (1.59")
- Weight: 192g (6.77oz) (w/Wires)
- Continuous/Peak Current: 160A/1050A
- Waterproof: Yes
- Motor Limit: With 4S Lipo: KV≤3000; With 6S Lipo: KV≤2400 4278 size motor
- BEC: 6V / 7.4V / 8.4V adjustable, continuous current 6A (Switch-mode)
- Voltage Limit: 3-6S Lipo
- Programmable: Yes (via Built-in Bluetooth)
- Scale: 1/8th
- Sensored: Yes
Motor:
- KV: 2500KV
- LiPo Cells: 3-4S
- Diameter: 42mm (1.65")
- Length: 68mm (3.07")
- Shaft Diameter: 5mm (0.20")
- Weight: 455g (16.05oz)
Included Items
- 1x Hobbywing EzRun MAX8 G2S 160A ESC
- 1x Hobbywing 4268SD EzRun 2500kV G2R Sensored Motor
- 1x Instruction Manual
