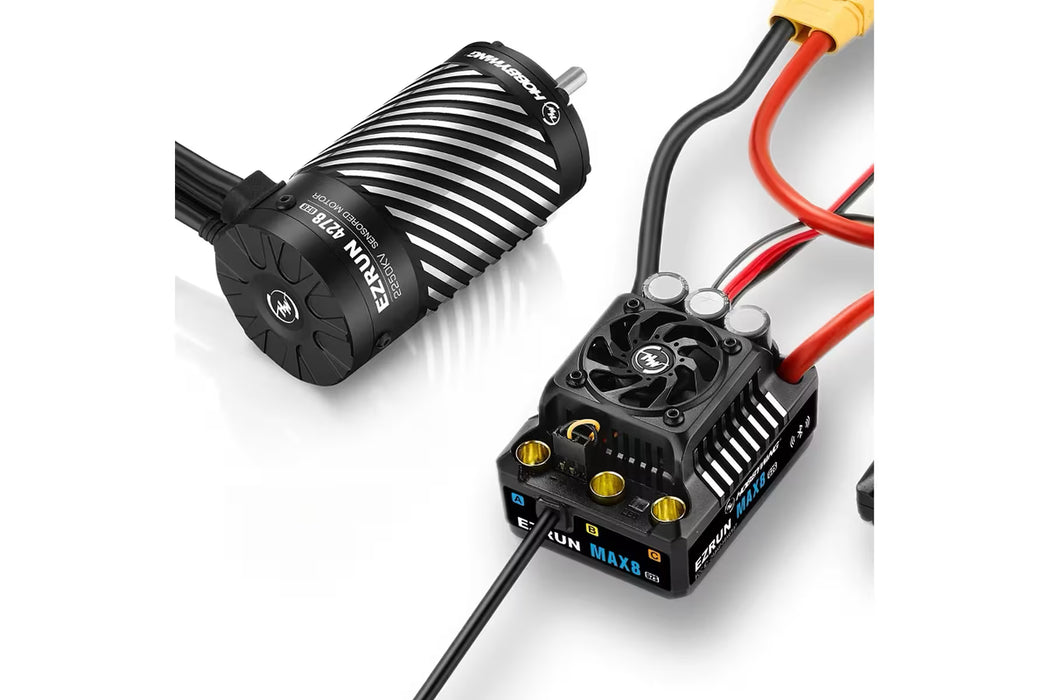

Hobbywing Ezrun Max8 160A ESC and 4278SD 2250kV Brushless Sensored Motor Combo - 38010607

Hobbywing Ezrun Max8 160A ESC and 4278SD 2250kV Brushless Sensored Motor Combo - 38010607

by technohobbies.com.au
Sold out
$399.00

Hobbywing Ezrun Max8 160A ESC and 4278SD 2250kV Brushless Sensored Motor Combo

Description

The Hobbywing EZRUN MAX8 G2S ESC Combo with 4278SD-2250KV G2R motor delivers next-level power, durability and control for serious 1/8 scale RC enthusiasts. Featuring advanced sensored brushless technology, a fully waterproof design and support for up to 6S LiPo, this combo is built for premium performance across off-road and on-road applications.

Designed for high-demand bashing, racing and crawling, the MAX8 G2S system provides ultra-smooth throttle response, strong acceleration, and reliable thermal protection—making it a top-tier upgrade for any 1/8 vehicle.

Key Features

  • Fully waterproof & dust-proof ESC engineered to withstand mud, ice, snow, sediment and standing water.
  • Powerful adjustable BEC (6V / 7.4V / 8.4V, 10A continuous) ideal for high-voltage servos.
  • Advanced electronic switch offers improved durability compared to standard mechanical switches.
  • Up to 32° turbo timing for significant RPM increases (up to ~25% with matching G2R motor).
  • Multiple built-in protections, including:
    • Low-voltage cutoff
    • ESC & motor overheat protection
    • Signal loss protection
    • Current overload protection
  • Real-time telemetry & tuning via the HW LINK app when used with the Hobbywing OTA Bluetooth module.
  • Firmware upgradable using the LCD G2 Program Box or OTA Programmer.
  • Sensored brushless control enables ultra-refined throttle response under all driving conditions.

Specifications

Motor

  • Type: Sensored
  • KV RPM (Revolutions Per Minute) per Volt: 2250KV
    2250KV
  • Sensored (Uses sensors for precise speed and position control): Yes
  • Length: 78mm
  • Diameter (Diameter of the motor can): 42mm
  • Shaft Diameter: 5mm

ESC (Electronic Speed Controller)

  • For Motor Type: Brushless Sensored
  • Max Voltage: 22.2V
  • Waterproof Design: Yes
  • Burst Amps: 1050A
  • Continuous Amps: 160A
  • Motor Connectors 6.5mm Bullet
  • Battery Connector: XT90
  • LVC Low Voltage Cut-Off. Required for Lithium batteries: Yes
  • Programmable: Yes
  • Cooling Method: Fan
  • BEC Voltage: 8.4V, 6V, 7.4V
  • Dual Motor: No

ESC Specifications – EZRUN MAX8 G2S in Summary

  • Suitable Scale: 1/8
  • Continuous / Peak Current: 160A / 1050A
  • Motor Type: Sensored & sensorless brushless
  • Battery Input: 3S–6S LiPo
  • Motor Limits:
    • 4S LiPo: ≤ 3000KV
    • 6S LiPo: ≤ 2400KV (4278 size)
  • BEC Output: 6V / 7.4V / 8.4V (10A, switch-mode)
  • Programming Port: Shared with Fan interface
  • Switch Type: Electronic
  • Capacitor Protection: Yes
  • Waterproof: Yes
  • Dimensions: 60 × 48 × 40.5 mm
  • Weight: 192g
  • Connectors:
    • Input: XT90
    • Output: 6.5mm gold plugs (female)

Ideal For

  • 1/8 scale off-road Buggies, Truggies and Monster Trucks
  • On-road 1/8 scale platforms
  • Builds running 3S–6S LiPo
  • Drivers seeking smoother throttle response and stronger power delivery than a traditional sensorless setup

Why Choose the MAX8 G2S Combo?

  • When paired with the included 4278SD-2250KV G2R motor, the MAX8 G2S system delivers:
  • exceptional torque
  • consistent power on 3S–6S
  • detailed telemetry
  • ultra-smooth sensored control
  • improved efficiency and cooler temps
  • A premium, versatile and performance-focused upgrade for any 1/8 scale build
