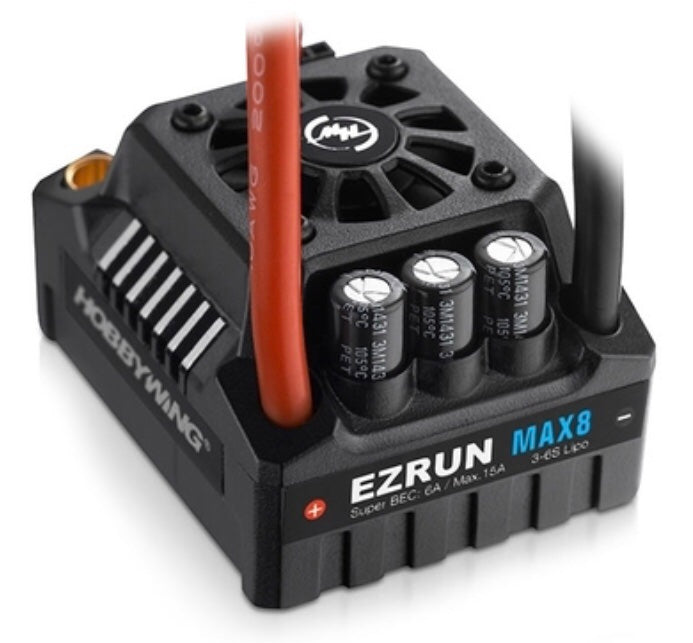

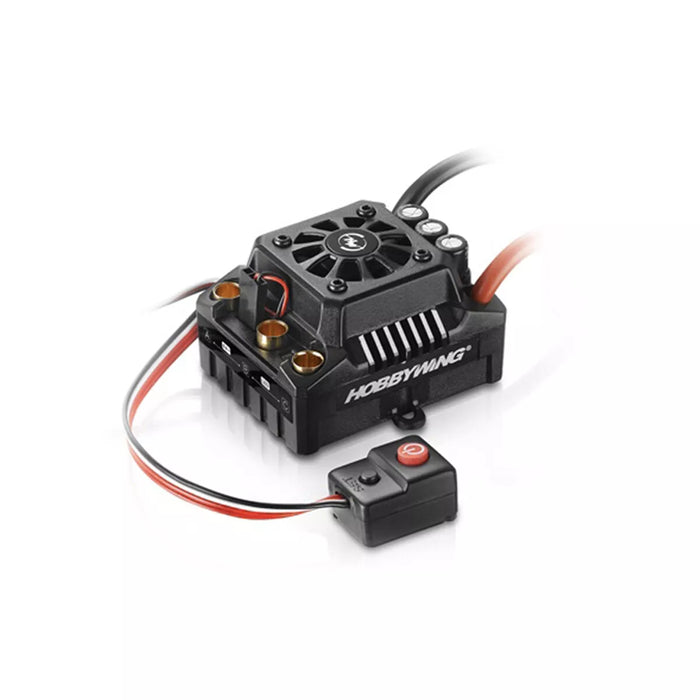

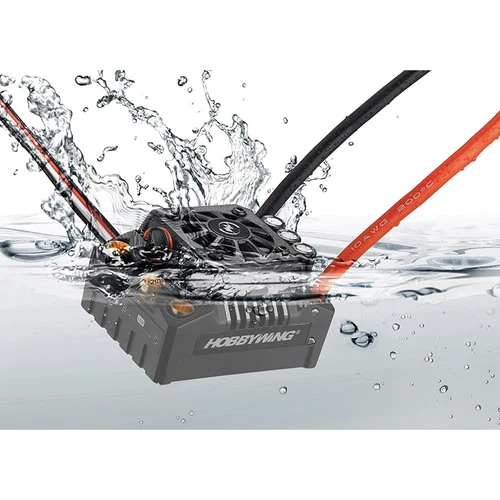

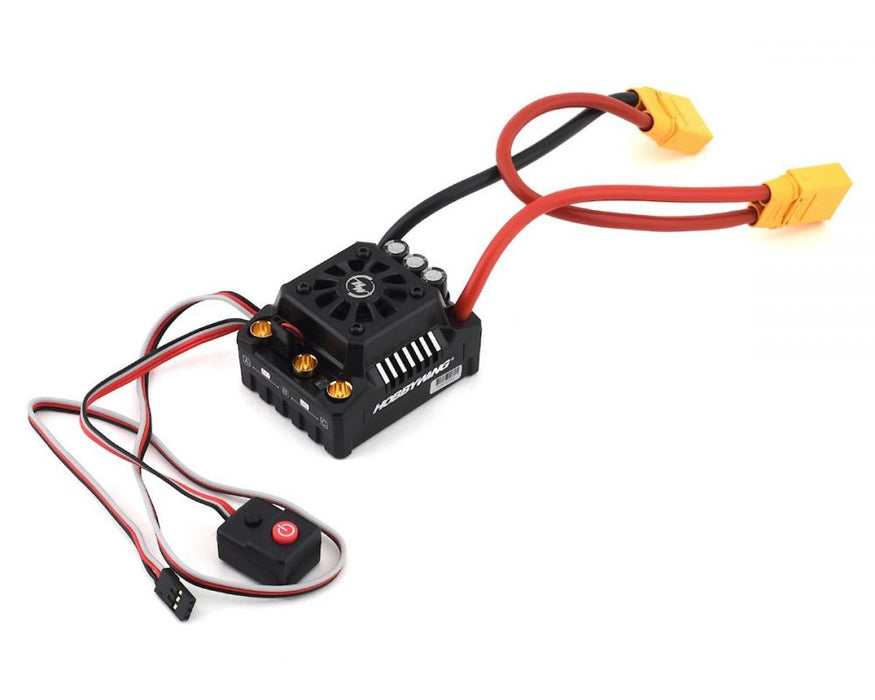

Hobbywing EZRUN MAX8 150A Waterproof Brushless ESC Sensorless 3-6S Li-Po-30103200
Hobbywing 30103200 EZRUN MAX8-V3 150Amp Brushless ESC Dual XT90 plug
Hobbywing EzRun Max8 150A ESC XT90 Plug for 1/8 RC Car (item number: 30103200) With Program Card
Type
Scale: 1/8
Brushed/Brushless: BL
Sensored/Sensorless: SL
Waterproof: Yes
HobbyWing EzRun MAX8 150A Features:

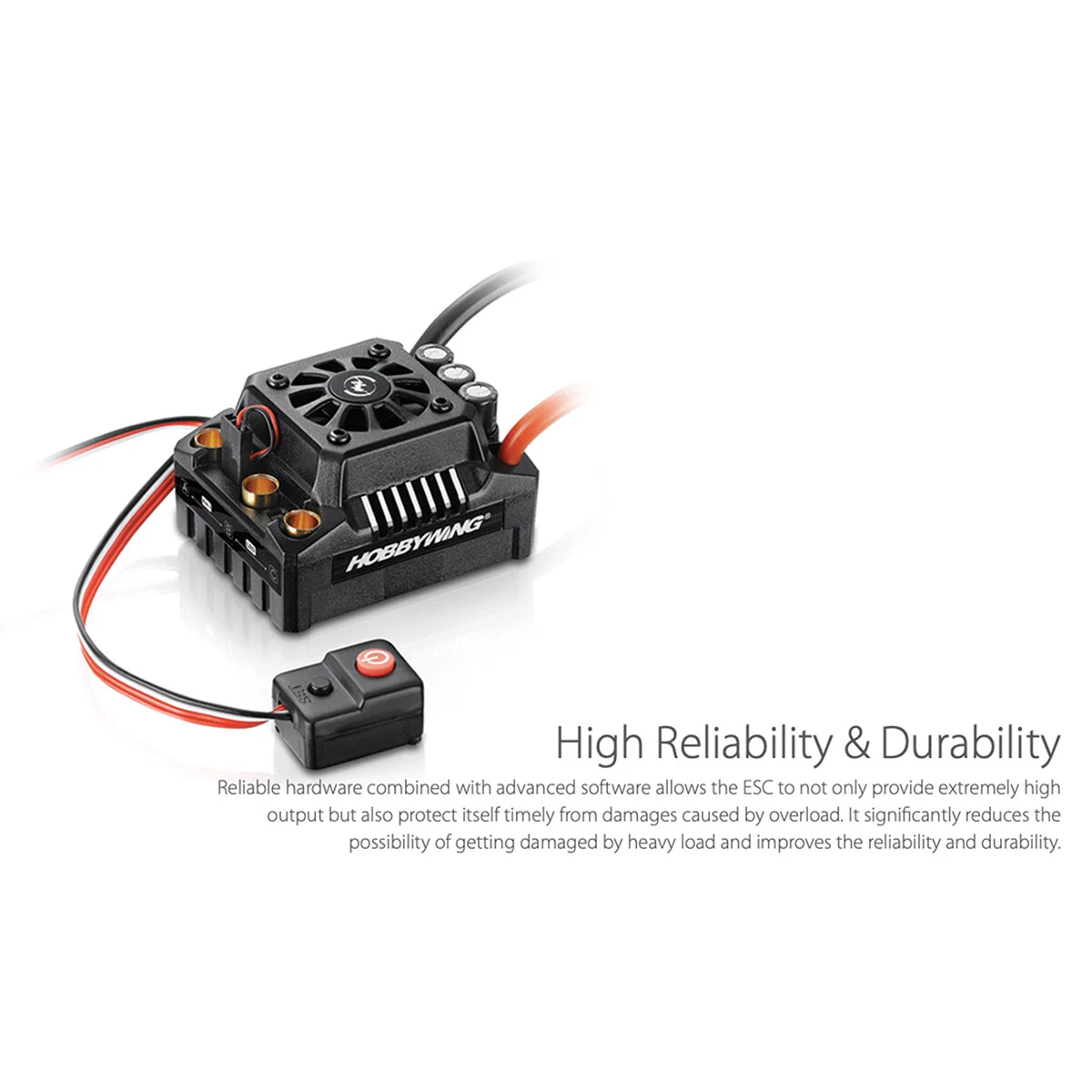

- High Reliability & Durability
- Great Flexibility & Versatility
- Advanced and Secure Electronic Switch
- Applicable to All Weather Conditions
- Super Built-in BEC
- Plug and Play
- Almost Maintenance Free
- Scale: 1/8th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Waterproof: Yes
- Cont./Peak Current: 150A/950A
- Input: 3-6S LiPo/9-18 Cells NiMH
- BEC Output: Switch Mode:6V/7.4V,6A
- Input Wires: Red-10AWG-200mm*1/Red-10AWG-150mm*1/Black-10AWG-150mm*1
- Output Wires: Black-10AWG-200mm*3
- Input Connectors: XT90 Series dual

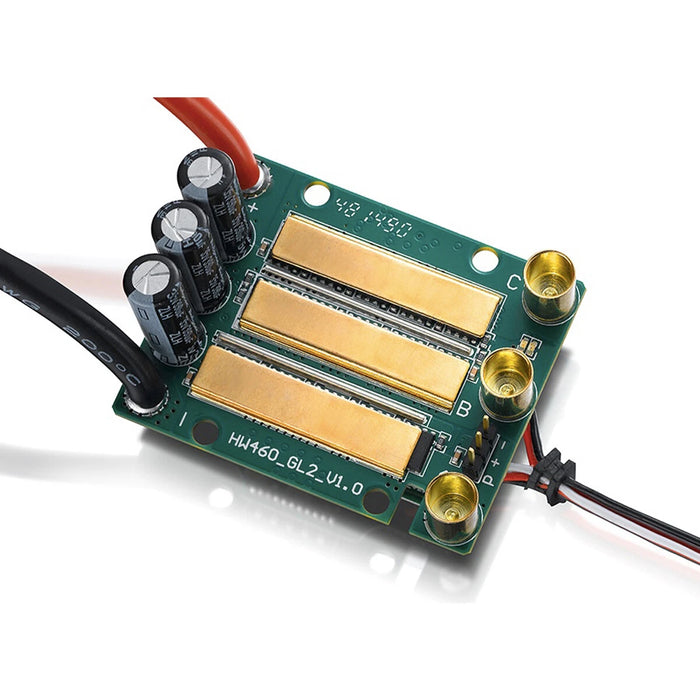

- Output Connectors: 6.5mm Female Gold Connectors (pre-soldered onto the PCB)
- Fan Size: 30.0x30.0x10.0mm
- Fan Voltage Range: 5-7.4V
- WiFi Module: Supported
- Program Port: FAN/Program Port
- Size: 59.8x48.0x36.8mm
- Weight: 174g
Specifications
Cont/Peak Current: 150A/950A
Input Voltage: 3-6S LiPo/9-18 Cells NiMH
BEC Output: Switch Mode: 6V/7. 4V, 6A
Wires & Connectors
Input Wires: Red-10AWG-200mm*1/Red-10AWG-150mm*1/Black-10AWG-150mm*
Output Wires: Black-10AWG-200mm*3
Input Connectors: XT90
Output Connectors: 6.5mm Female Gold Connectors(pre-soldered onto the PCB)
Fan
Size: 30x30x10mm
Voltage Range: 5-7.4V
Powered by: Powered by BES
ESC Programming via
SET Button on ESC: Supported
LED Program Box: Supported
LCD Program Box: Supported
WiFi Module: Supported
Program Port: FAN/Program Port
Firmware
Firmware Upgrade: Supported
Size & Weight
Size: 59.8 x 48 x 36.8 mm
Weight: 174g
Application
Motors: SL BL Motors/SD BL Motors(only in SL mode)
Vehicles: 1/8 Touring Car/Buggy/Truck
KV Rating/T Count: 4S LiPo: KV≤3000/6S LiPo:KV≤2400(40XX Series of Motors）
Package Included:
1 x Hobbywing EzRun MAX8 150A ESC XT90 Plug
1 x Hobbywing LED Program card
