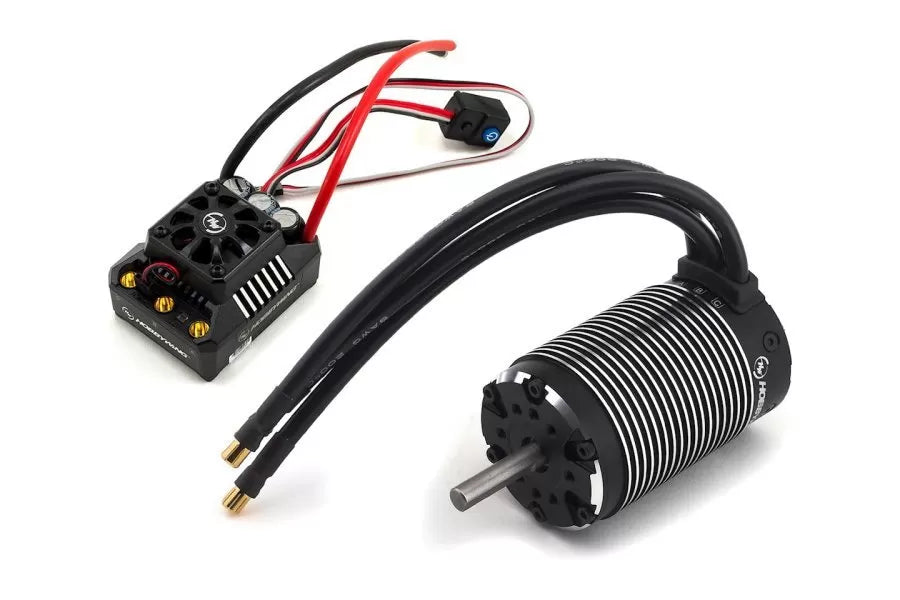

Hobbywing EzRun Max6 5687SL 1100Kv Brushless 160A Motor and ESC Combo - 38010802
$469.00
Hobbywing EzRun Max6 5687SL 1100Kv Brushless 160A Motor and ESC Combo - 38010802
Overview
Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX6 is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error. This ESC is applicable to various 1/6th & 1/7th scale vehicles like the Traxxas XO-1, and also suitable to various 1/8th scale heavy vehicles like the CEN GST-E. It's the ideal option for high-end aggressively powered builds.
With incredible acceleration capabilities and a rock-solid, stable output, the MAX6 can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.
The MAX6 has adopted the world’s first HV built-in BEC with an output current of up to 25Amp and a switchable output voltage of 6V-7.4V. The high voltage BEC is designed to handle today’s high voltage servos on demand used by large scale vehicles. The MAX6 also features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.
The MAX6 is built with internal anti-spark circuitry that protects not only battery connectors from damage but helps to prevent physical injury due to burnt fingers from the inevitable issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).
The waterproof and dust-proof design allows the MAX6 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust
With incredible acceleration capabilities and a rock-solid, stable output, the MAX6 can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.
The MAX6 has adopted the world’s first HV built-in BEC with an output current of up to 25Amp and a switchable output voltage of 6V-7.4V. The high voltage BEC is designed to handle today’s high voltage servos on demand used by large scale vehicles. The MAX6 also features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.
The MAX6 is built with internal anti-spark circuitry that protects not only battery connectors from damage but helps to prevent physical injury due to burnt fingers from the inevitable issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).
The waterproof and dust-proof design allows the MAX6 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust
The Hobbywing EZRun MAX6 Sensorless Brushless ESC & Motor Combo includes the 5687SL 1/6 & 1/5 scale, 1100kV motor and is a great option for high-end, aggressively powered, large scale 8S builds.
HobbyWing EzRun MAX6 V3 Features:
- High Reliability & Durability
- Great Flexibility & Versatility
- Advanced and Secure Electronic Switch
- Applicable to All Weather Conditions
- High Voltage Built-in BEC
- Advanced and Secure Electronic Switch
- Regular Firmware Updates - Free of Charge
- Built-in Anti-Spark System
- Maintenance Free
Specifications
Motor:
- Model: 5687SL-1100KV
- Pole: 4
- KV (No-load): 1100KV
- Resistance: 0.0041 Ω
- Current (No-load): 4.1 A
- Max Output Power: 5800 W
- Current at the point of M.O.P: 200 A
- Motor Diameter: 56mm
- Motor Length: 87mm
- Shaft Diameter: 8.0mm
- Shaft Length: 31.0mm
- LiPo Cells: 3-8
- Weight: 916g (32.21oz)
- Applicable: 1/5th RC Vehicles Truck/Dragster
ESC:
- Continuous Current: 160A
- Peak Current:
- Peak Current:
- Peak Current: 1,050A
- Motor Type: Sensorless Brushless Motor
- Applications: 1/6th Touring Car, Buggy, Truggy and Truck
- Motor Limit: With 6S LiPo/18S NiMH: KV ≤1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ≤1200 (5892 size motor)
- LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
- BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
- Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
- Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
- Size (LxWxH): 70x56x46.5mm
- Weight: 240g
- Programming Port: FAN /PRG Port
ESC (Electronic Speed Controller) | |
---|---|
For Motor Type: | Brushless |
Max Voltage: | 29.6 |
Continuous Amps: | 160 |
Motor Connectors: | 6.5mm Bullet |
Battery Connector: | N/A |
LiPo Cut-off: | Yes |
Programmable: | Yes |
Waterproof Design: | Yes |
Cooling Method: | Fan |
BEC Voltage: | 6,7.2 |
Dual Motor: | No |
Motor | |
---|---|
Motor Type: | Brushless |
Can Length (mm): | 56 |
Can Diameter (mm): | 87 |
KV (RPM/V): | 1100 |
Shaft Diameter (mm): | 8 |
