Overview

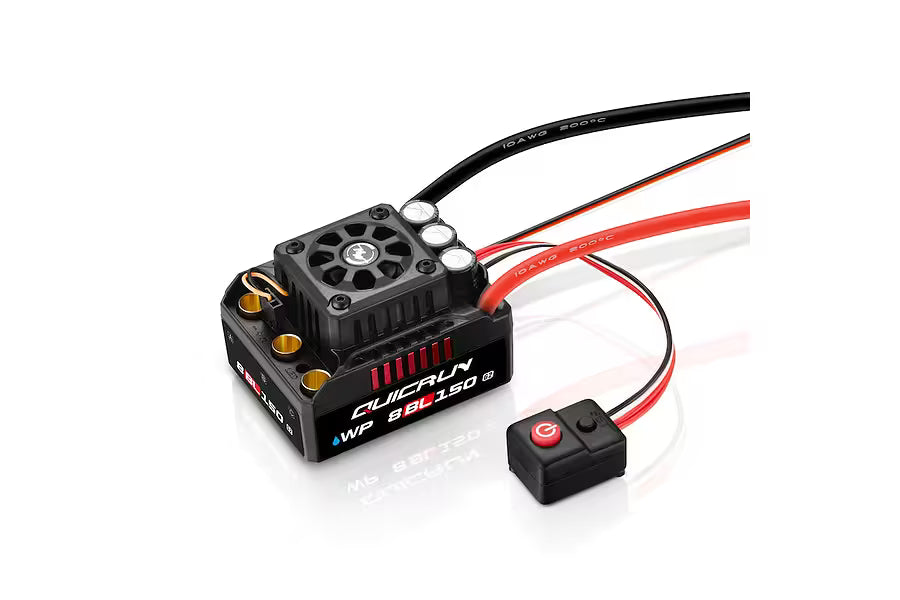

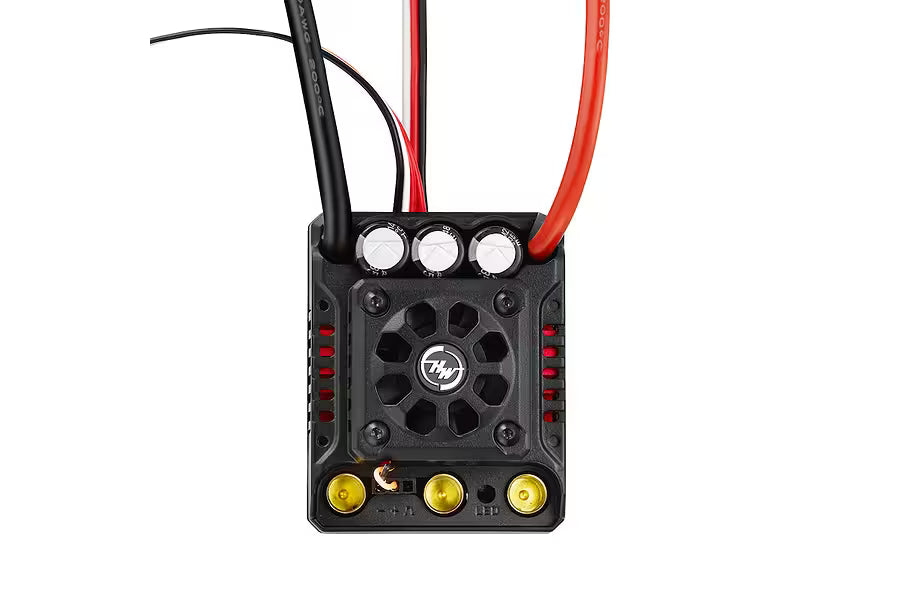

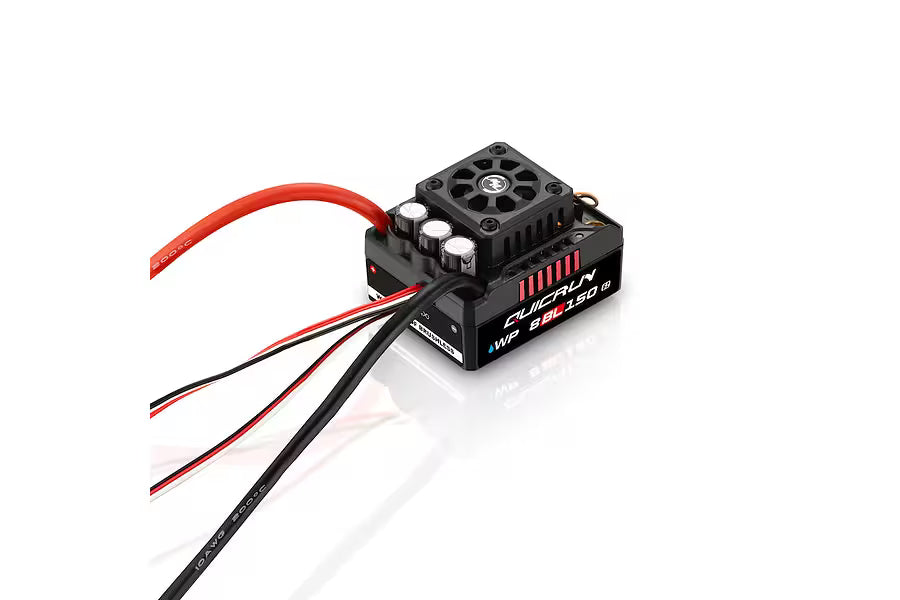

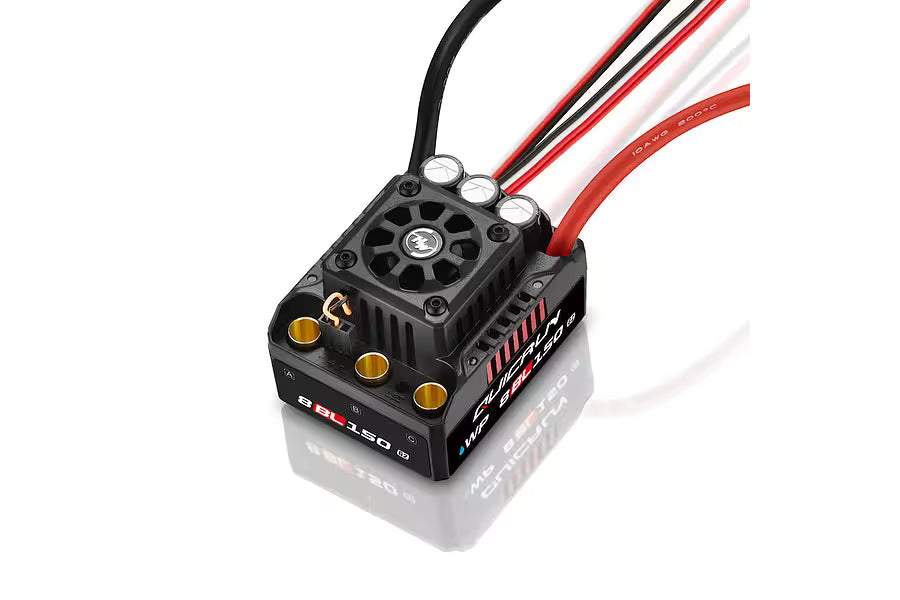

The Hobbywing QuicRun WP 8BL150G2 150amp ESC is a second-generation, waterproof 150-amp electronic speed controller designed for 1/7 and 1/8 scale RC buggies, monster trucks, and bashing setups.
Key Specifications & Features
- Scale & Type: 1/8th scale, brushless, sensorless ESC
- Current Ratings: 150A continuous current and 950A peak current
- Battery Support: 3S–6S LiPo (or 9–18 cell NiMH) [
- BEC Output: Switchable between 6V and 7.4V with a continuous 6A (and up to 12A peak) to support high-voltage servos
- Waterproofing: IP67-rated water and dust resistance
- Cooling & Protection: Features a patented copper heat conduction bus bar on the internal power board, an integrated cooling fan, and capacitor overheating protection
- Smart Freewheeling: Intelligent freewheel technology increases efficiency and lowers operating temperatures
-
Specifications
| Product Name | QuicRun WP 8BL150 G2 | |
| Product Number | 30109003 | |
| Type | Scale Brushed/Brushless Sensored/Sensorless Waterproof |
1/8th Brushless Sensorless Waterproof |
| Specifications | Cont./Peak Current Input Voltage BEC Output |
150A/950A 3-6S Lipo Switch Mode 6V/7.4V @6A |
| Wires & Connectors | Input Wires Output Connectors |
Black-10AWG-150MM / Red-10AWG-150MM 6.5mm Gold (female) |
| Fan | Type Size Voltage Range Powered by |
Framed 30x30x10mm 5-7.4V Powered by BEC |
| ESC Programing via | SET Button on ESC LED Program Box LCD G2 Program Box (STOPPED) LCD PRO OTA Programmer WiFi Module (STOPPED) Program Port |
Not Supported Supported Supported Supported Not Supported Not Supported Shared with fan port |
| Firmware | Firmware Upgrade | Not Supported |
| Size & Weight | Size Weight |
60*48*40.4mm 169.5g(Included wires) |
| Applications | Motors Vehicles KV Rating/T Count |
Sensorless / Sensored Brushless Motor (only in sensorless mode) 1/8th Truck, Monster truck With 4S Lipo: KV ≤ 3000 With 6S Lipo: KV ≤ 2400 4274 size motor |
